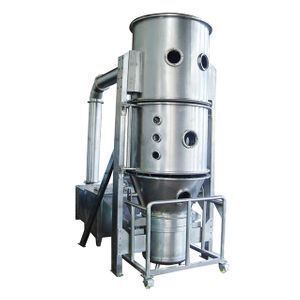

FL-200 Factory Supply High Performance Vertical Fluid Bed Dryer Price

Supplier: ZHEJIANG LEADTOP PHARMACEUTICAL MACHINERY CO.,LTD
Region: Zhejiang, China
Contact: Ms Serene Sun
Price: $40000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power(W):	Electronic Heating: 45Kw Steam Heating: 20Kw;	Dimension(LWH):	Main Machine: 8008003500mm;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Weight:	2000kg(main machine);
Key Selling Points:	High Performance;	Voltage:	based on customer requirment;
Function:	Drying with granulating and drying with Coating;	After-sales Service Provided:	Engineers available to service machinery overseas;
Type:	Fluid Bed Drying Equipment;	After-sales Service Provided:	Online support;
Standard:	GMP;	Heating System:	Steam,Electronic,oil and coal are available;
Brand Name:	LTPM CHINA;	Supply Ability:	8 Set/Sets per Month;
Operation System:	PLC control with touch screen operation;	Ceritification:	CE;
Condition:	New;	Application:	Medicine Processing,Pharmaceutical factory;
Certification:	CE;	Warranty:	1 year;
Place of Origin:	Zhejiang China;	Model:	FL-200;
Manufacturer:	LTPM CHINA;	Item Name:	Fluid Bed Drying Machine;
Capacity:	100-180kg/batch;	Packaging Detail:	Fluid Bed Drying Machine packed in Export Standard Wooden Case with anti moisture dryer inserting to ensure safety transportation during long time sea shipment.;
Applicable Industries:	Hotels,Farms,Home Use,Pharmaceutical factory;	Port:	Ningbo or Shanghai;

Product Description
The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.

Application
1.Drugs granulation and coating
2.Granulation: Tablet particles, granule particles, capsule particles
3.Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating
4.Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food
5.Pesticide, paint pigment, dry granulation Powder, granules, block materials

Functions
1.By using powder granulation, to improve the liquidity and thinner dust.
2.By using powder granulation, to improve solubility property.
3.Mixing—granulation—drying can be finished in one device (one-step granulation)
4.To adopt antistatic filtering mediums, to ensure safe operation.
5.Caking agent atomizer adopts multi-fluid spray gun to maintain uniform spray particles and to increase the rate of qualified products greatly.
6.No dead-corner of equipment; it is easy and rapid of feeding or discharging materials and clean of washing to satisfy the GMP standard.

Technical Parameter

Model	200
Volume (L)	670
Amount to be treated (kg/per time)	100/300
Power of fan (kw)	30
Consume of steam 0.4MPa(kg/h)	282
Consume of compressed air (m³/min)	1.1
Noise,dB (A)	(fan is installed separately) ≤75
Main machine height (m)	2.34×1.7×3.8

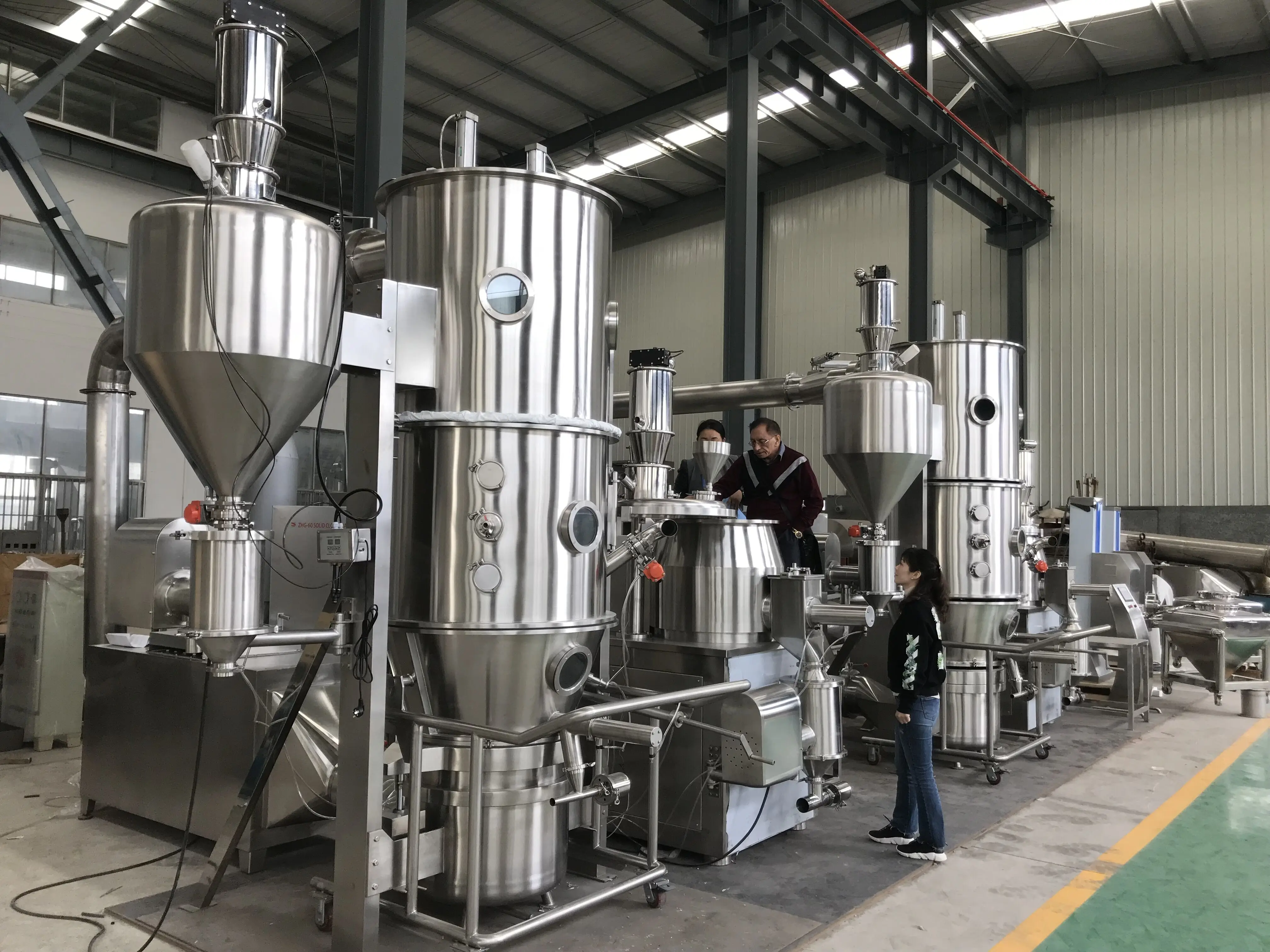

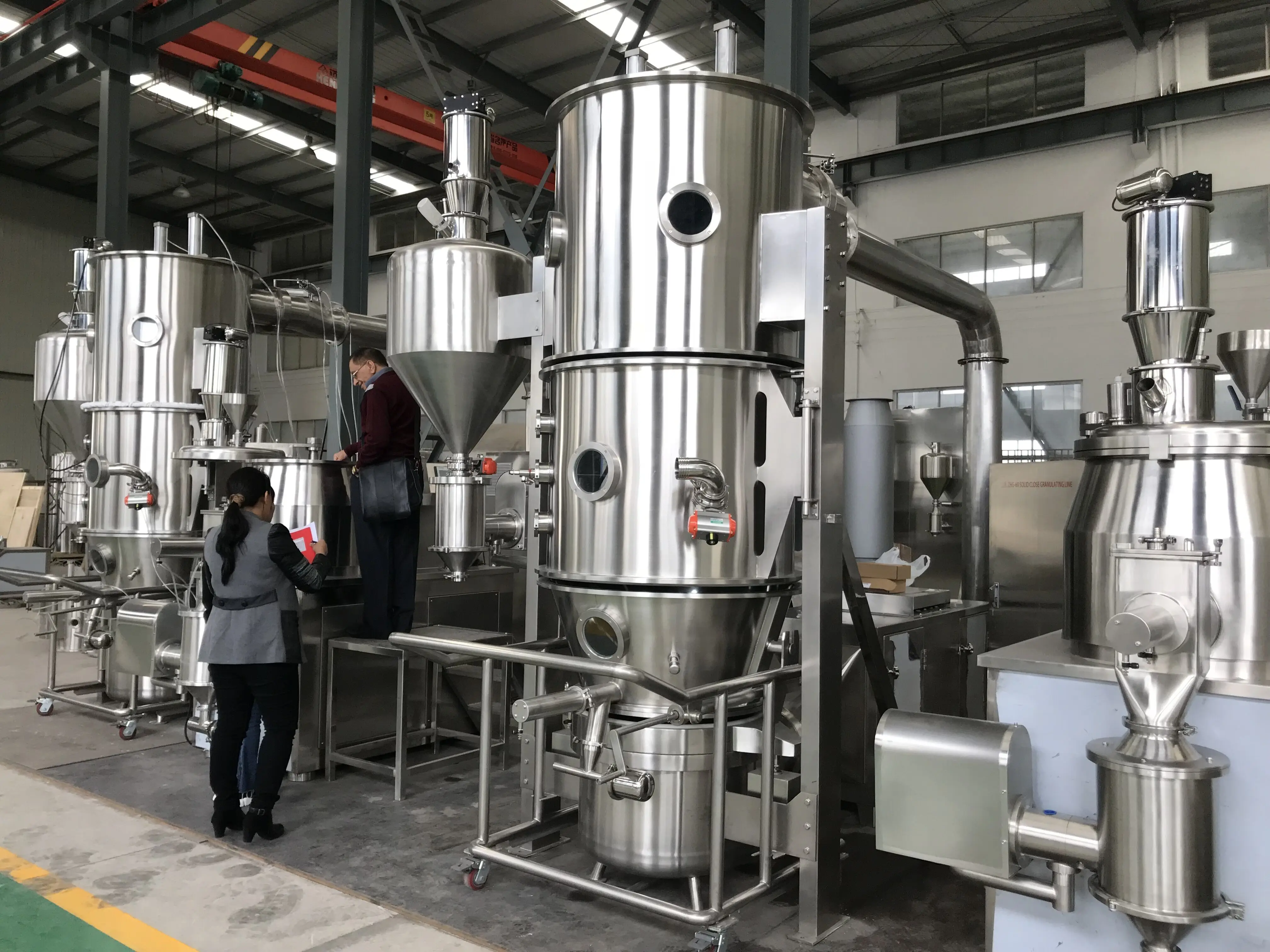

Customer Acceptance Picture

Q: What price terms you offer?

A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.

Q: What payment terms you take?

A: TT, LC, other terms are also workable.

Q: Will you help with installation and stuff training?

A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.

Q: How can I visit your factory?

A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
