LTDH-1000 High Efficiency Hemp Oil Extraction Machine,hemp oil extractor

Click here to contact
Product details
Packaging Detail:Oil Extraction Machine wrapped with strech film packed into Export Standard Wooden case, this package afford long time sea shipment and anti moisture.;Warranty:1 Year;
Type:Extraction and concentration;Place of Origin:Zhejiang China;
Supply Ability:25 Set/Sets per Month Oil Extraction Machine;Heating area of the main tank:4m2;
Total volume of the extractor:1100L;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Cash and Credit card are available;
Brand Name:LTPM CHINA;Input liquid:500~700kg(L);
Steam consumption:250~270kg/h;Production Capacity:250~270kg/h;
Item:Oil Extraction Machine;Port:Ningbo City or Shanghai City;
Model:LTDH-1000;After-sales Service Provided:Online support;
Condition:New;After-sales Service Provided:Engineers available to service machinery overseas;
Circulation water for cooling:~10T/h;Applicable Industries:Food & Beverage Factory,Farms,Restaurant,Pharmaceutical factory;
Cooling area of the condenser:11m2;Voltage:220V;
Certification:CE;Dimension:2700*3100*4700mm;
Usage:hemp oil;Automatic Grade:Automatic;

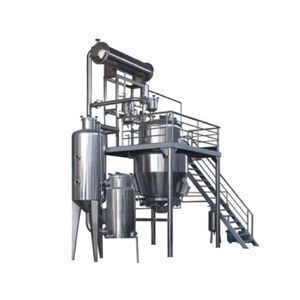

High Efficiency Herbal Oil Extraction Machine

Product Description

LTDH-1000 High Efficiency Special Oil Extraction Equipment Line suits for extraction of herbal material, such as rose oil, zedoary turmeric oil, star anise oil, litsea cubeba oil, patchouli oil, peppermint oil, lavender oil. It is easy for operating and with high oil extraction rate. It meets for GMP standard.



Functions

1.It adopts the steam distillation tank for waterextraction(wet steaming), heated by jacket and steam generator.

2.It can completelyeliminate rust taste, and the color difference technology problems of fragrantessential oil.

3.Please mixing at regular time when the wetsteaming, make the herbal(such as rose and water fully mixed) and improve thefinished oil rate.

4.Make the vapor liquid cooling more rapidlyand thoroughly though the condenser and the cooler.

5.The high precision innersurface makes the oil condensate flow smoothly. Whole body stainless steel, save area andeasy operation.





Technical Data

Working capacity of the extractor

1000L

Total volume of the extractor

1100L

Input liquid

500~700kg(L)

Heating area of the main tank

4m2

Cooling area of the condenser

11m2

Steam consumption

250~270kg/h

Circulation water for cooling

~10T/h

Dimension

2700×3100×4700mm




Hempseed oil

The appearance and characteristics are very close to the low iodine value of linseed oil, but slightly greenish.

The approximate fatty acid composition is: 10.1% saturated acid, 16% oleic acid, 46% linoleic acid, and 28% linolenic acid.

The acid value is 3 mg KOH/g, the iodine value is 149-167, and the relative density is 0.925-0.933 (15/15 ° C). The freezing point is about 16 °C.

The main ingredients are glycerides of linoleic acid, linolenic acid and oleic acid.

Used in industries such as paints and soaps.



Mechanical Detail









Q: What price terms you offer?

A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.



Q: What payment terms you take?

A: TT, LC, other terms are also workable.



Q: Will you help with installation and stuff training?

A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.



Q: How can I visit your factory?

A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
