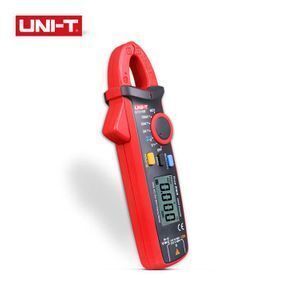

UNI-T UNI T UT210E True RMS Mini Digital Clamp Meters AC/DC Current Voltage Auto Range VFC Capacitance Non Contact Multimeter

Click here to contact

Product details

Single gross weight:	0.4 KG;	Auto Range:	Yes;
Measuring Capacitance Range:	2nF/20nF/200nF/2μF /20μF/200μF/2mF/20mF;	Display Count:	2000;
Dimensions:	175mm x 60mm x 33.5mm;	Model Number:	UT210E;
Selling Units:	Single item;	Brand Name:	Uni-T;
Measuring Resistance Range:	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ;	Diode:	Yes;
Measuring Inductance Range:	NONE;	Auto Power Off:	Yes;
Jaw Capacity:	17mm;	Data Hold:	Yes;
Measuring Current Range:	2A/20A/100A;	NCV:	Yes;
Place of Origin:	Guangdong China;	V.F.C.:	Yes;
Color:	Red and grey;	Single package size:	17.5X6X3.35 cm;
True RMS:	Yes;	Operating Temperature:	0~40;
Display Type:	Analog and Digital;	Measuring Voltage Range:	2V/20V/200V/600V;
Weight:	170g;

Product Description

Specifications	Range	UT210E
AC current (A)	100A	±(2.5%+5)
DC current (A)	100A	±(2%+3)
AC voltage (V)	600V	±(1%+3)
DC voltage (V)	600V	±(0.7%+3)
Resistance (Ω)	20MΩ	±(1%+2)
Capacitance (F)	20mF	±(4%+5)
Features
Display count		2000
Continuity buzzer		√
Auto range		√

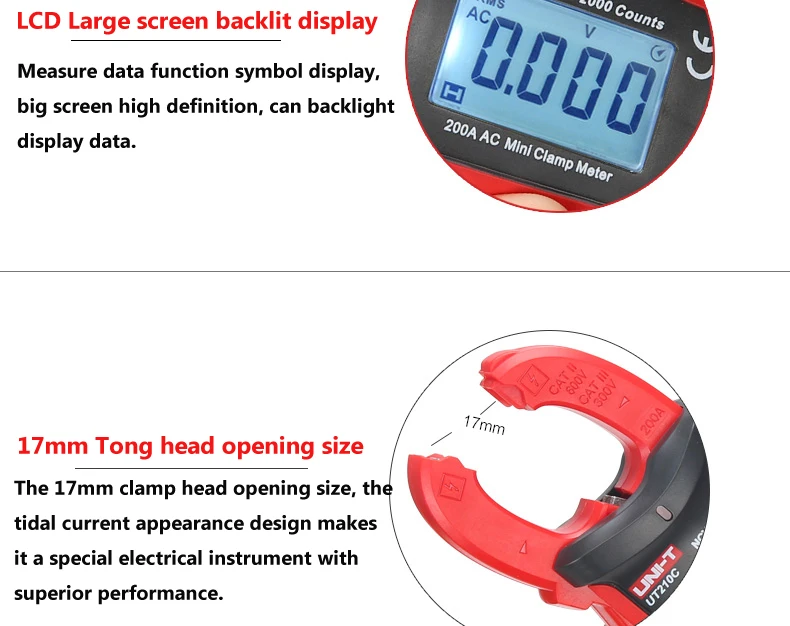

Jaw opening		17mm
Diode test	Around 3.0V	√
General Characteristics
Power	1.5V battery (R03) x 2
Display	39.3mm x 26.5mm
Product color	Red and grey
Product net weight	170g

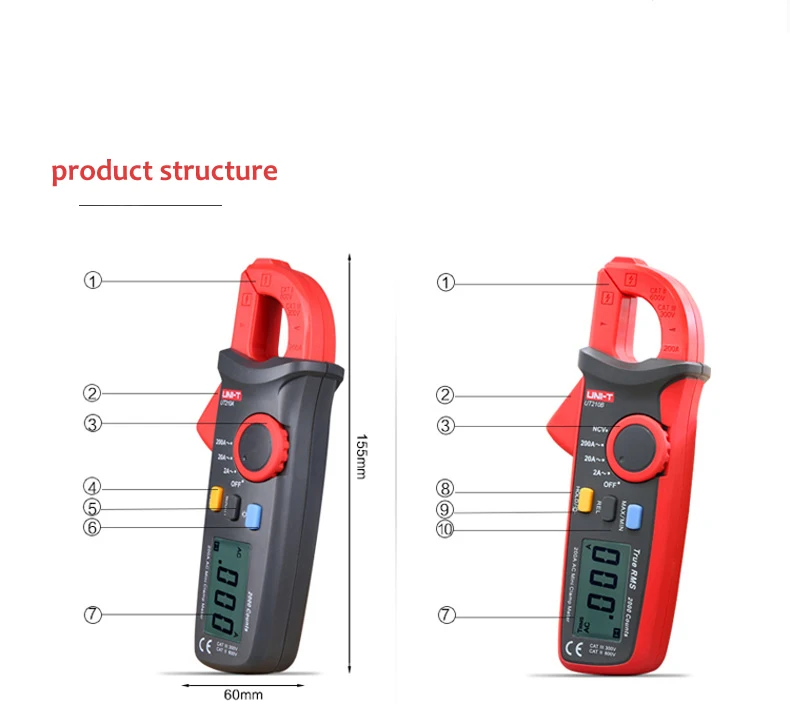

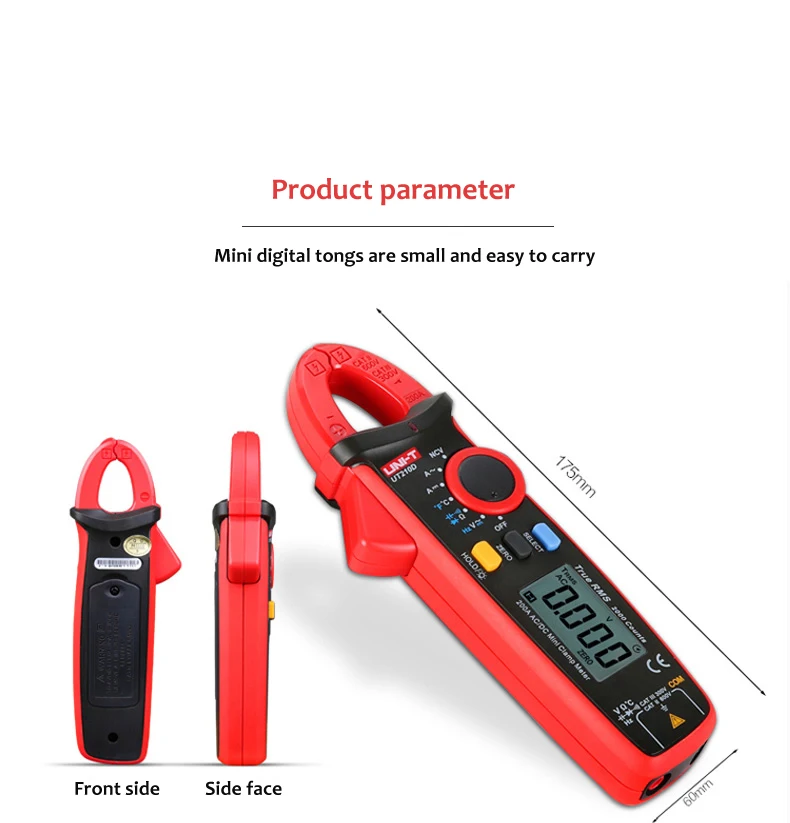

Product size	175mm x 60mm x 33.5mm
Standard accessories	Batteries, test leads
Standard individual packing	Gift box, English manual, carrying bag
Standard quantity per carton	40pcs
Standard carton measurement	385mm x 345mm x 305mm
Standard carton gross weight	13.6kg
