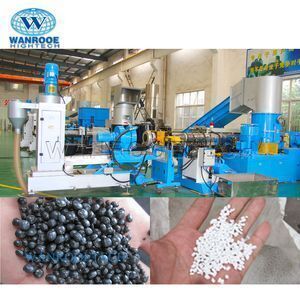

1000Kg/h PE PP Film Recycling Granulator Plastic Granulating Machine

Supplier: Wanrooe Machinery Co., Ltd. (Zhangjiagang)
Region: Jiangsu, China
Contact: Mr Anthony Xia
Price: $9000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	WANROOETECH;	Applicable Industries:	Manufacturing Plant;
Color:	Optional;	Capacity:	150-1000kg/h;
Screw Dia:	85 100 130 160 180;	Weight:	variable;
Product name:	PE PP Film Recycling Granulator Plastic Granulating Machine;	Payment Terms:	L/C,T/T,Western Union;
Warranty:	1 year;	Warranty:	1 Year;
After-sales Service Provided:	Online support, Video technical support;	Supply Ability:	500 Set/Sets per Year PE PP Film Recycling Granulator Plastic Granulating Machine;
Certification:	CE/ISO;	Type:	Granulating Production Line;
Capacity:	80-1000KG/H;	Port:	Shanghai;
Power:	70kw;	Condition:	New;
Voltage:	380V or as per client's request;	Certification:	CE ISO;
Keywords:	Plastic Film Granulating Machine;	Temperature Controller:	Japan RKC;
Machine Type:	Double Stage;	Place of Origin:	Jiangsu China;
Raw material:	PP PE Film;	Material:	PP/PE;
Screw Design:	Double;	Packaging Detail:	PE PP Film Recycling Granulator Plastic Granulating Machine wrapped with Standard Export Packing;
Dimension(LWH):	variable;

1000Kg/h PE PP Film Recycling Granulator Plastic Granulating Machine

Product Description

In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phone number, e-mail, facebook, whatsapp, wechat, etc.)

Description:

Double stage pelletizing line is especially good for the raw material which contain high moisture, high impurities.

The first stage extruder adopts exhaust type barrel screw, which can effectively de-gassing and eliminate the moisture and contamination;

And the second extruder usually adopts small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion.

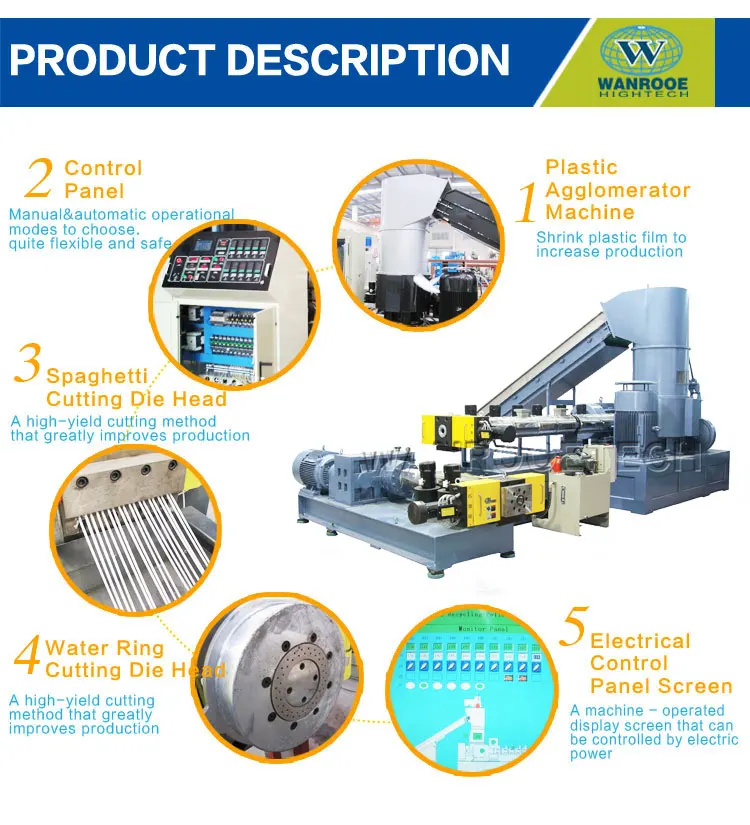

Components:

Process flow:
Conveying feeding→ Metal detector →Film Agglomerator /Compactor →1# Degassing screw extruder →1# Hydraulic filer exchanger→2# screw extruder →2# Hydraulic filer exchanger→ Mould head →water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hopper→ Finished product packing.

Detailed description of each items:
1. Conveyor: convey PP PE film or flakes into compactor.
2. PE film Agglomerator /Compactor: crushing and compress film, and feed compressed film into extruder forced, to make the production capacity high and stable.
3. 1# Extruding system: plasticizing material and exhausting gas.
4. 1# High speed Net exchanging system: filter material impurity, to make production more stable.
5. 2# Extruding system: plasticizing material.
6. 2# High speed Net exchanging system and Die-head: Second filter material impurity, to make production more stable.
7. water ring pelletizing machine: cutting pellets in water.
8. Water tank: cooling pellets.
9. Dewater machine: make pellets dry.
10. Vibration sieve: remove bad pellet and keep good pellet.
11. Air Blower: convey good pellets into silo.
12: Storage silo: keep pellet.

Equipment List:

1	Belt conveyer (can equip the metal detector )
2	Agglomerator /Compactor machine
3	1# Extruder
4	1# Die head and screen changing device
5	2# Extruder
6	2# Die head and screen changing device
7	Water ring cutter
8	Vibrating screen
9	Vertical dewatering machine
10	Air drying system
11	Cyclone hopper

Features :
1. Allow free assembling of the screw component, based on raw material type.
2. Using the suitable die head for palletizing, such as water ring cutting, under-water cutting and hot face cutting.
3. High efficient force feeder ensures stable high capacity material feeding, low power consumption.
4. Main screw has vacuum exhaustion.
5. Water ring granulator machine, attached with dryer. 6. Single screw extruder, with specially designed screw, barrel, venting system, ensure the good quality of the final products.
7. Pelletizing style: standard cutting with extrusion mould. Even cutting ensures with good shape.

PP PE Film Double Stage Granulating Machine Applications:
Applicable plastic materials: PE, HDPE, LDPE, PP, BOPP, PET,PA/Nylon, etc
Material shapes: film, bag,fiber,rope scrap
Material types: rolls, loose, bundled
Material comes from offcut, industry defective materials, washed materials and printed materials .
Note: depending on different material properties, various downstream equipments are needed.

Model	PNHS-85/85	PNHS-100/100	PNHS-130/130	PNHS-160/160	PNHS-180/180
Screw Dia. (mm)	85	100	130	160	180
L/D	25-36	25-36	25-33	25-33	25-33
Capacity (kg/h)	120-180	200-250	400-500	450-700	500-1000
