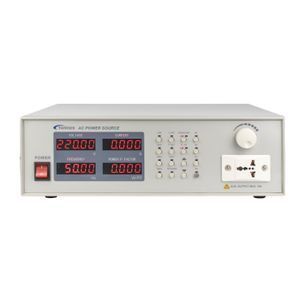

2KVA AC Power Supply APS-5102 Programmable Laboratory Variable Frequency Converter IGBT AC Power Source

Supplier: Twintex Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms Lily CHEUNG
Price: $500.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Payment Terms:	L/C,T/T,Western Union,Paypal;	Output Voltage:	High range 300V, Low Range 150V;
Output Power:	2KVA;	Frequency stability:	≤0.01%;
Packaging Detail:	Double-Layer cartons;	Communication interface:	RS232;
Input Voltage:	220Vac;	Port:	Shenzhen;
Function:	Preset output voltage, output frequency;	Fast key:	for 110V, 220V, 50Hz, 60Hz;
Harmonic distortion:	≤2% (resistive load, L=120V, H=240V);	Model Number:	APS-5102;
Supply Ability:	500 Piece/Pieces per Month;	Output Frequency:	45~250Hz, step 0.1Hz;
Place of Origin:	China;	Output Type:	Single;
Protections:	OCP, OLP, OTP and short circuit protections;	Brand Name:	TWINTEX;
Output Current:	High range 2.1A, Low Range 4.2A;	Resolution:	0.01Hz / 0.01V / 0.001A;

2KVA AC Power Supply APS-5102 Programmable Laboratory Variable Frequency Converter IGBT AC Power Source

Features
Full range adjustable output: Low 1-150V, High 150.1~300V, resolution 0.01V
Output frequency: 45-250Hz
Fast output key for 110V/220V and 50Hz/60Hz
Panel lock function
3 sets memories for voltage and frequency settings
Unlimited rotary knob for voltage and frequency adjustment, minimum step 0.001
Strong overload capacity, overload 300% within 2s
Withstand transient current 1.5 times of rated current within 0.1s
Response time less than 20ms for 100% load and unload
5 digits high accuracy LED display for voltage, current, frequency, active power, power factor
With soft-start function, set voltage rise time (0~99.999s), avoid damage by surge current during load start-up
Over load, over current, over temperature and short circuit protections
RS232 interface (APS51 Series)

Specifications

Model		APS-51005	APS-5101	APS-5102	APS-5103
Capacity		500VA	1KVA	2KVA	3KVA
Circuit mode		IGBT/SPWM
Input		1φ2W, 110V/220V±10%, 47-63Hz
Output
Phase		1φ2W
Voltage		Phase voltage 1.0V-150.0V, Line voltage 1.0-260.0V Phase voltage 150.1V-300.0V, Line voltage 260.1V-520.0V
Frequency		45-250Hz, step 0.1Hz
Max. current	L=120V	4.2A	8.4A	16.8A	25A
	H-240V	2.1A	4.2A	8.4A	12.5A
Load regulation		≤1%
Line regulation		≤1%
Harmonic distortion		≤2% (resistive load, L=120V, H=240V)
Frequency stability		≤0.01%
Crest factor		1.41±0.10
Efficiency		≥75%
Response time		Max. 20ms
Frequency resolution		0.01Hz
Voltage resolution		0.01V
Current resolution		0.001A		0.01A
Power resolution		4 digits LED, resolution 0.001W /0.001kW
Power factor resolution		3 digits LED, resolution 0.01
Measuring accuracy	Voltage	±0.5%full scale +5 digit
	Current	±0.5%full scale +5 digit
	Frequency	±0.01%full scale +5 digit
	Power	±0.5%full scale +5 digit
Setting accuracy	Voltage	±1%full scale
	Frequency	±0.1%full scale
Communication interface		RS232
Preset function		Preset output voltage, output frequency
Fast key function		Fast key for 110V, 220V, 50Hz, 60Hz
Alarm function		Audible and visual alarm once protective device activated; display error code on LED
Protection		Fast-response circuit to detect over current, over load, over temperature and short circuit; Output will be shut down in protection mode.
Cooling		Cooling fan
Operation environment		0℃-40℃, ≤90% RH(Non-condensing), Altitude: 2000 feet
Dimension (mm)		430Wx133xH480D		430Wx222Hx480D
Weight (kg)		16.5	21	30	33
