TWINTEX LCR-7200A 12Hz to 200kHz Adjustable Digital Benchtop High Precision LCR Meter Impedance Meter Continuous Frequency

Supplier: Twintex Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms Lily CHEUNG
Price: $500.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Basic Accuracy:	0.05%	Supply capacity:	500 pieces per month
payment terms:	letter of credit, wire transfer	place of origin; place of origin:	Guangdong, China
Packaging Details:	Double carton	port:	Shenzhen
Output Impedance:	30Ω, 100Ω	interface:	RS232, USB host, processor
Accuracy class:	0.05%	Test frequency:	12Hz~200kHz
product name:	High precision LCR meter	Certificate:	Chief Executive
Calibration function:	Open circuit, short circuit, load	Warranty:	1 year
model:	LCR-7200A	type:	LCR meter
Measurable resistance range:	0.01mΩ - 99.999MΩ	memory:	Built-in 100 sets of memory, external 500 sets of U disk
brand:	double spinning	Test level:	0.1V, 0.3V, 1V
List Mode Features:	10 steps

Product Description

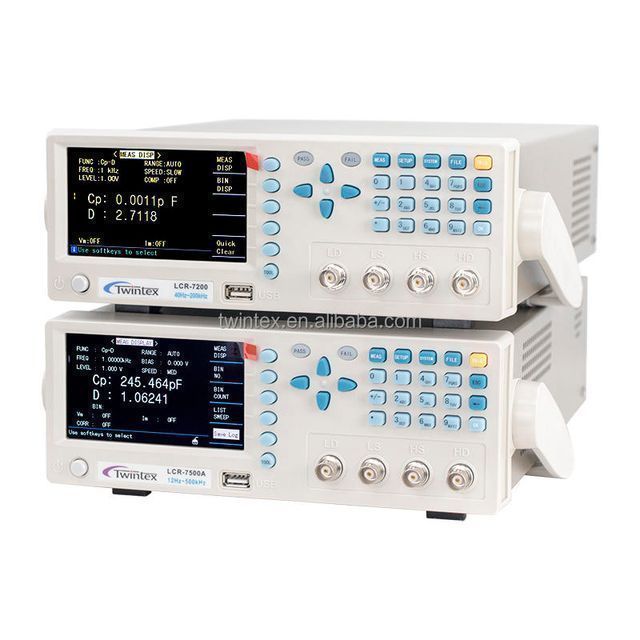

High Precision LCR Meter LCR7000A is a compact desktop professional LCR meter with 4.3 inch TFT LCD display.

The digital LCR meter test frequency range is 100kHz, 200kHz, 300kHz and 500kHz. The basic test accuracy is 0.05%.

Digital LCR meters can be used to test passive components such as incoming inspection, passive component production and sorting.

feature

>>>32-bit core processor >>>5-digit 4.3-inch TFT LCD display >>>4-channel signal source output impedance: 30Ω, 100Ω, 10/100, /10CC >>>List Mode Function, 10 Steps >>>100 sets of memory for internal storage/saving >>>500 U disk storage/save memory, support FAT16 and FAT32 files >>>Save the last parameter settings before power off >>>Standard interface: RS-232, HANDLER, USB HOST, USB Device, FOOT C, earphone

Specification
Model	LCR-7100A	LCR-7200A	LCR-7300A	LCR-7500A
Measurement function
Test parameters	\| Z\|, \|Y\|, C, L, X, B, R, G, D, Q, θ , DCR
Test signal frequency	12Hz~100kHz	12Hz~200kHz	12Hz~300kHz	12Hz~500kHz
Minimum frequency step	0.1MHz
Basic accuracy	0.05%
Equivalent Circuit	Series Parallel
math function	Absolute Deviation and Percent Deviation
range mode	Auto, Hold, Manual selection
Trigger method	Internal, Manual, External, Bus
Measuring speed	Fast: Max 75, Medium: 12, Slow: 3 (times/sec) (≥1kHz)
Average times	1-255
delay	0-60s, step size 1ms
Calibration function	Open circuit, short circuit, load
display mode	Direct, Δ, Δ%, V/I (monitor test voltage and current)
exhibit	6-digit 4.3-inch LCD display (480x272 RBG5)
list mode	10 steps
measurement signal
output impedance	30Ω, 100Ω, 10/100, 10/CC
Test level and accuracy	Normal: 5mV~2Vrms, accuracy 10%, minimum step size 1mV, maximum test current 20mA Constant level: 5mV~1Vrms, accuracy 6%, minimum step size 1mV
DC bias source	0V, 1.5V, 2V accuracy 1%
Measurement display range
\|Z\|, R, X	0.01mΩ - 99.9999 MΩ
DCR	0.001 mΩ - 99.9999 MΩ
\|Y\|, G, B	0.00001µS - 99.9999S
C	0.00001 pF - 9.99999 F
large	0.00001µH – 99.9999kH
D	0.00001 - 9.99999
ask	0.00001 – 99999.9
θ (degrees)	-179.999º - 179.999º
θ (RAD)	-3.14159 - 3.14159
Δ%	-999.999% ~ 999.999%
Comparator and Interface
Comparators	10 bins (9 through 1 fail) and 1 AUX bin
memory	100 groups of memory for internal parameter setting storage/saving 500 groups of U disk parameter settings storage/save
Standard interface	Standard: RS232, USB HOST, HANDLER, EAR PHONE, PEDAL interface
Optional interface	GPIB
general
Operating environment	0°C - 40°C, ≤80%RH
energy source	110/220V±10%, 47~63Hz
energy consumption	≤50VA
Accessories	4-Terminal Kelvin Test Clip Leads, RS232 Cable, Power Cord, Operator's Manual
aspect	265W100H340D mm
weight	About 4.5 kg
