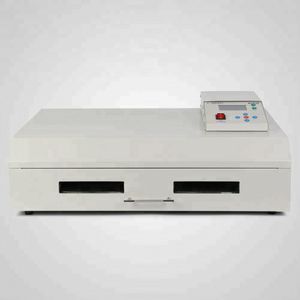

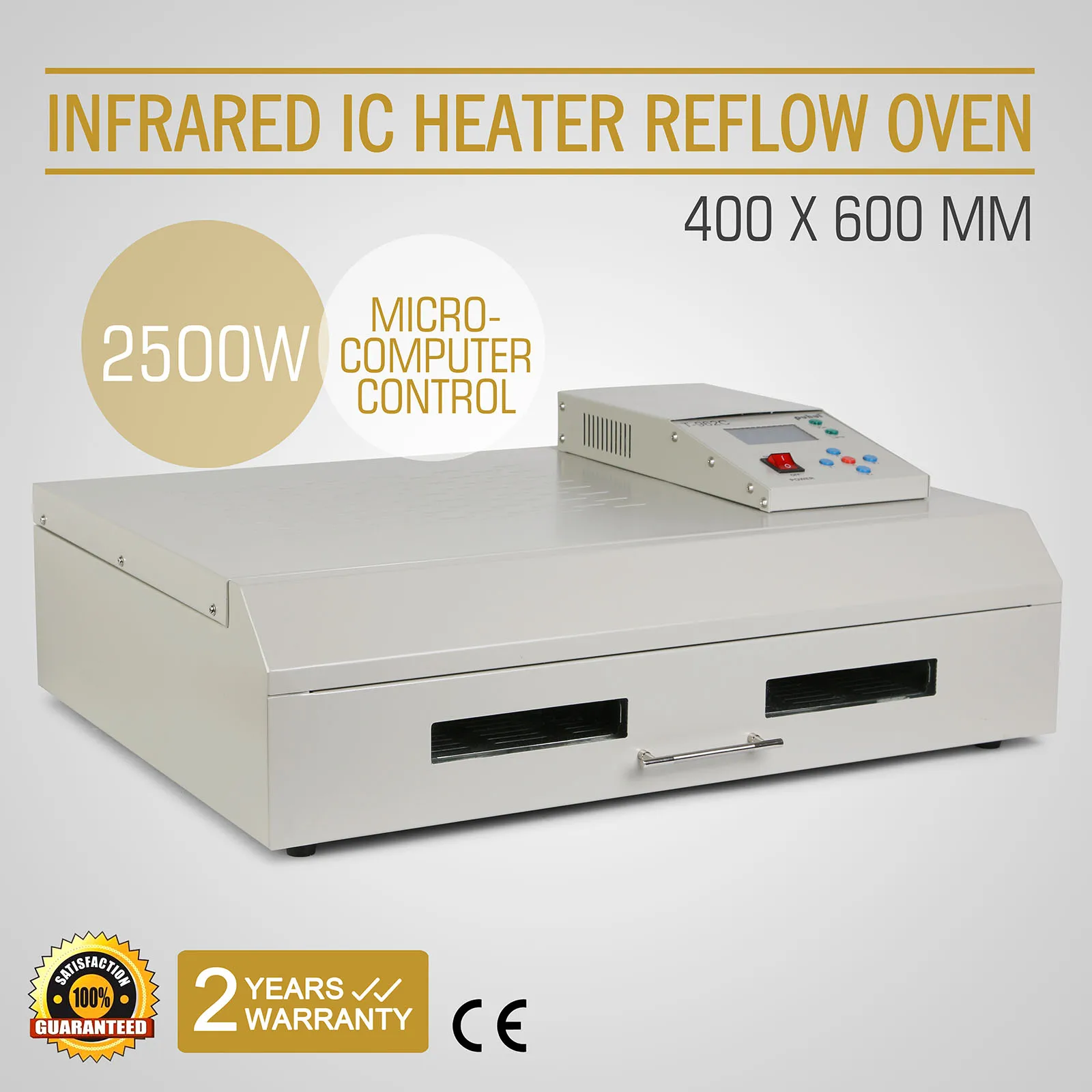

Reflow Soldering Machine T962C Reflow Oven 2800W 400 x 600 mm Infrared Heater Soldering Machine Automatic

Reflow Soldering Machine T962C Reflow Oven 2800W 400 x 600 mm Infrared Heater Soldering Machine Automatic

Infrared IC heater T-962C works automatically by micro-computer control. Can satisfy a dissimilarity SMD,BAG Soldering a request. Whole soldering process to complete automatically, easy to use, Adoption fast infrared radiation and circulation the wind for heat, so the temperature is very Accurate and even. The faintness controls a technique and Can see the drawer type work bench , Make whole soldering process at you of the under surveillance automatic completed; Can soldering the most smart small part.Adopted a high and dependable design, make what you use gratifying and rest assured.
Select the wave:
(1) The equipments install and adjusts to try:
Place this machine in the well ventilated even on the stage, assure well ventilated fluency of machine, Can't have a combustible product, The drawer outwardly, Reserve the space that the drawer opens, The convenience operate, The machine around request about 20 mm for body heat loss; check the power supply if AC 110V or not,If right, put the power cable to connect the power supply,open the power on button,the LCD will light on the panel and go to main menu page.
Press “F4” button, change to English Menu.
In the main menu,Press “F3” button selection different temperature wave:example the wave one:
Press “F3” button again,can see parameter about you choose the temperature wave: soldering paster sort. soldering temperature,time etc. example:
Press “F4” button to return previous page, Press the temperature wave that the”F1” key carries out to make selection automatically, The work shuts down automatically after end,warning buzzer is working.
In the main menu page,press “ F2”button by handcraft operation.
Press “F1” button to start cooling, Press F1/S key again to stop. Press “F2” button to strat heat up, Press F2/S key again to stop.
(2) The wave select:
1 Press the “S”button selection operation interface after switch on, press the “F4” selections a different language category.
2 Process to request to set the wave comparison according to you to provide you with the reference.Press the F1/F2 choices different wave, there have 8 kinds of different temperature waves can provide you with the choice, press F3 to look into different wave parameter, press 4 confirm wave.
Wave one, use the same with 85Sn/15Pb 70 Sn/30Pb
Wave two, use the same with 63Sn/37Pb 60 Sn/40Pb
Wave three, use the same with Sn/Ag3.5; Sn/Cu 75 Sn/Ag4.0/Cu.5
Wave four, use the same with Sn/Ag2.5/Cu.8/Sb.5; Sn/Bi3.0/Ag3.0
Wave five, use the same with The red gum standard is solid to turn temperature wave,Heraeus PD955M.
Wave six,seven,egiht, use the same with The PCB circuit board returns to fix etc.
Press “s” button to the temperature page,
Press F1/F2 button,ahead/ backwards select different time. Press F3/F4 button ,up/down to select different temperature,Press “s” button to save.
When save finish ,press F4 button to select the temperature wave.Press S button to repetition.
Operation suggestion:
(1) The this aircraft for satisfies without the lead double-sided welding, the design has the unique air flue, for the guarantee platelet welding request, suggested when the welding platelet and BGA plant the tin ball, pulls out the base in the material to put in advance one 10x10cm PCB board, may cause the welding quality to be better.The operation suggests.
(2) The ambient temperature is low when, the humidity or the humidity too are big, suggested before the welding wants preheating the machine.The operating procedure is: After chooses the welding curve, spatial machine returns automatically welds one time.
(3) The this aircraft cannot weld the counter-optical too strong metal seal chip and the metal screening can; May not weld the withstanding temperature to be lower than 250 degree plastic plug-in units and the goods, asks respectfully the attention!
(4)Customer examination machine temperature method: Uses the standard thermometer, outside will set at the temperature probe head fixedly 10x10cm PCB stiff surface, shuts tight certainly importantly in the PCB board above! Will fix has the temperature measurement probe head PCB board, puts in the material to pull out, thrusts in the machine, like this tests the temperature comparison conforms to the product production actual situation.

Features

• Have big infrared soldering max area:Soldering area to reach effectively :400x600mm, Increase the usage scope of this machine consumedly, economical investment.
• Many temperature wave choice for you:Memory eight kinds of temperature parameter waves can be provided as choice, and establish to move heating and cool off function compulsory;Whole soldering process to complete automatically, easy to use.
• Special heat up and temperature equalization with all design:Output the power reaches to a 2500 W, Adoption fast infrared radiation and circulation the wind for heat,so the temperature is very Accurate and even, Whole soldering process to complete automatically for you choice temperature parameter waves.
• Humanized science and technology exquisite article:Firm of external appearance, can see of operation, amity of person machine operation interface, the perfect temperature wave project, from start to eventually body science and technology now is originally;
• The agile physical volume and weight, let you economize a great deal of money, the set noodles type places mode, can let you own larger space; Simple operating instructions, let you a see can use.
• Perfect function choice:Return soldering, drying, heat preservation, finalize the design, fast cool off etc.can use Can soldering the most smart small part example CHIP,SOP,PLCC,QFP,BGA etc; Can used to the gum of the product solid turn, the circuit board is hot aging, the PCB plank maintains to wait various works.Be applicable to each kind of business enterprise,company extensively develop and the small batch quantity produce a demand.

Technical

• Model: T-962C
• Soldering max area: 400 x 600 mm
• Rated power: 2500W
• Process period: 1~8min
• Supply voltage: 110V/220V
• Size: 68.4 x 50.4 x 22.5 cm
• Picking size: 19.7 in ×17 in×13 in
• Net weight: 30 Lbs
• Gross weight:34 Lbs

Including

• 1 X Main Body (T-962C)
• 1 X Power Line (We stock 110V-240V power version and US.UK.EU.AU. plugs for the country all over the world.)
• 1 X User Manual
