Precast lightweight concrete wall panel making machine/ hollow core slab machine

Supplier: Shandong Tianyi Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr. Kevin Liu
Price: $5600.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Certification:	ISO9001;
Voltage:	380V;	Supply Ability:	5000 Set/Sets per Year;
Production Capacity:	60,000m2/Year;	Weight:	3T;
Color:	Green;	Applicable Industries:	Building Material Shops,Manufacturing Plant,Construction works ;
After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Wall panel Size:	500-3000mm600mmthickness;
Raw Material:	cement, fly ash, sand,slag and other industry waste;	Wall panel Thickness:	60/75/90/100/120/150/180mm;
Features:	thermal insulation,low cost;	Packaging Detail:	1) 40' HQ container 2) according to your demand;
Port:	QINGDAO;	Product name:	precast lightweight concrete wall panel making machine;
Heating method:	Electric/water/gas;	Warranty:	1 year;
Key Selling Points:	Multifunctional;	Dimension(LWH):	303011902500;
Equipment advantage:	high output, fully automatic;	Place of Origin:	Shandong China;
Main process:	Demoulding;	Application:	producing wall panel;
Automatic Grade:	Automatic;	Wall panel Advantage:	lightweight,low cost, high strength,sound proof, rapid installation;
Payment Terms:	L/C,T/T,Western Union;	Brand Name:	TIANYI;
After-sales Service Provided:	Engineers available to service machinery overseas;	Power(W):	23.75KW;

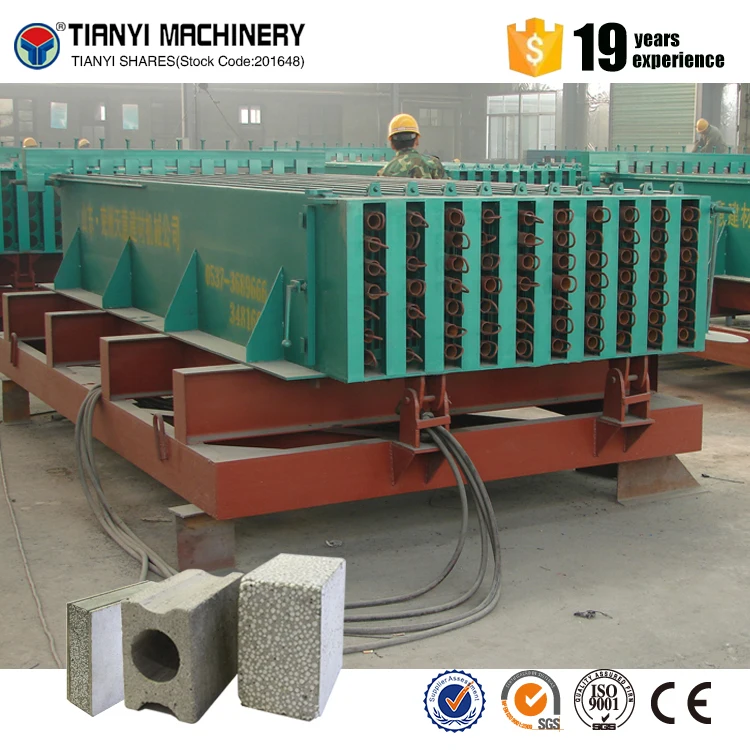

Precast lightweight concrete wall panel making machine/ precast concrete hollow core slab machine

Wall Panel Making Machine Detail description:
1.automatically control the temperature (electricity, water, steam can heat it), hydraulic pressure for moulds, equipped with secondary net setting, accurate positioning;
2.whole machine vibration, hydraulic pressure whole baffle, mating surface groove forming at one time, with high degree of mechanization;
3.This machine can produce pre-stress panels for exterior wall panel and interior wall panel (foaming panels, composite panels and hollow panels);
The performance of these panels have already reached the advanced level in these field in China.

Equipment Technical Paramaters

Overall dimension(LXWXH)mm	3030x1190x2500
Total power(kw)	23.75
Power of heating system (kw)	20
Power of vibration system(kw)	0.75
Power of hydraulic system(kw)	3
Hydraulic working pressure(Mpa)	8
Capacity of hydraulic tank(L)	70
Wall panel size	90mm type	10Pcs
	120mm type	10Pcs
	150mm type	7Pcs
Diameter and number of core tube(for hollow panel)	90mm type	Φ59.5mm 70tubes
	120mmtype	Φ74mm 60tubes

Raw materials

Cement, fly ash, river sand, tailing slags, perlite, ceramsite and other industry waste, fiber glass mesh, auxilliary chemicals, foaming agent etc..

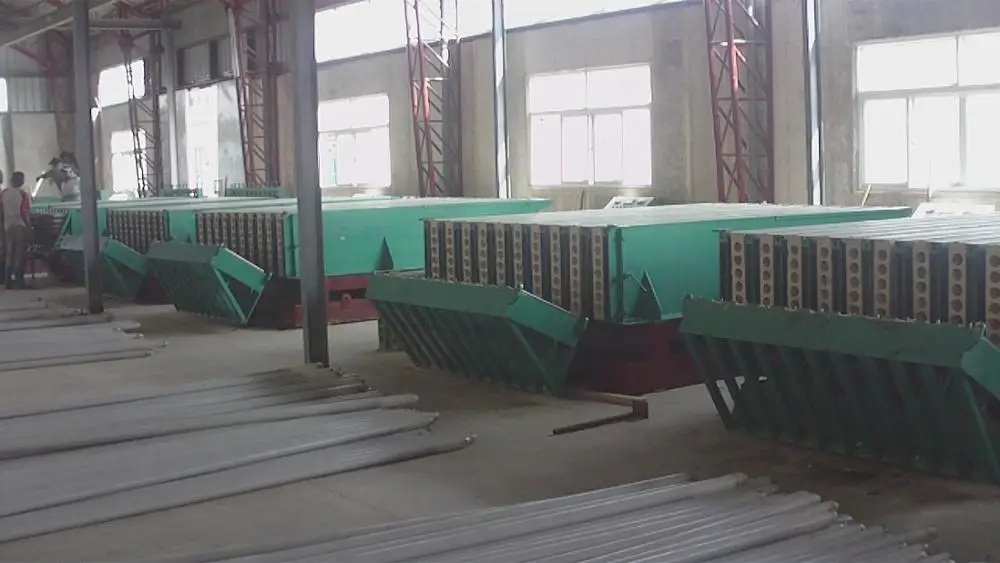

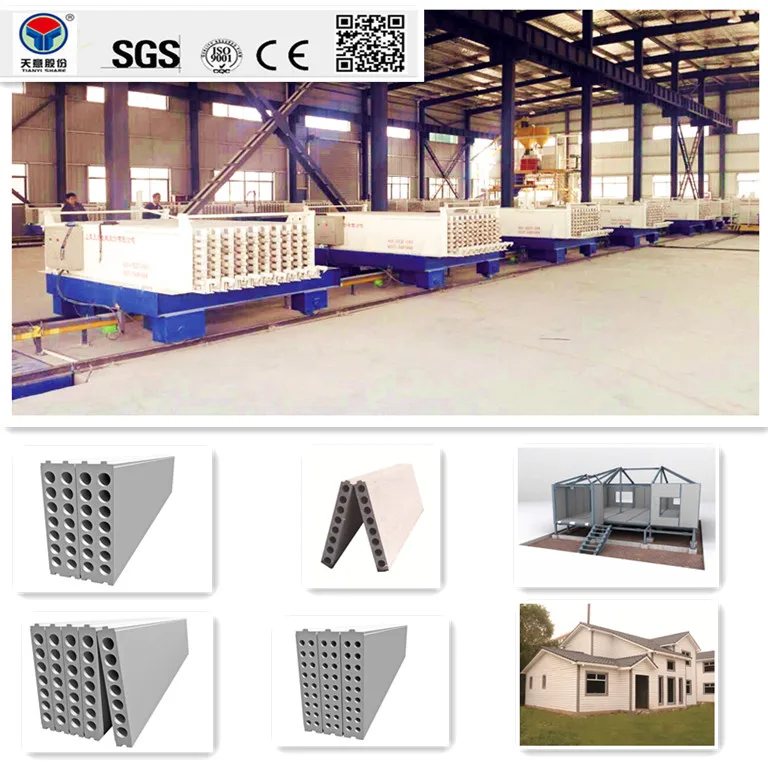

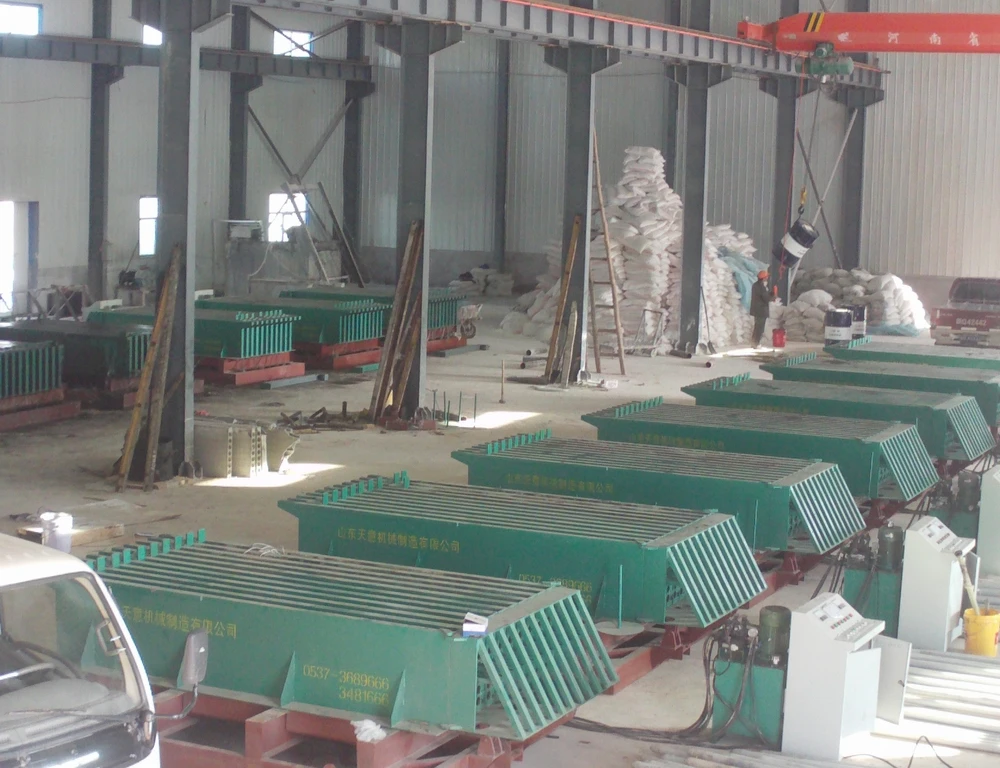

Production process

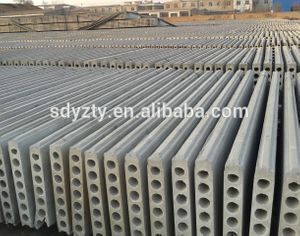

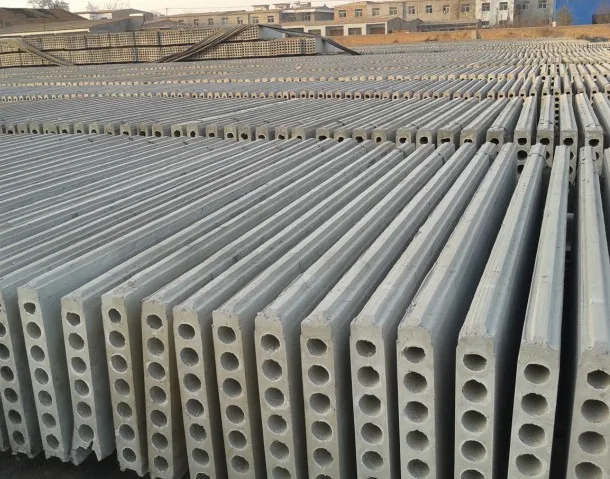

Finished wall panel

Wall panel Features

The specification of the wall panel: 500-3000mm*600mm*60/75//90/120/150/180mm

1. Light weight
2. Fire proofness
3. Water-proofness & Damp-proofness
4. Sound Insulation

5. Thermal Insulation & Heat Insulation
6. Better earthquake resistance and overall stability

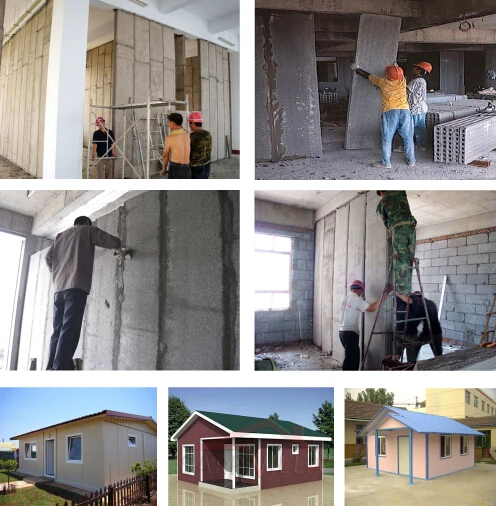

7. Easy installation

Wall Panel Technical Parameters

No.	Test Items	China standard	Product test
1	Compressive strength	≥3.5Mpa	≥5Mpa
2	Drying shrinkage value	≤0.6mm/m	≤0.37mm/m
3	Hanging force	≥1000N without 0.5mm crack in 24hours	≥1000N without 0.5mm crack in 24hours
4	Shock resistance	No damaged that Impacting of 30Kg sandbag five times	No damaged that Impacting of 30Kg sandbag five times
5	Bending resistance	≥1.5times of wallborad	≥1.5times of wallborad
6	Radioactivity	Inner radiation index Ira≤1.0 Outer radiation index IY≤1.3	Inner radiation index Ira≤1.0 Outer radiation index IY≤1.3
7	Areal density	≤90Kg/m2	≤43Kg/m2
8	Sound insulation	≥35dB	≥43dB
9	Fire resistance limit	≥1h	≥1h
10	Combustion performance	A1 or A2	A1
