Hot Sale EPS Foam Cement Sandwich Wall Panel Molding Machine

Product details
After-sales Service Provided:Engineers available to service machinery overseas;Supply Ability:1000 Set/Sets per Year;
Port:Qingdao;Place of Origin:Shandong China;
Production Capacity:60000 squ.m;Delivery Detail:30 days after receiving 30% prepayment;
Characteristics:fast production, fast delivery;After-sales Service:Engineers available to oversea;
Main process:Forming;Name:Light Weight Wall Panel Machine;
Features:Easy Operation;Warranty:1 year;
Type:Concrete Wall Panel Molding Machine;Brand Name:TIANYI;
Model Number:TY-A005;Payment Terms:L/C,T/T;
Power(W):23.75KW;Weight:5 T;
Condition:New;Strength:Sound Proof;
Voltage:380V;Application:Making wall panels;
Dimension(L*W*H):3030*1190*2500;Automatic Grade:Automatic;
Packaging Detail:standard export package;Certification:ISO CE;
Materials:cement, sand ,fly ash, eps foam;



Product Description

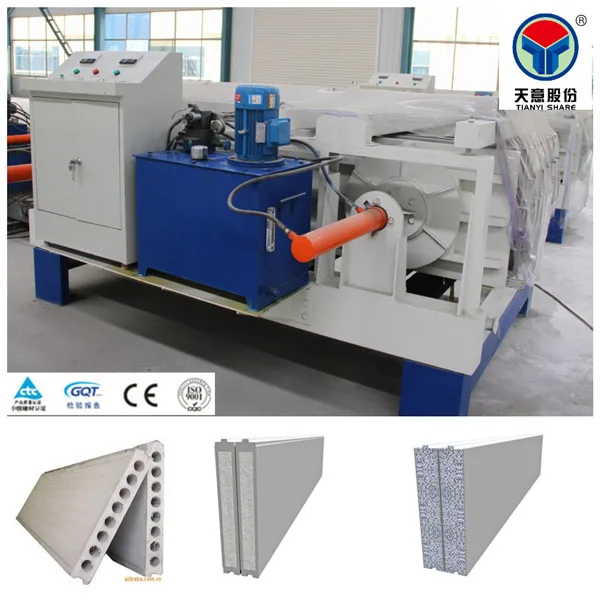

  EPS Foam Cement Sandwich Wall Panel Molding Machine



This machine is mainly used to produce the composite wall panels (with silicate calcium board as surface panel and with EPS grain, cement and fly ash as the mixed material in the middle) and suitable for both small and large manufacturing on production. It can produce 10 boards at one time.

Main Technical Parameters:

No.

Test Item

China standard

Product  test

1

Compressive strength

≥3.5MP

≥3.7MP

2

Drying shrinkage value

≤0.6mm/m²

0.37mm/ m²

3

Hanging force

≥1000N 24hours

No 0.55mm crack

≥1000N 24hours

No 0.55mm crack

4

shock resistance

No damaged that Impacting of

30kgs sandbag five times

No damaged that Impacting of

30kgs sandbag five times

5

The bending failure load

≥1.5 times of wallboard

≥2.5 times of wallboard

6

radioactivity

Inner radiation index Ira≤1.0

Outer radiation index IY≤1.3

Inner radiation index Ira≤1.0

Outer radiation index IY≤1.3

7

density

≤90kgs/m²

≤60kgs/m²

8

Air insulation of sound

≥35dB

≥43dB

9

heat transfer coefficient

No

≤2.0W/ m² . k



Raw material

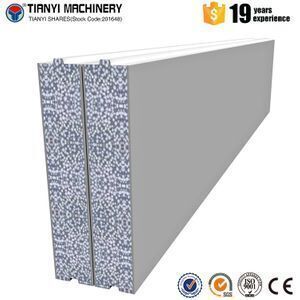

Wall panel samples

Wall pane features



1. Light weight:



Its weight is only 1/7 of that of brick walls, 1/3 of that of aerated concrete, and 1/8 of that of 120mm thick masonry wall with plastering on both sides.

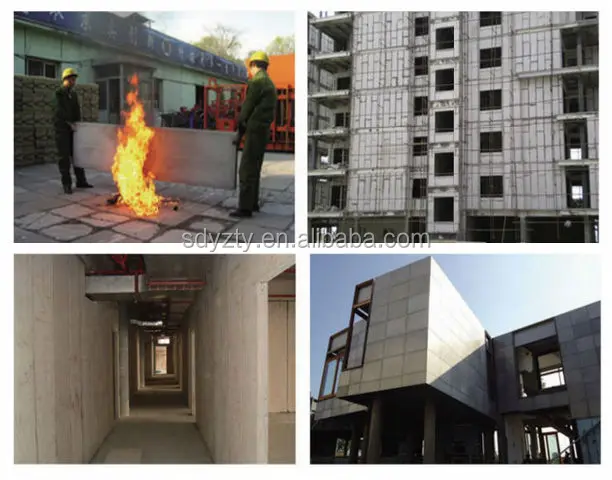

2. Fireproof:



It can endure fire at 1000 degrees for over 4 hours, without producing any toxic gas. Its incombustibility meets a rating of the state standard.
3. Waterproof & dampproof



It consists of medium density fiber cement flat board, which has very good water proof and damp proof property. Therefore, there is no worry about bulking, efflorescence, deformation, degeneration of strength due to moisture absorption. It's applicable for wet areas like kitchens, bathrooms and basements.
4. Sound Insulation




It has outstanding sound absorption and insulation capacity. The sound insulation capacity of a 90mm thick board is 42dB, which is far higher than that of other masonry walls, and meet the national requirement of sound insulation for residential houses.



5. Thermal Insulation & Heat Insulation



Nowadays, the construction industry attaches great importance to energy-saving property of buildings. Ionic strip-type wall panel is made of pure natural vermiculite, quartz flour of high purity, inorganic fiber and plant fiber, through a curing process with steam of high temperature and high pressure. In addition, the internal alveolate structure also contributes to its remarkable thermal insulation & heat insulation property.
6. Better earthquake resistance and overall stability:



Assembled into a whole structure, wall panel has an impact resistant capacity which is 1.5 times as high as that of normal masonry walls. The earthquake resistance is tens of times higher than normal masonry walls, meeting the requirement for buildings to resist earthquake of up to 8 degrees.



7. Easy installation:



The wall panel can be grooved freely, nailed directly or embedded with expansion bolts to hang heavy things, like A/C; The single-point hanging strength is over 45kg; In addition, the wall panel has a flat and smooth surface, which is compatible with tiles and wall paper as the finish.

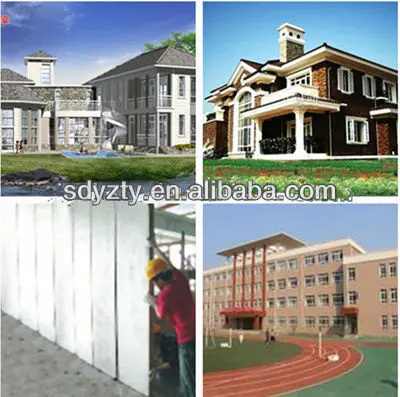

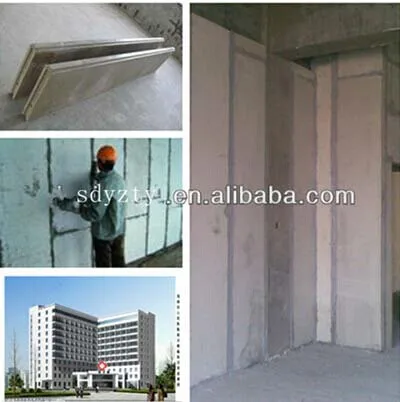

 Construction Case



Customers



Exhibition



Packaging & Shipping





Company Information

 Shandong Tianyi Machinery Co.,Ltd .,it is the specialized manufacturer of wall panel making machinery ;

We have speciallaboratory for designing the formula ,we could free design the formula according to your local raw material ,and we also have the special R&D Department for designing the production line ,we could design for you  the production line according to your request ,the production lines are as follows:

1.cement wall panel production line

2.mgo wall panel production line

3.gypsum wall panel production line

4.sandwich wall panel production line

5.composite wall panel production line and so on

We have exported our wall panel production lines to Iran Iraq,Israel,malaysia ,India and Singapore so on ;
