Sand Washing Machine Plant Production Line In Tanzania For Sale

Product details
Motor Type:AC Motor;Place of Origin:China;
Type:Bucket;Port:QingDao;
Factory visit:welcome;OEM:yes;
Capacity(t/h):15-30t/h;Weight:4300kg;
Condition:New;Color:Customizable;
Capacity:15-30t/h;Application:Sand Washing;
Applicable Industries:Building Material Shops,Construction works ,Energy & Mining;Supply Ability:400 Set/Sets per Month;
Payment Terms:L/C,T/T;Certification:ISO CE;
Dimension(L*W*H):3150*1910*2280mm;Rotating speed:1-2r/min;
Spare parts supply:Lifelong Provide;Packaging Detail:Standard export container;
Motor Power:4kw;Bucket diameter:2300;
Warranty:1 year;Brand Name:The Nile;
After-sales Service Provided:Online support;
Product Description

Sand Washing Machine Plant Production Line In Tanzania For Sale

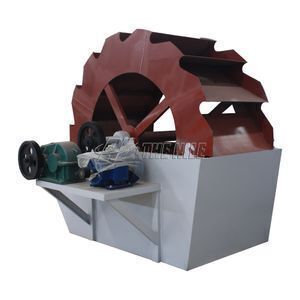

In the sand making process, the Bucket Wheel Sand Washer is used to clean the soil and dust in the sand, to achieve the purpose of cleaning the sand, and can also be used in the extraction of sand in ore dressing and other similar processes. This machine is suitable for highway, hydro-power, construction and other industries.





Working Principle of Sand Washing Machine:
The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.







ModelXS2300XS2600XS2900XS3500
Bucket diameter(mm)2300260029003500
Rotation speed(r/min)1-21-20.8-1.50.8-1.2
Capacity(t/h)15-3020-5050-100120-200
Power(kw)45.57.511
Weight(kg)4300560081009900
Dimension(m)3.15*1.91*2.693.52*2.39*2.693.82*2.64*3.24.42*2.93*3.8





Main features:

1. Reasonable structure,
2. Large capacity,
3. Low consumption,
4. Little loss of the sand during the washing process,
5. Low failure rate.



Packaging & Shipping

Standard package in wooden boxes or containers.





Company Information



The Nile Co.,Ltd.is committed to designing,producing grinding mills,crushers,conveyors,feeding machine,drying and calcinating as well as beneficiation equipments,fine sand recyling equipment etc,which are widely applied in electricity,metallurgy,mine and quarry ,wharf,granary,chemical industry.Our products have been spreaded all over China,and also exported to

European,American,Asian,African countries and enjoyed great popularity among our customers.
Our company owns an experienced and skilled sales and service team which compose a perfect service network.We will send the professional engineers to the installation sites and provide guidance for the installation,commissioning and initial run as well as planning administration of the equipments after purchase.





Every year, we export our grinders and crushers to South Asia, Africa, South America, middle East and other regions. Our Machines enjoy a high reputation in the foreign market. You are very welcomed to visit our factory, and hope there are chance for us to have a long term cooperation.
