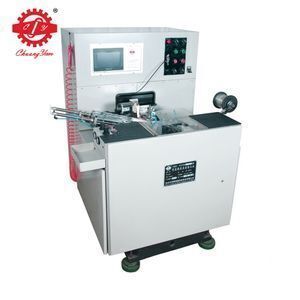

toothbrush production line/ 2 colors 4 axis high speed cnc toothbrush tufting machine toothbrush machine with high configuration

Product details
Condition:New;Packaging Detail:EXPORT WOODEN PACKING;
Payment Terms:L/C,T/T,Western Union,MoneyGram,Cash payments for offline orders.;Voltage:380VAC/220VAC;
Power(W):2.2KW;Weight:900kg;
After-sales Service Provided:Engineers available to service machinery overseas;Brand Name:Chuangyan;
Tufting Method:Anchor Wire;Warranty:1 Year;
Automatic Grade:Automatic;Supply Ability:20 Unit/Units per Month;
Air Source Input:0.4-0.5MPa;Gross Weight:900kg;
Brake Motor:Japan's Fuji;Control System:CNC Controller;
Place of Origin:Guangdong China;Production Capacity:13 holes/second;
Spinder Quantity:4 Axis;Port:Shantou;
Application:Make Toothbrush;Main Speed Control:Automatic Frequency Control Circuit;
Certification:Patent Certificate;Dimension(L*W*H):1200*1150*1340(mm);
Computer:Touch screen LCD;Function:Flocking hair and trimming;
Driving Motor:Ordinary Motor;
Product Description
High-speed intelligent CNC flocking machine
Model No.
Difference
Price($ USD)
AH9-C2
Standard Configuration
21000
AH9P-C2
Add Trimming Device
22500
AH9PF-C2
Add Trimming and Up-down Hair Separating Device
23500
SPECIFICATIONS
Servo motor
Japan's Fuji
Computer
Touch screen LCD
Power Input
Three-phase 380V AC
2.2KW (MAX)
Configuration
High (Double colors)
Air Source Input
0.4-0.5MPa
Positioning accuracy
0.05mm/100mm
Equipment size

1200*1150*1340(mm)
Speed-sik hair
820 holes/min
MEAS
1250*1250*1450(mm)
Sik hair length
10-15mm
GW
900Kg
Ordinary circular Aperture
1.2-3mm

Main Features

1) R&D automatic intelligent digital control scanning hole coordinate touch screen LCD computer base on German CNC technology .
2) Adopting Japan's Tamagawa four axis original servo motor.
3) Installing trimming device to reduce trimming process.
4) The whole machine uses German import INA, AFG, DURBAL and Japan's NSK, IKO and other brands of bearings.
5) Universal fixture and universal special-shaped handle box.
6) Automatic cylinder pressure, nylon rolling handle-off hopper.
7) Strong stability of the whole closed loop system, high precision of repeated positioning, easy operating, strong anti-interference ability.

Detailed Images

Intelligent NC Computer Parts

Features:
1) The introduction of Germany CNC technology research and development of intelligent numerical control touch screen LCD computer scanning hole coordinates.
2)Used the American import NC CPU chip, speed P4 and dual core.
3)Automatic tracking speed.

4) Positioning precision, convenient operation.
5)The system is stable and reliable, adapted to adapted to different environment.
6) The whole closed loop system, strong anti- interference ability.
7) Can be upgraded to the highest number of flocking 99 holes.(additional options)
8)Can be point to upgrade to add wool implement.(additional options)

Servo Motor Parts


Features:
1)Adopted original high precision servo motor from Taiwan or imported from Japan for the worktable of X axis, Y axis and handle's change.
2)Use the German imported precision level C1 double thread ball screw.
3)Fast displacement: 820/minute,jump hole distance can reach 8-10mm.
4)Rigid soft stability and reliability.



Automatic scanning holes coodinate Parts

Features:
1)Used high-tech infrared automatic scanning brush handle hole coordinates.
2)High efficiency in changing product: 40 holes for about 5 minutes.
3)High precision positioning coordinates: tolerance +/- 0.02 mm.
4)Easy to operate and learning, high scanning speed.
5)Less tedious steps: manual measuring pitch error precision fine tuning.

High Speed Flocking Parts

Features:
1)The introduction of German technology research and development to jig.
2)Using the German import materials plant garden, taking knife and flocking pole.
3)The flocking mouth and rod through import vacuum processing high precision mirror spark technology: high hardness and good toughness, high resistance to wear.
4)Flocking machine precision machining process error value+/-0.01mm, flocking aperture: 1.2 to 3.0mm.
5)Strong stability and tension, high efficiency and don't loose hair when flocking.

Double Color Box Parts

Feature:
1)Citing Germany technology automatic cycle pressure cylinder principle: high pressure uniform and adjustable.
2)Convient adjustment adopts double dabbing cylinder hair neatly.
3)Color change the Japanese original servo motor,can support two holes in one color.
4)The electric control and wool technology , convenient operation and fast.
5)Hair knife takes hair with high stability, planting enough hair and not scatted hair.

Trimming Parts

Feature:
Adding trimming device to reduce trimming process.

Nylon Rolling handle -off Box Parts

Feature:
Easy to land rubber toothbrush.

Our Company
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.


Packing & Delivery
Packaging
Size
1400 (L) * 1400 (W) * 1600 (D)
Weight
900kg



Packaging Details
The normal package is use pe film for packing first and wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.Or pack it according to customers special request.
FAQ

1. Q: Are you a factory or trade company?
A: We are a factory.

2. Q: Where is your factory located in? How can I visit there?
A: Our factory is located in Shantou City, Guangdong Province, China, about 2 hours train from Shenzhen/HongKong. Warmly welcome to your visit!

3.Q: What is your terms of payment?
A: T/T 70% as deposit, and 30% before delivery. We'll show you the photos of the products and packages before you pay the balance.

4.Q: How can I get some samples?
A: We are honored to offer you samples.

5. Q: What is the advantage of your products?
A: High-tech, pretty competitive price and superior service!
