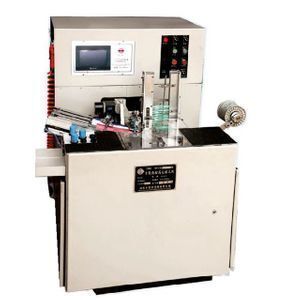

2019 New Japanese motor cnc 3 colors 4 axis toothbrush tufting machine tooth brush making machine

Main Features

1) R&D automatic intelligent digital control scanning hole coordinate touch screen LCD computer base on German CNC technology .
2) Adopting Japan's Tamagawa four axis original servo motor.
3) Installing trimming device to reduce trimming process.
4) The whole machine uses German import INA, AFG, DURBAL and Japan's NSK, IKO and other brands of bearings.
5) Universal fixture and universal special-shaped handle box.
6) Automatic cylinder pressure, nylon rolling handle-off hopper.
7) Strong stability of the whole closed loop system, high precision of repeated positioning, easy operating, strong anti-interference ability.

Intelligent NC Computer Parts

Features:
1) The introduction of Germany CNC technology research and development of intelligent numerical control touch screen LCD computer scanning hole coordinates.
2)Used the American import NC CPU chip, speed P4 and dual core.
3)Automatic tracking speed.
4) Positioning precision, convenient operation.
5)The system is stable and reliable, adapted to adapted to different environment.
6) The whole closed loop system, strong anti- interference ability.
7) Can be upgraded to the highest number of flocking 99 holes.(additional options)
8)Can be point to upgrade to add wool implement.(additional options)

Servo Motor Parts

Features:
1) Adopted original high precision servo motor imported from Japan for the worktable of X axis , Y axis and handle's change.
2)Use the German imported precision level C1 double thread ball screw.
3)Fast displacement:820/minute,jump hole distance can reach 8-10mm.
4)Rigid soft stability and reliability

Automatic scanning holes coodinate Parts
Features:

1)Used high-tech infrared automatic scanning brush handle hole coordinates.
2)High efficiency in changing product: 40 holes for about 5 minutes.
3)High precision positioning coordinates: tolerance +/_ 0.02 mm.
4) Easy to operate and learning, high scanning speed.
5)Less tedious steps: manual measuring pitch error precision fine tuning.

High Speed Flocking Parts

Features:
1)The introduction of German technology research and development to jig.
2)Use the German import materials plant garden, take knife , flocking pole.
3)The flocking mouth and rod through import vacuum processing high precision mirror spark technology:high hardness and good toughness, high resistance to wear.
4)Flocking machine precision machining process error value+/-0.01mm, flocking aperture:1.2 to 3.0mm.
5) Strong stability and tension, high efficiency and don't loose hair when flocking.

Double Color Box Parts

Features:
1)Citing Germany technology automatic cycle pressure cylinder principle: high pressure uniform and adjustable.
2)Convient adjustment adopts double dabbing cylinder hair neatly.
3)Color change the Japanese original servo motor,can support two holes in one color.
4)the electric control and wool technology , convenient operation and fast.
5)Hair knife take hair high stability , plant enough hair and not scatted hair.

Trimming Parts

Feature:
Adding trimming device to reduce trimming process.

Nylon Rolling handle -off Box Parts

Feature:
Easy to land rubber toothbrush.

1. Q: Are you a factory or trade company?
A: We are a factory.

2. Q: Where is your factory located in? How can I visit there?
A: Our factory is located in Shantou City, Guangdong Province, China, about 2 hours train from Shenzhen/HongKong. Warmly welcome to your visit!

3.Q: What is your terms of payment?
A: T/T 70% as deposit, and 30% before delivery. We'll show you the photos of the products and packages before you pay the balance.

4.Q: How can I get some samples?
A: We are honored to offer you samples.

5. Q: What is the advantage of your products?
A: High-tech, pretty competitive price and superior service!
