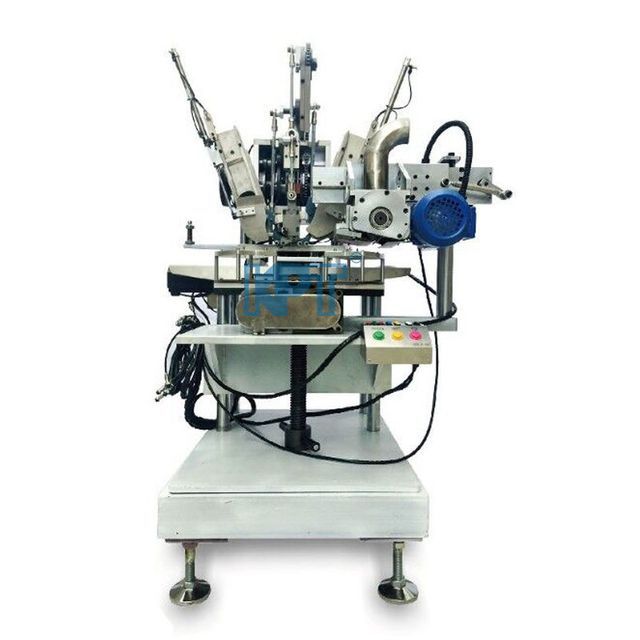

3 axis brush making machine/comb brush making machine/comb making machine

Product details
Core components:PLC, engine, motorapplication:Used to make combs
Exhibition Hall Location:not anyOrigin:Guangdong, China
Dimensions (L*W*H):1.2*0.9*1.68Marketing Type:normal product
Health status:newstation:3
Supply capacity:100 sets per monthport:Shenzhen/Hong Kong
Mechanical test report:not availableLocal service locations:not any
Filament length range:40~80mmstrength:5 kW
After warranty service:Video technical support, online supportpayment terms:T/T, Western Union
Package Preview:Packaging Details:Wooden box
After-sales service provided:Video technical supportAfter-sales service:life
Production capacity:650 holes/minCertification:CE ISO 9001
axis:3Core component warranty:1 year
weight:300 kgAutomatic:automatic
Applicable industries:Machinery repair shops, manufacturing plants, farms, home use, food and beverage stores, industrial useVideo factory inspection:if
Hole size range:2.2mm~4mmbrand:KPT/Alpha
Warranty:1 yearVoltage:380V/50Hz,380VAC/220VAC/110VAC
Production speed:650 holes/minute

3 axis brush making machine/comb brush making machine/comb making machine

Product Description



• This machine has a simple structure, quick setup and easy operation. The workbench of this broom machine is composed of high-precision linear guides and lead screws, which is stable and durable.

• For combing flat plastic brooms, the maximum combing speed is 6-7 holes per second. Please note that the plastic broom block must have the holes molded in advance. It can also comb other flat brushes as long as the operator changes the holder accordingly.

• Two clamps are installed on the workbench, working alternately and continuously. There is no need to stop the machine when replacing the brush block, which improves production efficiency.


Technical data:


Technical data:

Standard travel (mm): X, Y = 400, 200 (other larger sizes can be customized)

Speed ​​(holes/min): 650

Brush handle material: plastic, wood

Brush material: PP, PVC, PET, nylon

Filament length (outer hole): 10mm - 120mm

Brush wire diameter: 0.08mm - 1.2mm

Aperture: 3mm - 6mm

Power supply: 380V/50Hz


Dimensions (W x L x H): 1200 900 1680
