Double Plate Plastic Pipe Winder
-
Supplier: Jiangsu Faygo Union Machinery Co., Ltd. -
Region: Jiangsu, China -
Contact: Mr Hussain Figo -
Price: $2000.00 /set -
Min. Order: 1 set
Product details
| Winding Inner Diameter: | 500- 1300mm; | Payment Terms: | L/C,T/T,Western Union; |
| Port: | Shanghai for Plastic Pipe Winder; | Processing Type: | Plastic Pipe Winder; |
| Spool Capacity: | 120M; | Brand Name: | Faygo; |
| Dimension(L*W*H): | 6*3*7m; | Model Number: | FG01; |
| Brand: | Faygo Extrude and Air compressor; | Faygo: | FaygoPlast is famous China Plant; |
| Weight: | 3T; | Winding Pipe Length: | 300-750mm; |
| Certification: | ISO9001; | Condition: | New; |
| Voltage: | 380V; | Warranty: | 13months; |
| Name: | Plastic Pipe Winder; | Inside Diameter Range: | 63mm; |
| Packaging Detail: | Plastic Pipe Winder Covered by PE Film; | Delivery Detail: | 45 workdays for one Plastic Pipe Winder; |
| Outside Diameter Range: | 110mm; | Arrange Width: | 1M; |
| Place of Origin: | Jiangsu China; | Power(W): | 50HZ; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Supply Ability: | 25 Set/Sets per Month Plastic Pipe Winder; |
| Application: | Plastic Pipe; |
Plastic Pipe Winder Introduction:
Winding pipe spec | Ø16- Ø 63(mm) |
Winding inner diameter | Ø500- Ø 1300mm |
Max. winding outer diameter | Ø2400mm |
Winding speed | 0-18 m/min(Also can be adjusted according to customer’s requirements ) |
Winding pipe length | According to Ø 63pipe :1000m |
Winding pipe width | 300-750mm |
Turn-board height | 750 mm |
Air pressure | 0.6Mpa |
Voltage | 380V 60HZ(Also can be adjusted according to customer’s requirements) |
Dimension | 3200mm X 2200mm X 2400 mm |

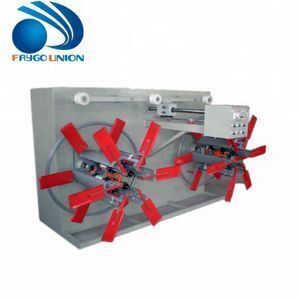

Plastic Pipe Winder Photos:
