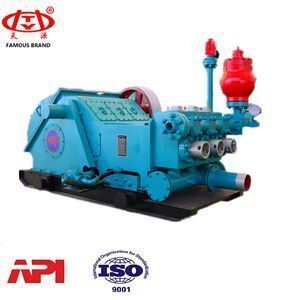

Hot sale 3NB-350 mud pump triplex mud pump for sale
- 49999.00 set
| Supply Ability: | 10 Set/Sets per Week; | Delivery Detail: | 30 working days after receive your deposit; |
| Certification: | API ISO; | Payment Terms: | T/T; |
| Port: | tianjin port; | Model Number: | 3NB; |
| Place of Origin: | Hebei; | Packaging Detail: | wooden case iron case or as your customer requirment; |
| Brand Name: | TIAN YUAN; | Type: | Drilling Mud Pump; |
Products Introduction
3NB series mud pumps are horizontal triplex single-acting piston pumps,which are mainly used for well
drilling,well cementing, workover and other operations in oil,water well,geothermal,CBM,shale gas,coalfield exploration,freeze well and other industrial mining enterprises.
They are used for transferring mud, clay gum ,mortar and other medium. The pumps adopt international
advanced technology and are of features like advanced structure, reliable operation, good suction performance, long service life of wearing parts,good interchangeability, easy for maintenance and repair and so on.

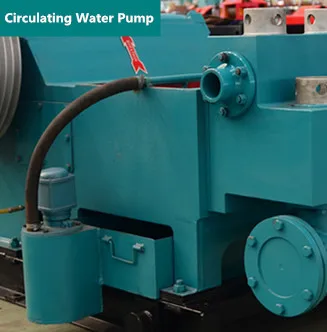

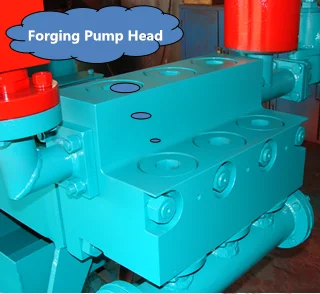

Advantages of 3NB-350 mud pump

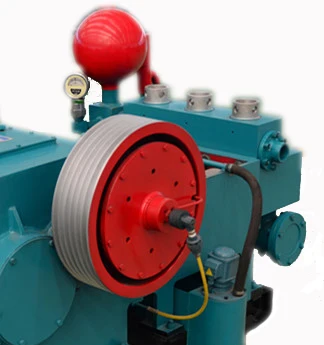

Air clutch
Main technical parameters
Type Specification | 3NB-350 | ||||||
Liner Dia(mm) | 110 | 120 | 130 | 140 | 150 | 160 | |
Flow rate (L/S) | 11.5 | 13.7 | 16.1 | 18.7 | 21.5 | 24.4 | |
Pressure (Mpa) | 20 | 16.8 | 14.5 | 12.5 | 10.8 | 9.5 | |
Input rotate speed (r/min) | 605 | ||||||
Pump speed (spm) | 135 | ||||||
Suction inlet (mm) | 203 | ||||||
Discharge outlet(mm) | 76 | ||||||
Stroke length (mm) | 180 | ||||||
Input power | Diesel | G128-260KW | |||||
Electromotor | Y2355L-6 250KW | ||||||
Overall dimensions | 3100×2086×2015 | ||||||
Weight (kg) | 8680 | ||||||

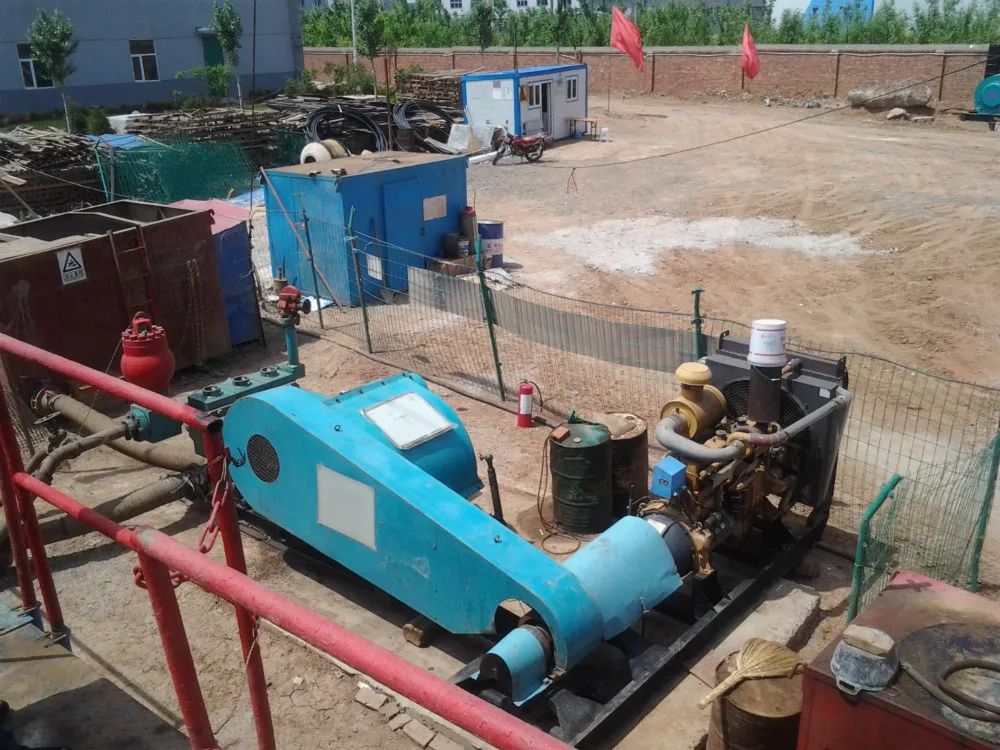

Working site of 3NB-350 mud pump
2018 CIPPE affair of our company
