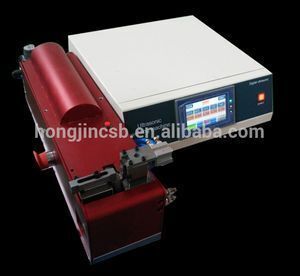

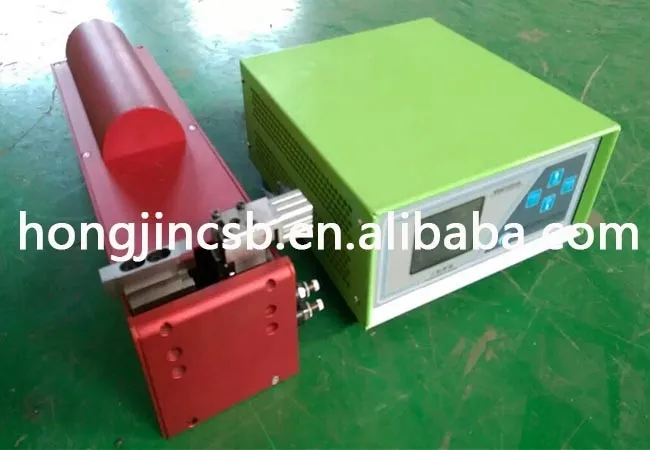

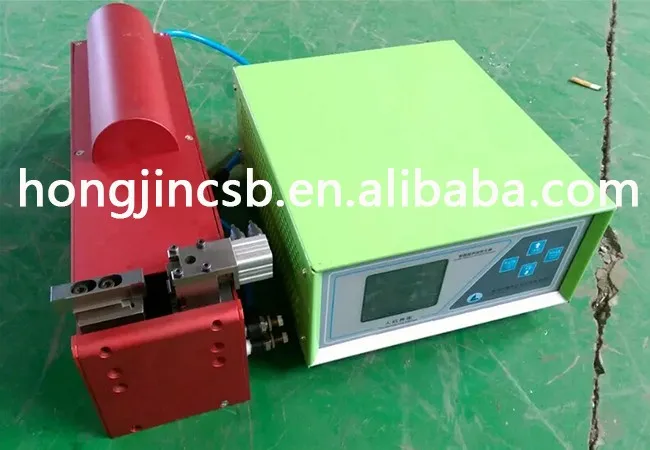

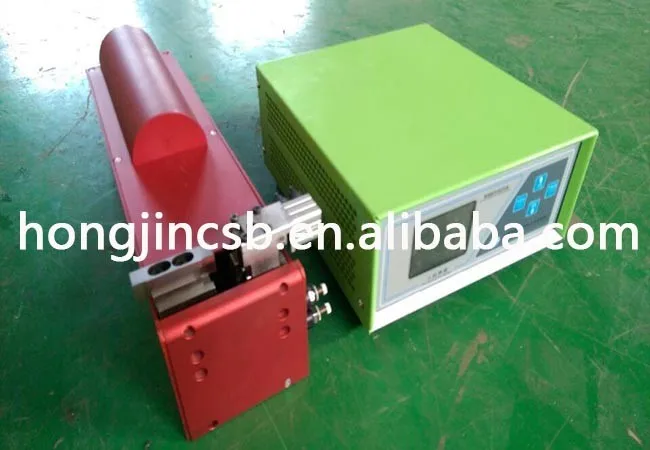

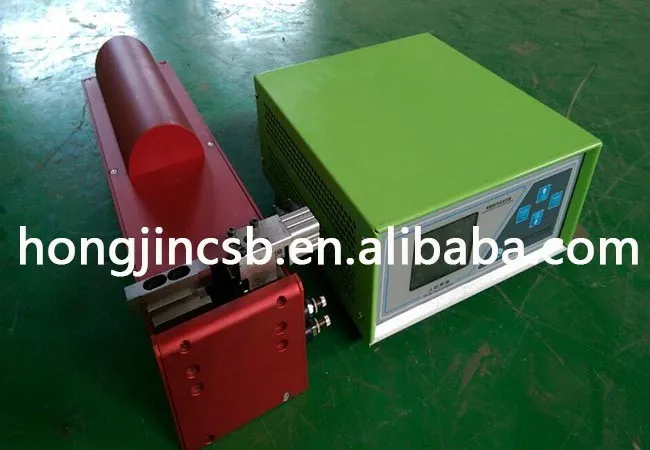

ultrasonic metal welding machine for aluminum wire copper wire

Click here to contact

Product details

Selling Units:	Single item;	Weight:	45kg;
Brand Name:	shanghai hongjin;	Welding Area:	0.5-30MM 2;
Place of Origin:	Shanghai China;	Madel:	HJ-2010G;
Use for:	wire harness welding machine;	Frenquency:	20KHZ;
Package Type:	Packed by wooden case for ultrasonic metal welding machine;	Power:	1000w;
Usage:	copper Welding;	Voltage:	110V/220V/380V/Customize;
Frequency:	20KHZ;	Dimensions:	L750W400H350mm;
Single gross weight:	50 KG;	Delivery Detail:	15 days after payment;
Weight:	50kg;	Machine Name:	ultrasonic wire harness welding machine;
welding Time:	0.01~9.99s;	Single package size:	750X400X350 cm;
Output Power:	2200W Ultrasonic wire harness Machine;	After-sales Service Provided:	No overseas service provided;
Model Number:	HJ-2010G;	COLOR:	GREEN SPLICLING;

Shanghai Hongjin Ultrasonic Electronic Equipment Factory

Ultrasonic plastic welding machine

Product Description

welds the mechanism for ultrasonic copper welding machine

The supersonic wave plastic welding principle is produces 15-40KHZ by the generator the high

frequency signal,through trades can the system,transforms the signal into the high frequency

mechanical vibrations,simultaneously adds with the high pressure on the plastic product work

piece,causes passing on place through the work piece surface and the intrinsic intermolecular

friction to connection temperature increment,when the temperature achieved when this works itself

melting point,causes the work connection rapid melting,subsequently fills crevice to the connection

between ,when vibrates stops,at the same time the work cools the setting under the certain

pressure,then achieves the perfect welding,The supersonic wave welding is the welding heat

plastic,plastic product high technology,each kind of thermosplastic rubber may use supersonic

wave welding processing,but does not have add the solveent,the cementation medicinal

preparation or other auxiliaries,its merit is the increase multiple productivity,reduces the

cost,Improve the product quality.

Frequency	20kHz Nominal

Power	2000 W

Source Voltage	AC 110/220±10% V 50/60±10% Hz

	Ÿ Automatic splice set-up from 0.5 mm to 40 mm² and beyond
Features	Ÿ Lowest cost per splice (low cost multi-faceted tools, no
Features	consumables)
	consumables)
	Ÿ Maximum productivity and ergonomics

Pneumatic Pressure	0.3-0.6Mpa
	0.3-0.6Mpa

Size	Controller: 420mm(L) * 380mm(W) *200mm(H)
	Welder: 510mm(L) 280mm(W) 210mm(H)

Weight	Welder : 35kg, Controller : 10kg

1 Control panel of colored display touch screen

2 English menu,multi-language for your option,and easy to operate.

3 The mold is with horizontal adjuctable design for prompt and convenient mold adjustment.

4 New type power amplifiter with stronger power and more durable transducer.

5 Frequwency automatic tracking,a variety of parameter settings,as well as a high degree of automation.

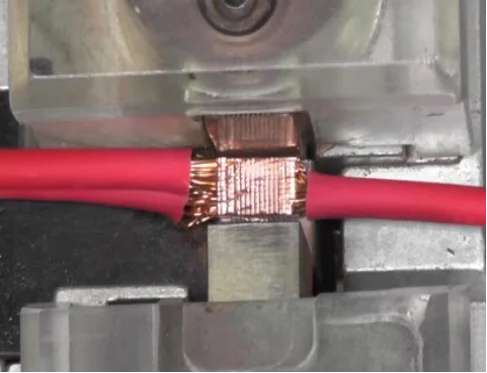

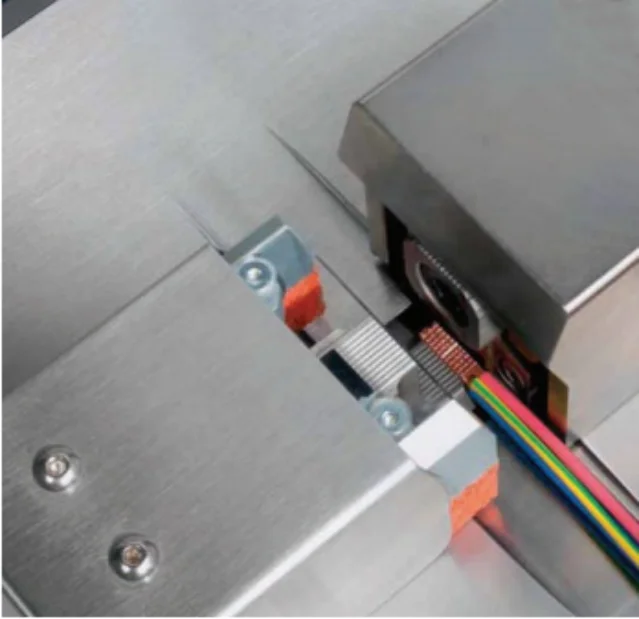

Weld

With the pre-height test satisfied, ultra-sonic vibrations scrub the wire strands at the 20 kHz

frequency to remove surface oxides and contaminants. A precise amount of ultrasonic energy

is applied to produce the weld, thus if there is a variation in the amount of oxidation or

contaminants on the wire strands, the weld cycle is automatically extended to disperse the

oxides and achieve optimal weld results.

Post Weld

After the weld cycle is complete, the welded splice is measured to confirm proper compaction

and splice quality.

Packaging & Shipping
