MachineryOffers

Double Wall Buried Tank 6l Jacketed Glass Reactor 100ml Jacketed Glass Reactor Fertilizer Production Line

Product details
Supply Ability:300 Set/Sets per Year;Warranty:1 year;
Voltage:220;Condition:New;
Packaging Detail:Inside Packing:Film Stretch Outside Packing: Export Wooden Case;Weight:350kg ~ 4400kg;
After-sales Service Provided:Engineers available to service machinery overseas;Cool shock:110 °C;
Brand Name:SINOPED;Payment Terms:L/C,T/T,Western Union,MoneyGram;
Certification:GMP FDA CE ISO;Power(W):As actual model;
Temperature:0 to 200 . Degree°C;Automatic Grade:Automatic;
Place of Origin:China;Reducer:Vertical Type;
After-sales Service Provided:Video technical support,Online support;Port:chinese seaport;
Dimension(L*W*H):1860-4820mm;Glass layer thickness:0.8 - 2.0mm;
Agitator:Different Types(Optional);Type:Tank Reactor;
Thermo-shock:120 °C;
Brief introduction

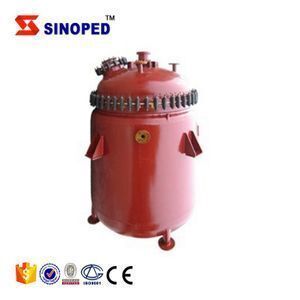

Glass-lining Reactor
Glass-lined equipment is a kind of vessel whose main body is made of high quality carbon steel lined with special silicate glass by fritting as a high temperature nearly 800 degree centigrade. It has mechanical strength like steel-made vessel but better corrosion resistance. It is irreplaceable with stainless steel, engineering plastic and other alloy steel materials under a certain medium and temperature at corrosion resistance.
It is also indispensable and economic corrosion
resistance equipment for hydrolysis, neutralization, crystallization distillation evaporation and storage in industries of production of pharmacy, chemical, dyestuff, organic synthesis, foodstuff, pesticide and defense etc..

Specifications:
1). Capacity of Glass lined reactor with motor :5 to 50000Liter
2). Structure: Open type (k-type) or closed type( F-type)
3). Material: Vessel: stainless steel, carbon steel, mild steel with glass layer inside surface; Jacket: Mild steel.
4).Design pressure:Vessel=0.2MPa,0.6MPa,1.1MPa Jacket=0.6MPa
5).Agitator:Different Types(Optional)
6).Reducer:Vertical Type
7).Temperature: 0 to 200 . Degree°C.
8).Glass layer thickness: 0.8 - 2.0mm
9).Cool shock: 110 °C.;Thermo-shock: 120 °C.
10).Glass lined reactors with design pressure greater than 0.6MPa inside the vessel shall be ordered separately.
11). Accessories:

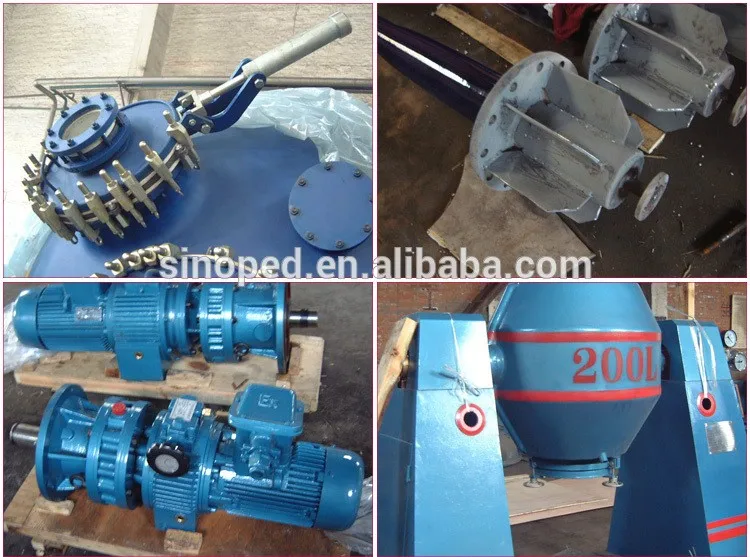

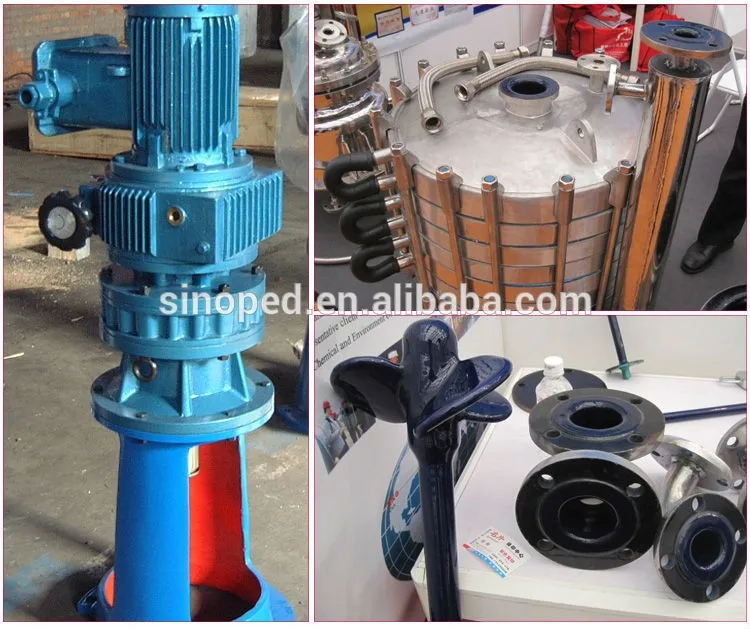

We can supply a complete set of glass lined reactor generally with motor with Reducer, Seal (optional: Stuffing box;.Single Mechanical seal; Double mechanical seal ), Agitator, Thermometer pocket, bottom discharge Valve
12). Properties and Advantages:
1. Corrosion resistance: organic or inorganic acid, organic solvent and weak alkaline corrosion (not including hydrofluoric acid, containing fluorine medium, phosphoricacid, and alkali concentration greater -than 30% and temperature greater-than or equal 180 Degree .)
2. Pressure resistance: a) Packing box: vessel: less- than or equal 0.4MPa; Jacket:0.6MPa ) Single Mechanical seal: vessel: equal or less than 0.4Mpa Jacket:0.6MPa c) Double mechanical seal: vessel: 0.6Mpa, Jacket:0.6MPa

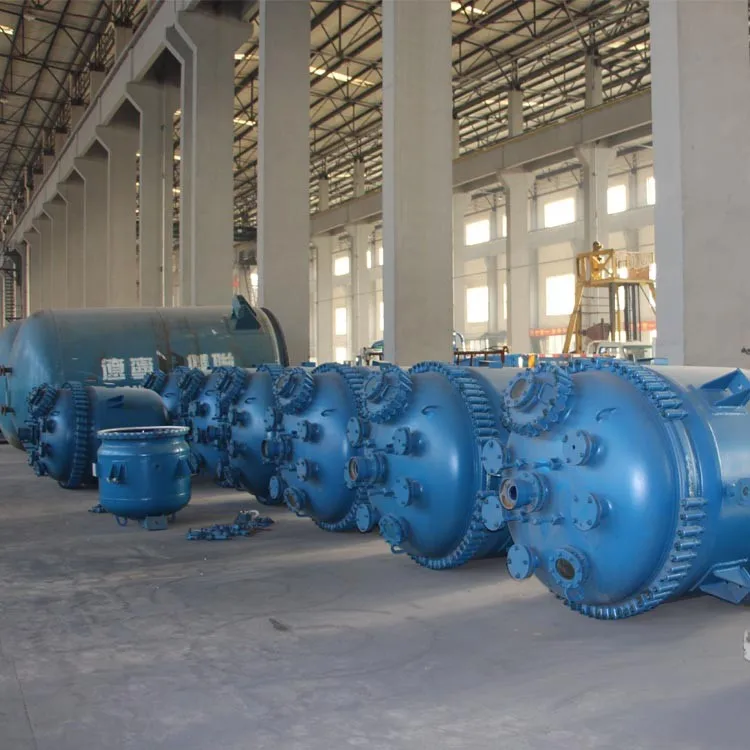

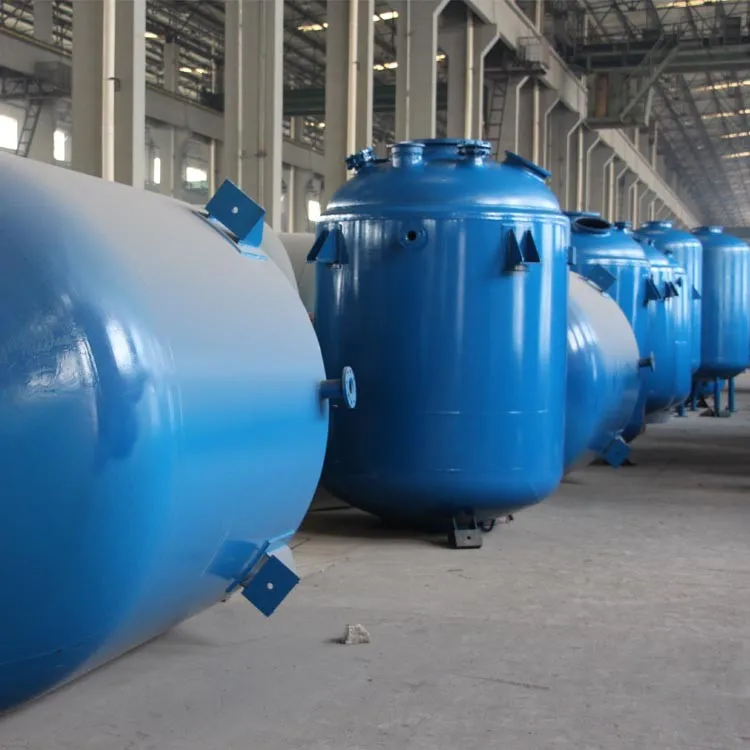

Detailed Images
Related Products

Purified water distribution system..

Click the pticture to view more!!!

tube centrifuge

Click the pticture to view more!!!

single-punch tablet press.

Click the pticture to view more!!!

Other Products
Our Company

Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPEC International Group.
We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc.
Due to our good credit and service, , we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines and turn key projects.
In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.

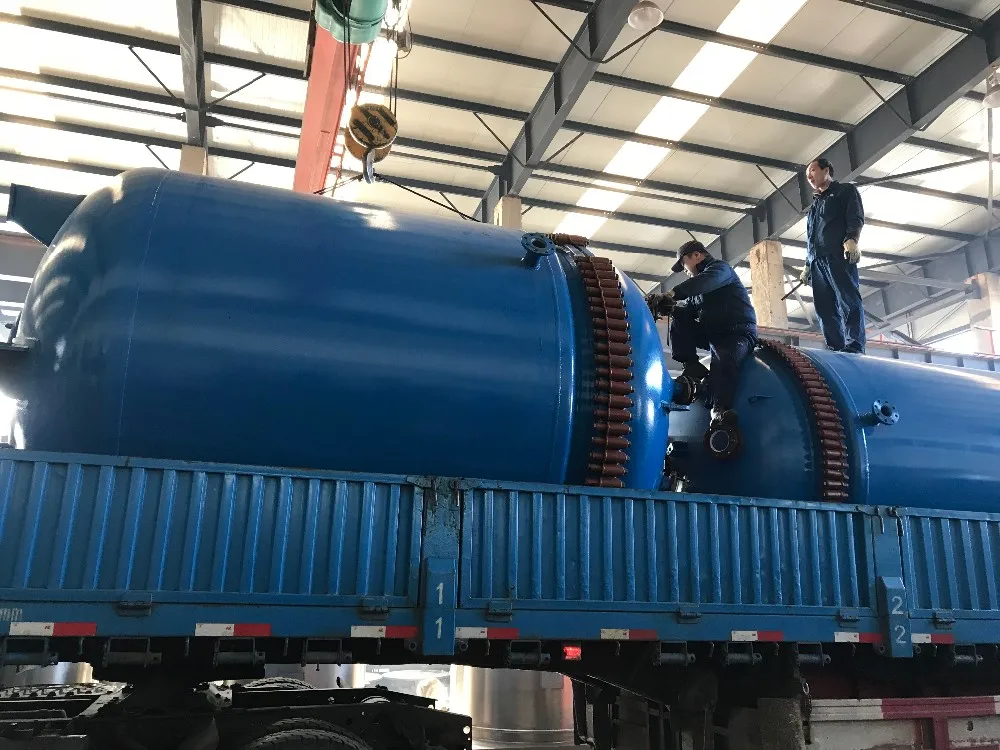

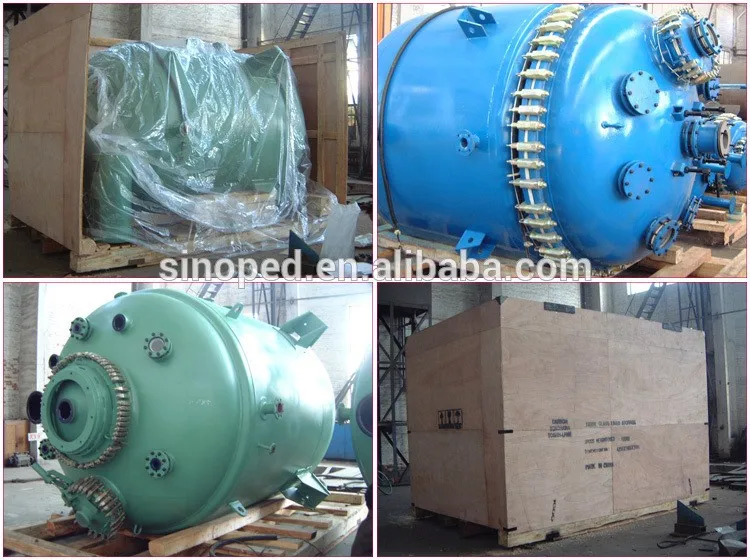

Packing & Delivery
Our Service & FAQ

One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished;
Consultant services for whole machine life, and 24 hours technical support by email;
UPS, English software, user manual and the installation & debugging by our experienced technicians.


1. Can your machine meet our need well?
We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer's need well.
2. Are you a factory or a trading company?
We are the manufacturer, and have been in industry for more than ten years.
3. What's your payment way?
T/T by our bank account directly, or by Alibaba's trade assurance service, or by the West Union, or in cash.
4. How can you ensure the machine's quality after we put the order?
Before the delivery, we will send you machine's pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
5. We are afraid you won't deliver us the machine after we pay you the money.
Please note our above business license and certificates. And if you don't trust us, you can use Alibaba's trade assurance service or by LC.
6. Why choose your company?
We have been engaged in the manufacturing of various packing machines professionally over 10 years, and we can provide better after-sales service.
