Semi-auto Pouch Cell Lithium ion Battery Stacking Machine for Electrode/Separator Lamination

Supplier: Xiamen Tmax Battery Equipments Limited
Region: Fujian, China
Contact: Mr Aaron Huang
Price: $3850.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	Xiamen Port;	Aligning Accuracy:	±0.3mm for stacked electrodes;
Showroom Location:	None;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Automatic Grade:	Semi-Automatic;	Warranty:	1.5 years;
Place of Origin:	China;	Certification:	ce;
Dimension(LWH):	480mm(L) x 560mm(W) x 650mm(H);	Max. Electrode Thickness:	Piled up thickness < 9mm;
Brand Name:	TMAX;	Packaging Detail:	1 Standard exported package: Internal anticollision protection, external export wooden box packaging. 2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way. 3 Responsible for the damage during the shipping process, will change the damage part for you for free.;
Voltage:	220V;	Applicable Industries:	Battery;
Acceptable Separator Roll Size:	220mm O.D Max.;	Driven Type:	Electric;
After-sales Service Provided:	Overseas service center available;	Local Service Location:	Egypt,France,India,Thailand;
Key Selling Points:	Easy to Operate;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Credit Card;
Stacking Electrode Size:	Customized;	Type:	Other;
Driven Type:	Pneumatic;	Condition:	New;
Supply Ability:	10000 Set/Sets per Month;	Weight:	55kg;

Product Description

Semi-auto Pouch Cell Lithium ion Battery Stacking Machine for Electrode/Separator Lamination

Features

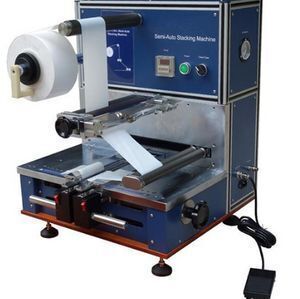

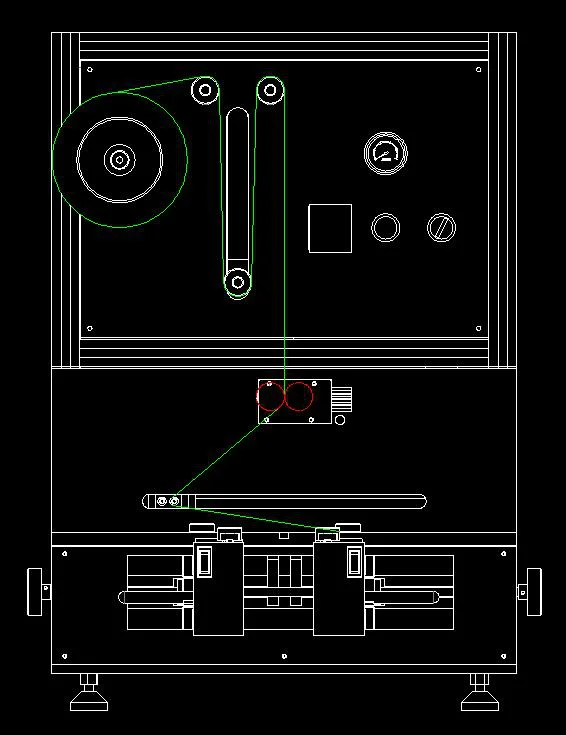

TMAX-TCH-DPA is a desktop semi-auto stacking machine with advanced features to ensure a stable, repeatable and precise electrode stacking. In its "Z" fashion stacking method, Anode and Cathode electrodes are alternatively stacked with the separator film in between. It is more precise and consistent.

Advanced Features:

* Desktop type, can be placed on a normal desktop;

*The adjustment, operation and maintenance of the machine is simple and easy;

*Applicable to a large range of cell laminations;

* High efficiency, with digital counter;

* Use the foot switch to control the cylinder movement;

*The machine is small in size and exquisite in appearance;

Specifications

Working Voltage	AC220V 50/60Hz
Stacking Electrode Size	· 230mm x 150mm Max. · 44mm x 44mm Min. Customizable as customer's request
Max. Electrode Thickness	Piled up thickness < 9mm
Aligning Accuracy	±0.3mm for stacked electrodes
Acceptable Separator Roll Size	220mm O.D Max.
Slidable Electrode Fixture	Two slidable fixtures ensure a compact, tight electrode stacking
Electrode Tongs	One electrode tongs are included for easy electrode pick-up
Suggested Air Pressure	0.6 - 1.5 MPa (Air compressor is not included in the standard package)
Product Dimensions	480mm(L) x 560mm(W) x 650mm(H)
Net Weight	55Kg
Compliance	CE Certified
Warranty	· Two Years limited warranty with lifetime support
Recommendation	For the pouch cell assembly, we also recommend you the following items: Forming machine Hot sealer with tab Vacuuming sealer Ultrasonic tab welder Die Cutter Aluminum Laminated Film
