DELIXI DDZY601 Three Phase Four Wire Keypad Digital Electronic Power Prepaid Electric Meter

Supplier: Hangzhou Delixi Group Co., Ltd.
Region: Zhejiang, China
Contact: Ms DE LIXI
Price: $17.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Port:	Shanghai, Ningbo;	Model Number:	DDZY601;
Packaging Detail:	digital electronic power prepaid electric meter: carton box;	Measuring Energy Range:	0-99999;
Dimensions:	15611264;	Place of Origin:	Zhejiang China;
Accuracy Class:	1.0/2.0;	Operating Temperature:	-10℃~55℃;
Output Voltage:	220V;	Supply Ability:	1000 Piece/Pieces per Day;
Phase:	Single Phase;	Brand Name:	XIZI;
Display Type:	Analog and Digital;	Payment Terms:	L/C,T/T;

Features:
(1)Measure power energy and display the number with character wheel register, can calculate reverse
electricity as normal electric power;
(2)Few periphery component,simple structure,low power consumption;
(3)Adopt high reliability and long life electronic component,so the meter assumes feature of high reliability
and long life;
(4)adopts advanced microelectronics technology,large-scale integrated circuits and digital sampling
technology,do not need calibrate for long term operation
(5)One card for only one user,well protected from forgery;
(6)Auto cut-off for overload;

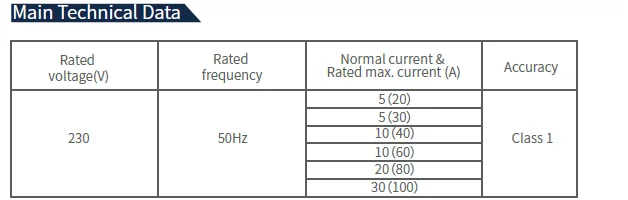

Paramaters:

Executive standards	GB/T17215.321-2008 GB/T184603.-2001
Range of operating voltage	0.8Un~1.15Un
Environmental temperature	-10^oC~55^oC
Limiting ambient temperature	-25^oC~65^oC
Relative humidity	≤85%
Power consumption	≤1W

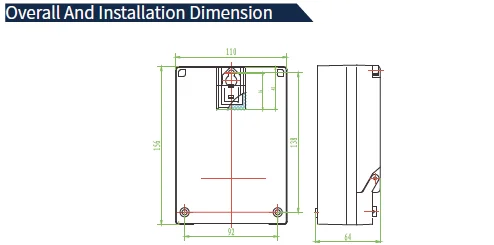

Overall dimensions (mm)	16711066.5(15611264)
Installing dimensions (mm)	12588(14592)

Specification:

The DDSY86 type single-phase electronic prepayment watt-hour meter(with IC card) uses a special energy measuring chipto convert the energy signal into the pulse signal. Then the pulse signal was processed by
the microprocessor to achieve the prepayment usage and energy control.
The meter could offer anti-counterfeiting function, encryption function,current limitation and cut-in or cut-off the circuit automatically. And help the power usage department to control the prepayment management.
The total active power is directly displayed by character wheel register, LED digital display shows the residual electrical quantity, number of purchasing times and the total prepaid capacity.
