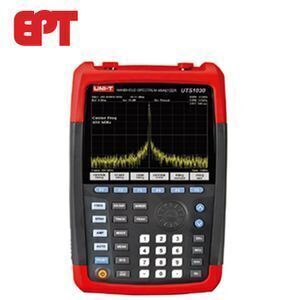

UTS1030 Handheld Spectrum Analyzer

Specifications

UTS1030

Spectrum Measurement

Range

9kHz~3.6GHz

Resolution

1Hz

Accuracy

±(Frequency Marker Readout*Frequency Reference Accuracy +1%*Span +10%*RBW+0.5*[Span/(Sweep Points-1)]+1Hz)

Internal Reference (10MHz)

Aging Rate <1ppm/year
Stability Over Temperature  <0.5ppm(15℃ ~ 35℃)

Resolution Bandwidth (RBW)

Range

10Hz~3MHz, Customized down to: 1Hz~10Hz

Electability (60dB/3dB)

RBW≤500kHz; <5:1 Typical (Digital implementation, next to Gaussian shape);
<5% Typical

Accuracy

RBW≤500kHz; <5% Typical

Video Bandwidth

10Hz~3MHz

Average Noise Level (1Hz RBW, 0dB RF Attenuator)

Preamplifier Off

100kHz~1MHz: <-100dBm-3×(f/100kHz)dB

1MHz~10MHz: <-130dBm
10MHz~1GHz: <-135dBm
1GHz~3.6GHz: <-130dBm

Preamplifier On

100kHz~1MHz: <-120dBm-3×(f/100kHz)dB

1MHz~10MHz: <-150dBm
10MHz~1GHz: <-155dBm
1GHz~3.6GHz: <-148dBm

Phase Noise(fc=500MHz)

Offset 30kHz

-90dBc/Hz

Offset 100kHz

-100dBc/Hz

Offset 1MHz

-110dBc/Hz

Sweep Time

Span (100Hz≤SPAN≤3.6GHz)

10ms to 3000s

Zero Span

1ms to 3000s

Sweep Modes

Continuous, Single

Trigger

Trigger Source

AUTO, Video, EXT

Offset 100kHz

5V TTL Level (Typical)

Frequency Counter

Resolution

1Hz, 10Hz, 100Hz, 1kHz

Uncertainty

Frequency Readout x Frequency Reference Progress + Counter Resolution

Amplitude Accuracy (20℃~30℃)

Overall Amplitude Accuracy (90%)

±1.5dB
Input Signal Range: -50dBm ~ 0dBm

Amplitude

Max. Safe Input Level

Average Continuous Power: +27dBm

Max. Input DC Voltage

50Vdc

Input Attenuator Range

0~39dB, in 3dB step

1dB Compression

+7dBm

Internal Memory

128MB

Residual Response

Third-Order Intercept (TOI)

>30MHz: 13dBm

Second Harmonic Intercept (SHI)

+30dBm

Input Related Spurious

<-60dBm

Residual Response

<-85dBm

Tracking Generator (Optional)

Frequency Range

100kHz to 1.5GHz

Output Power

-30dBm ~ 0dBm, in 1dB step

Output Flatness

±3dB

Input/Output

RF Input

N Type, Female (50Ω)

USB

USB Host, USB Device

LAN

10/100 Base-T, RJ-45 Connector

AM/FM Demodulation

Headset

Reference Input/Output

10MHz, BNC Female, Input: 0dBm ~ +10dBm; Output: 0dBm±2dB

General Characteristics

Power

Li-ion Battery: 7.4V 6600mAh;
DC Adapter: 100~240VAC 50/60Hz 1.5A

Display

6.5 inches TFT LCD, VGA (640×480)

Product Color

Red and grey

Product Net Weight

3.0kg

Product Size (W×H×D)

182mm × 288mm ×142mm

Standard Accessories

DC Adapter, N/SMA Convertor, N/BNC Convertor, RF Cable, Antenna

Standard Individual Packing

Gift Box, English Manual

Standard Quantity Per Carton

1pcs

Standard Carton Measurement (L×W×H)

400mm × 280mm × 220mm

Standard Carton Gross Weight

3.9kg
