API oilfield Tubing/torque Anchor

Supplier: Dongying Qixiang Import & Export Co., Ltd.
Region: Shandong, China
Contact: Ms Eve Liu
Price: $1.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Suitable Casing:	5-1/2";	Type:	downhole tools;
Thread type:	EUE;	Single package size:	78X22X22 cm;
Package Preview:	https://sc01.alicdn.com/kf/HTB1j.QDQxjaK1RjSZFAq6zdLFXaj.jpg_640x640.jpg;	Single gross weight:	30 KG;

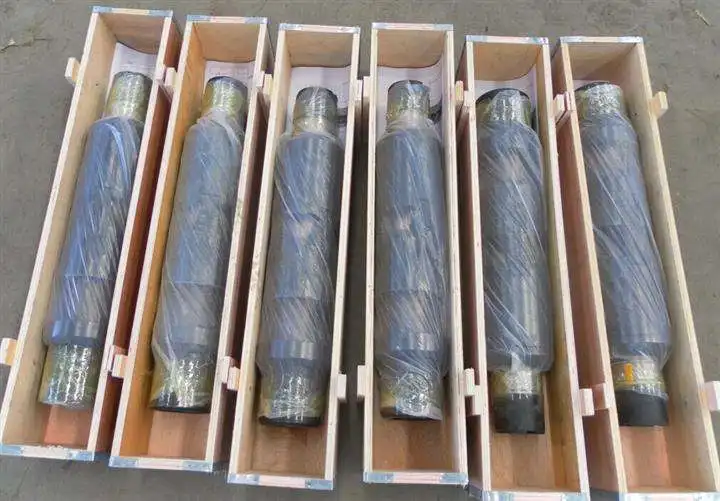

Package Type:	wooden box;	Model Number:	DYQX-ANchor;
Selling Units:	Single item;

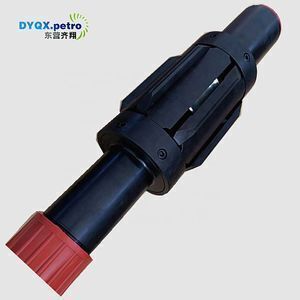

API oilfield Tubing/torque Anchor

Product Description

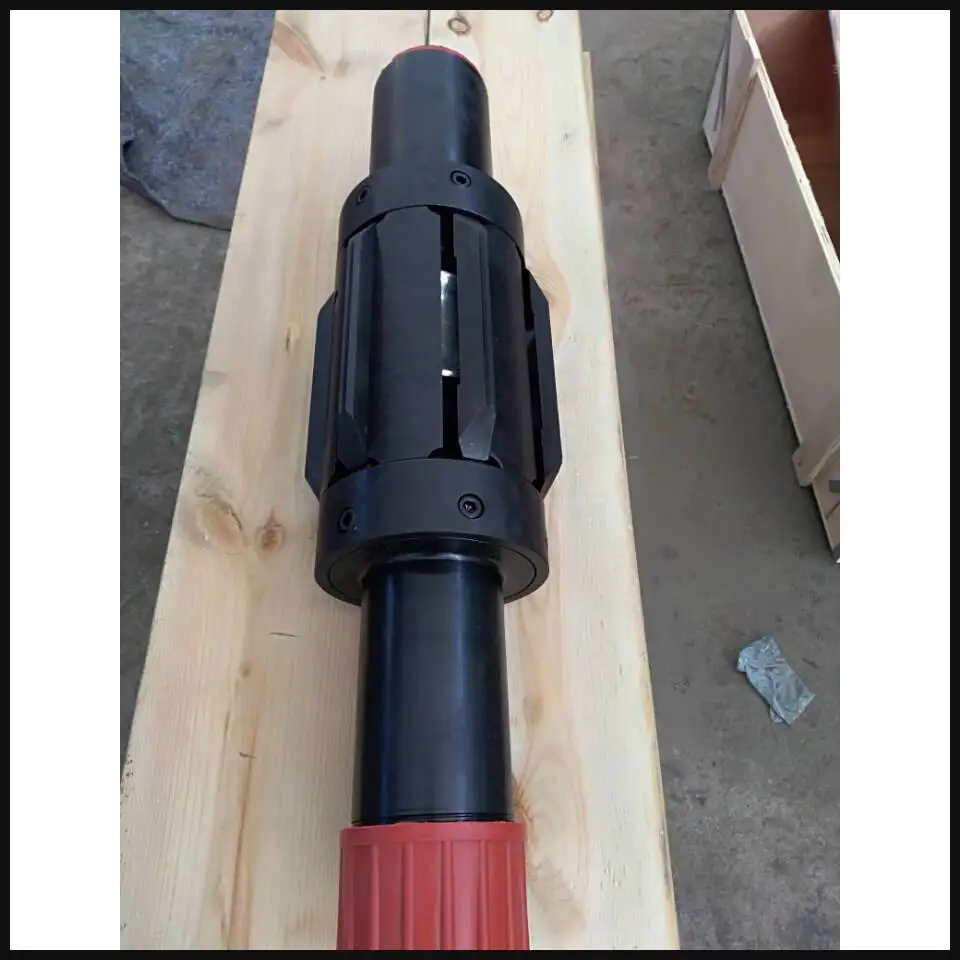

TheTubing Anchor is a retrievable double grip tubing anchor designed to anchor the tubing string in tension or in compression.

When installed with the proper amount of tubing tension, the Tubing Anchor prevents movement of the tubing string during rod pumping operations. This in turn will extend the life of the pump, rods and tubing, as well as decrease pumping costs and prevent the tubing and rods from failing in case of parted tubing.

The Tubing Anchor incorporates an emergency shear release system, which is easily adjustable in the field. Each pin is 2,200 kg (5,000 lbs.).

features and benefits

Sets securely in any hardness casing, including premium grades

Large bore - Small OD

Model “L” right hand release or emergency shear release, Model “R” left hand release or emergency shear release

Easy adjusted release from 5,000 lbs to 60,000 lbs

Drag blocks rather than drag springs

Technical Parameter

Casing OD	Casing Wt	Setting Range		Tool OD	Threads Box Up Pin Down
Casing OD	Casing Wt	Min ID	Max ID	Tool OD	Threads Box Up Pin Down
5 1/2	13.0-23.0	4.670	5.044	4.50	2-7/8EU
6 5/8	17.0-32.0	5.675	6.135	5.50	2-7/8EU
7	17.0-32.0	6.094	6.538	5.854	3-1/2EU
9-5/8	32.3-47.0	8.681	9.001	8.000	3-1/2EU
