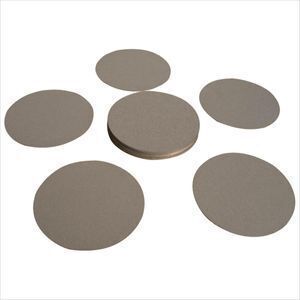

Porous metal SS Stainless Steel 316L Sintered Disc Filters
-
Supplier: Baoji City Changsheng Titanium Co., Ltd. -
Region: Shaanxi, China -
Contact: Ms Eileen Yang -
Price: $26.00 / >=10 pieces -
Min. Order: 10 pieces
| Package Preview: | https://sc01.alicdn.com/kf/H6c9a7a673d684736828c7ab2aad8462fC.jpg_640x640.jpg; | Technical: | Sintered; |
| Place of Origin: | China; | Material: | Stainless steel; |
| Filter rating: | 1μm; | Usage: | Air Filter; |
| Brand Name: | BJCSTY; | Selling Units: | Single item; |
| Thickness: | 1mm; | Compression Strength: | 3 MPa; |
| Max. operating pressure: | 0.6MPa; | Material: | Metal; |
| Single package size: | 13X12X3 cm; | Applicable Industries: | Manufacturing Plant; |
| Package Type: | 1. Package : film and wooden case,carton Packaging can be according to customer requirements. 2. Advantage : High porosity, low filtration resistance, high penetration efficiency.; | Certificates: | ISO 9001:2008; |
| Width: | 90mm; | Length: | 90mm; |
| Shape: | Round Discs; | Single gross weight: | 1 KG; |
| Application: | Air filtration; | Working Temperature Max.: | ≤500℃; |
| Feature: | Excellent Filtration Performance; | Type: | Filter Elements; |
| Hole Shape: | Round; | Filter Rating: | 20%; |

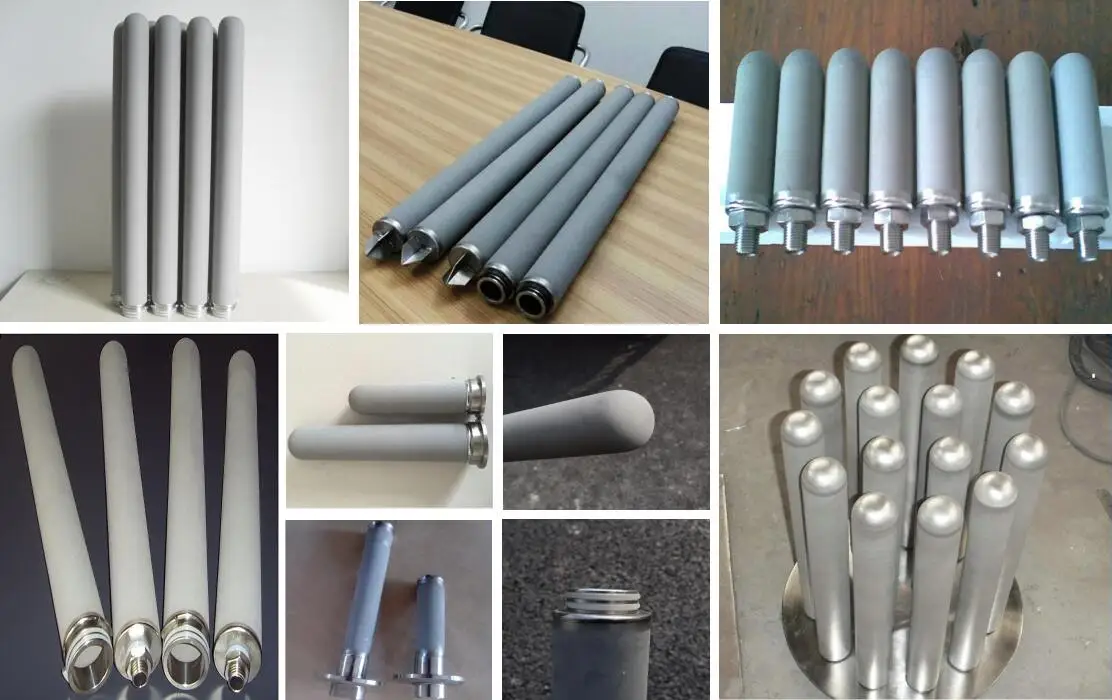

The sintered filter is made of stainless steel power ,through the sub-screen, forming, sintering to micro-filter components. According to user requirements can produce a variety of shapes, structure, different size, porosity of porous components, such as: hood, cap, sheet, tube, rod-like filter element.
Specifications
1.Diameter: OD5mm-300mm (or as your request)
2.Thickness : 0.5mm-10mm (or as your request)
3.Filtering Rating : 0.5um-70um
Technical Data:
| Filtering precision | Porosity | Permeability (m3/h.m2.kpa) | Compressive strength |
Max. differential Pressure |
0.5um - 70um
| 20-50% | 3~1300 | 3 Mpa | 0.6Mpa |
Filteration Class
| Filtering Rating (um) | Pore Size Max. (um) | Permeability 10-12m² | Breathability m3/h.m2.KPa | Thickness (mm) | Compression Strength MPa/ cm² |
S9 | 0.2 | 2.5 | 1 | 3 | 3.0 | |
| S8 | 0.5 | 4 | 3 | 3 | 3.0 | |
| S7 | 1.0 | 6 | 5 | 3 | 3.0 | |
| S6 | 2.5 | 10 | 0.09 | 10 | 3 | 3.0 |
| S5 | 5 | 15 | 0.23 | 40 | 3 | 3.0 |
| 8 | 20 | 0.91 | 80 | 3 | 3.0 | |
| S4 | 10 | 30 | 1.81 | 160 | 3 | 3.0 |
| S3 | 30 | 60 | 3.82 | 350 | 3 | 3.0 |
| 35 | 80 | 7.29 | 500 | 3 | 3.0 | |
| S2 | 40 | 100 | 9.43 | 700 | 3 | 3.0 |
| S1 | 65 | 160 | 15.1 | 1000 | 3 | 3.0 |
Application Ranges
The stainless steel powder sintered filter element can be widely used in the pharmaceutical industry, water treatment industry, food industry, biological engineering, chemical industry, petrochemical industry, metallurgy industry and gas purification field:

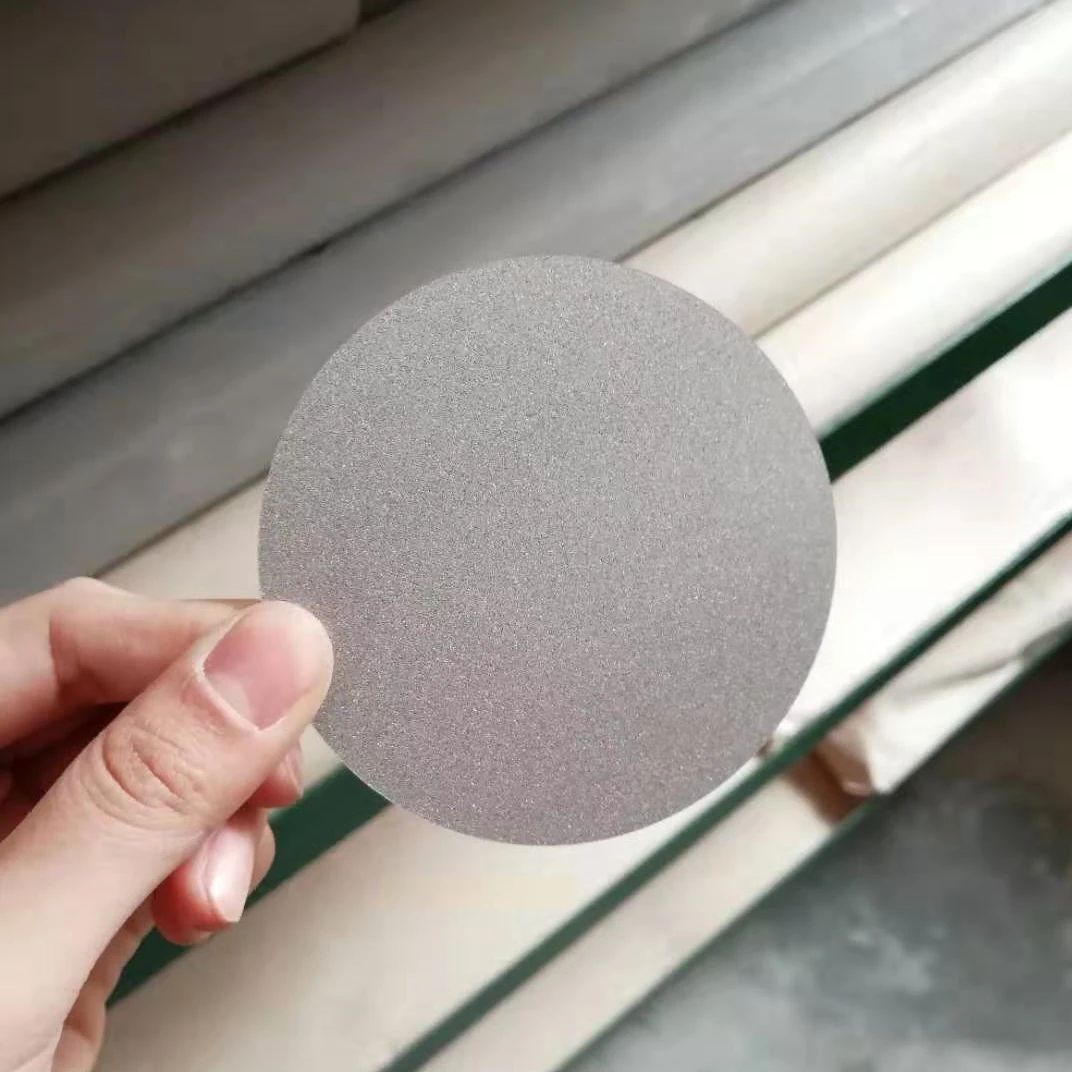

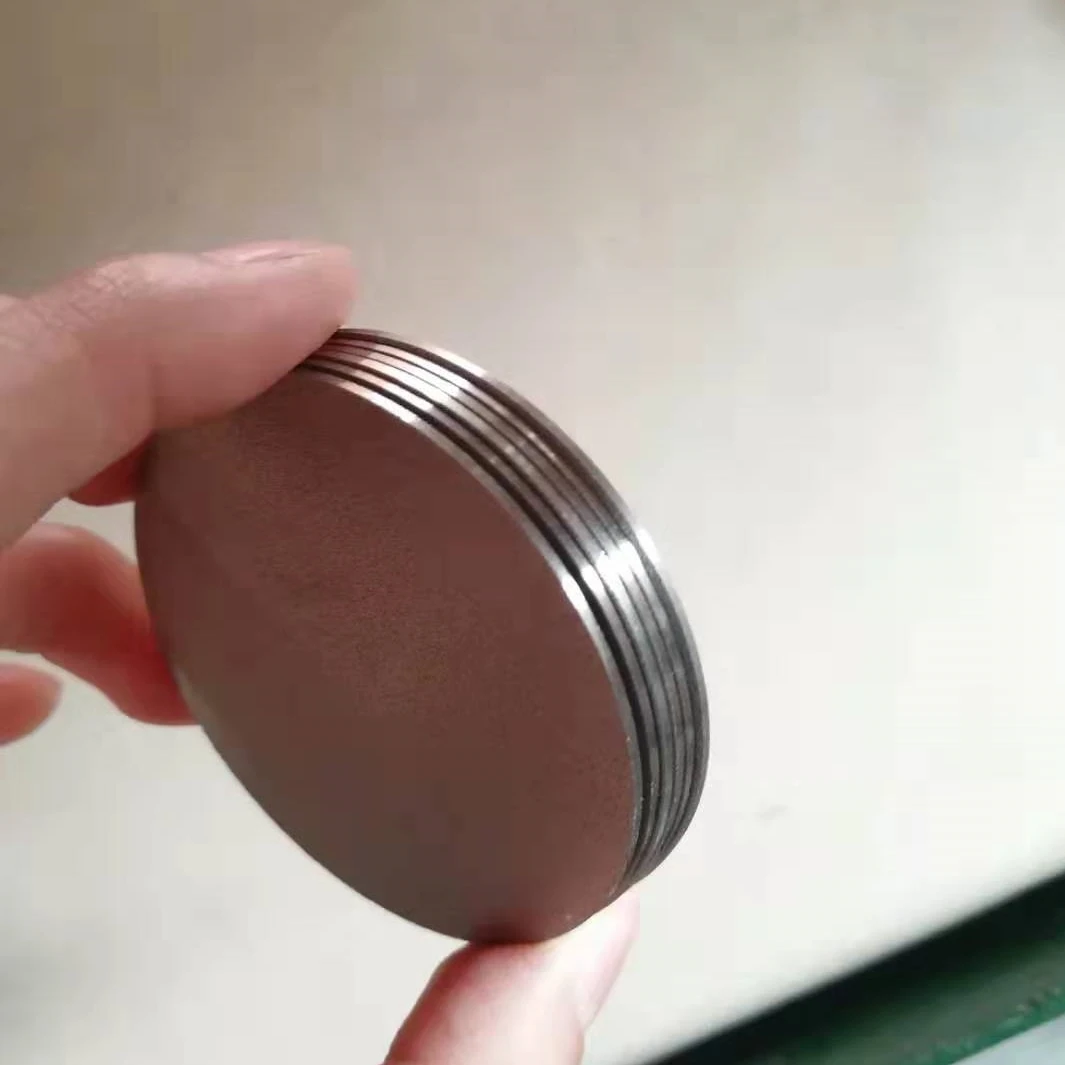

Detailed Image
Fine permeability and accurate filter precision
Excellent low temperature resistance , long service life
Baoji City Changsheng Titanium Co.,Ltd. is located in Baoji City which is know as the"Titanium City". Our factory was established in 2006,and as a professional manufacturer,we specialized in the production of kinds of titanium filter and stainless steel filter .
Work environment
Nitric acid, sulfuric acid, acetic acid, oxalic acid, phosphoric acid, 5% hydrochloric acid, molten
sodium, liquid hydrogen, nitrogen, hydrogen sulfide, acetylene, water vapor, hydrogen gas,
carbon dioxide gas.
Our Supply Capacity:100000pcs / per month.
Delivery time :7-15 working days after payments
Packaging
Within plastic bags or foam inside , export wooden case outside.
Shipping Terms
DHL,UPS,FedEx,TNT,EMS
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 1-2 days if the goods are in stock. or it is 7-15 working days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<1000USD, 100% in advance. Payment >1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
-
