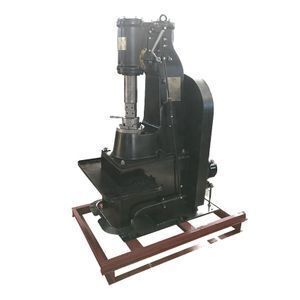

good price anyang blacksmith power hammer for forging 15kg-25kg-40kg-55kg
-
Supplier: Henan Topp Machinery Co., Ltd. -
Region: Henan, China -
Contact: Mr. Jack Ren -
Price: $2000.00 /set -
Min. Order: 1 set
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union; | Machine Type: | power hammer blacksmith; |
| DIAMETER OF RAM CYLINDER (MM): | 115; | Warranty: | 1 year; |
| Usage: | Automatic Control Operation Forging Hammer; | Brand Name: | TOPP; |
| Packaging Detail: | pneumatic forging hammer pneumatic hammer forging power hammer good price Type of package: Plywood case; | Applicable Industries: | Machinery Repair Shops,Manufacturing Plant,Home Use,Retail; |
| Place of Origin: | Anyang China; | Local Service Location: | None; |
| BLOW ENERGY (KJ): | 0.16; | Application: | Shaping; |
| Showroom Location: | None; | Weight: | 540; |
| Supply Ability: | 200 Set/Sets per Month; | Power(W): | SINGLE PHASE/ 2.2KW/ 1420 RPM; |
| Port: | Qingdao Shanghai Tianjin port; | NO. OF BLOWS PER MIN: | 300; |
| Key Selling Points: | Long Service Life; | Dimension(L*W*H): | 920x600x1250; |
| Voltage: | 380V/220V; | After-sales Service Provided: | Video technical support,Online support; |
| TOP DIE FACE (MM): | 70x50; | TUP AXIS TO FRAME (MM) --D: | 170; |
| Name: | anyng blacksmith Forging Power Hammer; | BTM DIE FACE TO SLIDES (MM): | 245; |
| Certification: | CE ISO900; | Condition: | New; |
| After Warranty Service: | Video technical support,Online support; | DIAMTER OF PUMP CYLINDER: | 125; |
good price anyng blacksmith power hammer for forging 15kg-25kg-40kg-55kg
Product Description
General description
Air forging hammer also called wrought iron blacksmith power hammer.TP power hammer from 15kg to 150kg are widely used by blacksmith for the art forging;from 150kg to 2000kg are widely used in the industrial forging. Pneumatic forging hammer/power hammer is widely used for general Forging works, such as drawing-out, upsetting, punching, chiseling, forging welding, bending and twisting. It is also used for forging in bolster dies.
C41 series pneumatic hammer is mainly used to free forging, drawing, upsetting, punching, hot shearing, forged welding, bending, torsion and wedge forge. one piece forging hammer and two pieces forging hammer can be assembled and trial run before leaning factory. The percent of the pass of production(finished machines)leave factory is 100%.
Main feature
1. Unlike steam hammers or air hammers fed from a supplementary compressor, the Pneumatic forging hammer with itself-contained cylinder,require no ancillary power raising plant.
2. The Pneumatic forging hammer is equipped with a self-priming lubricating oil pump,during operating, it can realize the automatic lubrication.
3. Easy to operate, by manipulating the hand lever or foot-pedal, all operating functions—idle run, top setting, pressing down, single blow, light or full series blow can be obtained as desired.

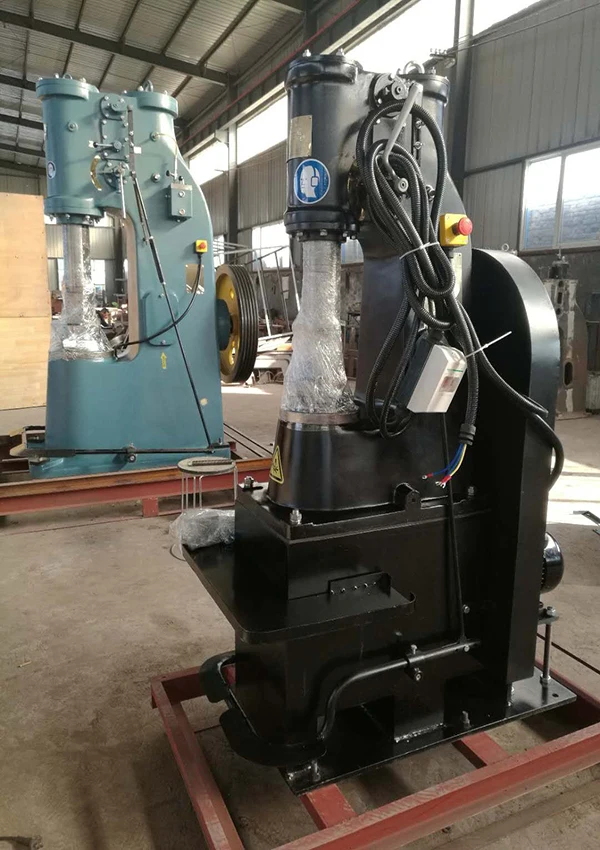

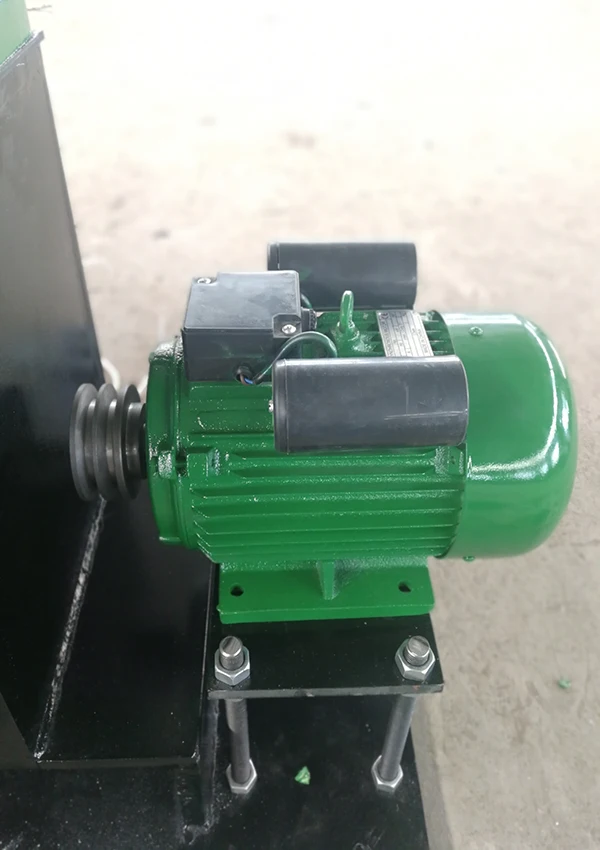

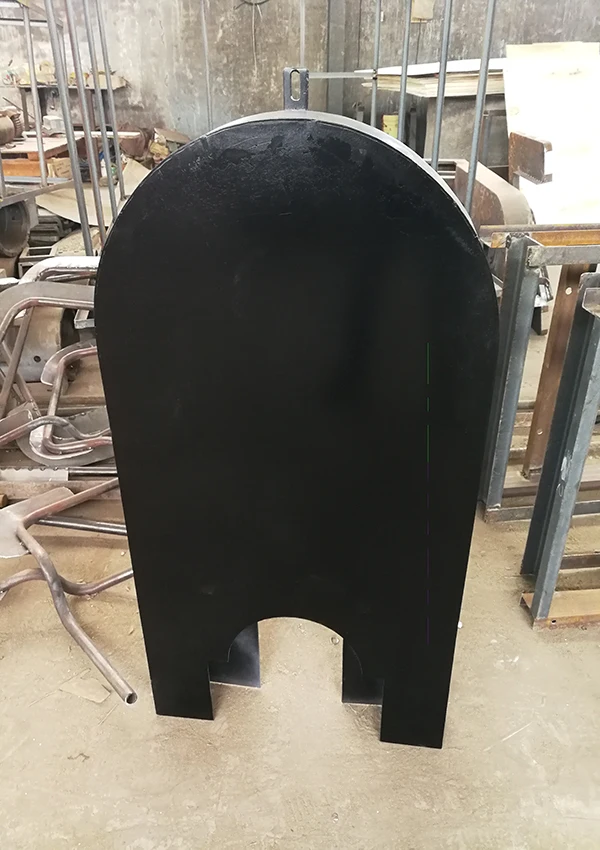

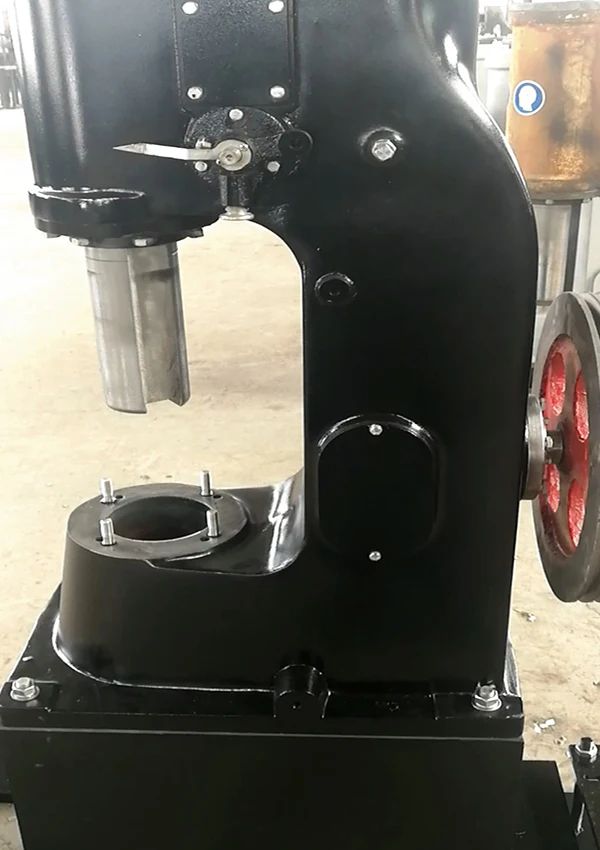

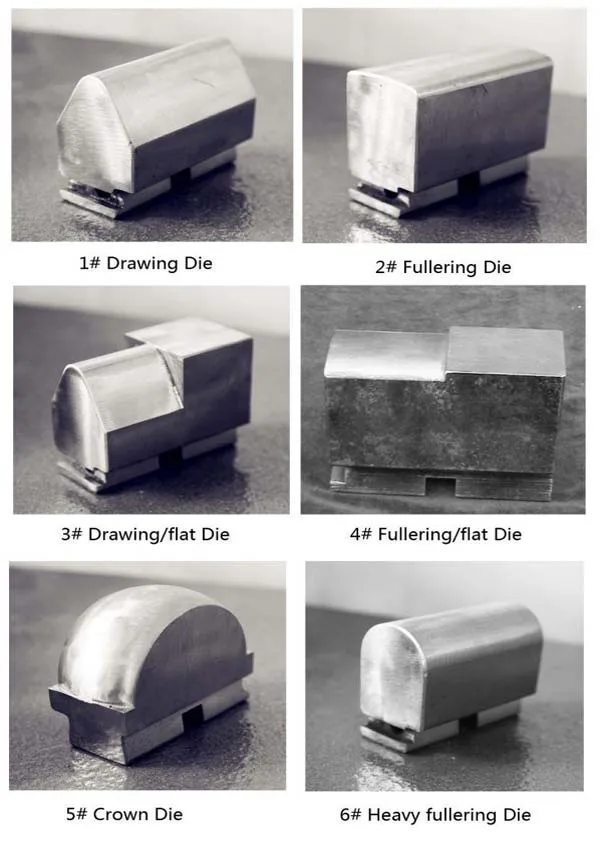

Detailed Images
Size Information
Model | C41-25L | C41-40L | C41-55L | C41-75L | C41-110L | |
Weight of falling parts(kg) | 25 | 40 | 55 | 75 | 110 | |
Hit energy(kj) | 0.27 | 0.53 | 0.7 | 1 | 1.98 | |
Hit frequency(min-1) | 250 | 245 | 230 | 210 | 180 | |
Height of working area(mm) | 240 | 245 | 270 | 297 | 355 | |
D - Depth of throat(mm) | 235 | 270 | 300 | 330 | 400 | |
Working Piece
| Square | 40×40 | 52×52 | 60×60 | 65×65 | 110×110 |
| Round (mm) | Φ48 | Φ68 | Φ75 | Φ85 | Φ120 |
Motor
| Model | Y132S1-6 | Y132M1-6 | Y132M2-6 | Y160M -6 | Y180L-6 |
| Power(kw) | 3 | 4 | 5.5 | 7.5 | 15 |
Weight | Include Base | 1100 | 1390 | 1700 | 2640 | 3300 |
Application:
Applicable to all kinds of free forging: such as extension, upsetting, punching, shearing, forging welding, torsion and bending using a die cushion can be a variety of open die forging.
-
