The hot filter press - Thermal drying of the filter residue for high dry matter

Description:

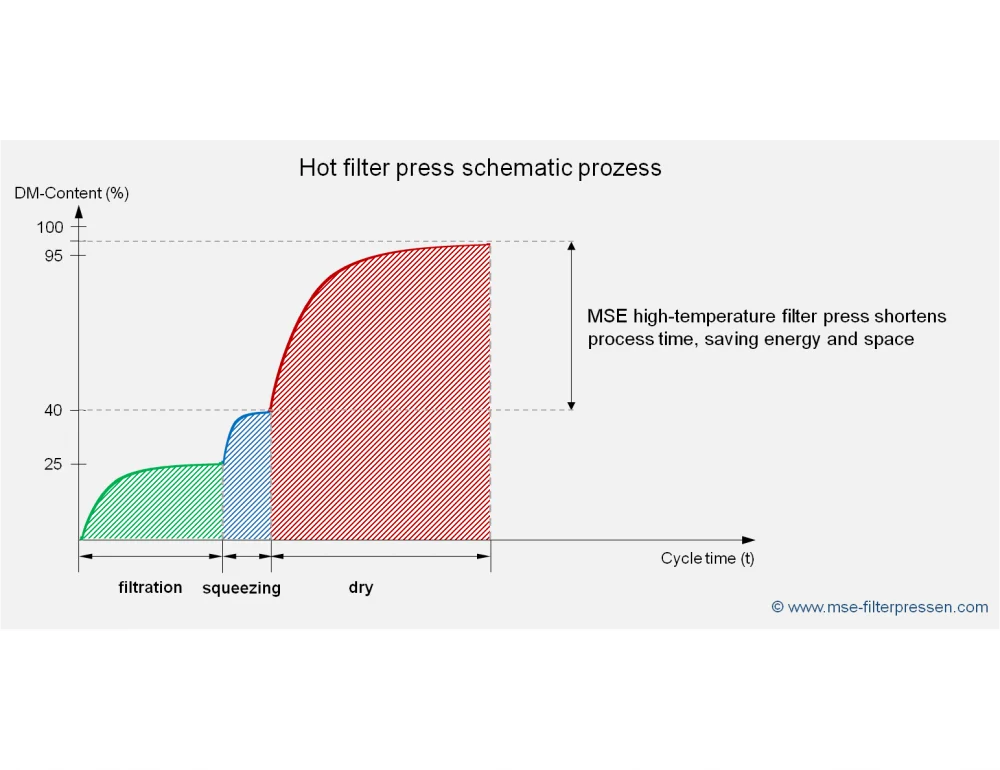

The hot filter press combines the standard process steps of a membrane filter press, (filtration, filter cake washing and squeezing), with the additional function of a thermal filter cake drying (TCD). As a result, all process steps are carried out in one plant, the hot filter press. Dewatering and drying of the resulting filter cake is thus done without a downstream drying process. Cost-intensive and time-consuming vacuum contact drying is therefore no longer necessary.


FUNCTIONAL PRINCIPLE OF THE HOT FILTER PRESS - WITH THERMAL FILTER CAKE DRYING

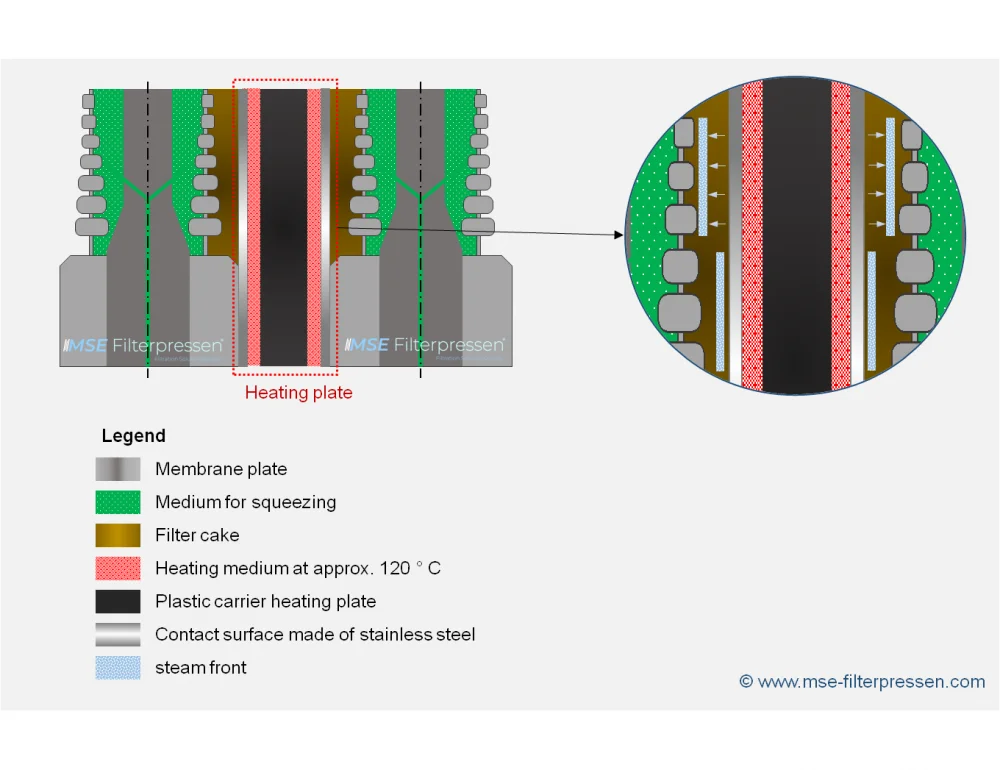

In contrast to the conventional method, the system consists of membrane filter plates and heat exchanger plates, which are installed alternately in a filter press. For thermal drying, hot steam and/or oil is applied to the working space behind the membrane and the filter cake is thermally dried accordingly. The advantage of this process is that a high dry matter content (DM content) of over 90% is achieved.

Characteristics:

Pictures:

We offer various payment options. Please contact us for futher details.

1. Our products are packed according to the international export packing standards for seaworthy packing: carton box, plastic bag, wooden or iron/steel pallet or container.
2. We can also deliver our products carefully packed according to customer requirement. Please contact us for getting further details.
3. Packaging includes the full set of documents and (if necessary) operate maintenance and engine operate manual, spare parts list and set of inspection certificate issued by manufacturer.

MSE Filterpressen GmbH

http://ky.to/mse-filterpressen.com

Since its founding in 1978, MSE Filterpressen(R) has become one of the world's leading manufacturers of high-quality filter presses in the field of solid-liquid separation. With the filter press plants of MSE Filterpressen(R), you get a wellproven and innovative solution for industrial separation processes. Our solid/liquid separation specialists use their in-depth expertise to engineer and provide filter press plant solutions that are individually tailored to regional and application requirements.

As a leading filter press manufacturer the MSE Filterpressen(R) has a wide range of products to meet different customer requirements. Our filtration systems are widely used in industrial production for the separation of sludge, chemical substances and petroleum but also for the production of raw materials.

More than 3, 000 references underpin the vast experience we have and the trust our customers put in our know-how. We have grown our operations to cover 30 nations globally, and have taken the world lead with our special treatment plants for phosphate filtration in automotive industry.
