4/6/8/10mm P3 square lock stainless steel flexible conduit

Click here to contact

Product details

Surface treatment:	Electroplating polishing;	Material:	Steel;
Model Number:	10mm;	Thickness:	0.2-0.5;
Port:	Ningbo or Shanghai;	Package:	100M;
Product name:	stainless steel flexible conduit;	Application:	cable protection;
material:	201/304 stainless steel;	Supply Ability:	2000000 Meter/Meters per Month;
Type:	Flexible;	Brand Name:	Minghong or OEM;
O.D:	10mm;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
I.D:	8mm;	Packaging Detail:	stainless steel flexible conduit, 100 meter pack, few pack in paper carton,;
Place of Origin:	Zhejiang China (Mainland);

Product Description

stainless steel flexible conduit

1. material 201/304 steel, EN and DN standard.

2. usual provide I.D 4mm to 35mm. Other customized as requirement.

3. used for cable proection or rubber water hose protection.

4. PVC coated also can be available.

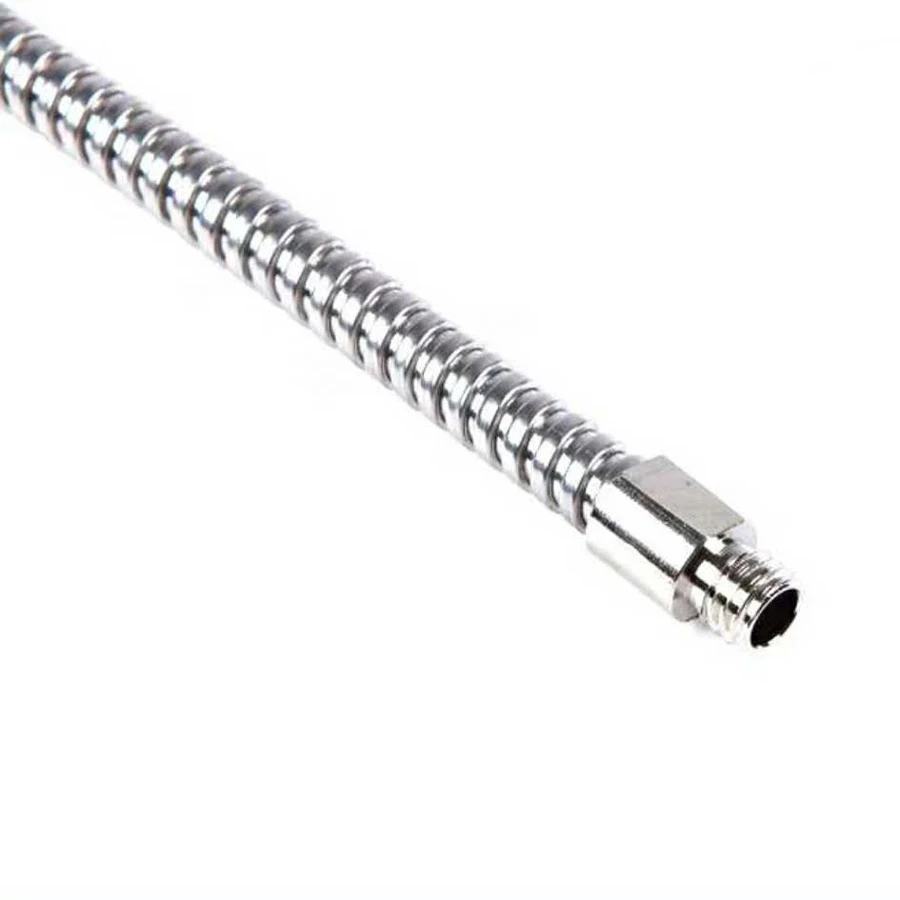

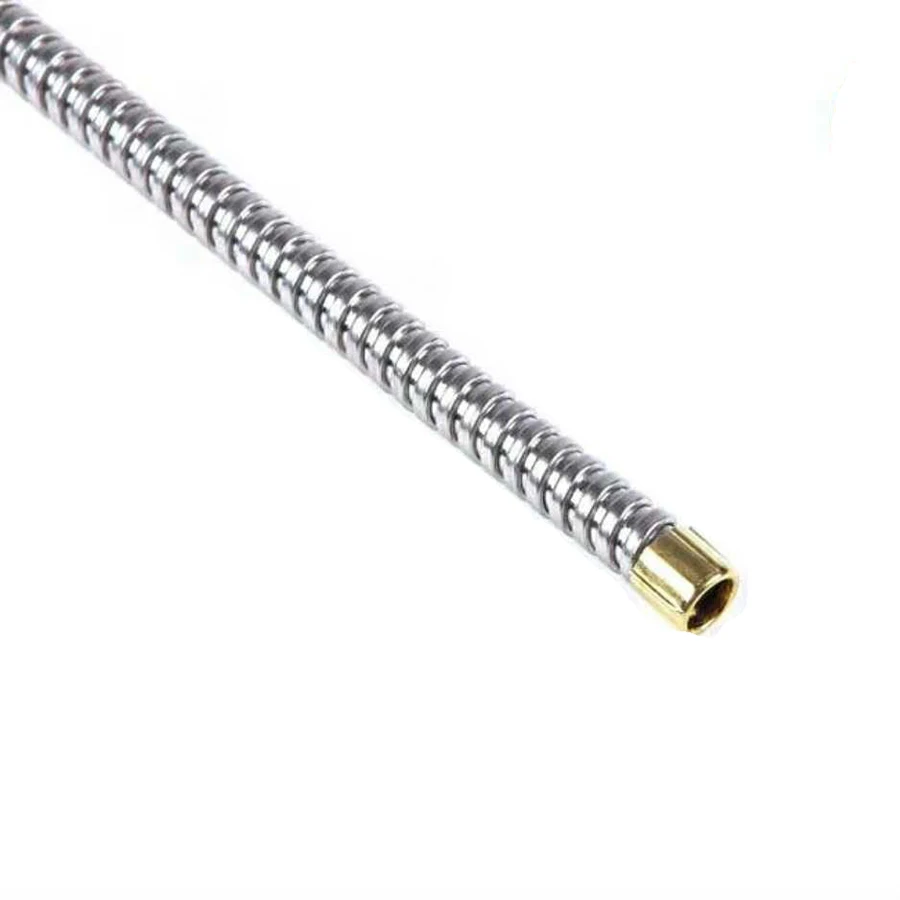

5. conduit adaptor also can be available.

6. high tensile resistance, strong destructive resistance, high fatigue resistance,

high temperature resistance, impact resistance, strong corrosion resistance

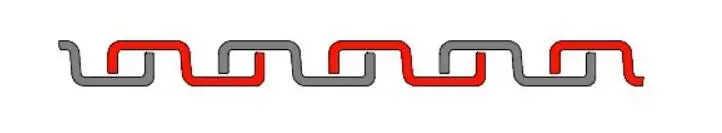

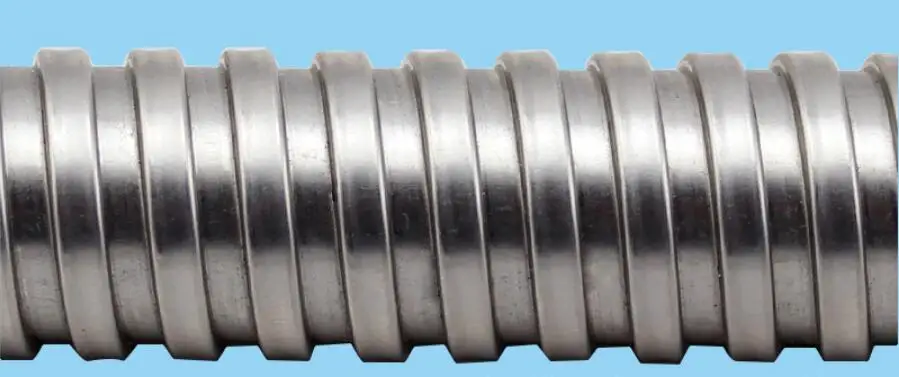

1> single lock (P3 square lock) stainless steel flexible conduit

Orer NO.	Inch	(mm)I.D.	(mm)O.D.	(mm)O.D.+PVC	Packing(M)
P030060S2D1	-	3.0	5.0	6.0	100
P040070S2D1	-	4.0	6.0	7.0	100
P046080S2D1	-	4.6	6.6	8.0	100
P050080S2D1	-	5.0	7.0	8.0	100
P054095S2D1	-	5.4	7.8	9.5	100
P059100S2D1	-	5.9	8.4	10.0	100
P066100S2D1	1/4	6.6	9.0	10.0	100
P095150S2D1	3/8	9.5	12.5	13.2	50
P125177S2D1	1/2	12.5	15.7	17.7	50
P161213S2D1	-	16.1	19.5	21.3	50
P191245S2D1	-3/4	19.1	22.2	24.5	50
P208267S2D1		20.8	24.3	26.7	40
P220280S2D1	-	22.0	25.7	28.0	40
P260330S2D1	1	26.0	30.0	33.0	30
Other sizes available by customized

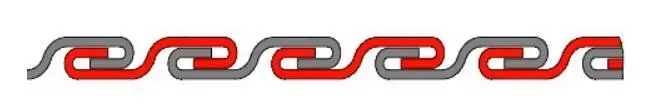

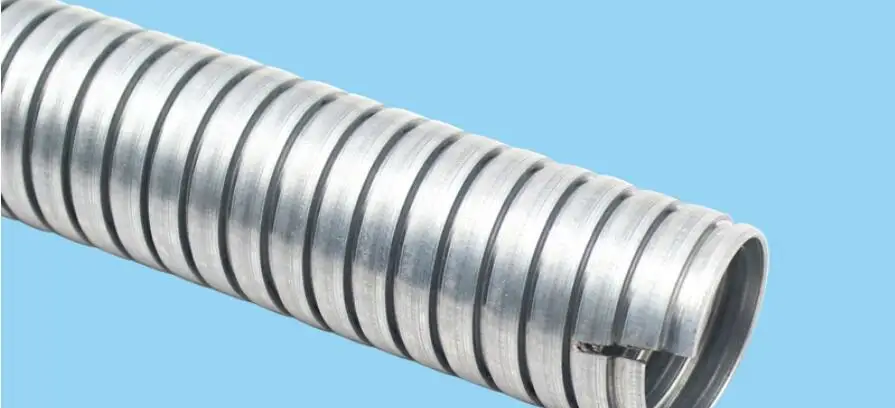

2> double lock ( P4 interlock) stainless steel flexible conduit

Order NO.	Inch	(mm)I.D.	(mm)O.D.	(mm)O.D.+ PVC	Packing
S040070C2S1	—	4.0	6.0	7.0	100
S046080C2S1	—	4.6	6.6	8.0	100
S050080C2S1	—	5.0	7.0	8.0	100
S054095C2S1	—	5.4	7.8	9.5	100
S059100C2S1	—	5.9	8.4	10.0	100
S066100C2S1	—	6.6	9.0	10.0	100
S095150C2S1	1/4"	9.5	12.5	15.0	50
S100150C2S1	3/8"	10.0	12.5	15.0	50
S125177C2S1	1/2"	12.5	15.7	17.7	50
S161213C2S1		16.1	19.5	21.3	50
S191245C2S1	3/4’’	19.1	22.2	24.5	50
S208267C2S1		20.8	24.3	26.7	40
S220280C2S1		22.0	25.7	28.0	40
Other sizes available by customized

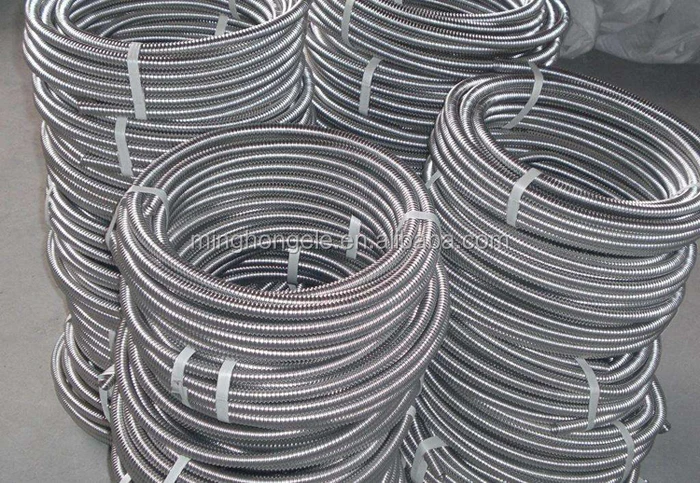

Packaging & Shipping

Our Services

flexible hose pipe adaptor also be available if requirement.
