Factory direct selling electrical bellows PE PP PA material AD10/13/15.8/18.5/28.5MM a pack of 50/100 meters

Supplier: Wenzhou Lanmu Electrical Co., Ltd.
Region: Zhejiang, China
Contact: Mr Ivan Wu
Price: $0.05 / >=1000 meters
Min. Order: 1000 meters

Click here to contact

Product details

Name:	Electrical bellows	model:	advertise
Material:	PE/PP/PA,PE/PP/PA	place of origin; place of origin:	Zhejiang, China
Supply capacity:	100,000 meters per day	diameter:	AD10/13/15.8/18.5/28.5MM etc.
Package:	50/100m/roll+polybag+label+carton	Packaging Details:	50/100m/roll+polybag+label+carton for flexible electrical corrugated conduit
color:	Black	Product Keywords:	Electrical bellows
port:	Ningbo Shanghai	type:	flexible
brand:	Bluewood & OEM	Certification:	CE ROHS SGS
payment terms:	L/C,T/T,Alibaba Trade Assurance

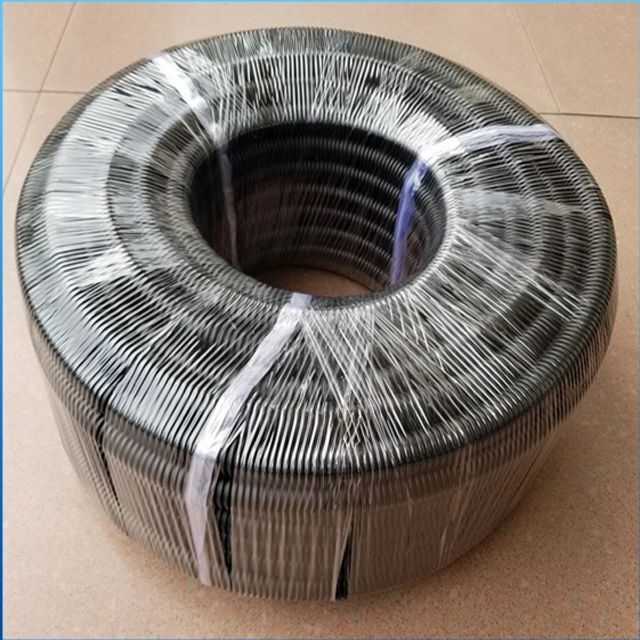

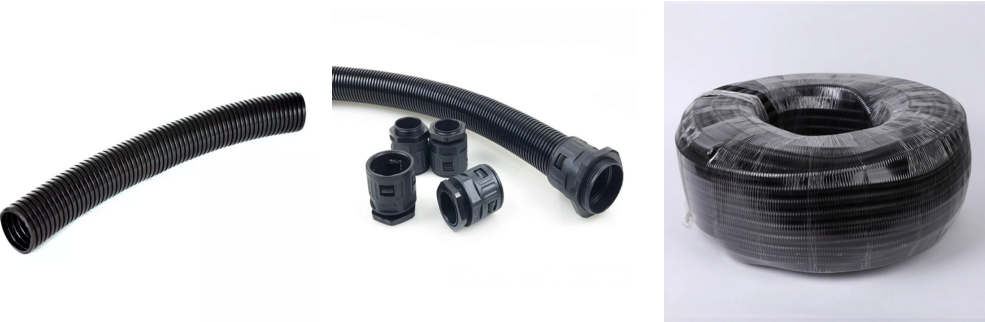

PE/PP/PA material flexible electrical corrugated conduit 50/100m packing

Product Description

main feature:

1) Material: Made ofPE/PP/PAplastic.

2)usage:Insert the cables and wires into the conduit, match the appropriate connectors, and connect them to the machine.

3)Color: Mainly black.

4) Application:Mainly used in automotive wiring, but also in electrical, mechanical, automatic instruments, meters, motors, etc., to protect cables and wires from abrasion and insulation.

Product Details:

Specification:

Material	Specification		Inner diameter x outer diameter	Bending radius	pack
Material	mm	inch	mm	mm	m/roll
physical education polypropylene Amplifier	AD-7	1/4	4.5x7	16	200
	AD-10		7x10	16	100
	AD-13	5/16	10x13	20	100
	AD-15.8	3/8	12X15.8	30	100
	AD 18.5		14.3x18.5	40	100
	AD-21.2	1/2	17x21.2	45	100
	AD-25		21x25	45	100
	AD 28.5	3/4	23x28.5	50	50
	AD-34.5	1	29x34.5	60	50
	AD-42.5	1-1/4	36x42.5	70	50
	AD-54.5	2	48x54.5	90	25
	AD-67.2	2-1/2	56x67.2	130	25
	AD-80	3	69x80	170	25
	AD-106	4	91x106	225	20
