SS LT Conduit Connector

Supplier: Cixi Chenghe Pipe Industry Co., Ltd.
Region: Zhejiang, China
Price: $5.00 / >=1000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

port:	Ningbo, Shanghai Port	payment terms:	Letter of credit, wire transfer
Place of origin:	Zhejiang, China	Supply capacity:	10,000 pieces per month
type:	cold shrink	Material:	steel
Certificate:	UL6 certificate number E483259	model:	TP
Packaging details:	Carton	brand:	Products/CCPI
Package preview:		feature:	Stainless steel

Product Details

Accepting small orders, the best choice for contractors

Feel free to contact us for a reference list!

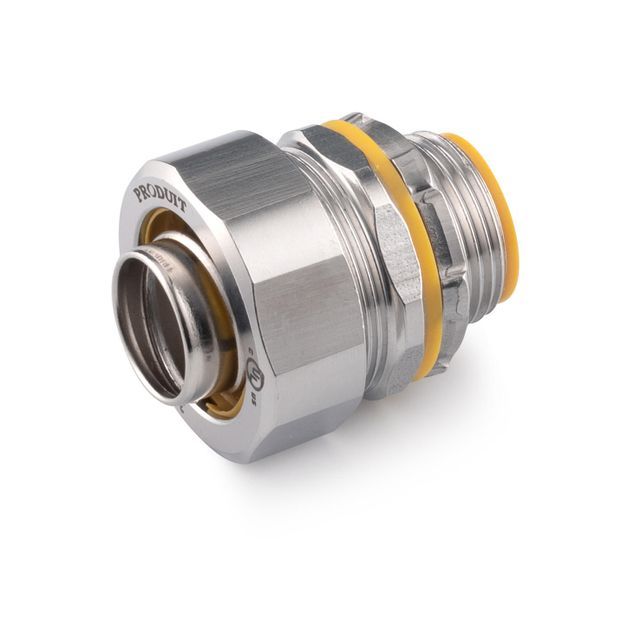

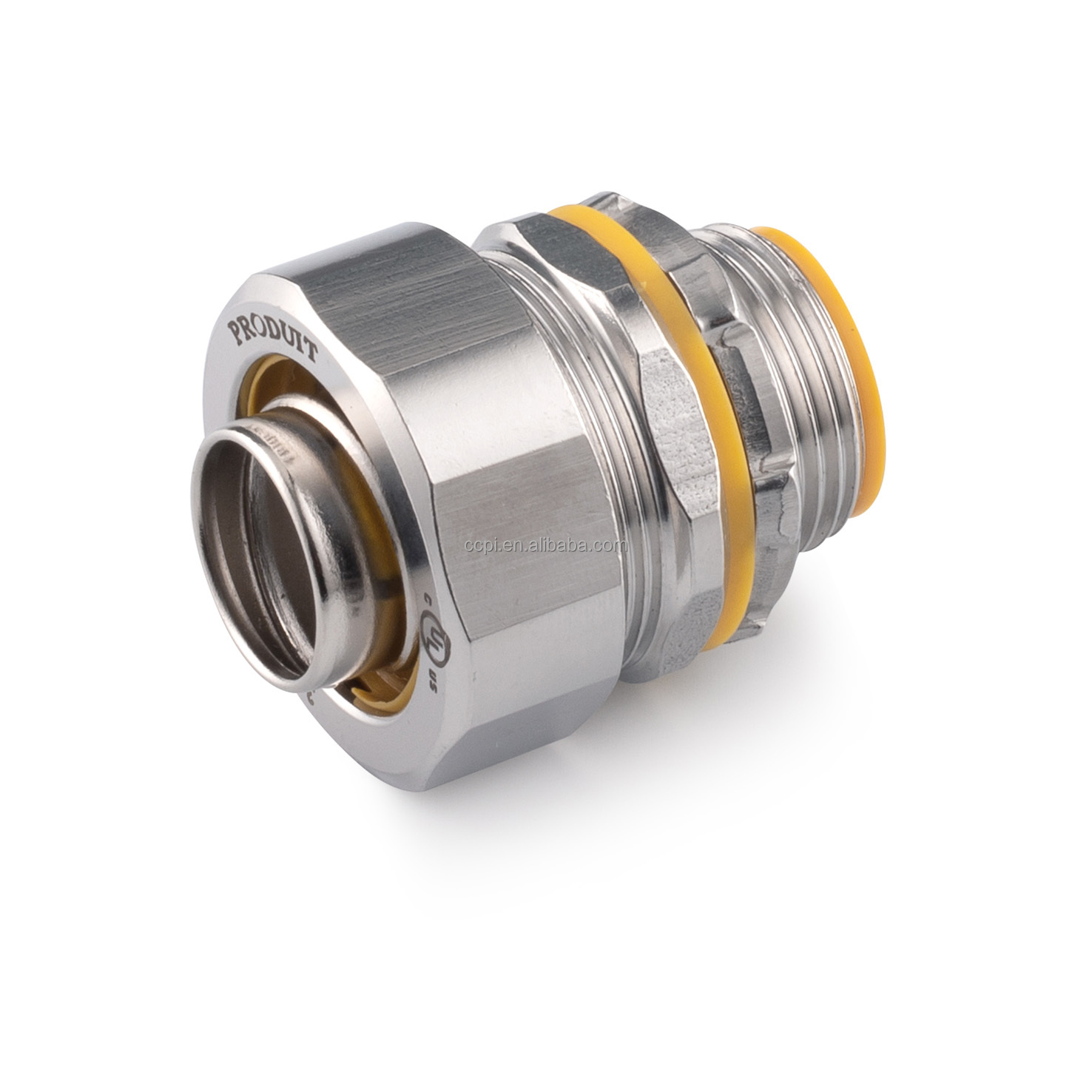

Produit® RIGID Stainless Steel Conduit Connectors

Application areas

- Secure, ground and connect waterproof flexible metal conduit to box and enclosure

- For harsh industrial and standard applications

- Made of SS316 for long-term reliable use where excellent corrosion resistance and strength are required
standard
Certification and Compliance:

• UL Listed Liquid Tight Flexible Metal Conduit Fittings are
Suitable for use in the following hazardous locations specified by NEC:

Category I, Category 2;

Class II, Class 1 and Class 2; and
Class III, Class 1 and Class 2,

Suitable for NEC specified grounds sizes 1/2" to 11/4".

• UL Standard: 514B
• CUL Standard: C22.2 No.18F

• Fed. Specifications WF-408E

• NEMA: FB-1

• UL and CUL File Number E509375

Standards and materials

•Valve Body - Straight: 316SS

45° and 90°: 316SS(CF8M)

• Gland Nut – 316SS

• Ferrule – Steel

• Gland nut seal – PP
• Gasket-PE

• Lock Nut – 316SS

• Throat – PP

.Standard finishes:

•316SS(CF8M) – electropolished

•316SS——Vibration Polishing

• Steel – Nickel plated

feature

•The surface is polished for better corrosion resistance and easier to clean

•Tapered external thread hub NPT
•Compact structure, thin diameter, small turning radius
• Comes with insulated hose with stainless steel lock nut and sealing ring

• Suitable for wet locations
• Long ferrule prevents pullouts and tight bends from tubing “popping out”

• RoHS compliant

Transaction size

1/2"-2"

Drawings and Specification Sheets

Provide if needed

test

CCPI performs regular testing on our Produit GRC conduit for weld strength, bending ability, plating thickness, all dimensions of conduit and threads, and uniform smoothness of the internal coating.

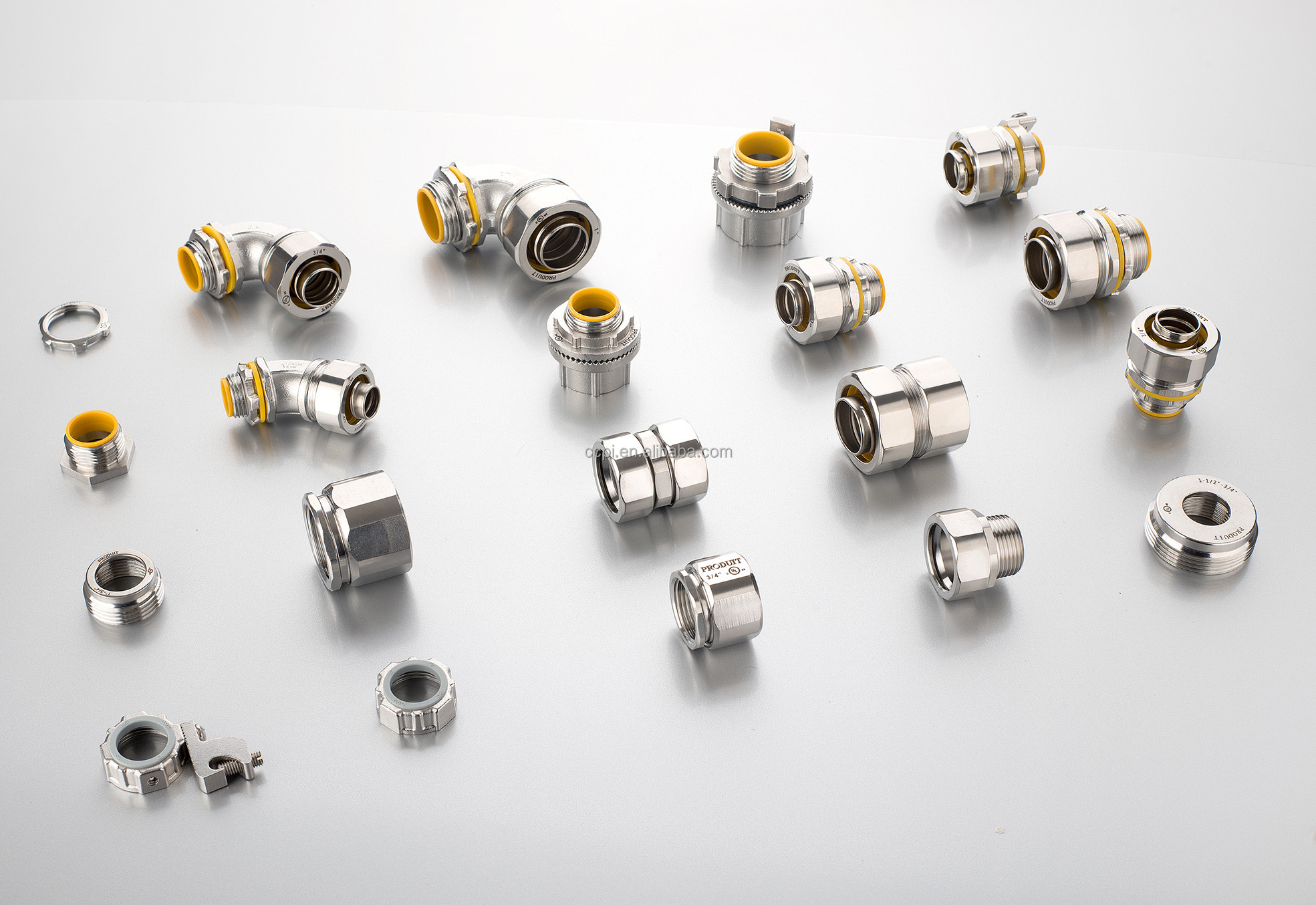

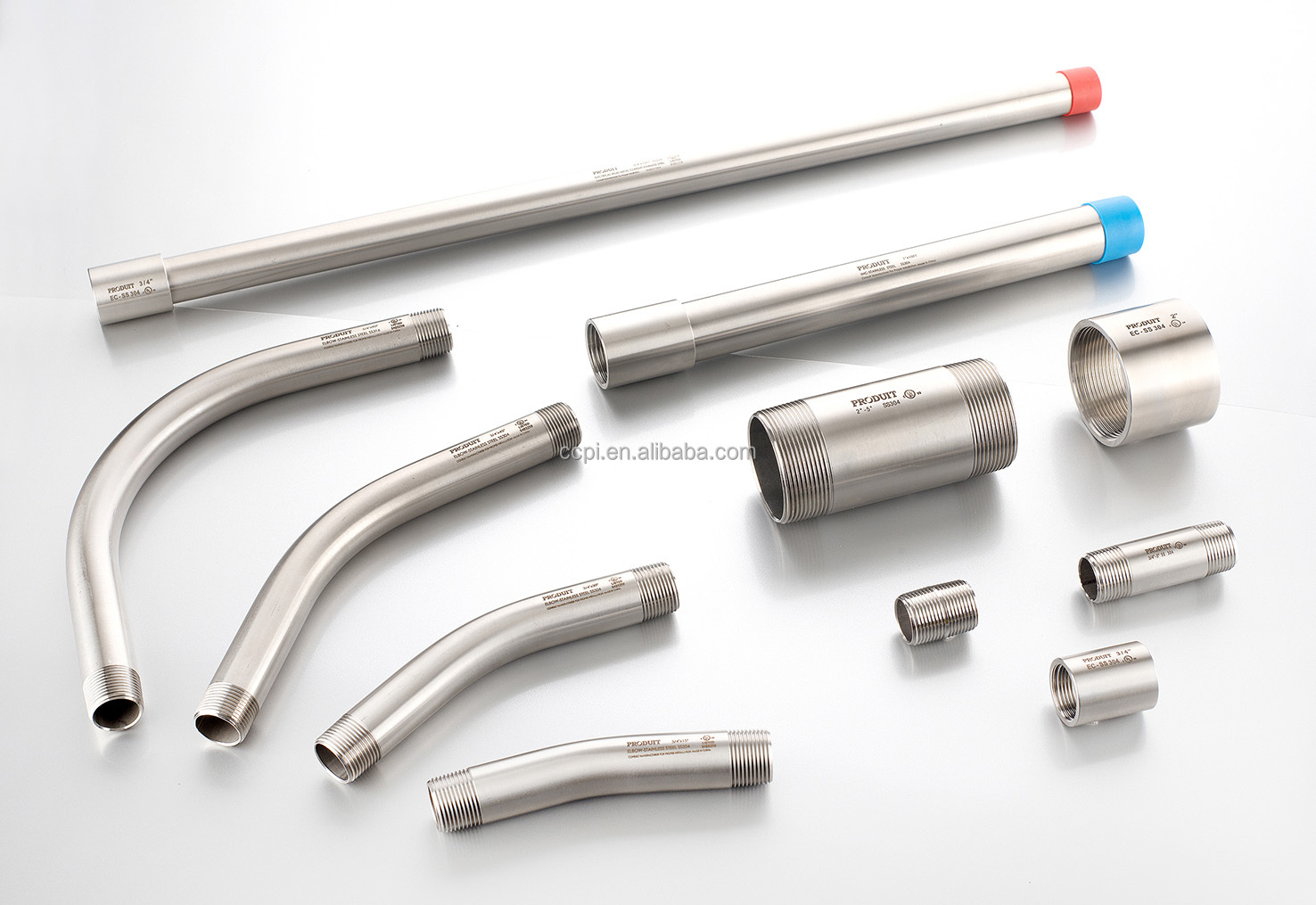

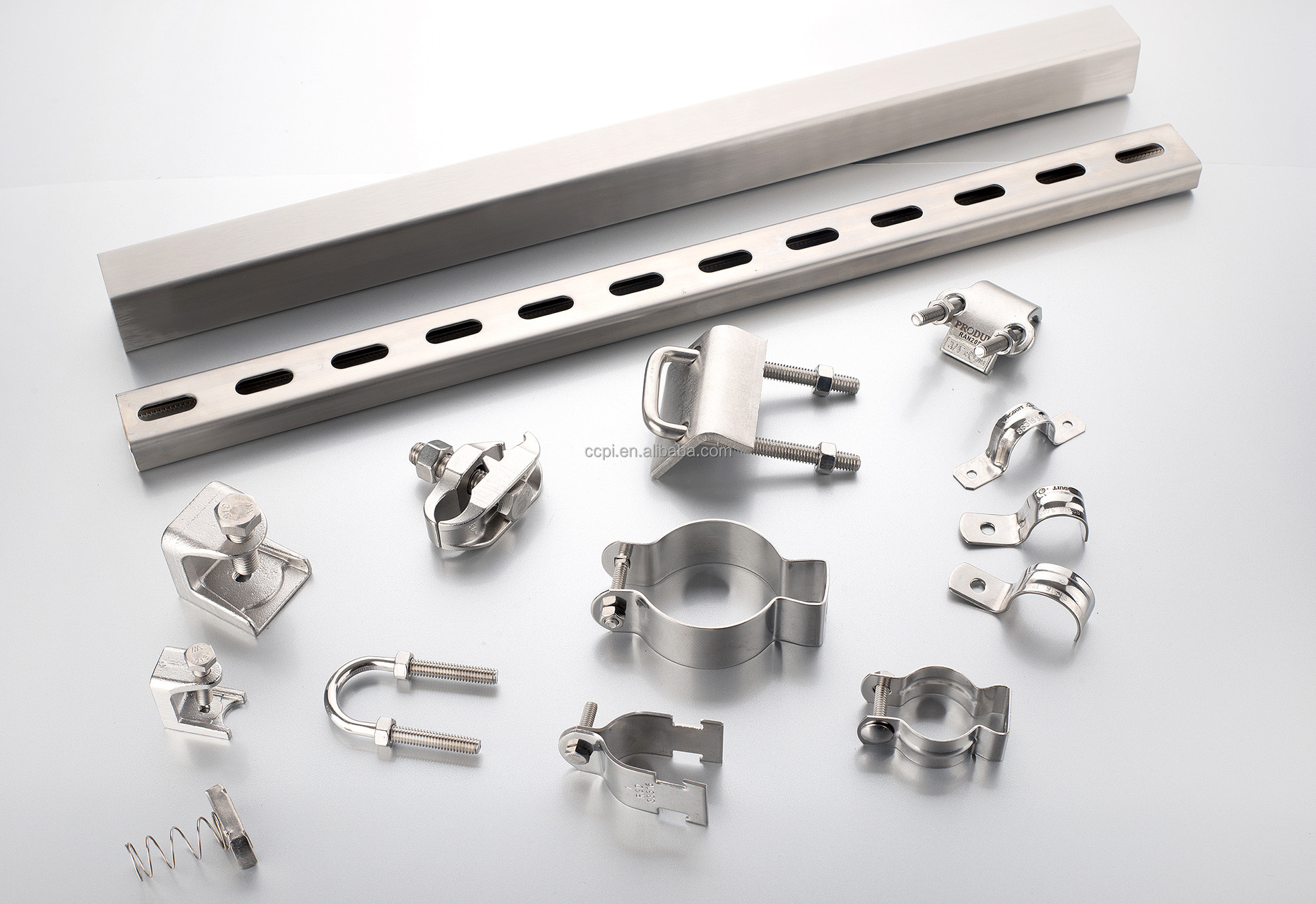

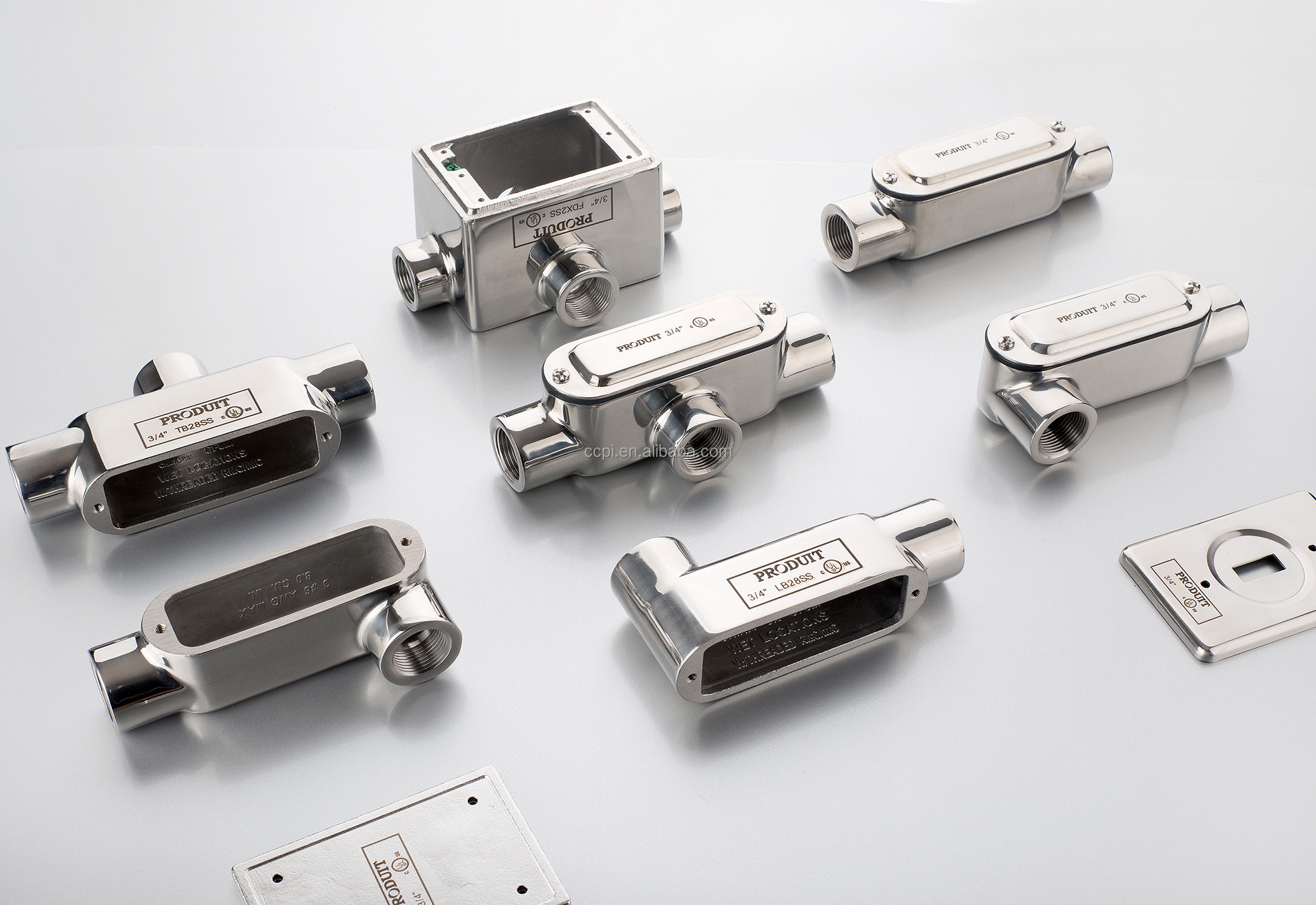

product line
