UHT sterilizer / Juice sterilizer

Supplier: Zhangjiagang City Yufeng Beverage Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Muse Jiang
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	CE,ISO;	Voltage:	Customised;
Dimension(LWH):	13149251650;	Packaging Detail:	Wooden case package for UHT Sterilizer;
Condition:	New;	Brand Name:	YuFeng;
Supply Ability:	15 Set/Sets per Month;	Usage:	Fruit & Vegetable;
Type:	Ultra High Temperature;	After-sales Service Provided:	Overseas third-party support available;
Place of Origin:	Jiangsu China;	Power(W):	2.2kw;
Port:	ShangHai Port for UHT Sterilizer;	Model Number:	UHT-1;
Weight:	150kg;	Payment Terms:	L/C,T/T,Western Union;
Delivery Detail:	15 days for UHT Sterilizer;	Warranty:	1 year;

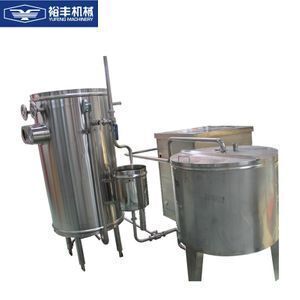

UHT Sterilizer:

UHT sterilizer adopt heat exchanger with coil structure. Short material heating time assure small nutrition loss of food. It is widely used in sterilization of fresh milk, sauce, beverege, wine, etc.

Main parts

Material pump, balance barrel, heater, coil type heat exchanger, Temperature controller and recorder, electric control system

Parameters

Model	UHT-1	UHT-2	UHT-3
Handling capacity t/h	0.7~1	1.5~2	3.5-4
Outlet temperature of materials °C	<65	<65	<65
Sterilization temperature °C	115~145	115~145	115~145
Holding timr s	4~6	4~6	4~6
Inlet pressure of steam Mpa	≈0.8	≈0.8	≈0.8
Steam consumption Kg	0.15	0.15	0.15
Power Kw	2.2	3	4(6)
External dimension (L x W x H)	1314 X 925 X 1650	1500 X 1050 X 1800	1750 X 1350X 2000
