Carbonated drink soft drink CO2 mixing machine

Product details
Working pressure:0.3Mpa;Warranty:1 Year;
Voltage:220V/380V;Design pressure:0.6Mpa;
Function:Mix drink and CO2;Mixing temperature:2-5 degrees Celsius;
Condition:New;Control manner:PLC control;
Weight:200kg;More service:Offer complete solution of carbonated drink production line;
Payment Terms:L/C,T/T,Western Union;Delivery Detail:20 days for carbonated drink mixer;
Packaging Detail:Sea worthy package for carbonated drink mixer;Supply Ability:100 Set/Sets per Month carbonated drink mixer;
Dimension(L*W*H):1500*1400*2200mm;Certification:CE ISO;
Processing Types:Carbonated Beverage;Power(W):0.75KW;
Main material:SUS304 or SUS316;Processing type:Carbonated drink mixer;
Place of Origin:Jiangsu China;After-sales Service Provided:Engineers available to service machinery overseas;
Port:ShangHai port for carbonated drink mixer;Processing:Mixer;
CO2 consumption:Basing on capacity;Mix ratio:2.8-4.3;
Brand Name:YuFeng;Model Number:QHS-1500;

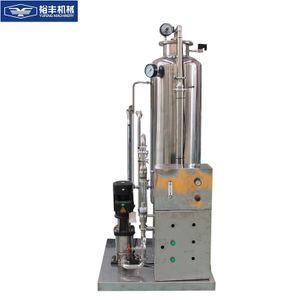

Carbonated drink soft drink CO2 mixing machine:



1.We can supply a variety of QSH series Carbonated drink soft drink CO2 mixing machine.
2.This Carbonated drink soft drink CO2 mixing machine adopts advanced gas-liquid mixing device, can mix syrup, water and CO2 gas at the same time for filling machine. Also it can apply to thin beer,aerate for beer and produce sparkling wine. This mixer is advanced in technology, even in mixing, reliable in performance, compact structure, easy in operation. It is suitable for aerated beverage firm of large, middle or small scale.





Main Technical parameters

Model

QHS-1500

QHS-2500

QHS-3500

QHS-4000

QHS-6000

QHS-9000

QHS-12000

QHS-15000

Production capacity kg/h

1000-1500

1000-2500

2000-3500

2000-4000

4000-6000

8000-9000

10000-12000

12000-16000

Regulation range of sugar & water mixing ratio

1:3-1:10

1:3-1:10

1:3-1:10

1:3-1:10

1:3-1:10

1:3-1:6

1:3-1:6

1:3-1:6

)Gas content (CO2H2O in volume)(GV)

1.5-2.5

1.5-2.5

2.5

2.5

2.5

3.0

3.0

3.0

Inlet temperature of the chilled water

0-5

0-5

0-5

0-5

0-5

0-4

0-4

0-4

Working pressure of precarbination vessel and surup vessel MPa

0.05-0.15

Working pressure of storage vessel MPa

0.2-0.5

0.2-0.5

0.2-0.5

0.2-0.5

0.2-0.5

0.25-0.5

0.25-0.5

0.25-0.5

Power kw

1.1

1.5

2.6

3.7

5.2

8.5

11

15

Appearance dimensions mm

900×
700×
2000

1100×
900×
2100

1500×
1150×
2000

1600×
1200×
2100

2000×
1500×
2200

3200×
2100×
2500

3800×
2200×
2750

4300×
2200×
2550

Weight kg

500

650

800

1200

1800

2800

4800

6500
