Carbonated Beverage Soda Mixing/Sparkling/Carbonating Machine/Mixer/Carbonator

Supplier: Zhangjiagang Drinks Packaging Technology Co., Ltd.
Region: Jiangsu, China
Contact: Mr Chaman xie
Price: $2800.00 / 1 - 1 sets
$2500.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

payment terms:	L/C, Western Union, T/T, MoneyGram	Mechanical test report:	if
Voltage:	220v / 380v (customized)	Core components:	pressure vessel, pump
product name:	Co2 Beverage Mixer	Marketing Type:	New Products 2020
Showroom location:	Canada, United Kingdom, United States, Mexico, Colombia	Supply capacity:	2 sets per month
Warranty:	2 years	brand:	drinks
Work pressure:	0.05-0.15Mpa	Carbon dioxide content:	free adjustment
Core component warranty:	2 years	Function:	mix carbon dioxide with a drink
Processing type:	Carbonated drinks	Control System:	button
Package preview:		Health status:	new
Pump brand:	south	strength:	2200
port:	Shanghai Port	Processing:	mixer
Dimensions (LWH):	160010502200mm	weight:	450 kg
Video shipment inspection:	if	application:	Carbonated Drinks / Carbon Dioxide Beverages
capacity:	1000 liters/hour, 2000 liters/hour, 3000 liters/hour	Material:	Stainless steel SUS304
experience:	20 years	Applicable industries:	Food and beverage factory, winery
Packaging Details:	Standard fumigation-free export wooden box packaging.	Origin:	Jiangsu, China

Product Description

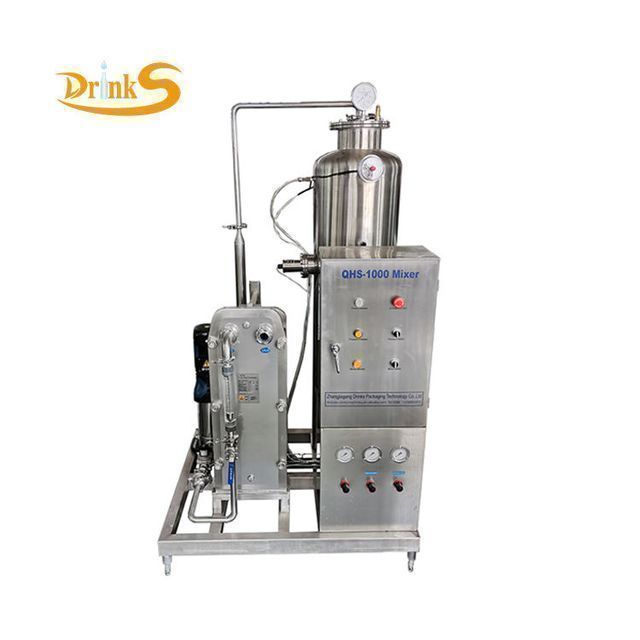

Carbonated Beverage Soda Mixing/Sparkling/Carbonating Machine/Mixer/Carbonator

This machine is used to mix carbon dioxide with various beverage liquids to make carbonated beverages. Carbon dioxide content can be freely adjusted according to customer requirements. Generally produce lemonade, cola, fruit juice, wine, sparkling wine and other carbonated beverages, we can customize mixers with different capacities according to the output of customers.

production capacity			1000-1500L
Syrup water adjustment range			1:3-1:10
water content			> 2.5 (co2:H2o volume ratio)
Chilled water inlet temperature			0-4 (℃)
Working pressure of pre-carbonation tank and syrup tank			0.05～0.09 (MPa)
Storage tank working pressure			0.2～0.5 (MPa)
Power (kW)			2.2

Detailed pictures and descriptions 1. Excellent materials and precise processingAll contact parts are made of high-quality stainless steel, fully polished inside and outside, in line with international beverage machinery standards;2. Automatic operation, stable equipmentThe whole working process is electronically controlled; the alarm device works when a fault occurs;3. Easy to operate and easy to adjustThe operation only needs to start the button according to the prescribed procedure, and it can run normally. The production volume and ratio of beverages can be adjusted without replacing any parts.4. Mix evenly and the proportion is accurateUse a flow meter to control the ratio of liquid and carbon dioxide.5. The structure is healthy and easy to cleanThe machine adopts a closed system made of stainless steel, and is equipped with CIP flavor cleaning equipment, which cleans the equipment and pipelines with liquid bactericide and hot water to ensure that the beverages made by this machine meet the hygienic requirements.

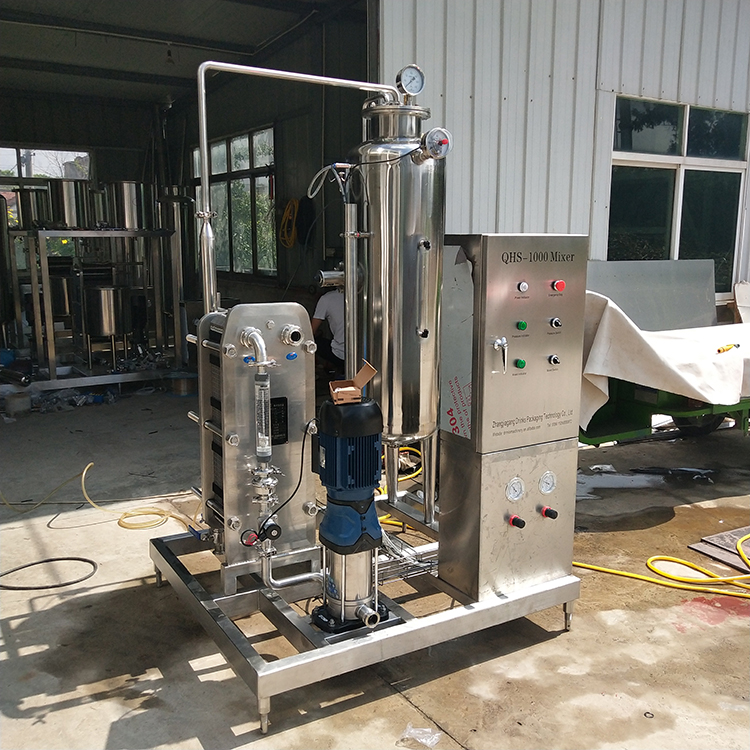

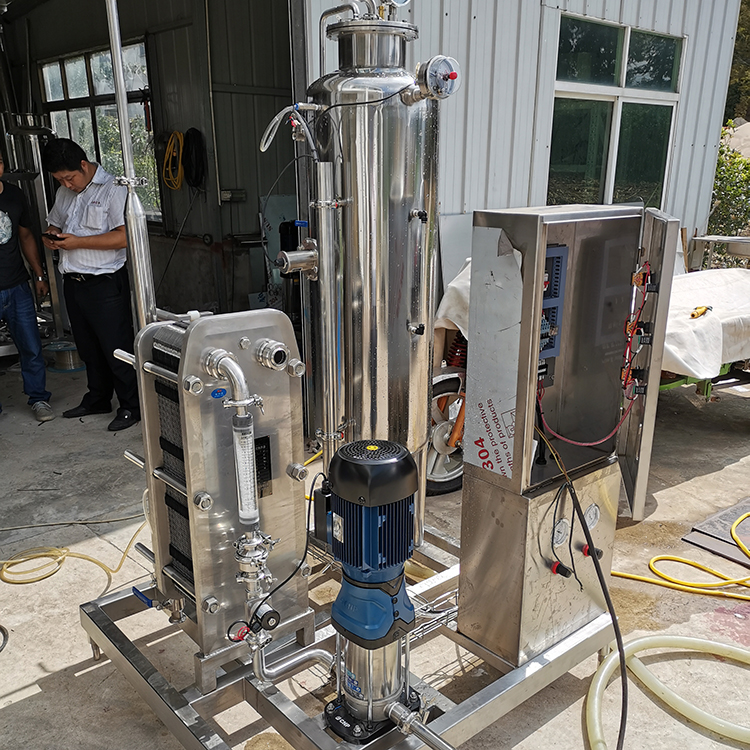

detailed image

work rules

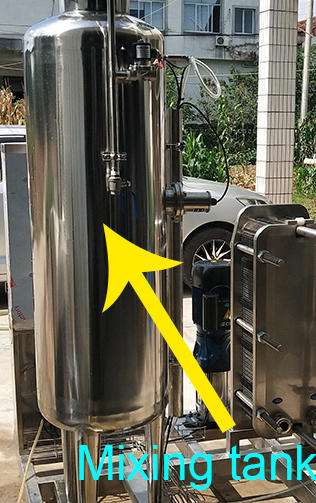

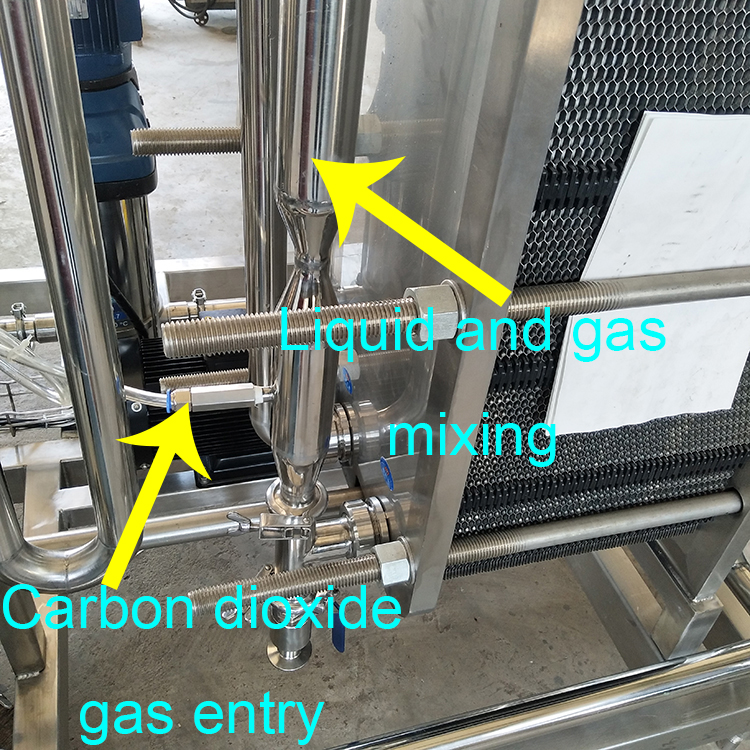

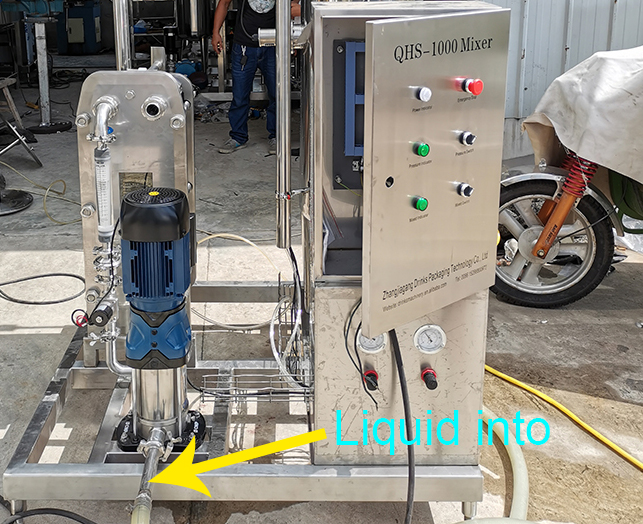

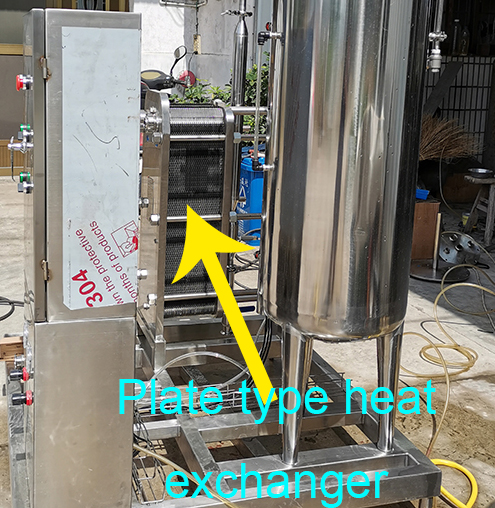

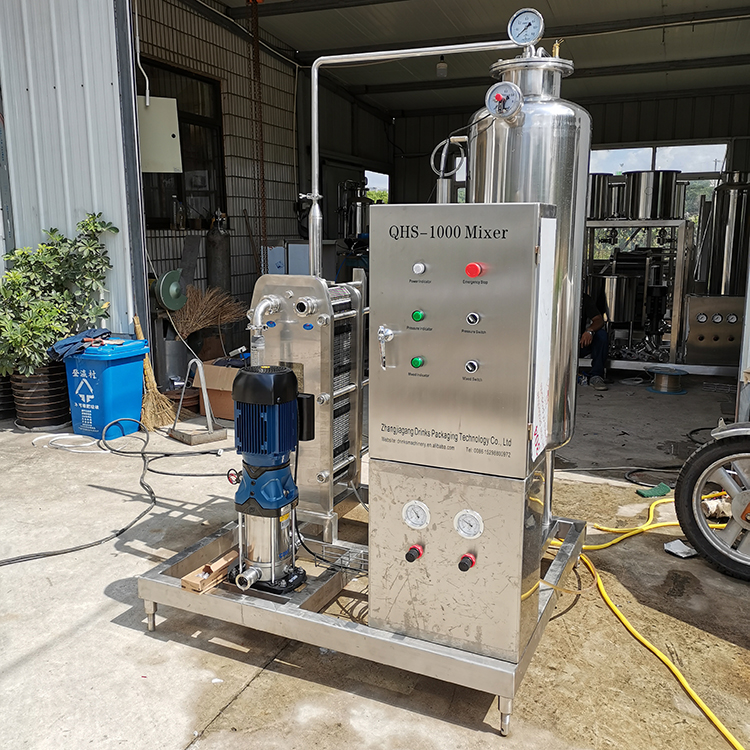

The beverage pump pumps the raw liquid into the temporary storage tank, pressurizes the liquid in the tank to the plate heat exchanger for cooling through the high-pressure pump, then mixes it with carbon dioxide gas, and finally enters another storage tank for secondary mixing to increase the mixing effect. The carbonated beverage is finished and the stainless steel pipe is connected to the filling machine.

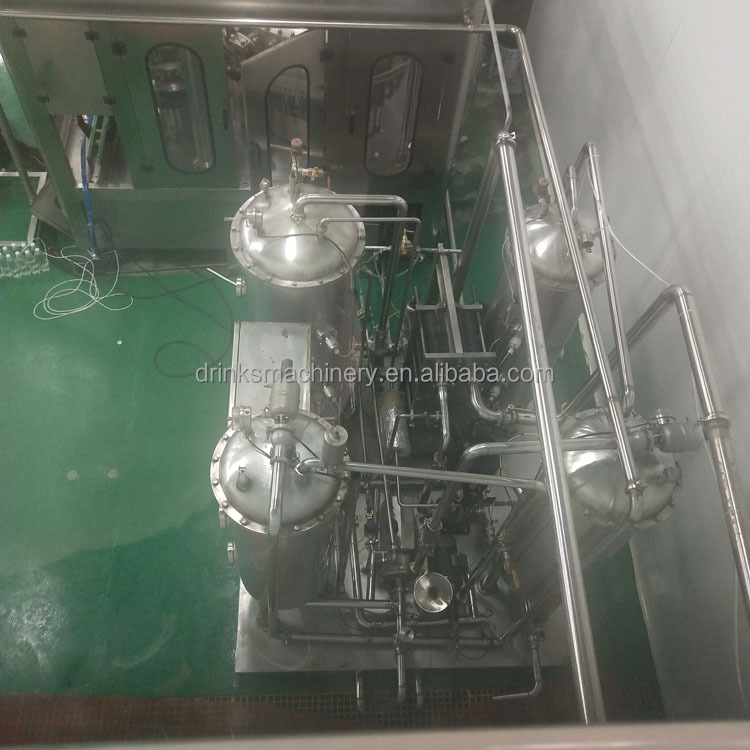

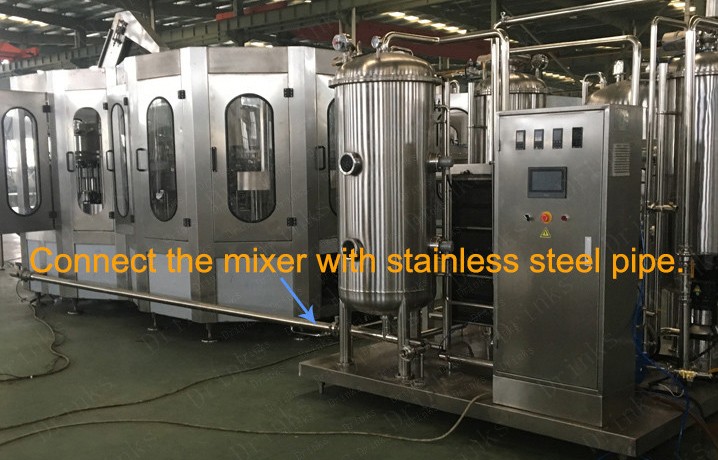

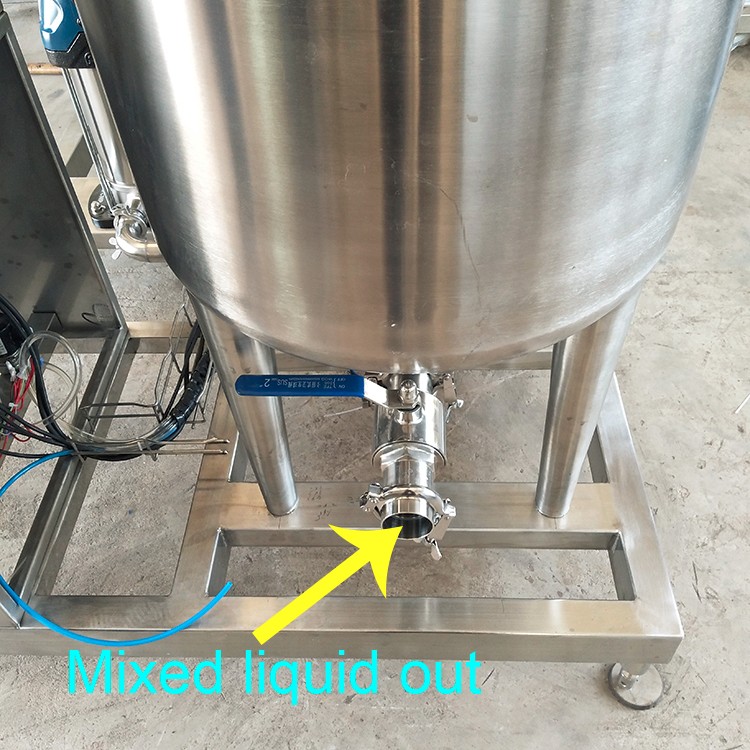

We use food grade stainless steel 304 pipes to connect to the mixer and filling machine. The mixed liquid enters the filling machine through the pipeline, and the liquid enters the bottle.
