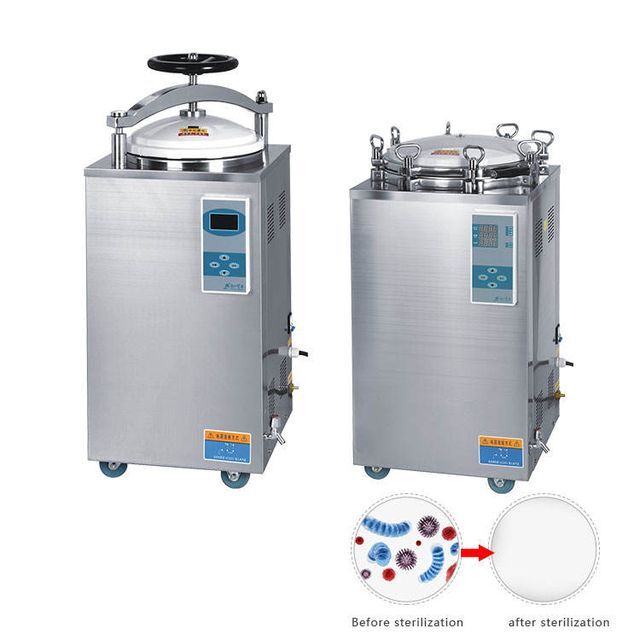

35L 50L 75L 100L 120L 150L Vertical Pressure Steam Sterilizer Autoclave on Hand Wheels

Supplier: Zhengzhou Mingyi Instrument Equipment Co., Ltd.
Region: Henan, China
Contact: Mr Kevin Wang
Price: $1300.00 / 1 - 4 sets
$1100.00 / 5 - 9 sets
$900.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 year	place of origin; place of origin:	Henan, China
Packaging Preview:		Operating temperature:	120-134℃
weight:	90kg	Maximum working pressure:	0.23 MPa
Mechanical test report:	if	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Average Calories:	≤±1℃	Core components:	motor
port:	Shanghai/Tianjin/Qingdao/Dalian/Express	Showroom location:	not any
Timer:	0~99min or 0~99hour59min	Marketing Type:	New Products 2020
Working pressure:	0.1-0.22MPa	Video external inspection:	if
Applicable industries:	Food and Beverage Factory	Core Components Warranty:	1 year
strength:	4.5KW AC220V.50Hz,4500W	Main selling point:	High security level
Packaging Details:	Standard export packaging for a 100l vertical autoclave. Shipping size: 6506301150(mm) Gross weight: 90Kg	brand:	Mingyi
Voltage:	220V	Gross/Net Weight:	90Kg/70Kg
Temperature adjustment:	105~134℃	Chamber volume:	75L(400*600)mm
Supply capacity:	1000 sets per month	Dimensions:	560560980(mm)
Health status:	new	Dimensions (LWH):	560560980(mm)

Product Description

Vertical pressure steam sterilizer is equipped with heating system, microcomputer control system, overheating, overpressure protection system, reliable sterilization effect, convenient operation and energy saving. It is an ideal equipment for sterilizing surgical instruments, fabrics, glasses, culture medium, etc. in clinics, scientific research institutes and other institutions.

Model	LS-35HD	LS-50HD	LS-75HD	LS-100HD
Technical data	LS-35HD	LS-50HD	LS-75HD	LS-100HD
chamber volume	35L	50L	75L	100L
chamber volume		φ318×450mm	φ340×550mm	φ400×600mm	φ440×650mm
work pressure	0.22Mpa
Operating temperature	134℃
maximum. work pressure	0.23Mpa
average calorie	≤±1℃
Timer range	0-99 minutes or 0-99 hours 59 minutes
Temperature adjustment range	105-134℃
strength	2.5KW/AC220V 50HZ	3KW/AC220V 50HZ	4.5KW/AC220V 50HZ
Dimensions (mm)	470×450×1020	520×500×1150	550×530×1180	580×560×1290
Shipping Dimensions (mm)	570×570×1180	610×610×1290	650×650×1330	680×680×1450
GW/net weight	70Kg/63Kg	82Kg/74Kg	100Kg/93Kg	110Kg/85Kg

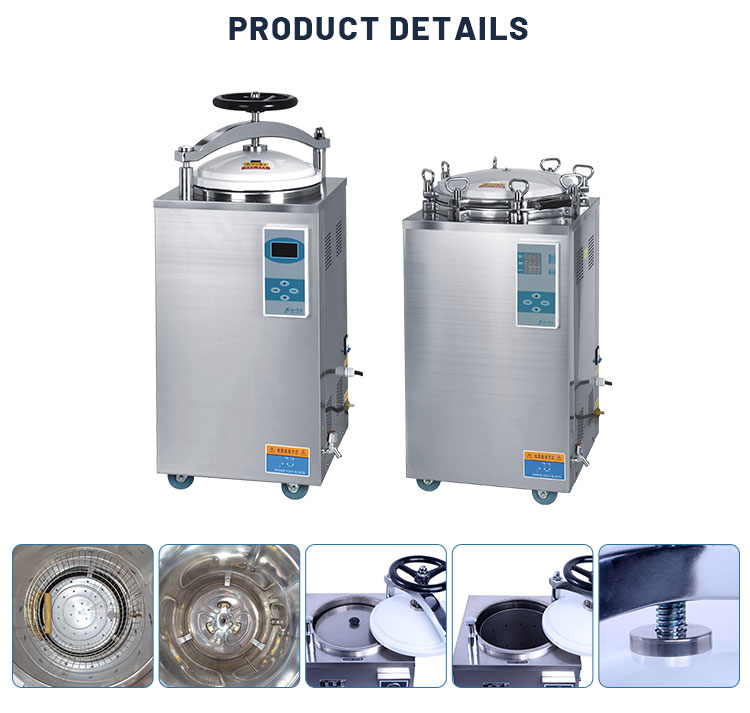

Product Details

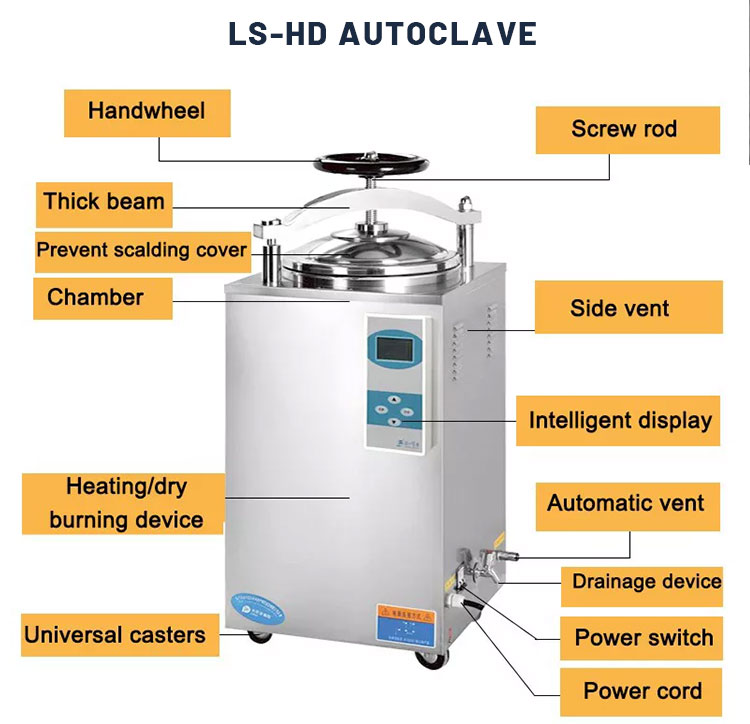

feature:
l. All stainless steel structure.
2. Handwheel type quick-opening structure.
3. Door safety lock system.
4.LCD display working status, touch key.
5. Automatically discharge cold air, and automatically discharge steam after sterilization.
6. Over-temperature and over-pressure automatic protection.
7. Safe water shortage protection.
8. Self-inflating seal.
9. Automatically shut down after sterilization, and there is a buzzer prompt.
10. Easy to operate, safe and reliable.

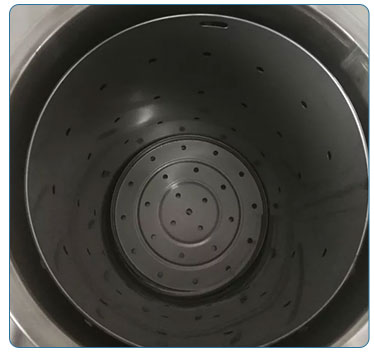

11. With two stainless steel sterilization baskets.
12. With drying system.

Product advantages

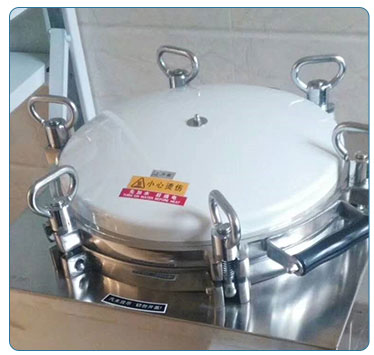

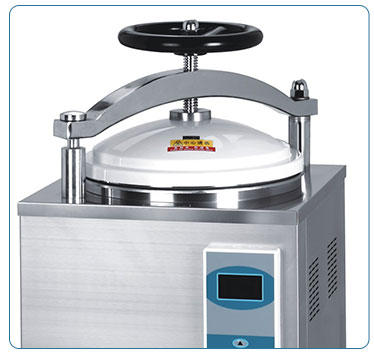

Flange flap

Reinforced flanged iron flap, fixed by ring nut, more secure

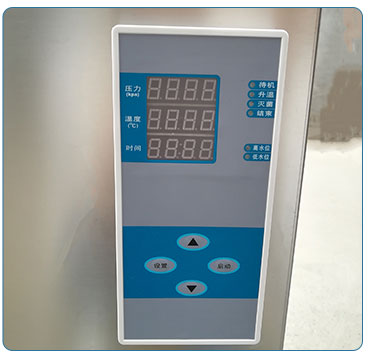

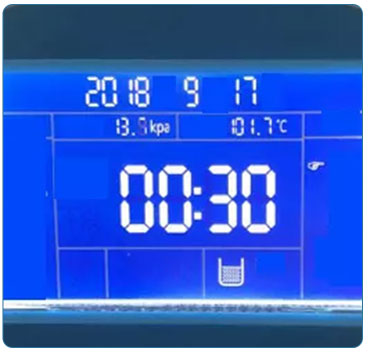

Newly upgraded display

More intuitive and easier to use

new upgrade

More intuitive and easier to operate.

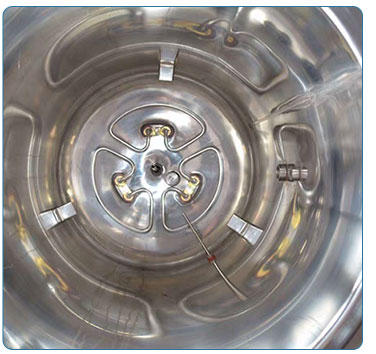

Stainless steel liner

The barrel is made of high quality stainless steel

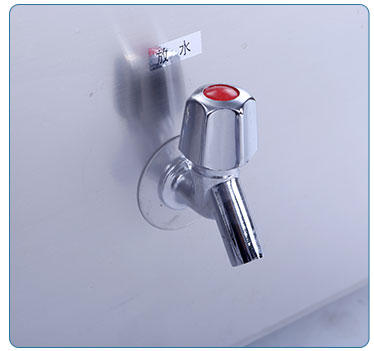

Outlet Tips

After sterilization, turn on the drain button to drain the water in the sterilizer.

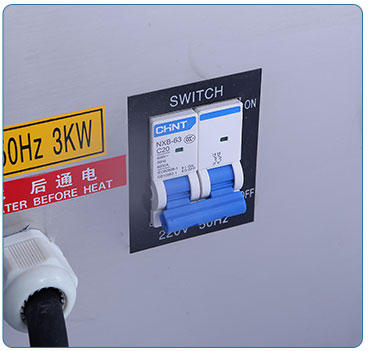

Air protection switch

1. Current limiting and undervoltage protection 2. Short circuit protection 3. Overload and overheating protection

Surface upgrade protection

Can prevent high temperature burns

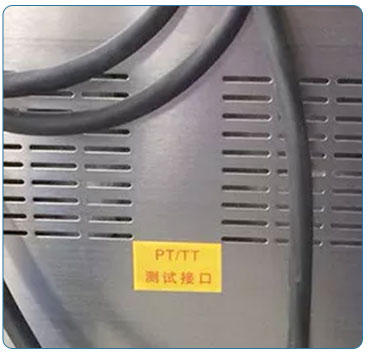

Vents

Speed up heat dissipation

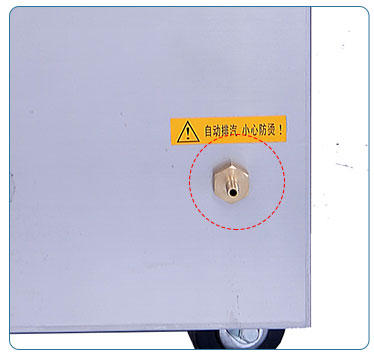

automatic air vent

Bottom vent for automatic exhaust of cold air and steam after sterilization

Dry Burn Prevention

Prevent dry burning, safe and secure

Application field

Vertical sterilizer is a safe and reliable automatic sterilization equipment, which consists of heating system, microcomputer control system and overheating and overpressure protection system. The container has the advantages of reliable disinfection and sterilization effect, convenient operation, safe use, energy saving, durability and low cost. It is an ideal equipment for the disinfection and sterilization of surgical instruments, dressings, utensils and culture medium in medical and scientific research units.

1: High quality all stainless steel material 2: Handwheel translation quick opening structure 3: Safety interlock device 4: Liquid crystal working state. Touch key 5: Automatically discharge cold air and automatically discharge steam after sterilization
