Wire Drawing Ribbed Making Machine

Supplier: EMPO ENDUSTRIYEL MUHENDISLIK MAKINE MADENCILIK INSAAT TURIZM SANAYI VE TICARET LIMITED SIRKETI
Region: -, Turkey
Contact: Mr. Baris Gulsuna
Price: $75000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Brand Name:	EMPO;	Place of Origin:	Mersin Turkey;
Year:	2019;	Power(W):	120Kw;
Inlet Diameter:	10mm;	Voltage:	380V;
Name:	Wire Drawing Mchine;	Certification:	CE ISO;
Outlet Diameter:	4mm;	Dimension(LWH):	20000mm;
Supply Ability:	10 Unit/Units per Year;	Warranty:	1 year;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Product Name:	Automatic Wire Drawing Machine;
Wire material:	Middle Carbon Steel Wire;	Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ,Energy & Mining;
Usage:	Metal Wire Drawing;	Quality:	Europe;
After-sales Service Provided:	Free spare parts,Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Condition:	New;
Weight:	8000Kg;	Drawing material:	Low Carbon;
Packaging Detail:	WOODEN BOX & STRECHED FILM;	Port:	Mersin International Port;

Product Description

Product Application

1-Technical Details
Model GTCHE-10
Works with Raw Metarial Coil (Low Carbon )
Production Capacity Inlet Wire 11mm-9mm-6mm
Outlet Wire 8mm-7,5-7-4,5-4mm
Last Head Speed 3m/sec.

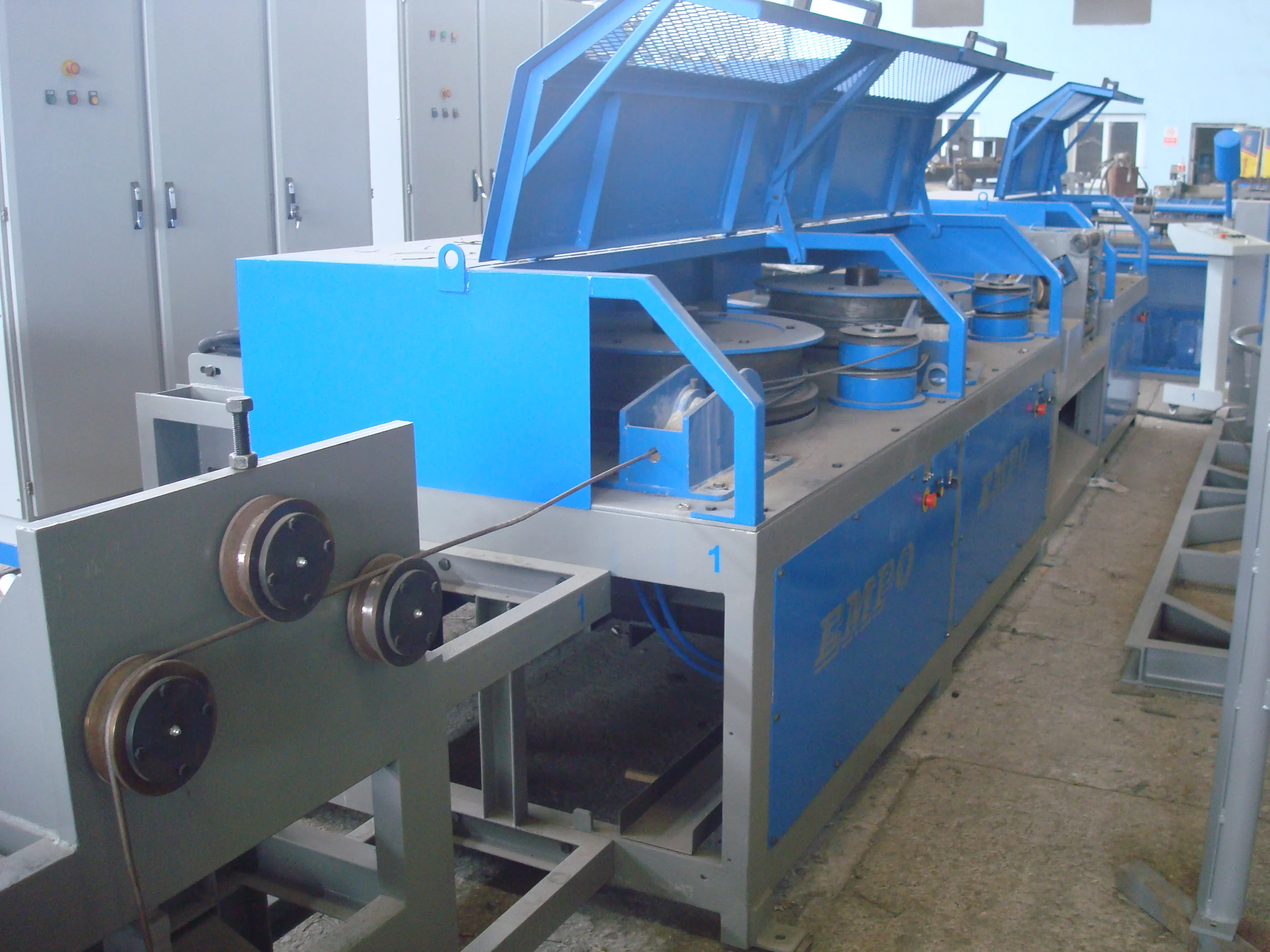

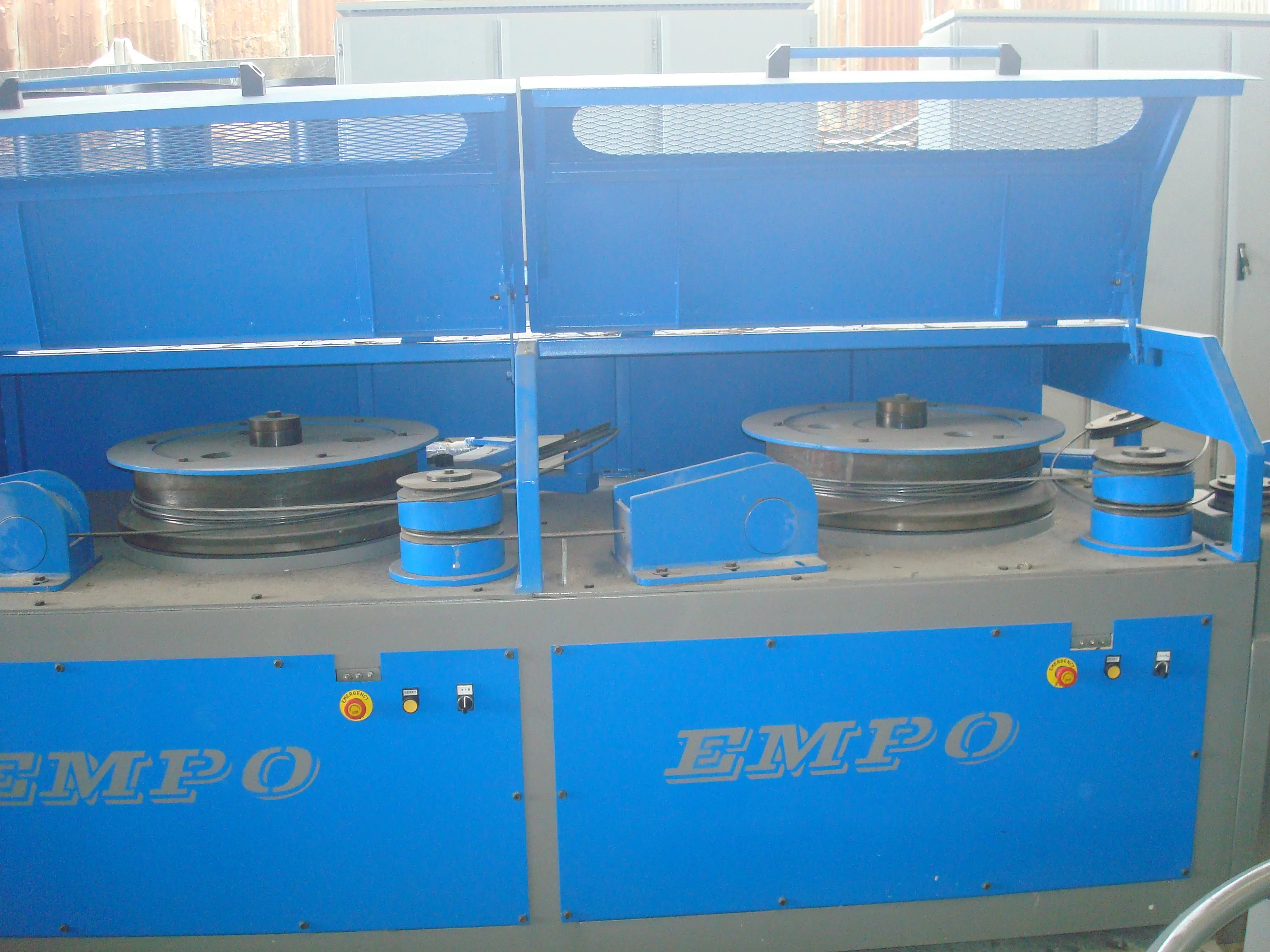

Captain Block 3Block
Captain Blcok Diameters 600mm
Captain Block Motor Power 37-37-37Kw
Motor Drivers AC frequency inverter
Cooling arrangement Roller bearings and drawplates will be cooled by cold water

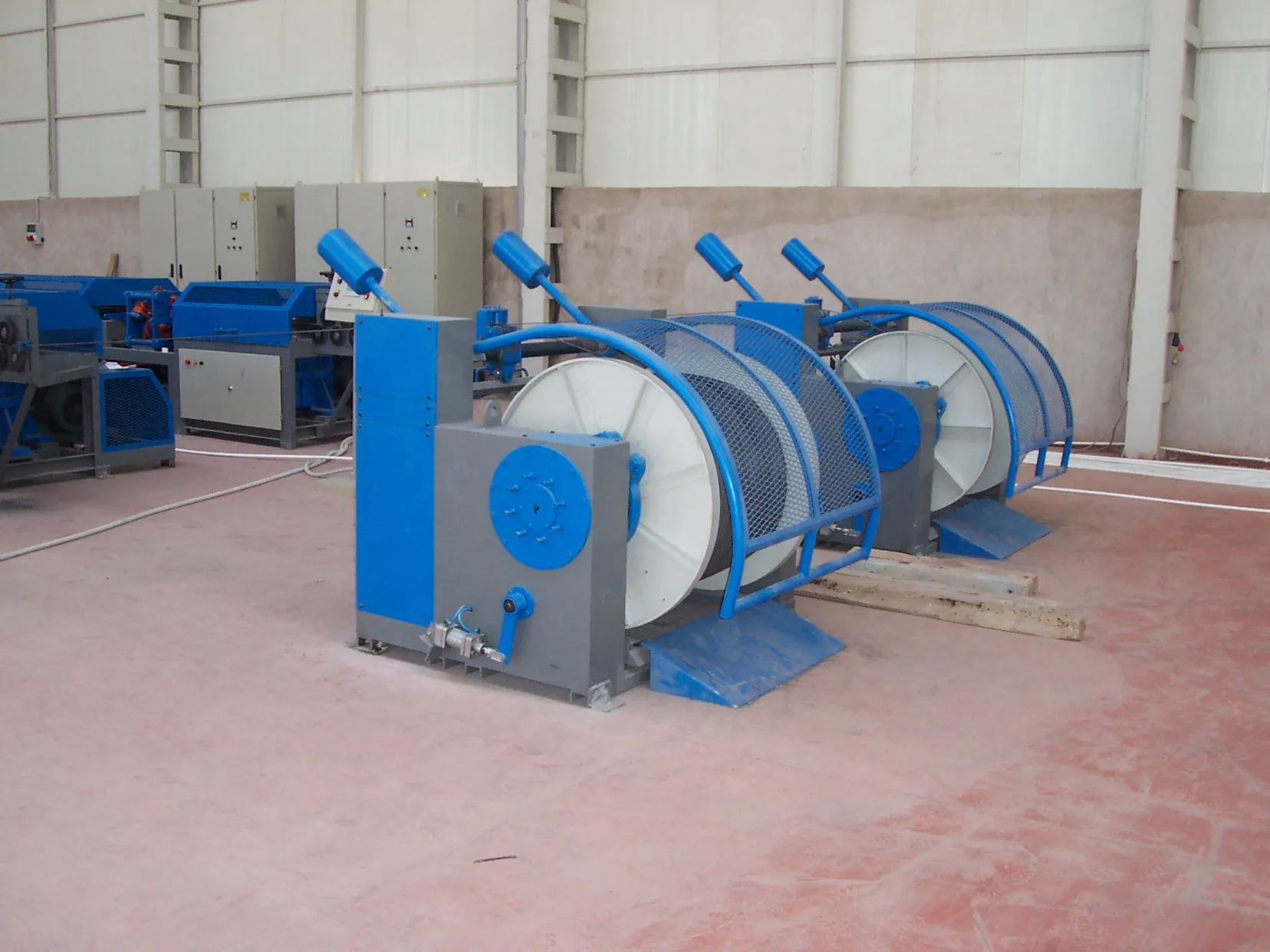

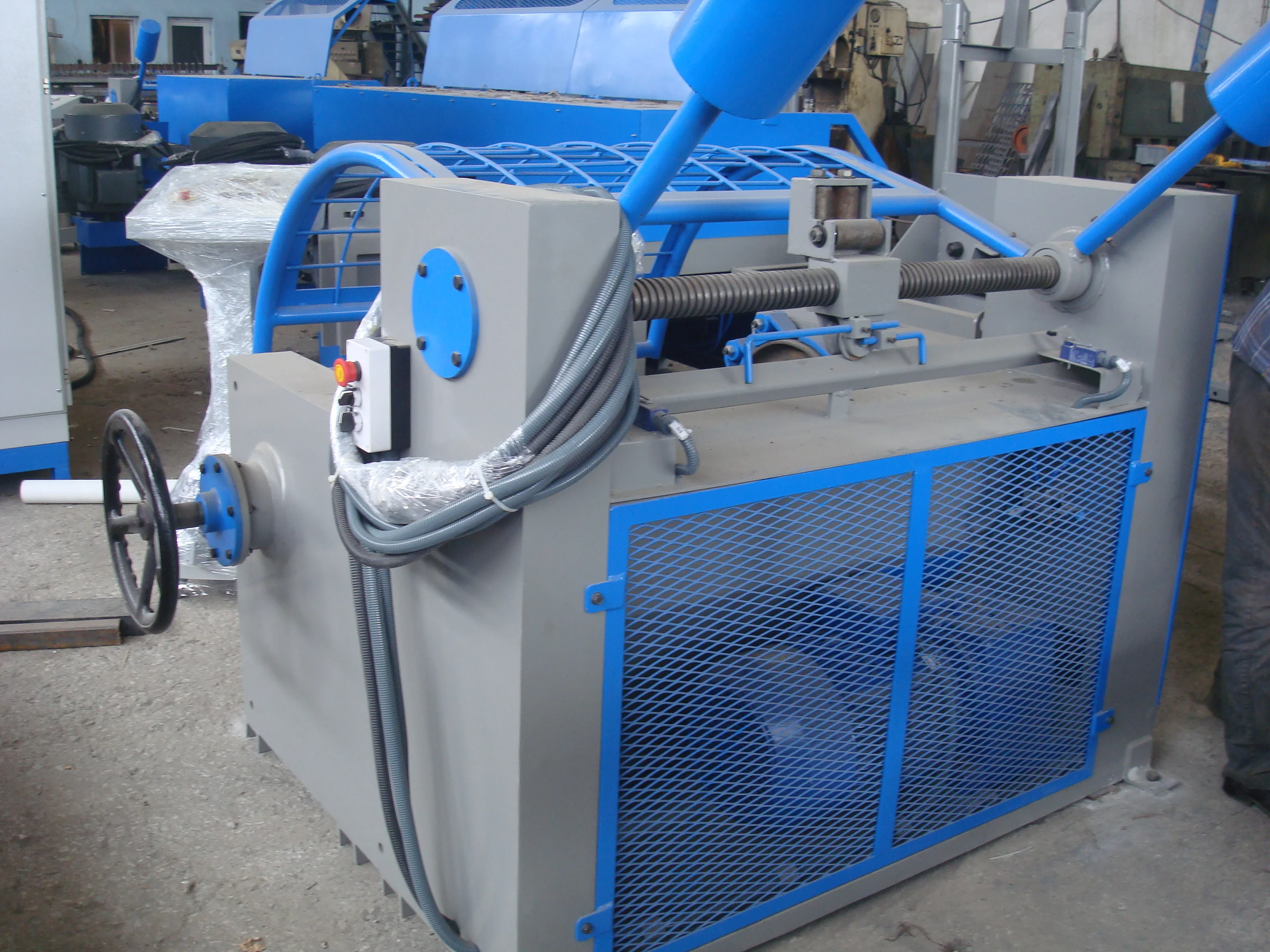

Spooler Motor Power 7,5Kw
Spooler Control AC frequency inverter
Wire Diameters to Spool 4mm-8mm
Pulley Laoding Capacity 2000Kg

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Certification CE ISO

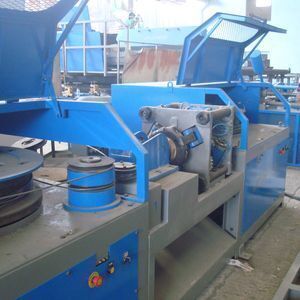

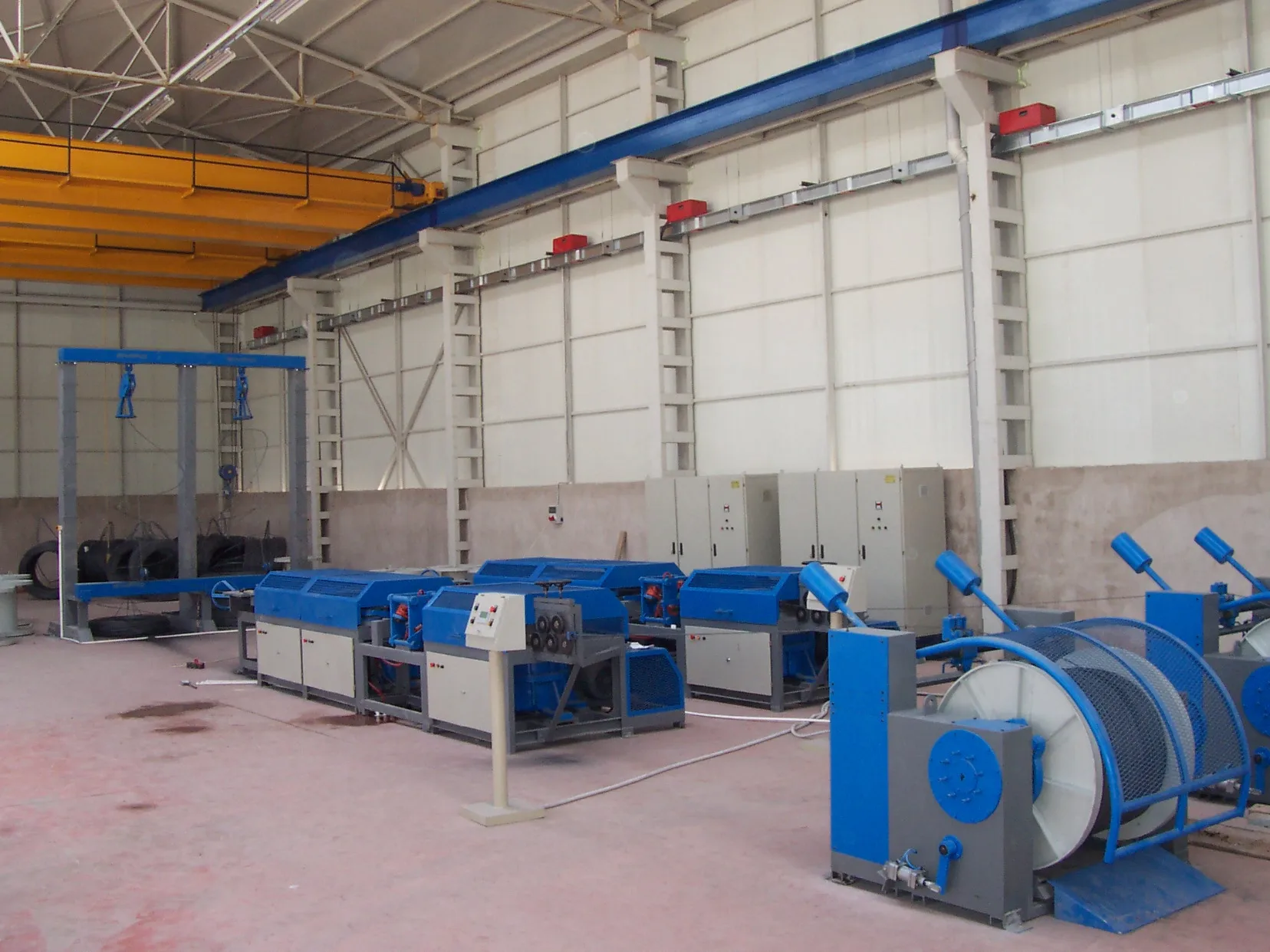

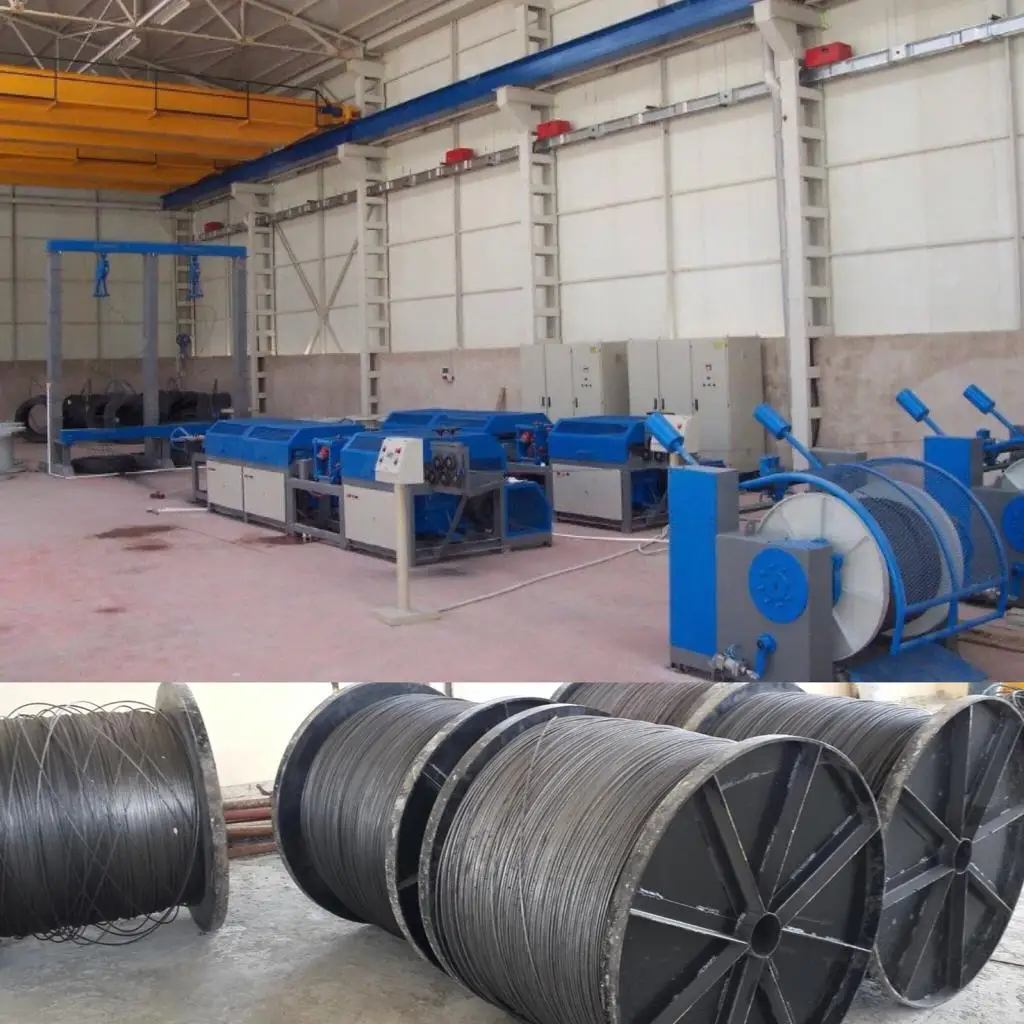

Detailed Images

Machine Parts

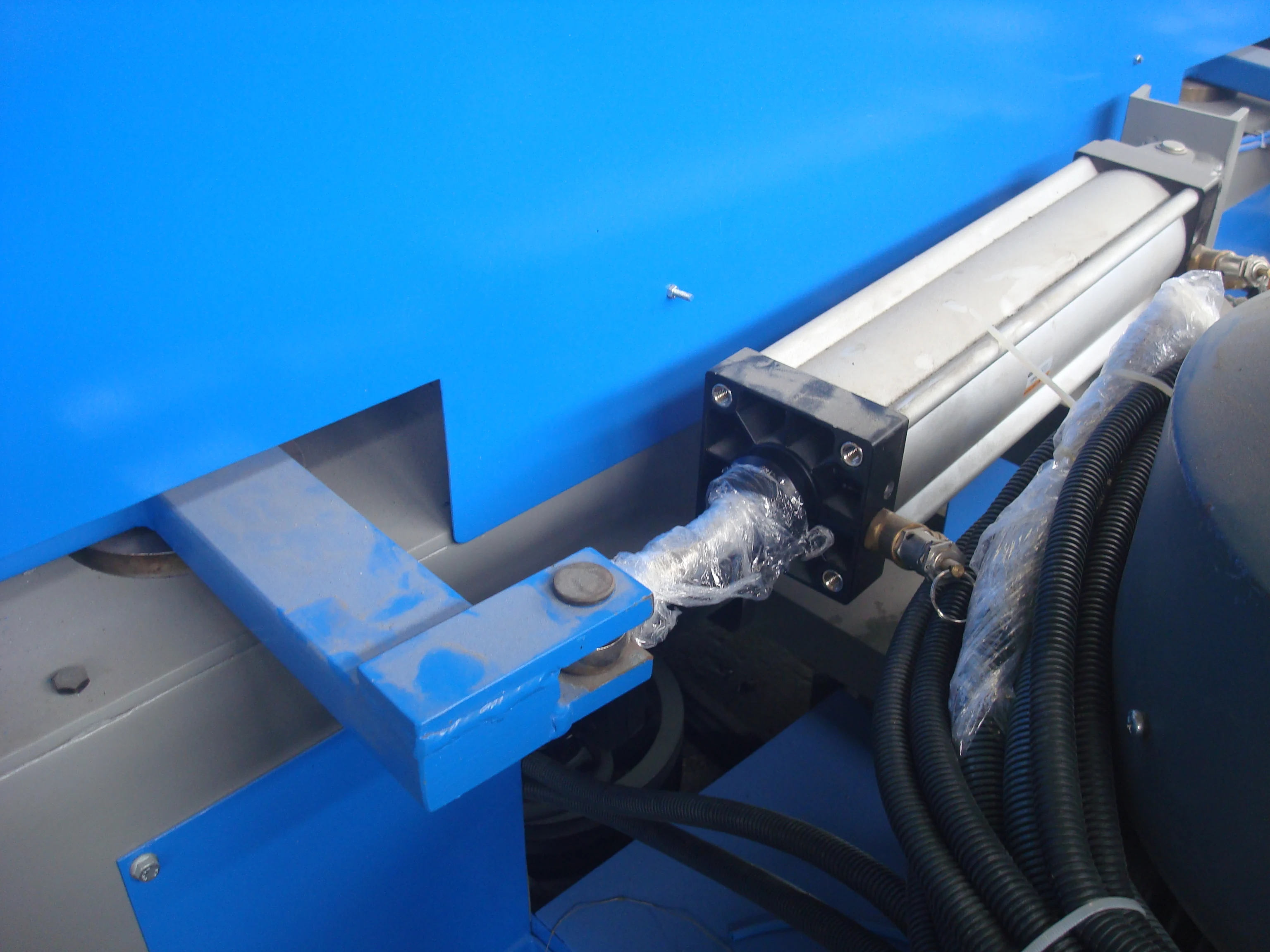

Name: PISTONS

Brand: FESTO

Original: Germany

Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

Main Features

Name: PNEU. VALVES
Brand: FESTO
Original: Germany

Machine Parts

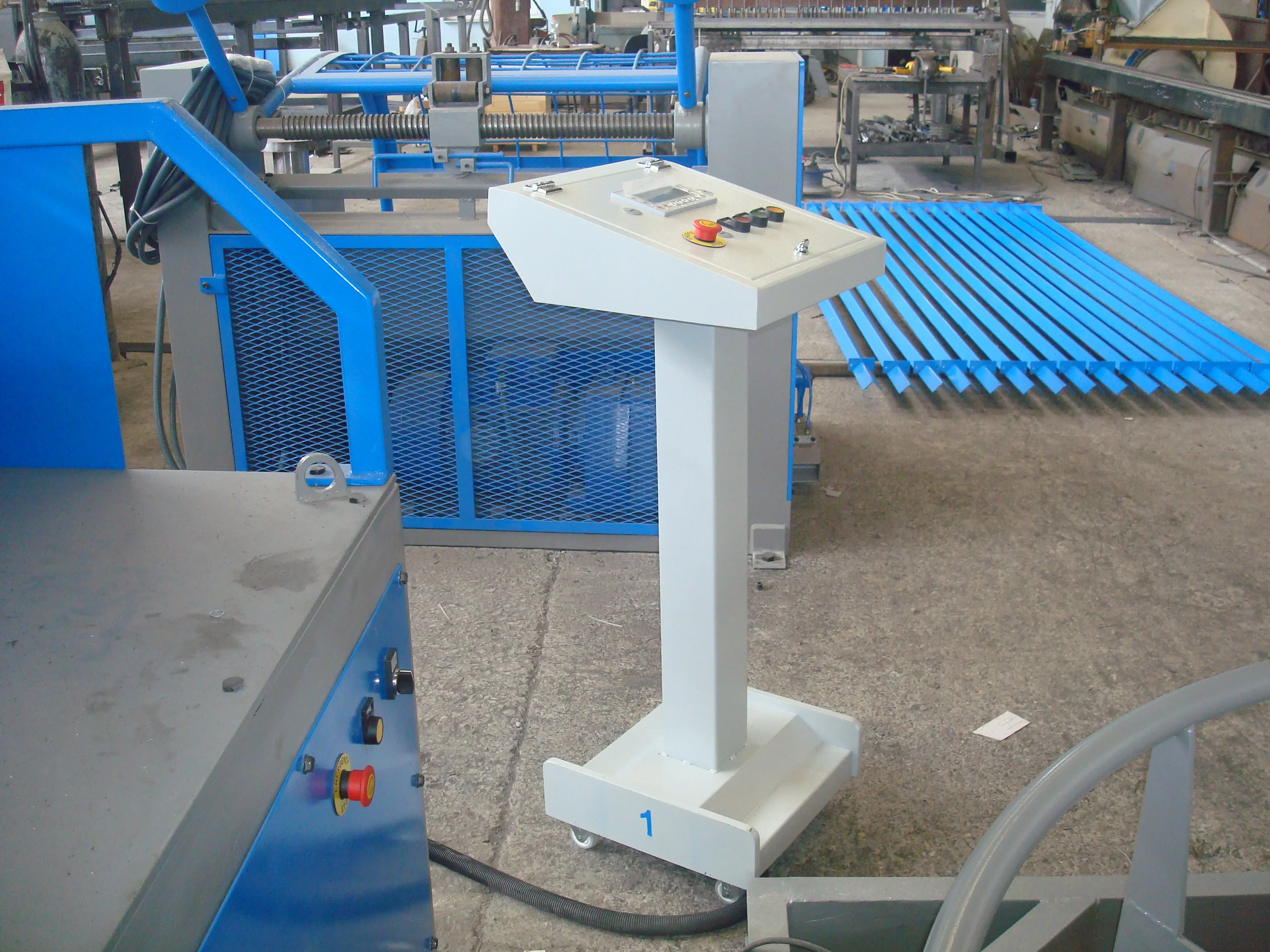

Name: CONTROL
Brand: LENZE
Original: Germany

Main Features

Name: INVERTERS
Brand: LENZE
Original: Germany

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

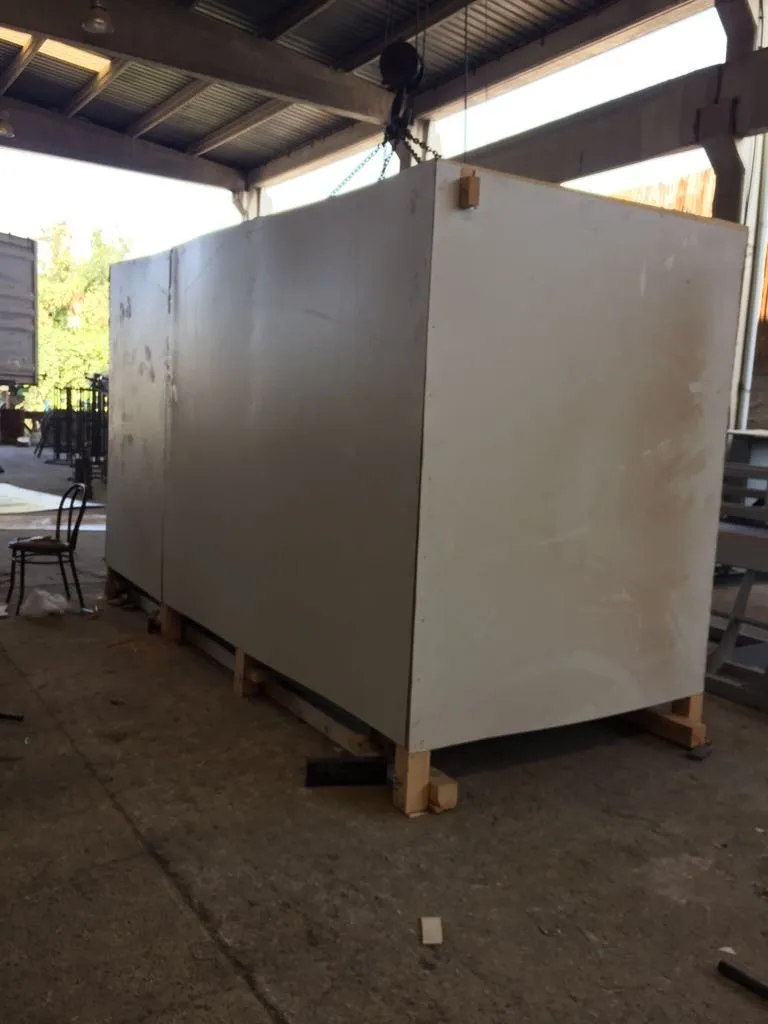

Packaging
Size	123 (L) * 456 (W) * 789 (D)
Weight	8.2 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	123 (L) * 456 (W) * 789 (D)
Weight	8.2 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
