High Accuracy 256 Channels Surveying Equipment Comnav T300 RTK GPS with Dual Frequency

Supplier: Shanghai Newdi Navigation Technology Co., Ltd.
Region: Shanghai, China
Contact: Mr Allen Niu
Price: $5500.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Place of Origin:	Shanghai China;	Product name:	ComNav T300 RTK GPS;
Packaging Detail:	High Accuracy 256 Channels Surveying Equipment Comnav T300 RTK GPS with Dual Frequency: - Rover Packaging: 1 Pieces in 1 Carton. - Gross Weight: 5.60 Kg/ Net Weight: 5.0 Kg. - Base Packaging: 1 Pieces in 1 Carton. - Gross Weight: 7.5 Kg/ Net Weight: 6.9 Kg. - Base and Rover Packaging: 2 Pieces in 1 Carton. - Gross Weight: 19.6 Kg/ Net Weight: 16.5 Kg.;	Color:	white;
Internal momery:	8GB;	Channel:	256 channels RTK GPS;
Constellation:	GPS, GLONASS, BeiDou, SBAS;	Special features:	256 channels Beidou B3;
Application:	Topographic survey, engineering survey, Marine survey;	RTK accuracy:	8mm+1ppm, 15mm + 1ppm;
Brand Name:	Comnav;	Static accuracy:	2.5mm +0.5ppm, 5mm+0.5ppm;
Warranty:	1year;

Key Advantages of High Accuracy 256 Channels Surveying Equipment Comnav T300 RTK GPS with Dual Frequency:

· Ultra Small,super light

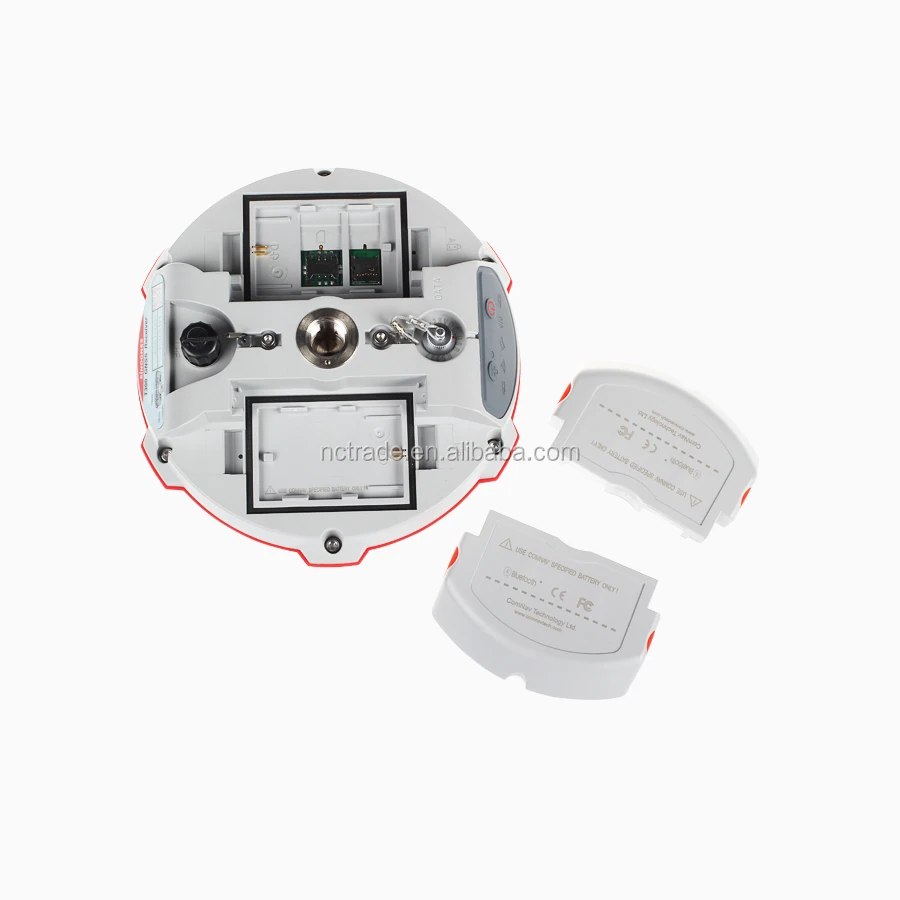

· Hot swappable battery

· Many user-friendly conveniences built in

· GPS L1/L2/L5, BeiDou B1/B2/B3, GLONASS L1/L2

· Low power consumption

· Support long base line E-RTK

Specification of High Accuracy 256 Channels Surveying Equipment Comnav T300 RTK GPS with Dual Frequency:

Comnav T300
Signal Tracking
Channels	256 channels with simultaneously tracked satellite signals
GPS	L1 C/A, L1C, L2 P, L5
BeiDou	B1, B2, B3
GLONASS	L1, L2
Galileo	Reserved
SBAS	WAAS, EGNOS, MSAS,GAGAN
Performance Specifications
Cold start	<50s
Warm start	<30s
Hot start	<15s
Initialization time	10s
Signal re-acquisition	<2s
Initialization reliability	Typically>99.9%
Positioning Specifications
Post Processing Static	Horizontal: 2.5 mm + 0.5 ppm RMS
Post Processing Static	Vertical: 5 mm + 0.5 ppm RMS
Real Time Kinematic	Horizontal: 8 mm + 1 ppm RMS
Real Time Kinematic	Vertical: 15 mm + 1 ppm RMS
E-RTK (<100km)	Horizontal: 0.2 m + 1 ppm RMS
E-RTK (<100km)	Vertical: 0.4 m + 1 ppm RMS
Code differential GNSS positioning	Horizontal: 0.25 m+ 1 ppm RMS
Code differential GNSS positioning	Vertical: 0.5 m + 1 ppm RMS
SBAS	Typically < 1 m 3D RMS
Standalone	<1.5 m 3D RMS
Communication port	1 Serial port (7 Pin Lemo), Baud rates up to 921,600 bps
Radio modem	Tx/Rx with full frequency range from 410-470MHz2
	Transmit power: 0.5-2W adjustable
	Range: 1-4km
Positioning data outputs	1HZ, 2HZ, 5HZ, 10HZ, 20HZ
Indicating light	5 LEDs (indicating Power, Satellite Tracking, Bluetooth® and Data Recording)
Bluetooth®	V 2.X protocol, work compatible with Windows 7, Windows mobile and Android
Data Format
Data inputs/outputs	Correction data I/O: RTCM2.x, 3.x,CMR(GPS only), CMR+(GPS only)
Position data outputs	ASCII: NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA, VTG, GST, PJK, PTNL
	ComNav Binary update to 20Hz
Physical
Size(W×H)	15.8cm×7.5cm
Weight	0.95kg(include battery)
Environmental
Operating temperature	-40 °C to +65 °C (-40°F to +149°F)
Storage temperature	-40 °C to +85°C (-40°F to +185°F)
Waterproof and dust proof	IP67 protected from temporary immersion to depth of 1 meter, floats
Shock	Survives a 2-meter drop on to concrete
Electrical
Input Voltage	5-27 VDC
Power consumption	2.85 W(3 constellations)
Li-ion battery capacity	2x2000 mAh, Up to 10 hours typically
Memory	8 GB internal with up to 16GB pluggable memory card
Software
CGSurvey	ComNav’s field data collection software CGSurvey
SurvCE (optional)	Carlson’s SurvCE field data collection software
FieldGenius (optional)	MicroSurvey’s FieldGenius field data collection software
