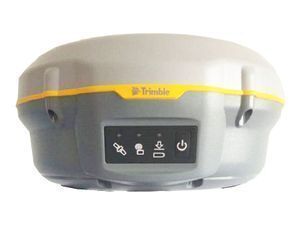

Original Trimble R8S Trimble GPS RTK Price

Supplier: Shanghai Newdi Navigation Technology Co., Ltd.
Region: Shanghai, China
Contact: Mr Allen Niu
Price: $8000.00 / >=2 units
Min. Order: 2 units

Click here to contact

Product details

Satellite signals:	GLONASS, Galileo, and BeiDou;	Payment Terms:	T/T,Western Union,MoneyGram;
Function:	GPS RTK Survey (Radio;	channels for Trimble RTK receiver:	220;
Supply Ability:	100 Unit/Units per Week GPS RTK;	Port:	Shanghai;
Application:	Trimble R8S Land Surveying;	Vertical for Trimble RTK receiver:	5 mm + 0.5 ppm RMS;
Horizontal for Trimble RTK receiver:	3 mm + 0.5 ppm RMS;	Warranty:	1year;
Product name:	Trimble R8S GPS;	Place of Origin:	California United States;
Brand Name:	Trimble;	Type:	Gps Receiver;
Packaging Detail:	Original Trimble R8S Trimble GPS Price packing: In hard engineer carrying case+CARTON;	Color:	Gray+Yellow;

Product Description

Features :

Original Trimble R8S Trimble GPS Price

220-channel system with Trimble R-Track satellite tracking technology
Industry-leading GNSS positioning with GPS L2C, L5, and QZSS
Fully upgradable so you can choose the level of GNSS support that suits your needs today and upgrade as your requirements evolve
Choose the type of communications to best fit your needs

The Trimble® R6 GNSS system combines advanced GNSS technology with the scalability and freedom to adapt and grow as your business needs change.

Integrated System Design

Combines highly integrated and advanced GNSS receiver, precision antenna, and long battery life
Integrated communications allows you to choose the type of communication that best fits your crew
An integrated cellular modern streamlines operation inside VRS networks while integrated UHF RX or RX/TX streamlines RTK base/ rover applications

GNSS Technology

Powered with a Trimble Maxwell 6 chip with 220 channels with RTK performance
Includes GPS L2C, L5, QZSS,
GLONASS, Galileo, and BeiDou (COMPASS) are upgrade options

Advanced Trimble R-Track Technology

Integrated in to the Trimble R6, Trimble R-Track technology delivers:
Reliable, precise positioning performance
Signal Prediction compensates for intermittent or marginal RTK correction signals
CMRx communications protocol provides correction compression for optimized bandwidth and full utilization of all the satellites in view

Positioning performance
Code differential gnss positioning
Horizontal	0.25 m + 1 ppm RMS
Vertical	0.50 m + 1 ppm RMS
SBAS differential positioning accuracy	typically <5 m 3DRMS
Static gnss surveying high-precision static
Horizontal	3 mm + 0.1 ppm RMS
Vertical	3.5 mm + 0.4 ppm RMS
Static and Faststatic
Horizontal	3 mm + 0.5 ppm RMS
Vertical	5 mm + 0.5 ppm RMS
Postprocessed Kinematic (ppK) gnss surveying
Horizontal	8 mm + 1 ppm RMS
Vertical	15 mm + 1 ppm RMS
Real time Kinematic surveying4 single baseline <30 km
Horizontal	8 mm + 1 ppm RMS
Vertical	15 mm + 1 ppm RMS
Network RTK
Horizontal	8 mm + 0.5 ppm RMS
Vertical	15 mm + 0.5 ppm RMS
Initialization time5	typically <8 seconds
Initialization reliability5	typically >99.9%

Electrical
Power 11 V DC to 28 V DC external power input with over-voltage protection on Port 1 (7-pin Lemo)
Rechargeable, removable 7.4 V, 2.6 Ah Lithium-Ion battery. Power consumption7 is 3.2 W, in RTK rover mode with internal radio and Bluetooth in use.
Operating times on internal battery8
– 450 MHz receive only option	5.0 hours
– 450 MHz receive/transmit option (0.5 W)	2.5 hours
– Cellular receive option	4.7 hours

Hardware
Physical
Dimensions (W×H)	19 cm × 10.2 cm (7.5 in x 4.0 in)
Weight	1.52 kg (3.35 lb) with internal battery,internal radio with UHF antenna

Temperature6
Operating	–40 °C to +65 °C (–40 °F to +149 °F)
Storage	–40 °C to +75 °C (–40 °F to +167 °F)
Humidity	100%, condensing
Water/dustproof	IP67 dustproof, protected from temporary immersion to depth of 1 m (3.28 ft)
Shock and vibration	Tested and meets the following environmental standards
Shock	Non-operating: Designed to survive a 2 m (6.6 ft) pole drop onto concrete. Operating: to 40 G, 10 msec,sawtooth
Vibration	MIL-STD-810F, FIG.514.5C-1

Communications and data storage
Serial: 3-wire serial (7-pin Lemo) on Port 1; full RS-232 serial on Port 2 (Dsub 9 pin)
Radio modem:fully Integrated,fully sealed internal 450 MHz receiver/transmitter
option:
– Transmit power: 0.5 W
– Range9 : 3–5 km typical / 10 km optimal
Cellular: fully integrated, sealed internal GSM/GPRS option
Bluetooth: fully integrated, sealed 2.4 GHz communications port (Bluetooth®)

External communication devices for corrections supported on Serial and Bluetooth ports
Data storage: 11 MB internal memory, 188.6 hours of raw observables (approx. 1.4 MB/day), based on recording every 15 seconds from an average of 14 satellites
Data formats
CMR: CMR+, CMRx input and outputs
RTCM: RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1 input and outputs
Other outputs: 23 NMEA outputs, GSOF, RT17 and RT27 outputs, supports BINEX and smoothed carrier
supported trimble controllers

Trimble Slate Controller
Optional1

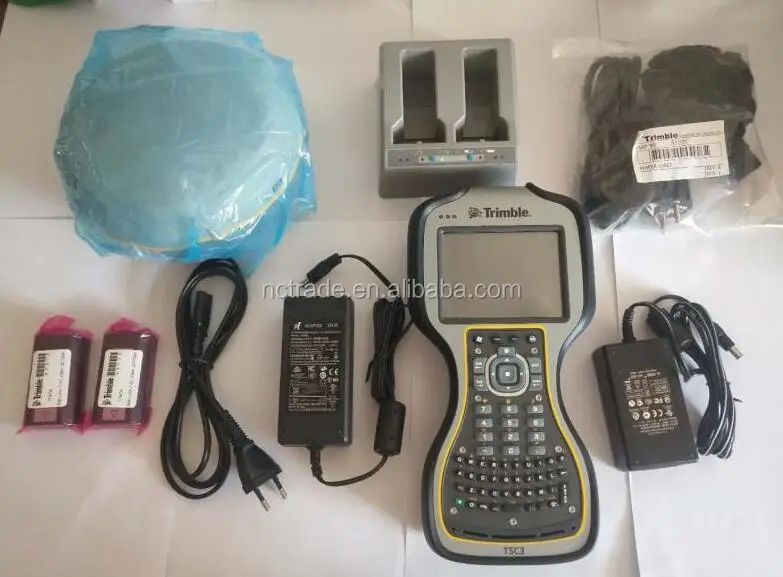

Trimble TSC3 controller, Trimble CU controller, Trimble Tablet Rugged PC
Certifications
FCC Part 15 (Class B device), 22, 24, 90; CE Mark; C-Tick; 850/1900 MHz;
Class 10 GSM/GPRS module; Bluetooth EPL

Original Trimble R8S Trimble GPS Price

Our Services

Our warranty policy:

1. For GNSS products we offer one year and half a year warranty. For optical instruments(total station, theodolite, Level), we offer 1 years warranty. For accessories we offer 6 months warranty.
2.Product in warranty please send us photos to show the problem . And then we will decide to send you parts or you send the instrument back to us to repair.We are responsible for the double-run freight and other cost.Please make sure to contact us first instead of sending the damaged parts directly to us.
3.For problem out of the warranty period or warranty liability,we will judge the problem and quoted for you.You need to pay double-run freight and the maintenance cost.
4.For all instrument we provide life-long technical support.

Remark:Improper use of the instrument and man-made damage of the instrument is not covered in warranty liability.Warranty only aimed at the problem caused by the product quality.
Our Technical Support:
Before any shipment we will have quality check person to give the instrument a careful quality check (software installation and test for GNSS product).
For all GNSS and optical instrument, you will get the user manual and operating video.
For green hand users we offer free online training (especially for GNSS products), regarding receiver configuration, survey software on controller and post process software operation. If customer needed we also offer charged on site training.
For all of the products we offer lifelong and 24 hours technical support.
Special services:
If you have a survey project, and you are finding a most cost-effective and efficient way to handle it. Just tell us your project specification, we will feedback with professional suggestions as reference.
We offer GNSS raw data process and CAD drawing for survey field end users.
If you have some broken instrument, and want to re-pick up into normal use, send it to use we offer professional repair service for all kinds of survey equipment.
