PLASTIC SHEET BOARD FILM METAL FOIL CORONA TREATMENT MACHINE

Product details
Warranty:1 Year;After-sales Service Provided:Field maintenance and repair service,Online support,Video technical support;
Type:Corona treatment machine;Payment Terms:L/C,D/A,D/P,T/T,Western Union;
Brand Name:Corona treater machine;After-sales Service Provided:Engineers available to service machinery overseas;
Applicable Industries:Manufacturing Plant;Supply Ability:100 Set/Sets per Month Corona treatment machine;
Place of Origin:Shanghai China;Condition:New;
Input voltage:220V/380V;Packaging Detail:Wooden case package for corona treatment machine;
Operation frequency:10-25khz;Port:Shanghai;
Aplication:Film, cup, tube, plate, foil;Color:Milk white;
Power:1-20kw;

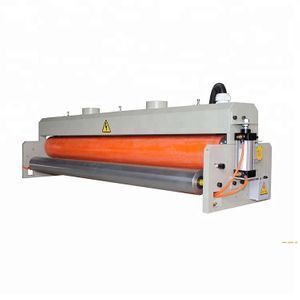

Corona treatment machine

Product Description

I. WHY CORONA TREATMENT IS ESSENTIAL TO YOUR BUSINESS

 “The problem with writing or printing on plastic films is well known. You have a plastic bag and you would like to write on it with a pen, but unfortunately the ink doesn’t stick to the plastic since the untreated plastic has a structure, which makes it impossible to both write and print on due to poor adhesion. Corona treatment is the solution to this well know problem.”

II. Corona treatment is a high frequency discharge that increases the adhesion of a plastic surface.

Whether a liquid wets a material good or poorly depends primarily on the chemical nature of both the liquid and the substrate. Wetting is defined as the ratio between the surface energies of the liquid and substrate.
In general the following rule is true: “A material will be wetted, if it’s surface energy (=dyn/cm) is higher than the surface energy of the liquid. If not, there will be an adhesion problem. The figure below shows the basic dyne-level of a material and the required dyne-level in the different applications.

III. HOW TO AVOID ADHESION PROBLEMS

The pre-treatment offered by Corona treatment is necessary to obtain sufficient wetting and adhesion on plastic films or metallic foils before the printing, laminating or coating. A Corona discharge unit is the solution to optimize the wetting and adhesion. This Corona technique has proved to be both highly effective, cost-effective and can take place in-line.

IV. WHAT IS CORONA TREATMENT?

Plastic is a man-made synthetic material, which contains long homogeneous molecular chains that form a strong and uniform product. The chains of molecules are normally joined end to end forming even longer chains, leaving only a few open chain ends, thus providing only a small amount of bonding points at the surface. The small amount of bonding points cause the low adhesion and wettability, which is a problem in converting processes. When the Danish engineer and founder of Vetaphone, Verner Eisby, was asked about a solution to this problem, he came up with a theory that that a high frequency charge would provide both a more efficient end controllable method of increasing the adhesion and wettability of a plastic surface.

During corona discharge treatment, electrons are accelerated into the surface of the plastic causing the long chains to rupture, producing a multiplicity of open ends and free valences are formed.

The ozone from the electrical discharge creates an oxygenation, which in turn forms new carbonyl groups with a higher surface energy. The result is an improvement of the chemical connection (dyn/cm) between the molecules in the plastic and the applied media/liquid. This surface treatment will not reduce or change the strength. Neither will it change the appearance of the material. The Corona only changes the top molecule chains, which is 0.00001 micron thick.

V. DETERMINATION OF TREATMENT LEVEL

The effectiveness of the Corona treatment depends on the specific material being used. Different materials have different characteristics and different amounts of slip and additives, which will determine the effect of the Corona treatment. There are no limits with regard to the materials that can be corona treated. However, the required intensity of the treatment (watt/min/m2) may vary significantly. The treatment level can be calculated by using the following formula:

Power (watt) = T x S x W x M
P = Total Power (Watt) required
T = Number of sides to Treat (single/double sided)
S = Line Speed (in metres per minute)
W = Film Width (in metres)
M = Material factor (required Watt per m² per minute)

The exact value is best determined by testing a sample of the actual film that is used for a specific application.

VI. DURABILITY

Over time the obtained dyne-level will decrease and it can be necessary to corona treat the material again just before use. When a material contains slip the dyne-level will fall faster, as well as thicker and older film stocks are more difficult to treat as slip agents may have migrated to the surface. Also storage conditions and temperatures can affect the decay of the Corona treatment. Generally speaking, the more difficult a material is to treat the quicker it is likely to decay with time. It has been established that film with very high slip additives (over 1200 ppm) can be totally resistant to printing just 24 hours after treatment, and it may be necessary to process the film immediately following treatment, or boost the treatment in line with the printer.

Material which has not been treated under extrusion can be difficult to treat afterwards. Therefore it is recommended to treat film just after the extrusion, and then use a refreshment treatment just before the liquid/media is supplied to the surface.



VII. CHARACTERISTICS OF OUR CORONA TREATER

1. It adopts the imported driver circuit and power organ IGBT and special drive-circuit.

2. It looks the operating frequency automatically.

3. It has the function of soft-start, which can reduce the pollution to the power network and harm to the equipment.

4. It has kinds of protection such as phase absence, phases wrong, over input voltage over current.

5. The protections of stop-running and rake-opening prevent the roller from burning.

VIII. TECHNICAL PARAMETERS

TypeInput voltageOperation frequencyThe Max. powerThe Max. treating widthApplication
CS-101AC220V10-25KHZ1KW65CMPlastic film, metal foil
CS-102AC220V10-25KHZ2KW100CM
CS-103AC220V10-25KHZ3KW120CM
CS-304AC380V19KHZ4KW200CM
CS-306AC380V19KHZ6KW
CS-308AC380V15-25KHZ8KW
CS-310AC380V15-25KHZ10KW
CS-315AC380V15-25KHZ15KW
CS-320AC380V15-25KHZ20KW
CS-B1AC220V12KHZ1000W10-15CMPlastic cup, tube, cask
CS-B2AC220V12KHZ1500W40CM
CS-D1220V/50HZ15KHZ500W4-5CMSpherical
CS-D2220V/50HZ15KHZ1000W8-10CM

X. PICTURES

Packing and Delivery



Company Information

CissCo Machinery Co., has been engineering and manufacturing a series of EXTRUSION MACHINERY for more than 20 years and has thus acquired an extensive expertise in the supply of manufacturing machinery; having based ourselves on the features demanded by large companies in more than 30 countries.

Comparing with the low price low quality machine, please note our strong advantages:

1. 20 Years Experiences;

2. European Latest Technology;

3. Easy to Operate, Stable Performance, Good Quality Products, Low Production Cost;

4. Quicker Production Speed, Big Output;

5. Good Material and Well-Known Brand Electrical Parts;

6. Beautiful Appearance;

7. Free Training for Technical Process, Formula and Know-How;

8. Full Time and High Level After-Sale Services.



After-Sales Service

1. We design, engineer and manufacture and customized the extrusion line.
2. Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
3. Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our client’s factory
4. Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.
