BCF Two for One Twisting Machine

Supplier: Cissco Machinery Co., Ltd.
Region: Shanghai, China
Contact: Mr Louies Liu
Price: $1400.00 / >=4 units
Min. Order: 4 units

Click here to contact

Product details

Warranty:	1 Year;	BCF two for one twisting machine:	BCF two for one twisting machine;
Weight:	10ton;	Automatic:	Yes;
Showroom Location:	None;	Packaging Detail:	BCF Two for One Twisting Machine,Standard Package for Shipping;
After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Engineers available to service machinery overseas;	Dimension(LWH):	7.07x1.58x2.27m;
Type:	Two-for-one Twister;	After Warranty Service:	Spare parts,Field maintenance and repair service;
Brand Name:	two for one twisting machine;	Application:	Twisting Yarn;
Applicable Industries:	Hotels,Manufacturing Plant,Farms,Retail,Food Shop,Energy & Mining;	Payment Terms:	L/C,T/T;
Place of Origin:	Shanghai China;	Certification:	CE ISO;
Port:	Shanghai;	Power:	9~18kw;
Spinning Method:	Ring Spinning;	Supply Ability:	5000 Unit/Units per Year BCF two for one twisting machine;
Condition:	New;	Local Service Location:	None;
Production Capacity:	High speed;

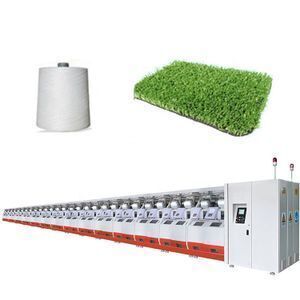

BCF Two for One Twisting Machine

Product Description

TZ326 high speed industrial fiber two-for-one twisting machine is a Hi-Tech creature in our company. It features high spindle speed, wide twisting range and low energy consumption, etc. meets developing requirements of textile industry.

1. Technical features of BCF two for one twisting machine

It uses PC microcomputer to control digitally. Succinct man-machine interface talk function is easy to operate.

Single spindle winding operation and traverse control, winder usage.

Optimization spindle design, the twisting quality is higher.

Large capacity feeding, large capacity winding.

Electronic yarn breakage detection device.

Single spindle control, single spindle measure length, output statistics system.

On-line inspection, to ensure the yarn quality.

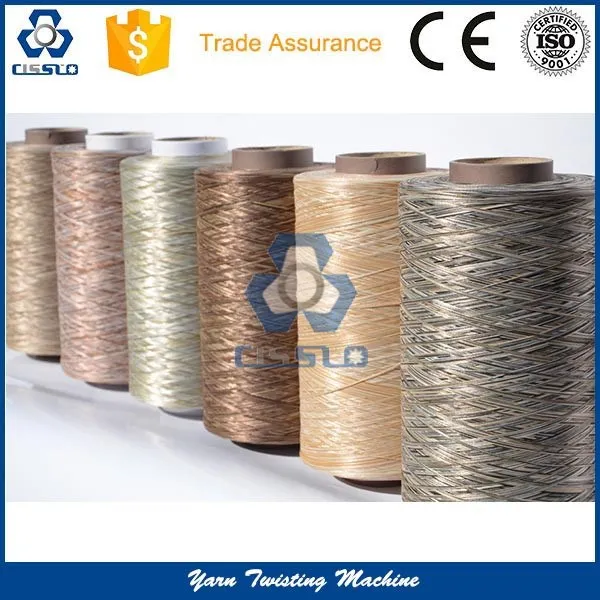

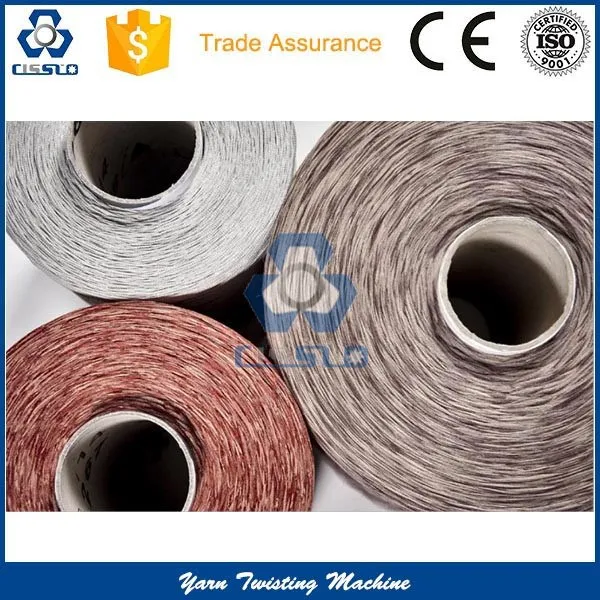

2. Application of BCF two for one twisting machine

Filament yarn.

Twine

Stretch yarn.

Short fiber.

Viscose.

Aramid.

BCF.

3. Technical specification of BCF two for one twisting machine

No.	Item	Specification
1	Style	Two-sided single-layer
2	Spindle gauge	360mm, 260mm
3	Quantity of spindles	120 spindles (10*12)
4	Max. spindle speed	12000r/min
5	Twist range	20-700t/m
6	Twist direction	S or Z
7	Max. winding diameter	200mm
8	Winding bobbin	Dia.70330, 73230
9	Reversing bobbin	Dia.51330, 51420
10	Speed of yarn	Max. 350m/min
11	Traverse	254mm (10 inch); 200mm (8 inch)
12	Spindle tensioner	Balloon ring multistage steel ball
13	Spindle driving	Belt circulation driving
14	Motor power	15-22 Kw

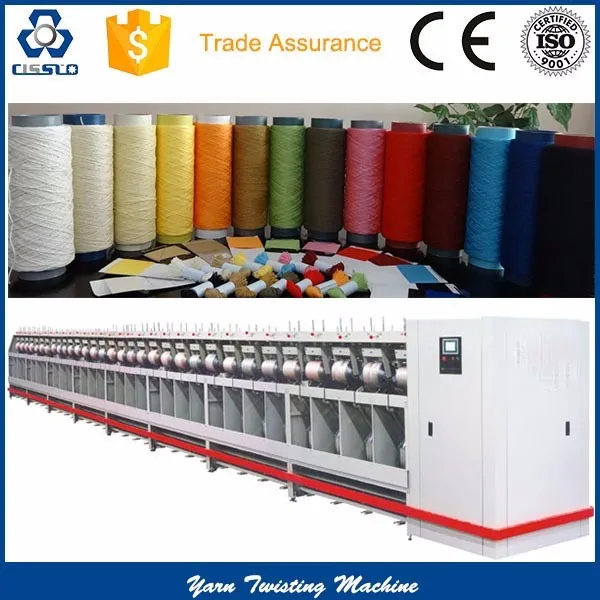

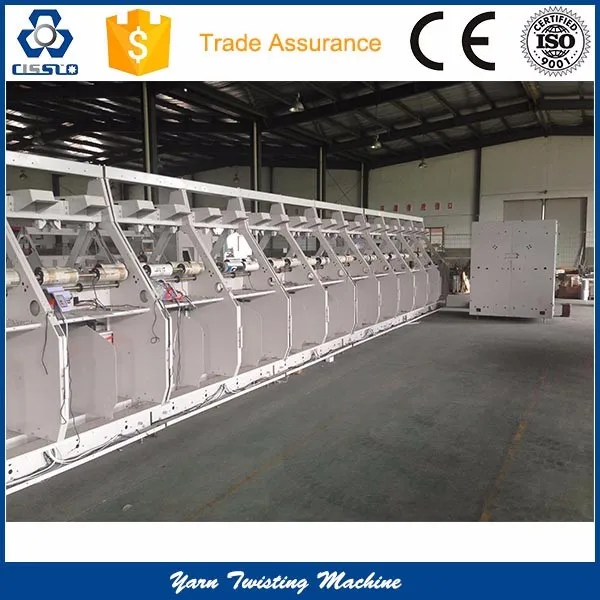

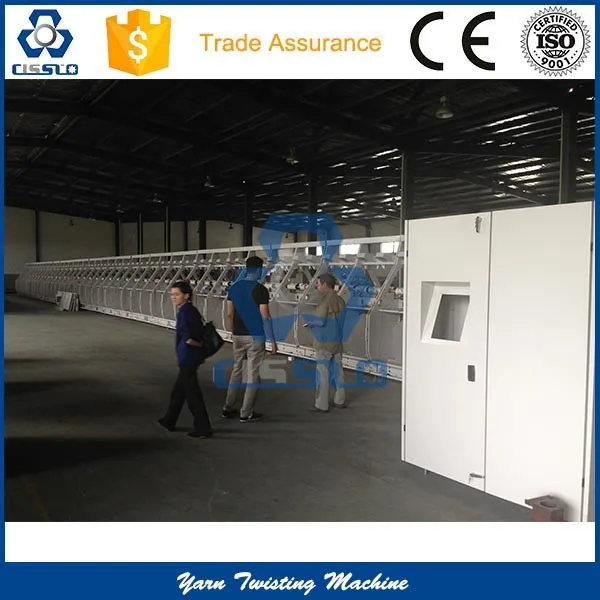

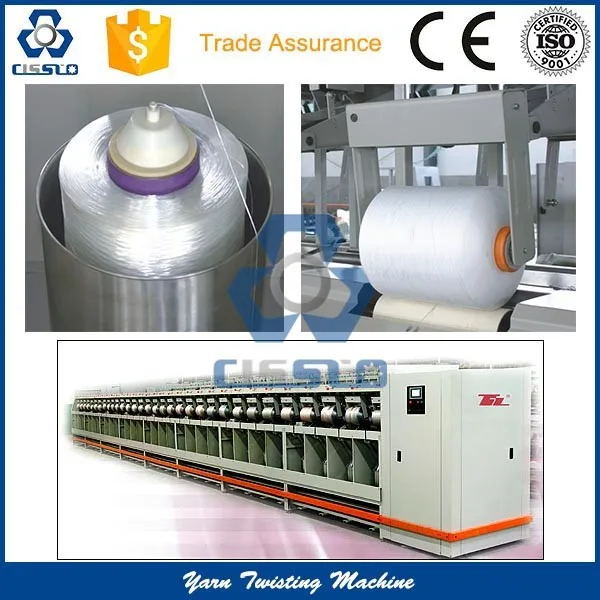

4. Pictures of BCF two for one twisting machine

Packaging & Shipping

Our Services

• We design, engineer and manufacture and customized the extrusion line.

• Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.

• Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our client’s factory

• Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.
