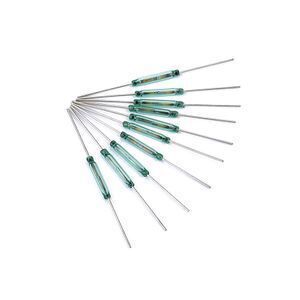

1A(normally open) magnetic reed switch

Supplier: Zhejiang Xurui Electronic Co., Ltd.
Region: Zhejiang, China
Contact: Mr Mao Cai
Price: $0.13 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Brand Name:	Xurui or OEM;	Contact Rating:	1.0VA;
Pull in Value:	15-35AT;	Packaging Detail:	Reed switch no packing details: Carton Box(cm) : 10000pcs/carton the delivery date will depend on your specific quantity;
Contact form:	1A;	Port:	Shanghai or Ningbo;
Payment Terms:	L/C,T/T,Western Union,Paypal;	Model Number:	XGH-2;
Dimension:	2.5*16mm;	Place of Origin:	China;
Supply Ability:	5000 Piece/Pieces per Day;	Operating Temperature:	-10 to 60 degree;
Certification:	ROHS CCC CE ISO9001;	Max. Voltage:	24VDC;
Maximum Operating Frequency:	100HZ;	Max. Current:	0.05A;

Features

Reed contacts are hermetically sealed within a glass tube and do not receive the external atmospheric environment.
Quick response and light weight.
Superior corrosion resistance and wear resistance of the contacts assures stable switching operation and long life.
Composed fast with the coil and magnet, reed switch can be used for reed relay or sensor.
Widely used in household appliances, control equipment, communication equipment, communication, automotive electronic devices, measurement equipment etc.

Contact Form & Product Structure

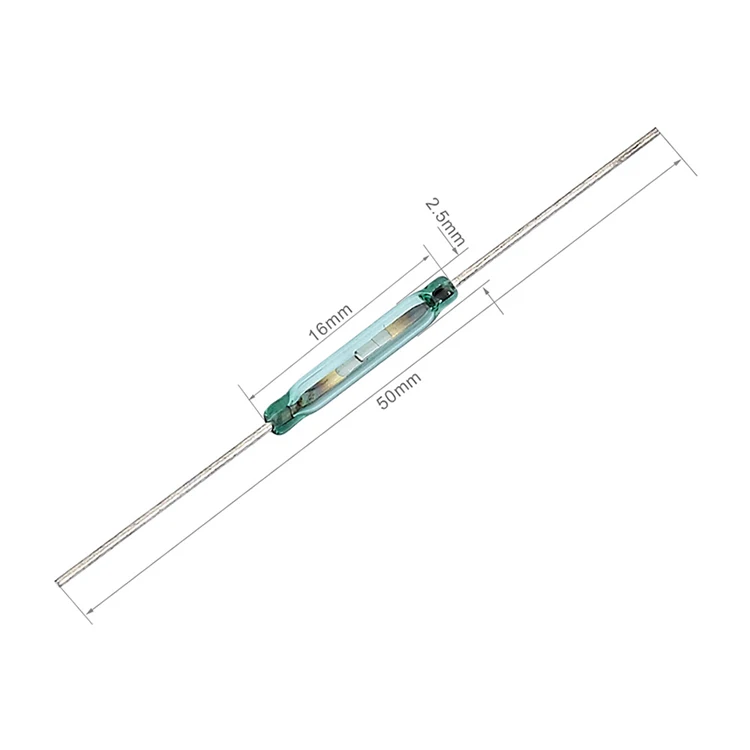

Dimension

Specification

Model	XGH-2
Dimension	Ø2.5 × 16mm
Contact Type	1A
Contact Rating	1.0VA
Pull in Value(PI)	15-35AT
Drop out Value(DO)	≥8AT
Contact Resistance	≤200mΩ
Breakover Voltage	≥100V DC
Insulation Resistance	≥100mΩ
Electrostatic Capacitance	0.5pF
Maximum Switching Voltage	24V DC
Maximum Switching Current	0.05A
Maximum Carry Current	0.1A
Operate Time	≤0.8mS
Bounce Time	≤0.4mS
Release Time	≤0.2mS
Maximum Operating Frequency	100Hz
Operating Temperature	-10~+60℃

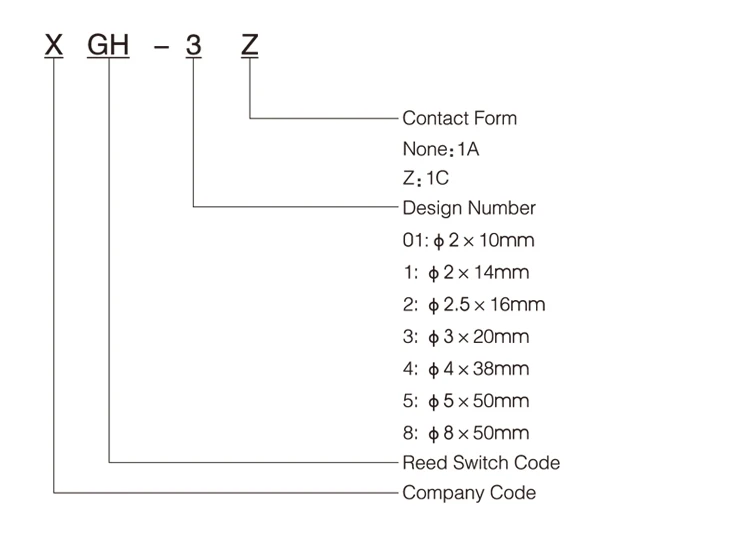

Model & Meanings

Certifications

Why Choose Us

Quality Assurance: We offer replacement if you receive defective or wrong items in 12 months from the shipping date.
Supplied directly from factory with more than 16 years experience.
Short Delivery Time: Stock in 2 days, order as short as 7 days.
Small order welcome.
Payment by Paypal, Western Union is supported.

Company

Zhejiang Xurui Electronic Co., Ltd, established in 2002, is specialized in the research, development, production of industrial products.

Xurui has a modern workshop covering more than 2,000 square meters. There are about 120 employees, incuding more than 10 years experienced technicians.

Main Products: 1. Micro Switch; 2. Limit Switch; 3. Toggle Switch; 4. Foot Switch; 5. Solid State Relay; 6. Reed Switch; 7. Proximity Switch.

Main markets: Europe, America, Australia, Asia, Middle East and so on.

Production
