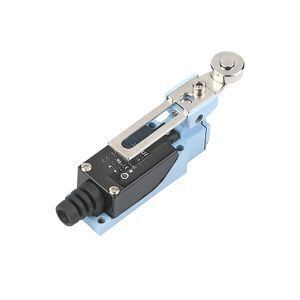

XZ-8108 Adjustable roller arm type 5A/250VAC stromag limit switch

Supplier: Zhejiang Xurui Electronic Co., Ltd.
Region: Zhejiang, China
Contact: Mr Mao Cai
Price: $2.20 / >=50 pieces
Min. Order: 50 pieces

Click here to contact

Product details

Standard:	EN(IEC)60947-5-1;	Packaging Detail:	stromag limit switch packing details: Carton Box: 100PCS/CTN, Size: 412929.5;
Max. Voltage:	250VAC;	Protection Level:	IP65;
Drive Shaft Type:	Roller arm type;	Mechanical Life:	1,000,000 times above;
Lever:	kinds of levers;	Place of Origin:	Zhejiang China (Mainland);
Certificate:	UL TUV CCC CE RoHS;	Type:	stromag limit switch;
Brand:	XURUI or OEM;	Superiority:	Small Size, water and oil resistant;
Max. Current:	5A;	Payment Terms:	L/C,T/T,Western Union;
Port:	Ningbo or Shanghai for stromag limit switch;	Material body:	zinc metal alloy;
Electrical Life:	100,000 times above;	Model Number:	stromag limit switch XZ-8108;
Operating Temperature:	-10~60 Degree;	Supply Ability:	1000 Piece/Pieces per Day;
Brand Name:	XURUI or OEM brand for stromag limit switch;

Features

Strong structure, made of zinc metal alloy and plastics, easy to contact line.
Small size, water and oil resistant.
Double way switch, double spring inner switch.
Widely used in mechanical equipment, automatic machine, instrument, electro motion tool etc.

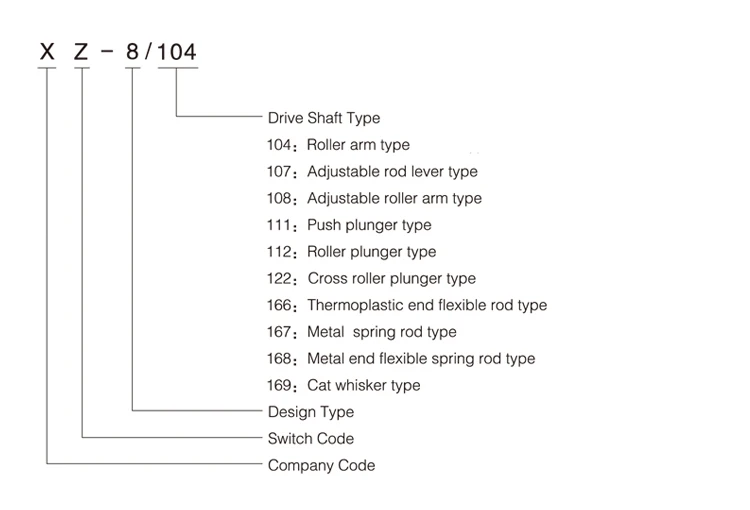

Model & Meanings

Mounting Holes & Contact Form

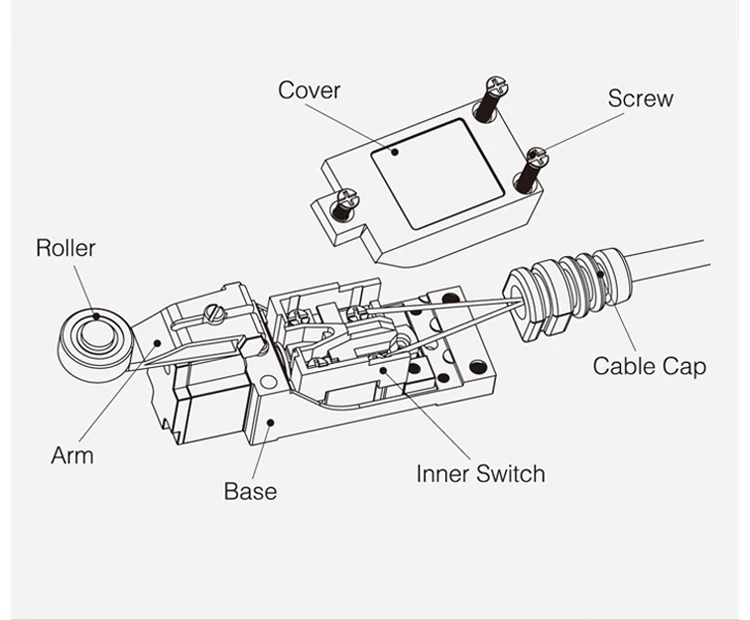

Product Structure

Specification

Item		Data
Rating Load		5A/250VAC
Operation Speed		5mm-50cm/s
Operation Frequency	Mechanical	120 times/min
	Electrical	30 times/min
Insulation Resistance		100mΩ (above) DC500V
Contact Resistance		25mΩ initial value
Withstand Voltage	Non-connection Wire	1000VAC
	Every Terminal	1500VAC
Vibration	Misoperation	10-55Hz amplitude 1.5mm
Impact	Durable	1000 m/s²
	Misoperation	300 m/s²
Life	Electrical	100,000 above
	Mechanical	1,000,000 above
Protection Degree		IP65
Operating Temperature		-20~+60 ℃
Operating Humidity		<85%

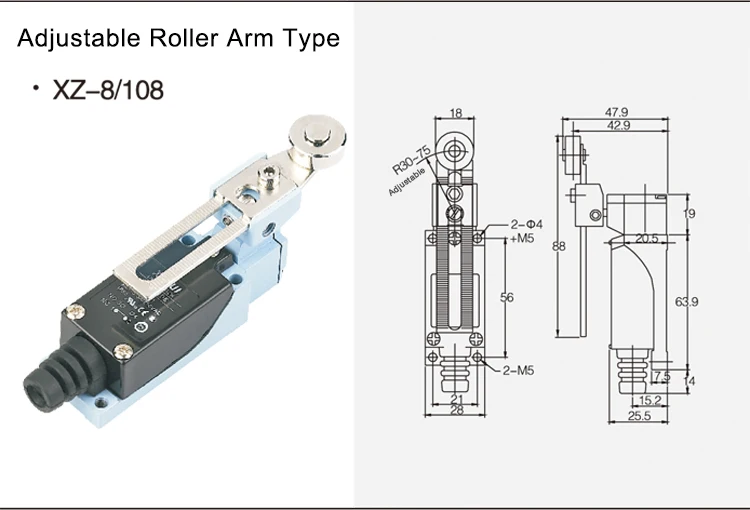

Dimension / Operating Characteristic

Model	XZ-8/108
OF max.	800g(7.84N)
RF min.	60g(0.59N)
PT max.	30°
OT min	60°
MD max.	15°
OP	/
TT	90°

Certifications

Why Choose Us

Quality Assurance: We offer replacement if you receive defective or wrong items in 12 months from the shipping date.
Supplied directly from factory with more than 16 years experience.
Short Delivery Time: Stock in 2 days, order as short as 7 days.
Small order welcome.
Payment by Paypal, Western Union is supported.

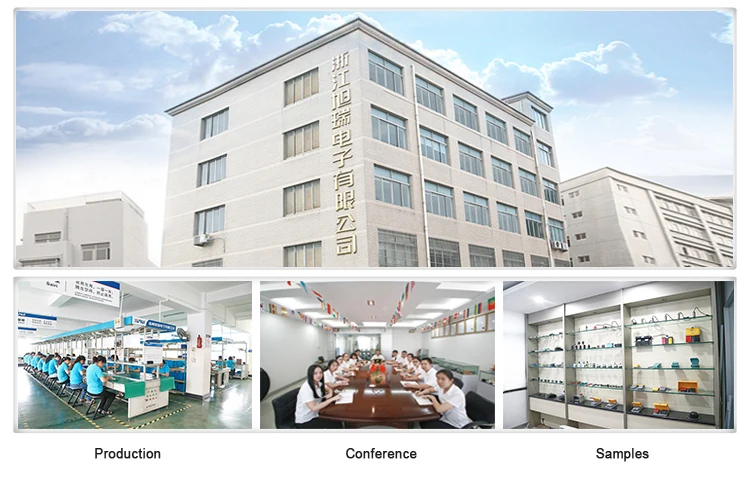

Company

Zhejiang Xurui Electronic Co., Ltd, established in 2002, is specialized in the research, development, production of industrial products.

Xurui has a modern workshop covering more than 2,000 square meters. There are about 120 employees, incuding more than 10 years experienced technicians.

Main Products: 1. Micro Switch; 2. Limit Switch; 3. Toggle Switch; 4. Foot Switch; 5. Solid State Relay; 6. Reed Switch; 7. Proximity Switch.

Main markets: Europe, America, Australia, Asia, Middle East and so on.

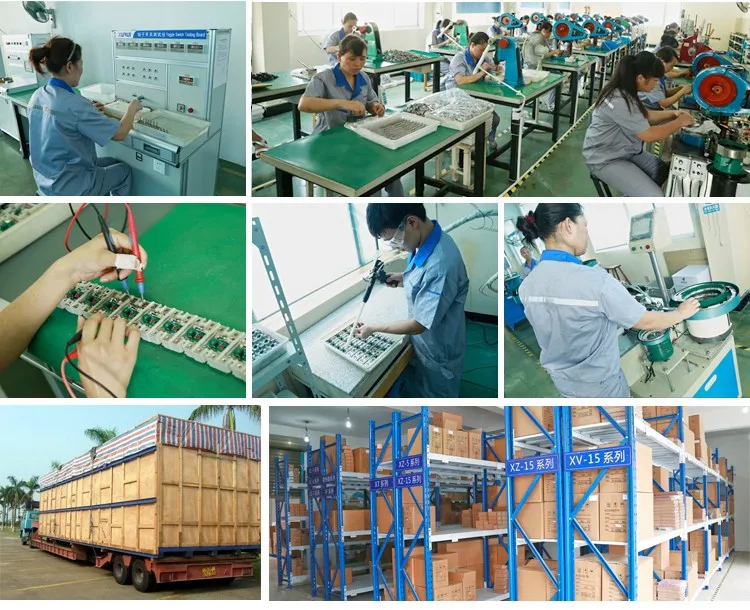

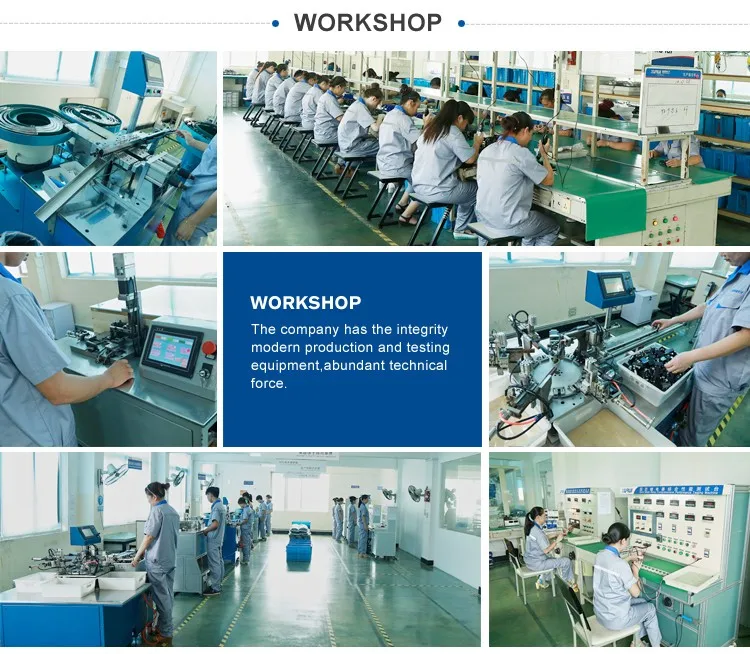

Production
