API TQ508 hydraulic casing power tong with backup tong and Jaws plate size: 9 5/8-20

  • 55223.00 set
Min. Order: 1 set FOB PRICE
Contact Supplier View Company
Registered Supplier Direct Contact Inquiry via Message
Product Details
Single gross weight:28 KG;Brand Name:DYQX;
Use:Well Drilling;Certification:API;
Machine Type:Drilling Tool;Model Number:DYQX;
Material:Carbon Steel;Type:Drill pipe;
Single package size:15X18X18 cm;Type:Power Tong;
Model Number:TQ508;Package Preview:https://sc02.alicdn.com/kf/Hf43f9b986364435aa5be84646f1f59cfY.jpg_640x640.jpg;
Place of Origin:China (Mainland);Selling Units:Single item;
Processing Type:Forging;Applicable Industries:Machinery Repair Shops,Energy & Mining;
Package Type:Standard export package or as your request;Jaws plate size:9 5/8-20;

Our Services

Our main products:
Drill Equipment, Well control system,OCTG, Well head tools, camps,drill bit and spray head,drilling instruments, cementing, oil mining equipment, water well drilling rig  and petrochemical products,Electric oil-submersible pump unit, QYYEQ Submersible power cables and so on.



Company Information

 Dongying Qixiang Import & Export Co.,LTD(DYQX Petro company) follow the principle of "quality first, science and technology innovated, people oriented",, it benefits from the convenient running, high efficiency, swift reaction, experienced experts and the advanced management. In a meanwhile, it has about 50 sub-contractors to cooperate all over the country, and it always sticks to good faith, strictness, specialty, innovation, also satisfactory service.our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions).



Our Service Objective:  People-O riented, Quality firstly and Best service.



Welcome to Visit DYQX petro.

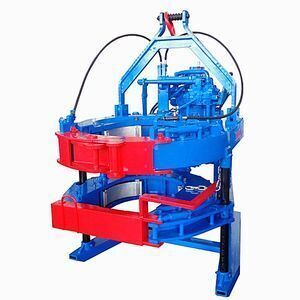

TQ508 Hydraulic Casing Power Tong with backup tong

Product Description

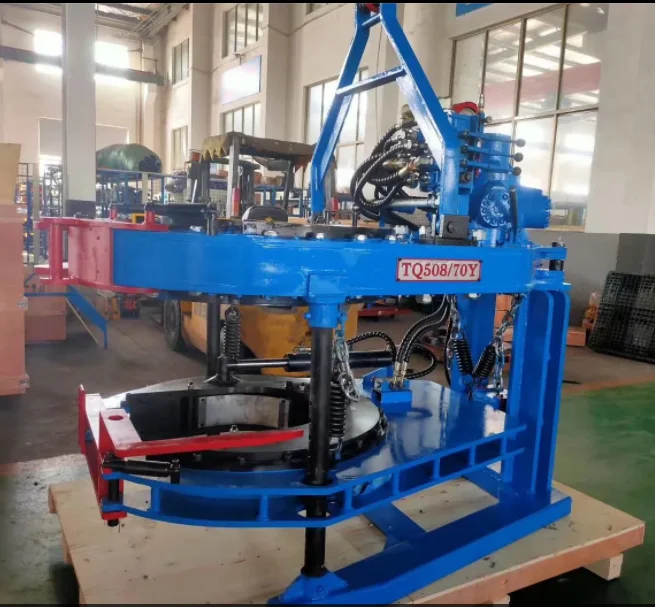

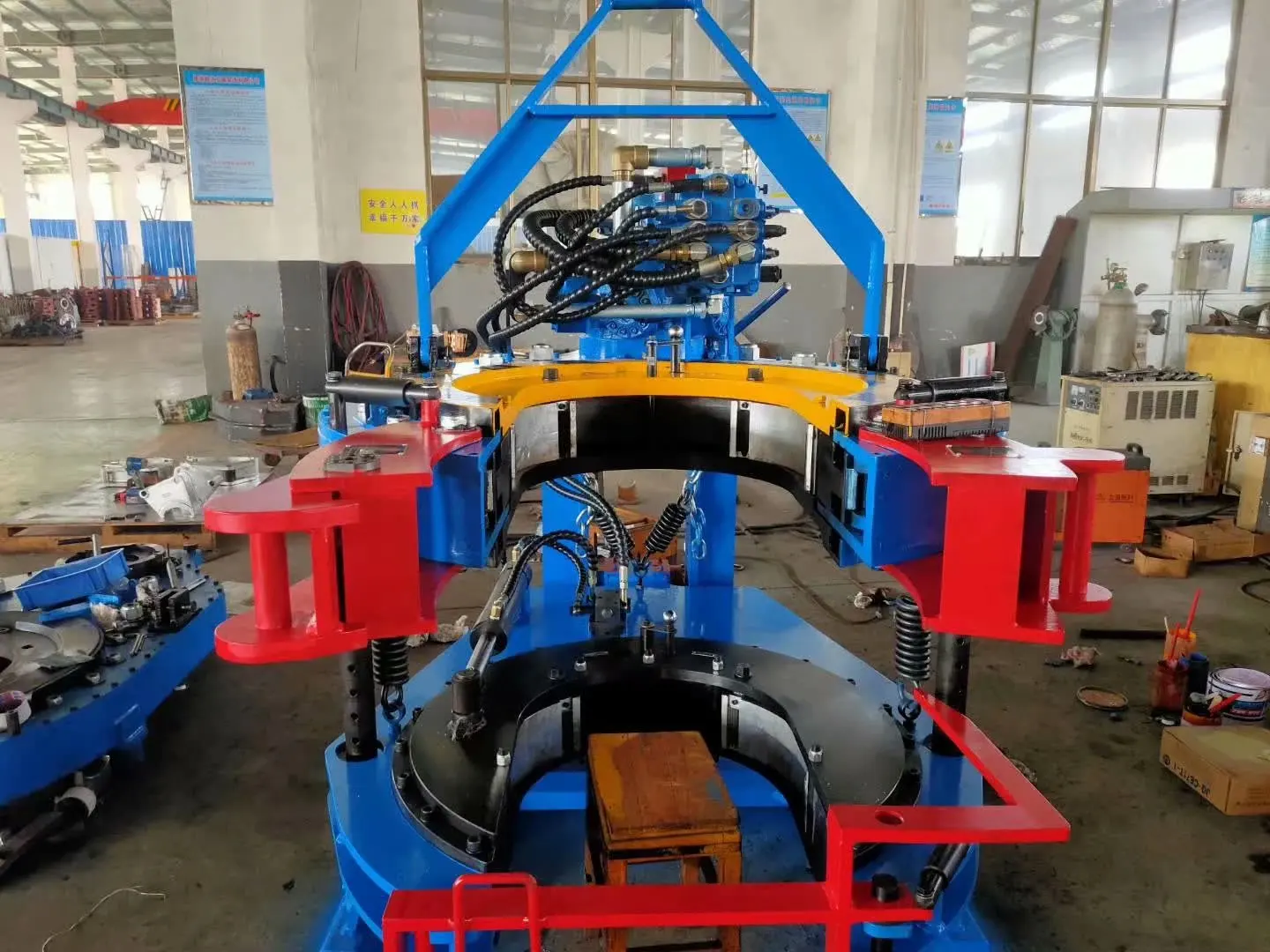

TQ508/70 Casing Power Tong is used to make up and break out for casing operation in oil fields. It
has greatly reduced the labor of worker, enhanced connection quality of thread and diminished
accidents in inappropriate casing operation. The power tong has the following features as well:
1) Opening type, convenient and prompt to enter and slide off the working position, with an
integral tong head of great strength and rigidity.
2) Double swing head jaws, convenient to assemble and disassemble.
3) Brake belt assembly, easy to operate and convenient to maintain and replace.
4) Open gear supporting structure, improving the strength and rigidity.
5) Wholly hydraulic mode and mechanical gear shift.
6) The jaws are cast with precise technology, artistic and strong.
7) With optional torque control system to display, record and control the make-up torque.
8) Hydraulic safety device adopts the security, safety performance is good;
9) Torque range is big, can meet the requirements of large torque.





2. SPECIFICATIONS
1. Jaws plate size: 9 5/8″-20″
Master tong jaw plate: 9
5
/8″,10
3
/4″,11
3
/4″,13
3
/8″,16″,18
5
/8″,20″
Backup tong jaw plate:9
5
/8″,10
3
/4″,11
3
/4″,13
3
/8″,16″,18
5
/8″,20″,21″
2. Opening size 520 mm
3. Tong head rotation speed High gear 23 rpm
Low gear 3 rpm
4. Max Torque Low gear 10 kN.m
Low gear 70 kN.m
5. Rated pressure 18 MPa
6. working flow 132 L/min
7. The master tong clamp lever 1311mm/51.6″
Combined tong clamp lever 1200 mm/47.2″
8. Hydraulic power station f low 160 L/min
pressure 20 MPa
power of electric motor 37 kW
9. Overall Width (L×W×H) 2100×1300×2030 mm
10. Weight 3000 kg(including Spring lifter assembly)





FAQ

Dongying Qixiang Import&Export Co.,Ltd

Address:North 2nd Road,Number 352,Dongying Zone, Dongying City, Shandong province, China.



Skype:eve.liu06211988

Mobile:0086-18554639639

whatsnap:0086-18554639639

wechat:0086-18554639639

 Web: www.dyqx-petro.com  &  http://qixiangpetre.en.alibaba.com
