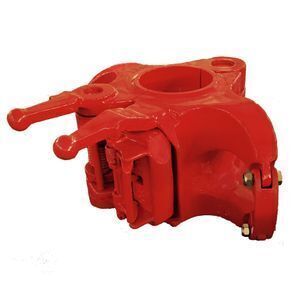

Drill Pipe Elevator China factory with competitive price of DDZ type Drill Pipe Elevators

Supplier: Jiangsu Saifu Petrol-Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms. Hui Xu
Price: $900.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Size Range:	2 3/8"-6 5/8";	Product name:	Drill Pipe Elevator;
Payment Terms:	L/C,T/T;	Port:	Shanghai Ningbo Qingdao Tianjin;
Applicable Industries:	drilling tools;	Certificate:	API 8C;
Load:	100-500 Ton;	Packaging Detail:	Drill Pipe Elevator Plywood cases or according to customers' requirement;
Type:	center latch;	Model Number:	DDZ;
Supply Ability:	100 Piece/Pieces per Month;	Material:	Alloy Steel;
Application:	Oil well Drilling;

Product Description

The DDZ type drill pipe elevator is a wellhead tool in the drilling and repairing of oil or gas well. It is easy and safe for handling 18-dregrees drill pipe, and of great advantage to prolong life of self-seal head of blowout presenter. It is designed according to API Spec 8c for Drilling and Production Hoisting Equipment. It was design verification tested at more than two times the max. Test load, and underwent ex-factory test at one and a half times the rated load.

Main Technical Parameter:

TABLE 1 SPECIFICATIONS--- 18º TYPE SERIES ELEVATORS

Elevator Specification	Suitable for tool Joint and Drill Pipe		18º Type Elevator Bores				Rated Capacities
	Tool Joint Designation Reference	Drill pipe Size and style (All weights and Grades)	D Top Bore		d Bottom Bore
			in	mm	in	mm	kN/ Tons
DDZ 67	NC26(2 3/8IF)	2 3/8EU	4 1/4	107.95	2 21/32	67.47	890(100) 1110(125) 1335(150) 1335(150) TD 1780(200) 2225(250) 2225(250) TD 3115(350) 3115(350)TD 4450 (500) 4450 (500)TD
DDZ 83	NC31(2 7/8IF)	2 7/8EU	4 3/4	120.65	3 9/32	83.34
DDZ 101	NC38(3 1/2IF)	3 1/2EU	5 1/2	139.70	3 31/32	100.81
	NC40(4IF)
DDZ 109	NC40(4FH)	4IU	6 1/2	165.10	4 9/32	108.74
DDZ 121	NC46(4IF)	4EU	6 3/4	171.45	4 25/32	121.44
		4 1/2IU
		4 1/2IEU
	4 1/2FH	4 1/2IU
		4 1/2IEU
DDZ 133	NC50(4 1/2IF)	4 1/2EU	7 1/8	180.98	5 1/4	133.35
		5IEU
DDZ 133	5 1/2FH	5IEU
DDZ 148	5 1/2FH	5 1/2IEU	7 7/8	200.03	5 13/16	147.64
DDZ 159	5 7/8FH	5 7/8IEU	8	203.20	6 17/64	159.15
DDZ 179	6 5/8FH	6 5/8IEU	8 7/8	225	7 1/32	178.59
