70MPa Split Type Electric Hydraulic Pipe Bender SOV DWG 76 for Global Market

Product details
Place of Origin:Shanghai China;Package:Wooden Cases;
Warranty:1 Year;Supply Ability:50 Piece/Pieces per Month;
Bending Range:27~76 mm;Working Pressure:70 MPa;
Packaging Detail:Wooden cases or customized package are accepted.;OEM:Yes;
MOQ:1 Piece;Color:Customized Color Are Accepted.;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;Use method:electric pump station;
Port:Shanghai;Bending Radius:4*Radius;
Pipe Thickness:<=10;

70MPa Split Type Electric Hydraulic Pipe Bender SOV DWG 76

for Global Market

Product Description

 Product Descriptions

Separately designed between the bender and pump, easy to carry on site. It is widely used in smooth wrinkle-free bending for water pipes, wire pipes, gas pipes, pipe, especially for thick-walled pipes.

Size 1/2’’- 2’’ pipes can be bent to 90º at a time, size 2’’- 6’’ must move the pipe to bend.





Product Features

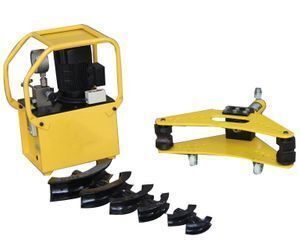

A whole set includes Hydraulic Pipe Bender, Electric Hydraulic Pump, Hydraulic Hose, Molds, Fixed Plug-pin;

Double acting Hydraulic Cylinder, quickly reset, improving the bending efficiency;

Piston plated hard Cr to prevent scratches and corrison, surface painted to improve the resistance and corrison;

Lightweight heat-treated steel molds and steel frame make bending pipe smooth wrinkle-free;

Size 4’’- 6’’ Electric Hydraulic Pipe Bender, equipped with Double Acting Hydraulic Cylinder which reset quickly, works more efficiently with Electric Pump.











Techinical Parameters



Model

Bending Range

(O.D.)
(mm)

Bending Radius

(mm)

Pipe Thickness

(mm)

Max. Capacity

(KN)

Working Pressure

(MPa)

SOV-DWG-60



22-60

4×pipe diameter

≤4

100

70

Female mould 2 pieces   Pin 2pieces Bending tyre:22 27 34 42 48 60

70

SOV-DWG-76



27-76

4×pipe diameter

≤10

300

70

Female mould 2 pieces   Pin 2pieces Bending tyre: 27 34 42 48 60 76

70

SOV-DWG-108



27-108

4×pipe diameter

≤10

300

70

Female mould 2 pieces   Pin 2pieces Bending tyre: 27 42 48 60 76 89 108

70

SOV-DWG-159



76-159

4×pipe diameter

≤10

500

70

Female mould 2 pieces   Pin 2pieces Bending tyre: 76 89 108 133 159  Block 2 pieces

70

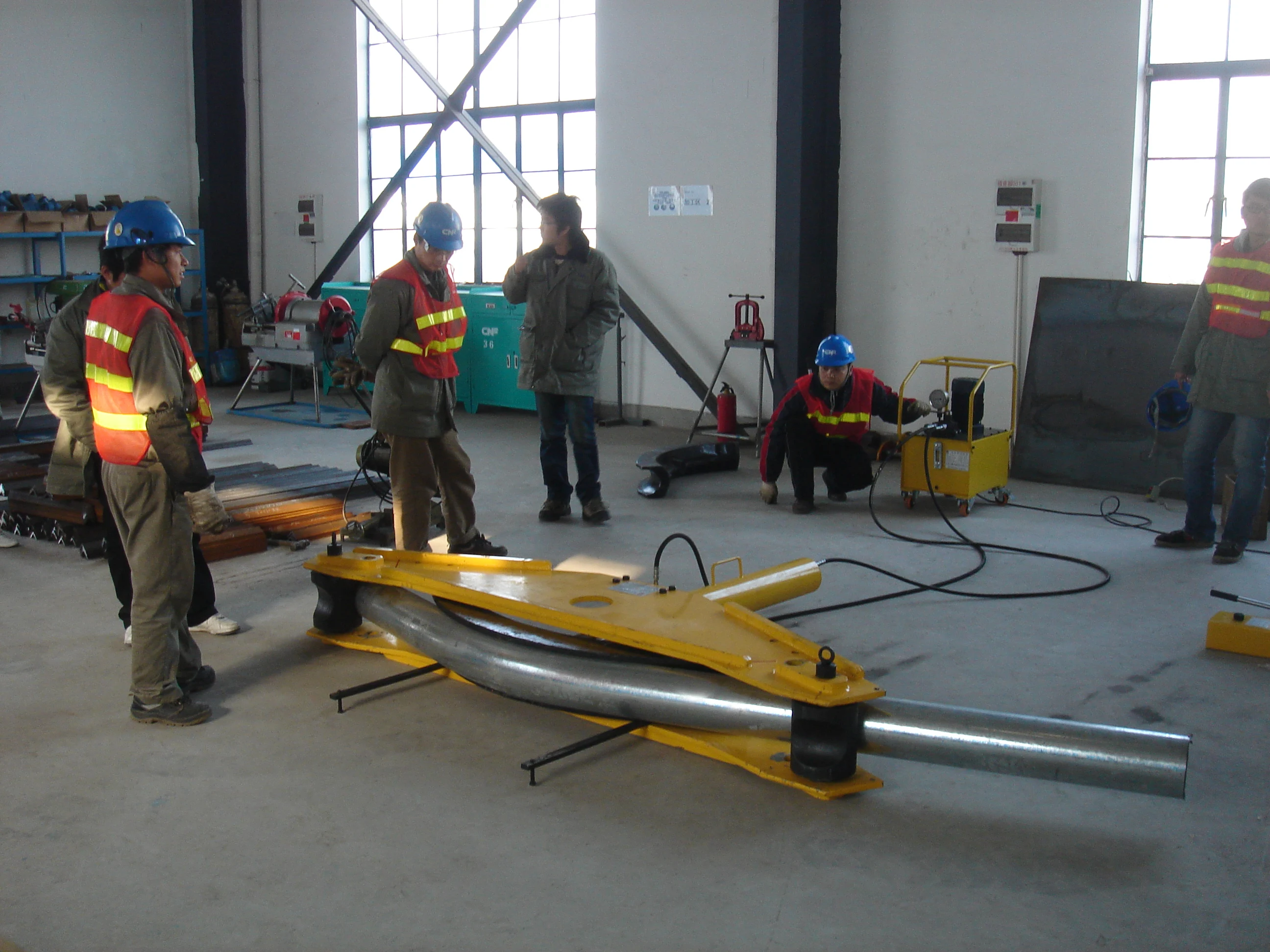

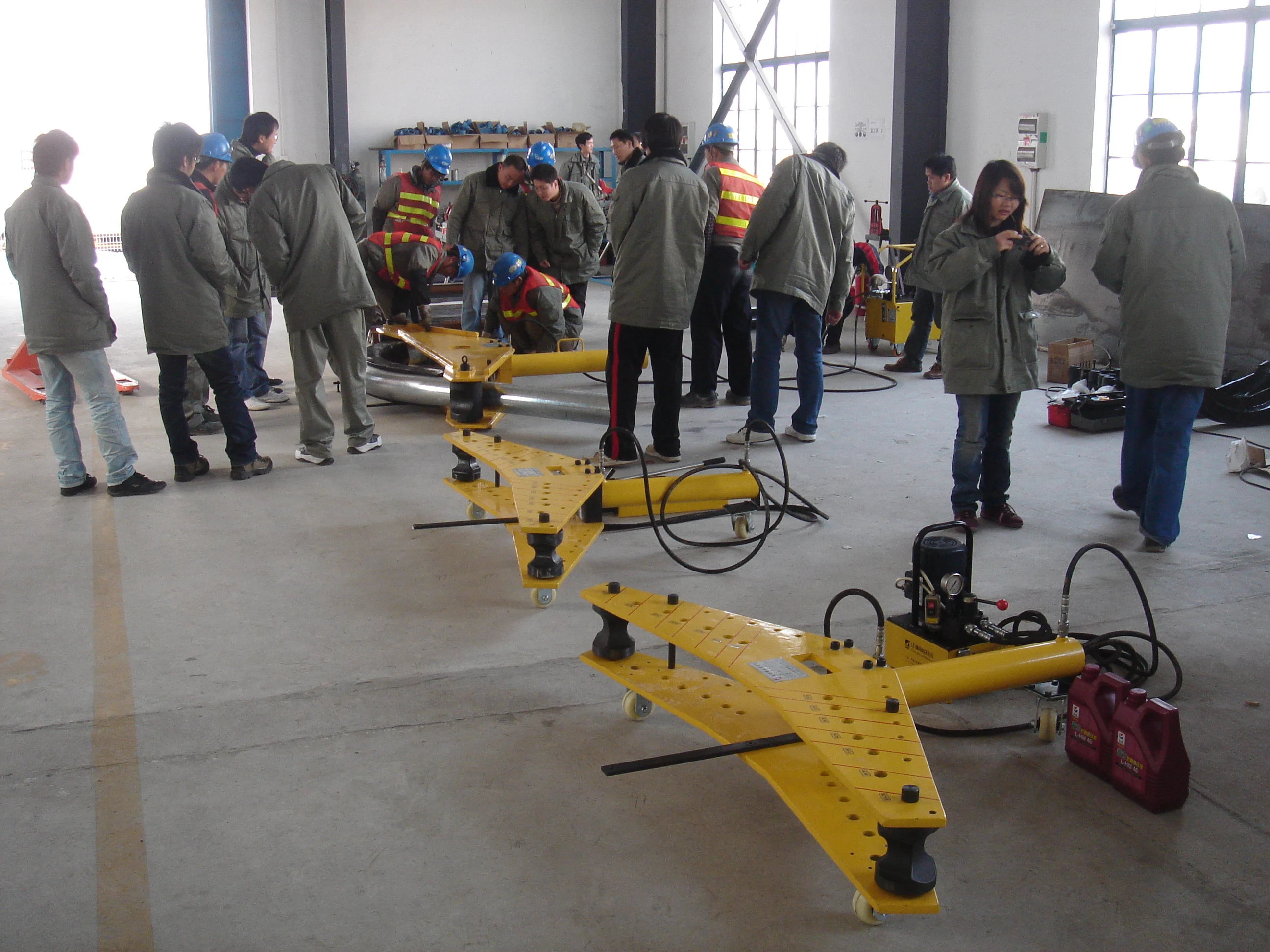

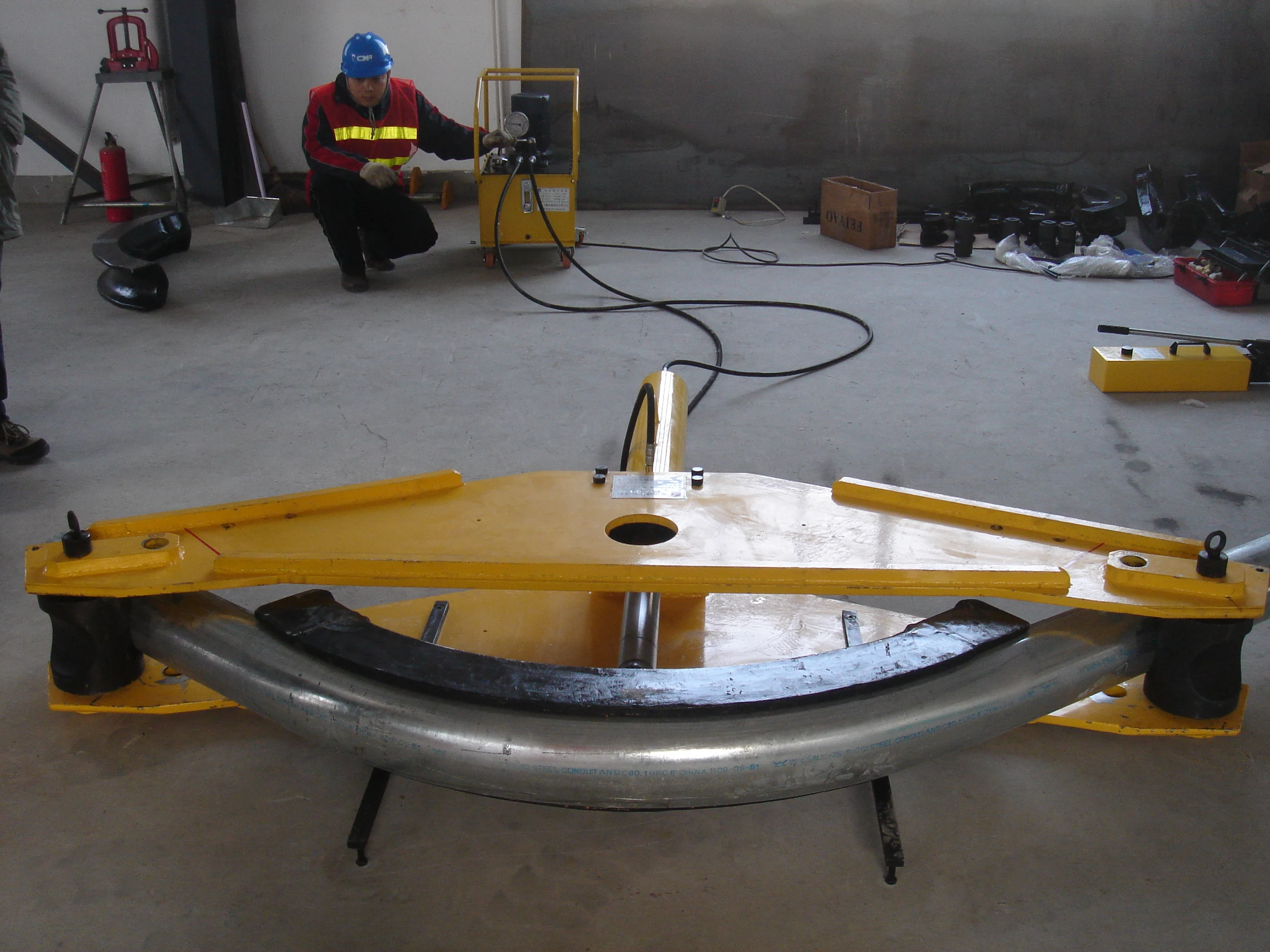

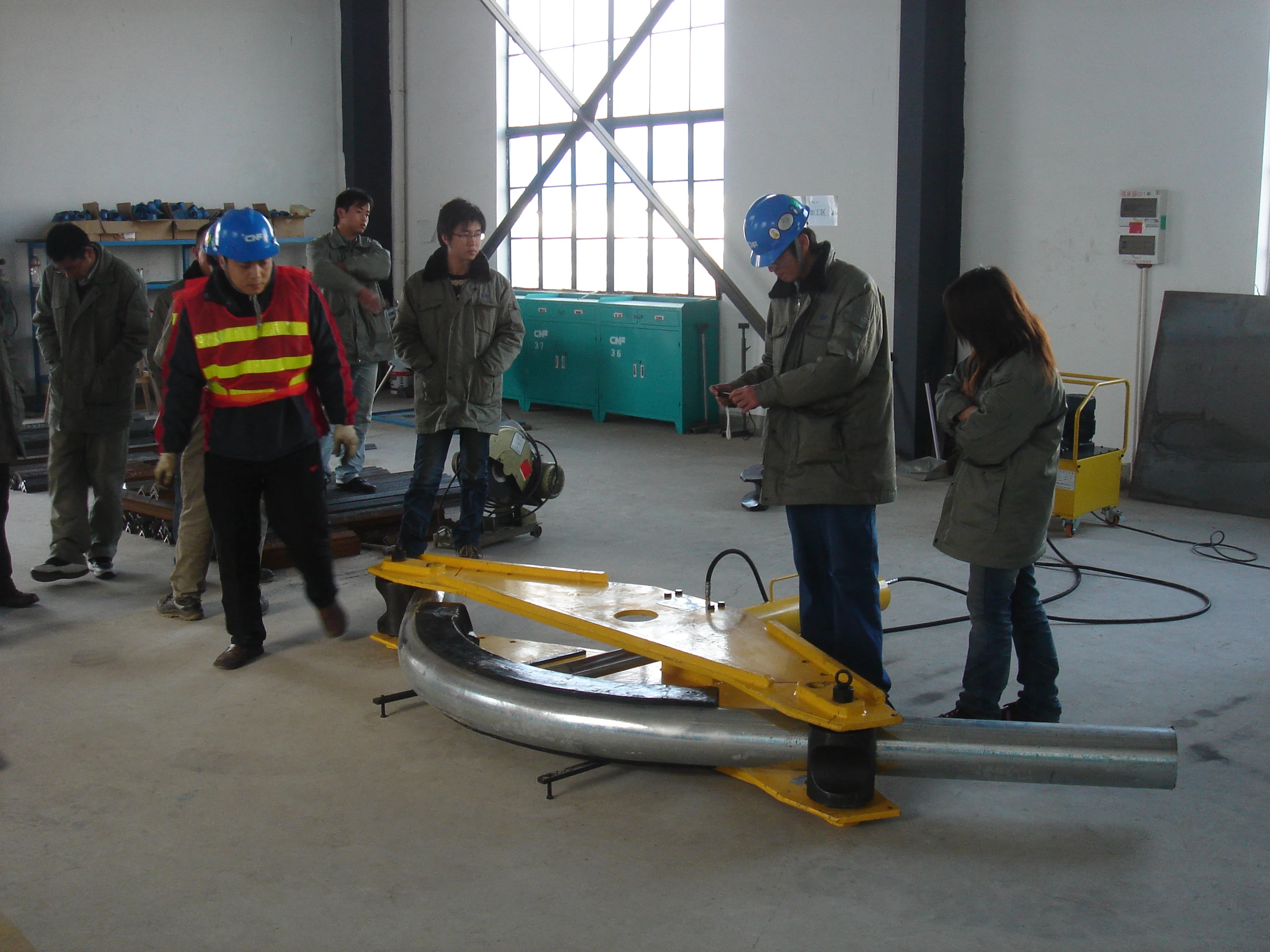

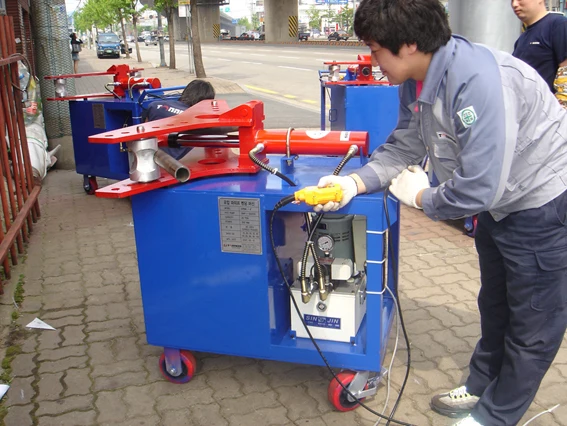

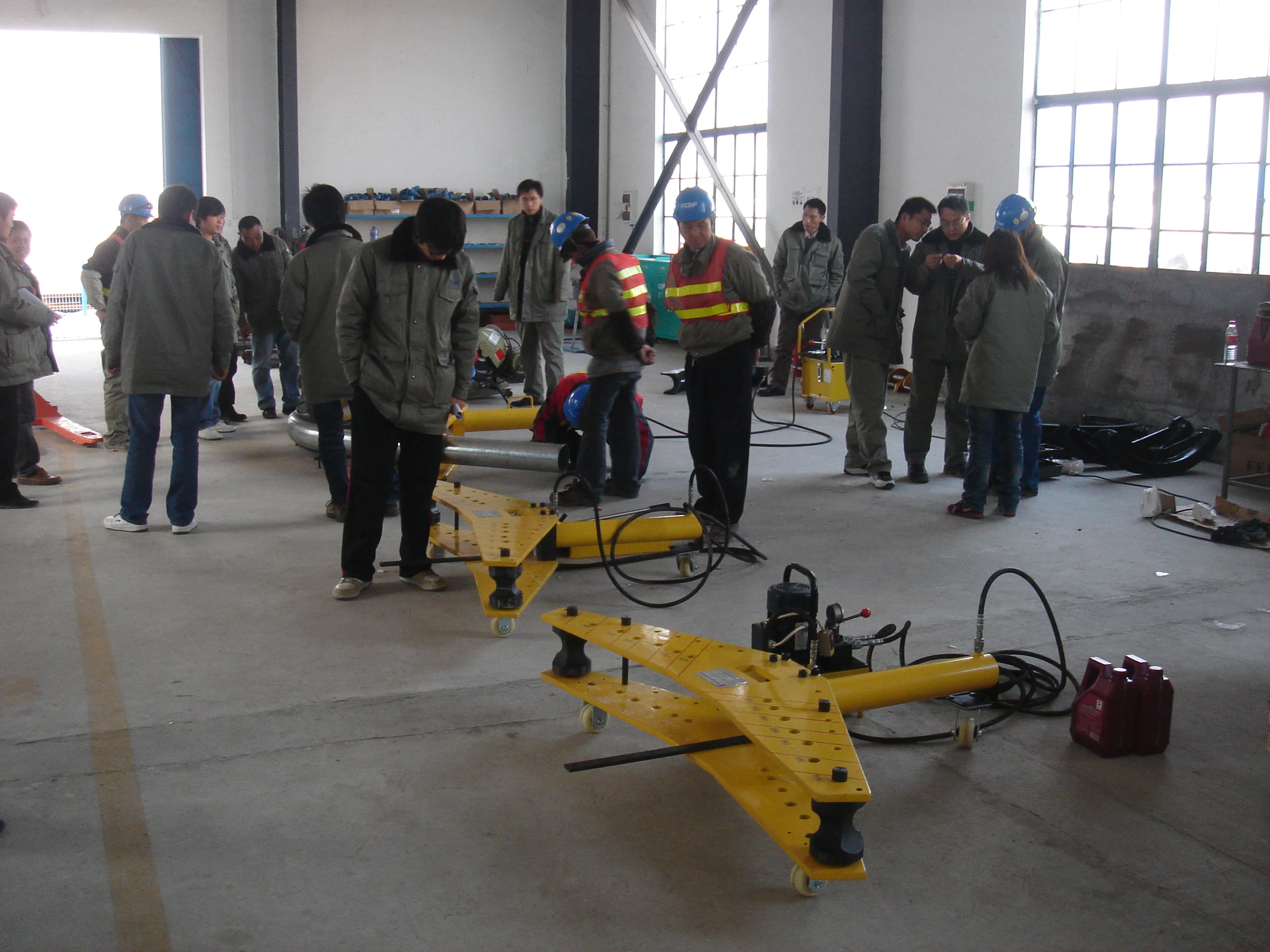

Application Photos









Certifications



Packaging & Shipping

Wooden case & Shipping is designated by customer



Our Services

One Year Warranty,repair and service for the whole life,question report response in 24 hours,and reply in 48 hours.







Company Information

1. SOV Hydraulic Technology (Shanghai)Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.

2. Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.

3. Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.









Our team



FAQ

FAQ:

Q1: How can contact sales?

A1: Please call: 0086 21 685 61366 for pre-sales or click the contact find our website and email address.



Q2: How can I buy SOV products in my country?

A2: Please send us an inquiry or email, we will reply to you if there is distributor in your country.



Q3: Can I have SOV products catalog and price list?

A3: Please visit our English website: www.sovhydraulic.com to download our E-catalog, and send us an email for price list.



Q4: How long does it take to get the product if I place an order?

A4: If products stock available, after confirmation of your payment or advance payment, we will pack and deliver in 3-7 days. If you select international parcel service, it can be arrived in 3-7days. If it is by sea shipment, it will take 15-45days depending on different locations.



Q5: How to make payment?

A5: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma invoice with our banking details.



Q6: Manufacturing time?

Q6: Please send us an inquiry for stock condition, if we don’t have stock, and it is our standard products (refer to our model), it can be produced in 10-20 days. If it is customized, not our standard products, it will take 20-45 days to produce.
