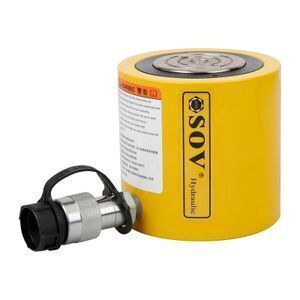

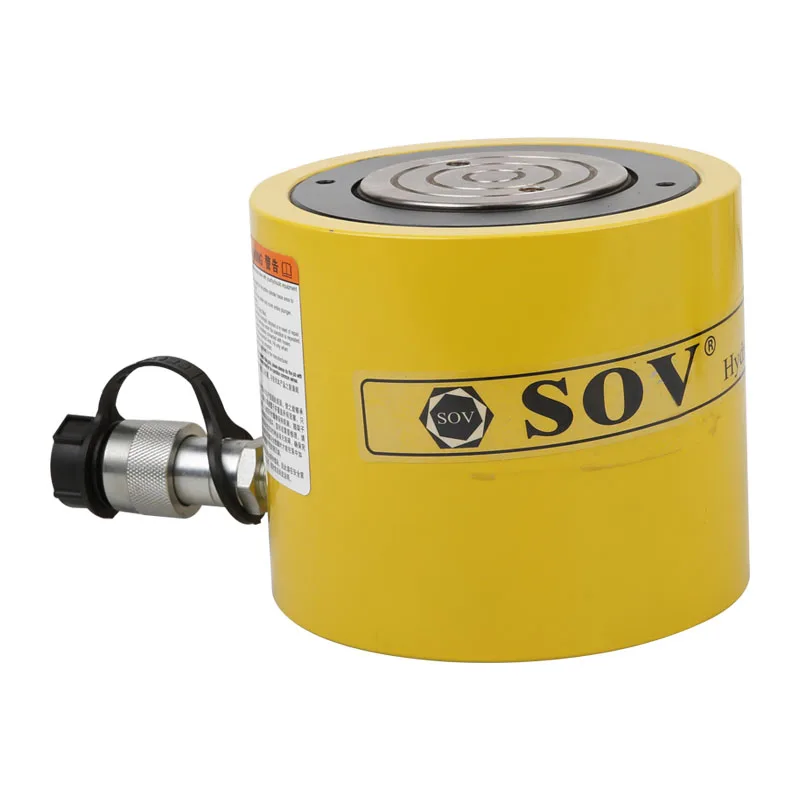

Single Acting Lightweight Small Hydraulic Jack Cylinder

Supplier: SOV Hydraulic Technology (Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Ms Cara Cao
Price: $246.00 /set
Min. Order: 1 set

Click here to contact

Product details

Working pressure:	700bar;	Selling Units:	Single item;
Piston Diameter:	69.8 mm;	Stroke:	60 mm;
Product name:	Single Acting Lightweight Small Hydraulic Jack Cylinder;	Packaging Detail:	plywood case;
Weight:	10.9 kg;	Cylinder OD:	124 mm;
Single package size:	25X25X20 cm;	Certification:	CE ISO9001:2008;
Model Number:	SOV-RCS-502;	Capacity:	50 ton;
Brand Name:	SOV;	Capacity (Load):	41-50T;
Place of Origin:	Shanghai China;	HS code:	841221;
Max Height:	182 mm;	Min Height:	122 mm;
Type:	hydraulic jack;	Single gross weight:	15.0 KG;
Color:	Yellow/black;	Closed height:	122mm;

Single Acting Lightweight Small Hydraulic Jack Cylinder

Product Description

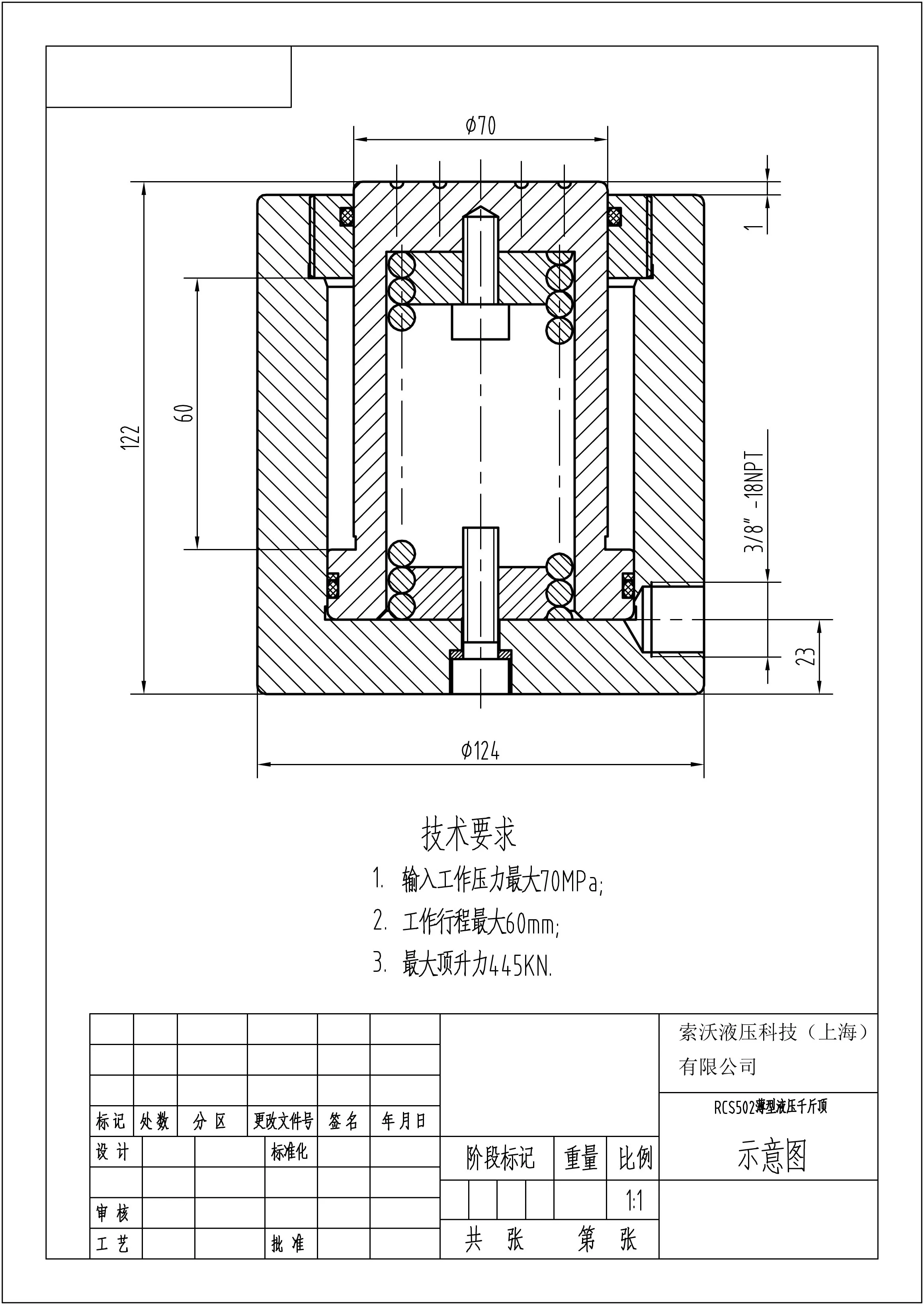

Drawing

Description

1. Lightweight, low profile design for use in confined spaces

2. Baked enamel finish for increased corrosion resistance

3. Plunger wiper reduces contamination, extending cylinder life

4. CR-400 coupler and dust cap included on all models

5. Grooved plunger end with threaded holes for mounting tilt saddles

6. Integral handle on RCS-1002 for easy carrying

7. Plated steel plungers

8. Single-acting spring return

Parameter

Model Number	Cylinder Capacity	Stroke	Cylinder Effective Area	Oil Capacity	Collapsed Height(A)	Extended Height(B)	Outside Diameter(D)	Weight
	ton (kN)	mm	cm²	cm³	mm	mm	mm	kg
SOV-RCS-101*	10 (101)	38	14,5	55	88	126	69	2,7
SOV-RCS-201*	20 (201)	45	28,7	129	98	143	92	5,0
SOV-RCS-302*	30 (295)	62	42,1	261	117	179	101	6,8
SOV-RCS-502*	45 (435)	60	62,1	373	122	182	124	10,0
SOV-RCS-1002*	90 (887)	57	126,7	722	141	198	165	20,7

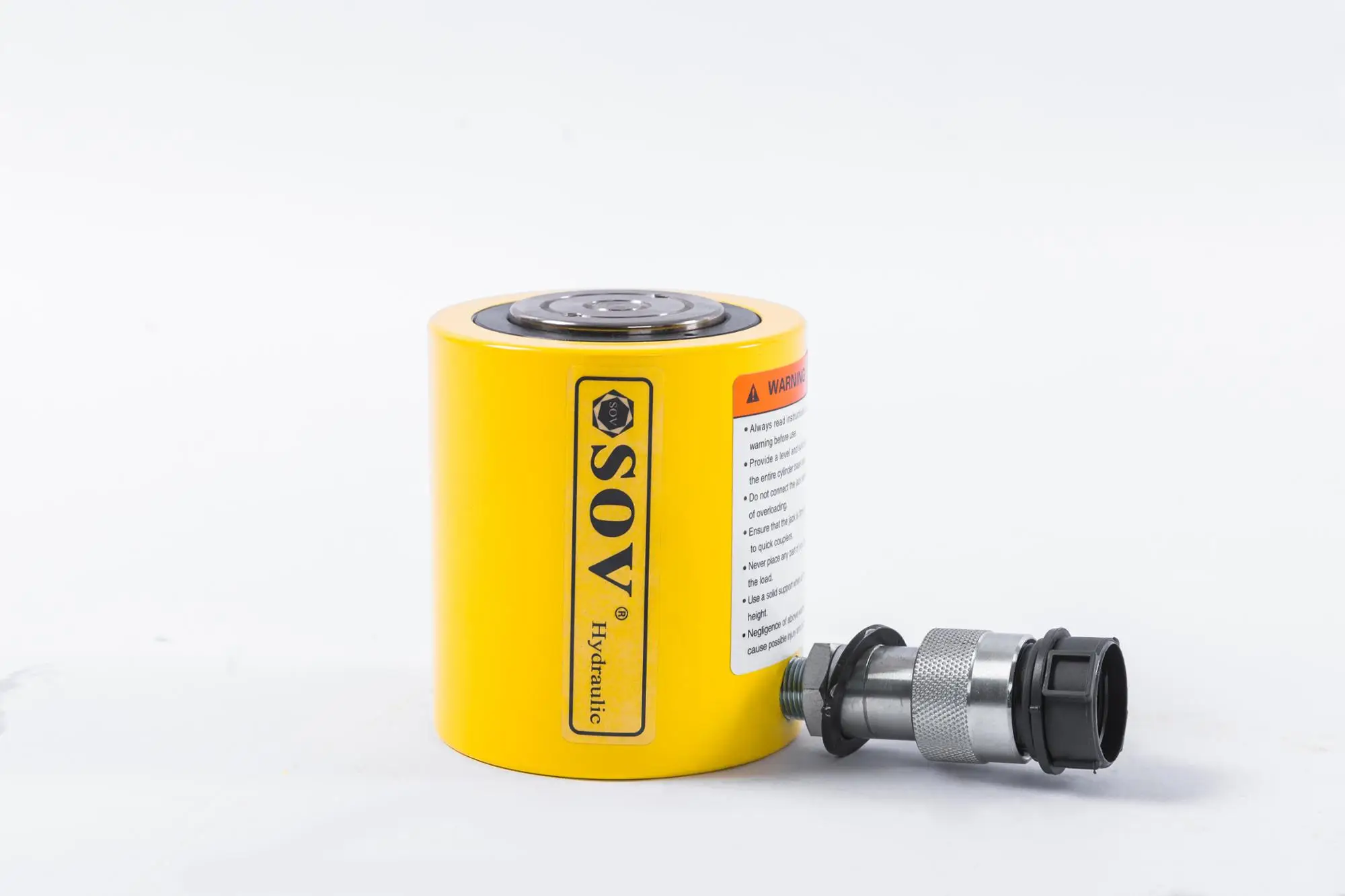

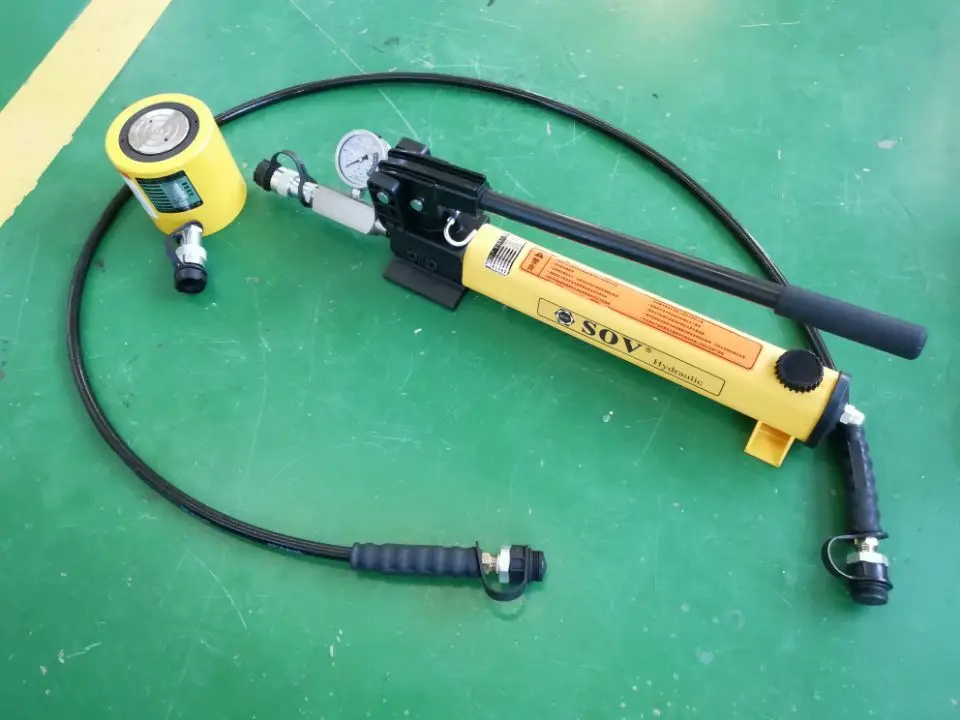

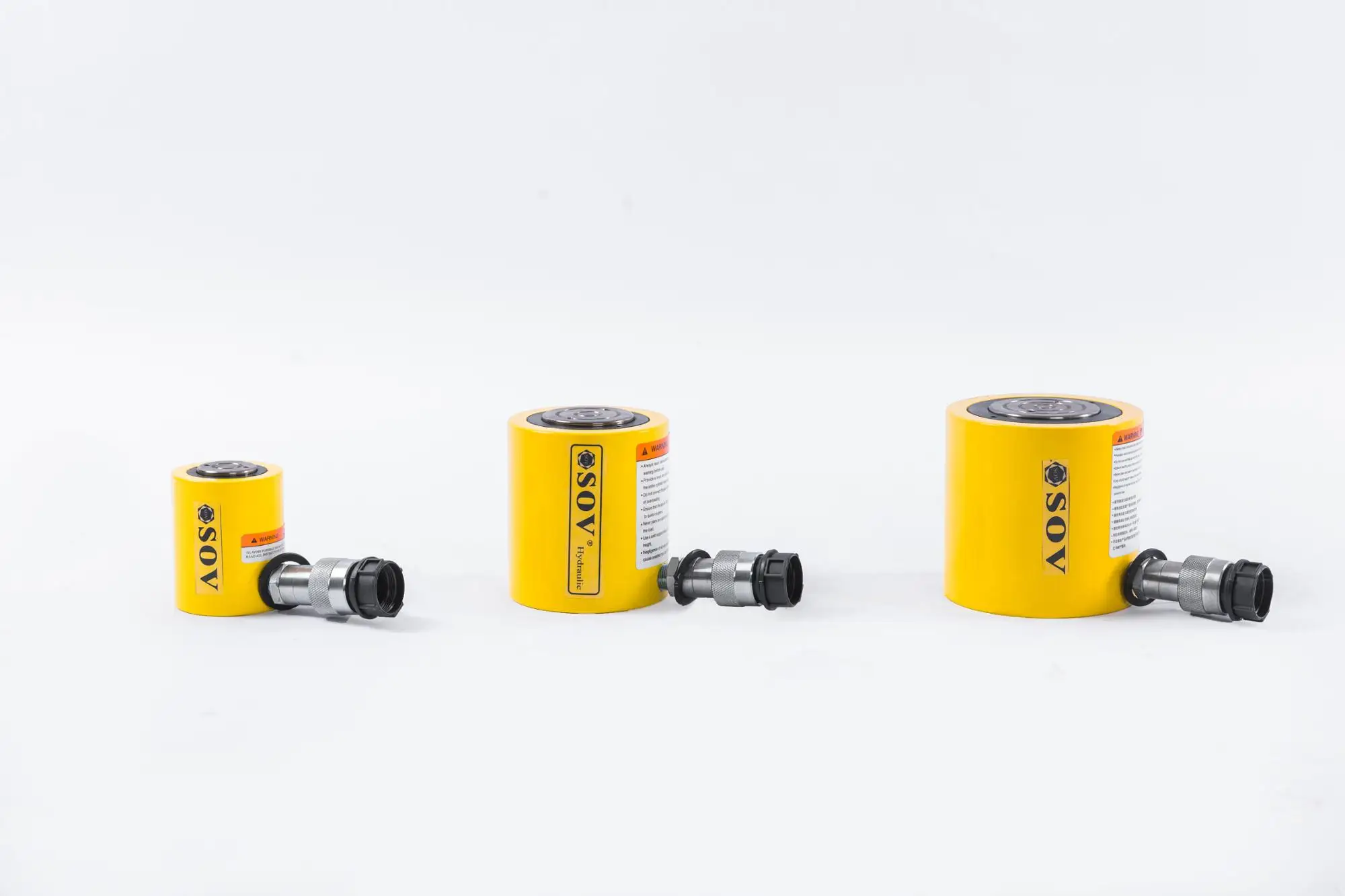

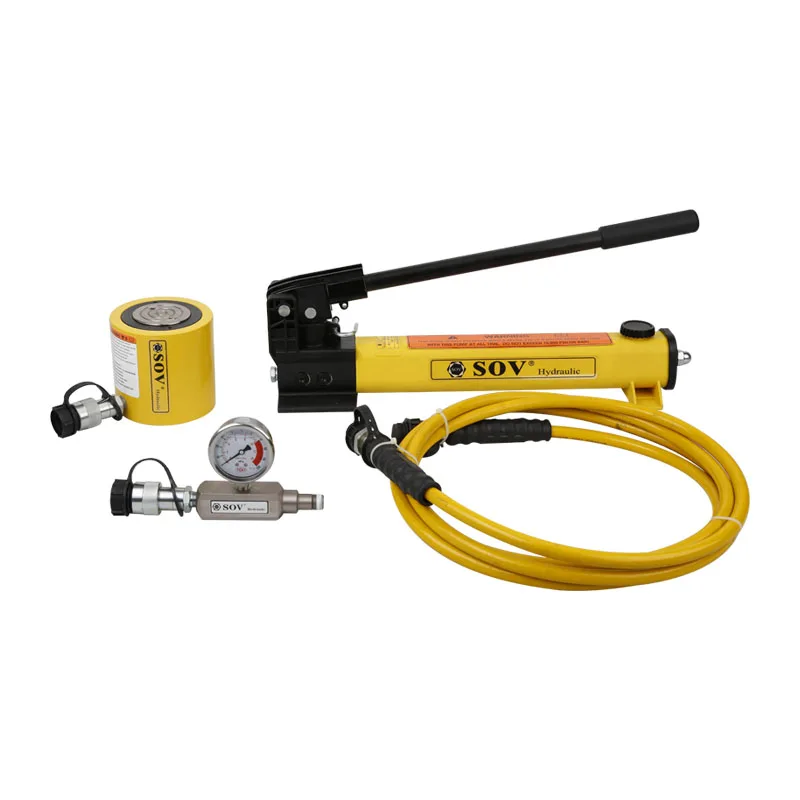

Photos

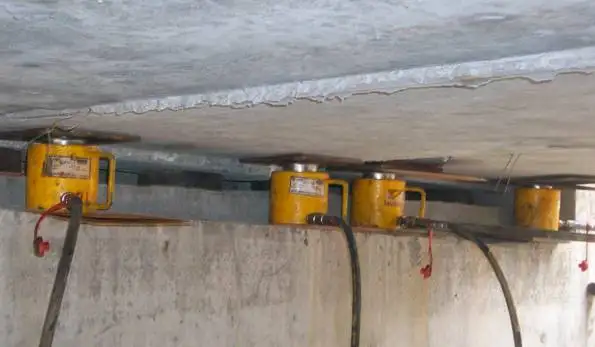

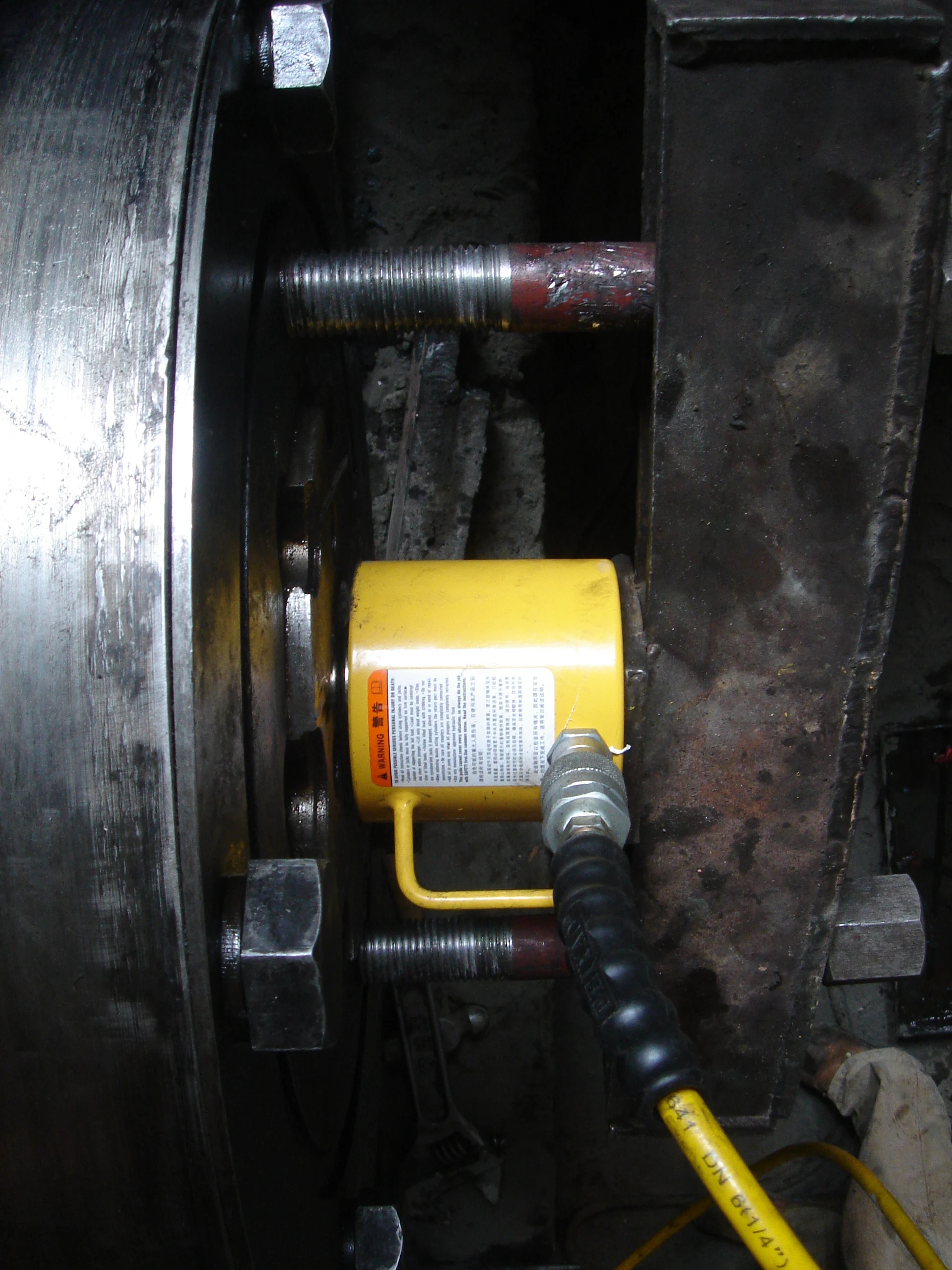

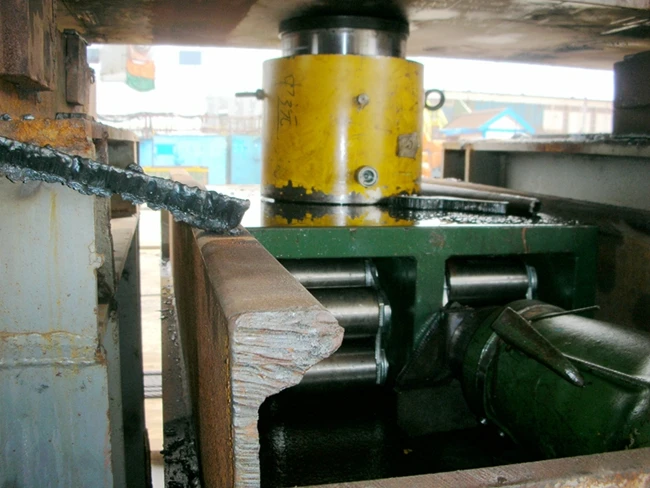

Applications

Booked Photo

Certifications

CE&ISO

Packaging & Shipping

Packing: All products will be packed with wooden case;

Shipping:

1. Small quantity: by international exress, such as DHL, TNT, FEDEX, UPS, etc. depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;

2. Large quantity: by sea transportation. Goods will arrive in 10~45 days, according to the diatance.

Our Services

1. 24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.

Company Information

SOV Hydraulic Technoloy (Shanghai) Co., Ltd. is a manufacturer engaged in designing and manufacturing hydraulic cylinders , synchronous PLC hydraulic system, hydraulic pumps, torque wrenches, and hydraulic components.

Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.

Our customers includ many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
