HongLi 1/2"-2" Hydraulic Pipe Bender Manual Pipe Bender With Die
-
Supplier: Hangzhou Hongli Pipe Machinery Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Sean Xu -
Price: $124.00 / 1 - 29 sets
$121.00 / >=30 sets -
Min. Order: 1 set
Product details
| port: | Shanghai | place of origin; place of origin: | Zhejiang, China |
| Customization support: | OEM,ODM,OBM | Tube Wall Thickness: | 2.75-6mm |
| Type of machine: | Bender | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Certification: | CE certification | Package preview: | |
| Warranty: | 1 year | Packaging Details: | wooden box |
| color: | yellow/red/gray | Supply capacity: | 80000 sets per month |
| product name: | Bender | strength: | manauer |
| capacity: | 1/2"-4" | application: | bent pipe |
| After-sales service provided: | Does not provide overseas services |
Product Description

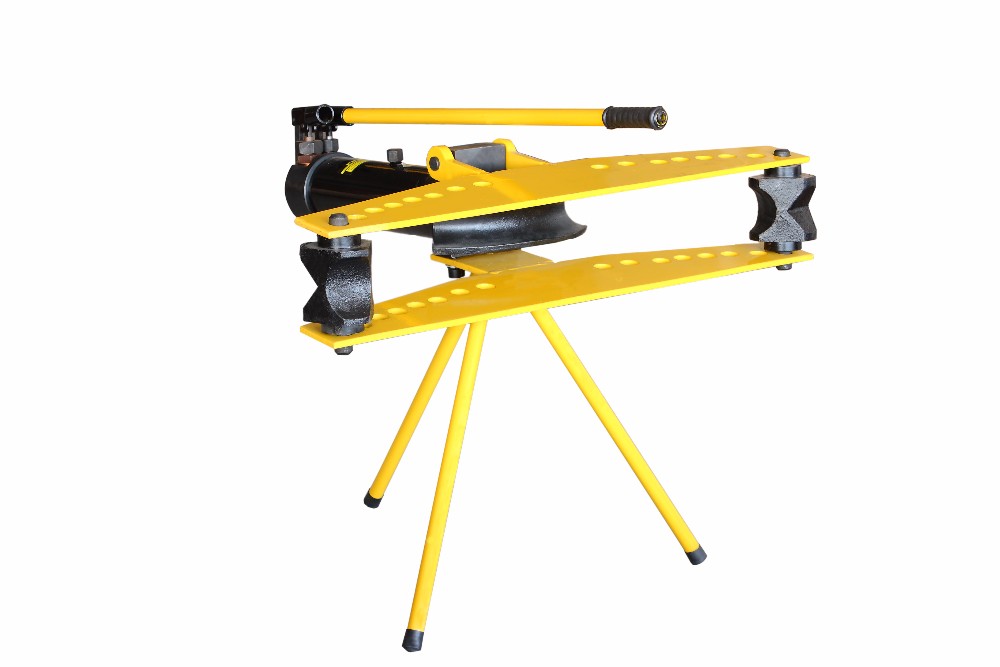

HHW2J hydraulic pipe bending machine
Specification:
model | greatest pressure | Maximum stroke | Bending die | Tube wall thickness |
HHW-2J | 13T | 250mm | 1/2",3/4",1",1 1/4",1 1/2",2" | 2.75-4.5mm |
HHW-3J | 20 tons | 290mm | 1/2",3/4",1",1 1/4",1 1/2",2",2 1/2",3" | 2.75-5mm |
HHW-4J | 23 tons | 370mm | 1/2",3/4",1",1 1/4",1 1/2",2",2 1/2",3",4" | 2.75-6mm |
Pipe Bender Description

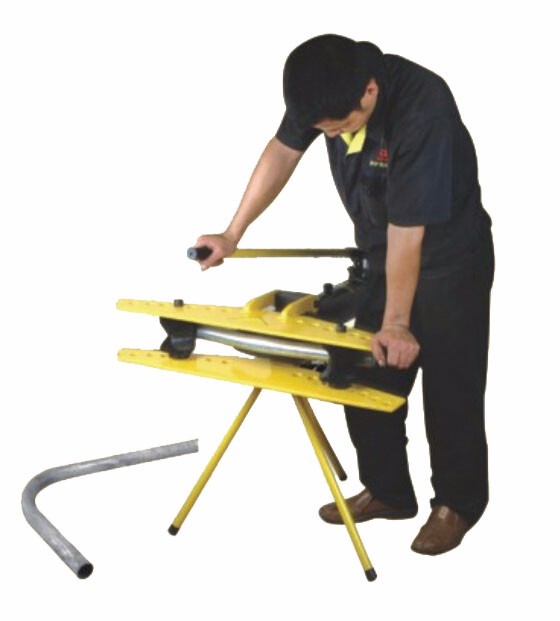

1. Simple manual hydraulic operation, easy to use.
2. Fully manual hydraulic operation without external power.

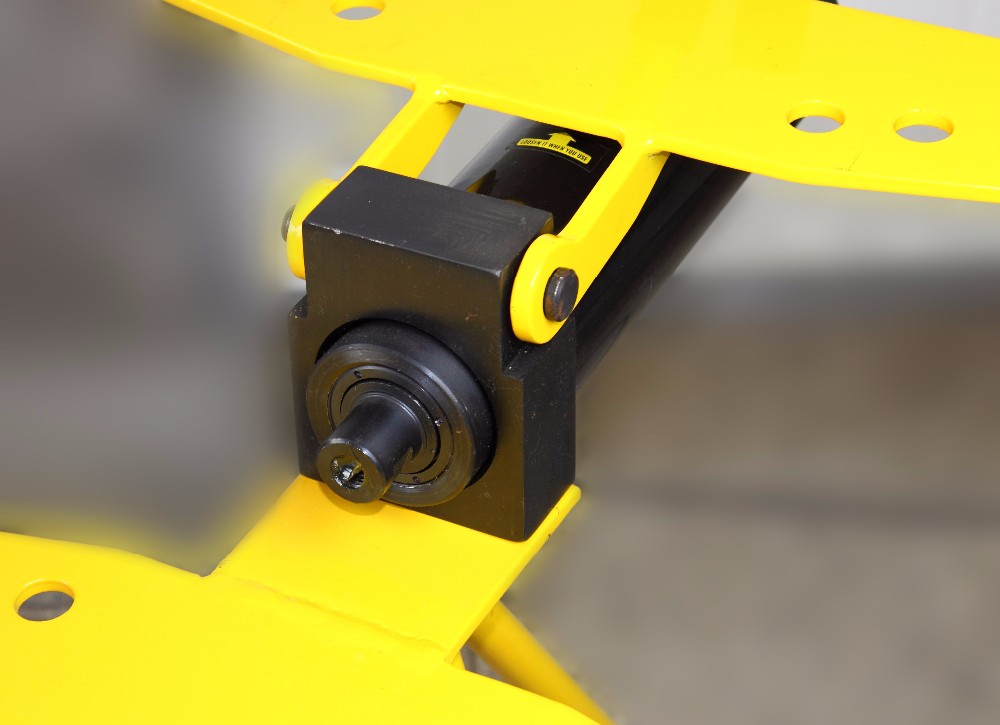

3. The swivel stand locks in three positions for stability and versatility.

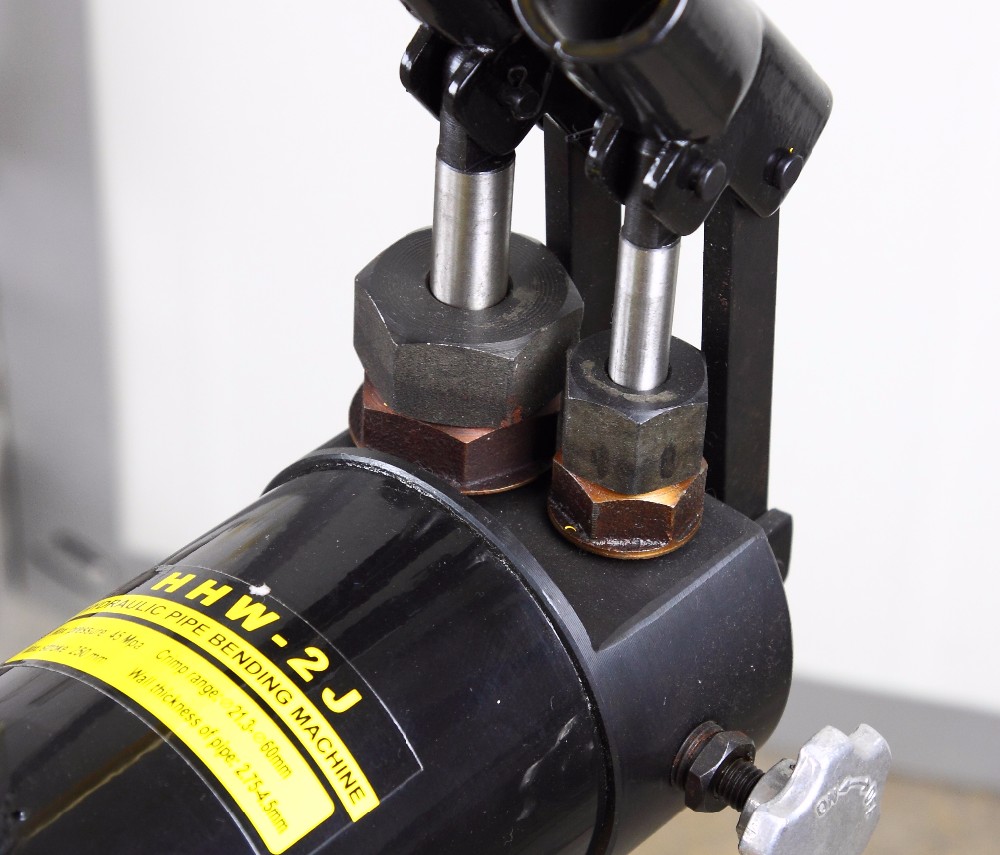

4. Heavy-duty hydraulic cylinder can bend 40 tubes.
5. Different standard bending dies are included (1/2", 3/4", 1", 1-1/4", 1-1/2", 2").
6. Tube holder is also included for better bending experience.
1. Simple manual hydraulic operation, easy to use.
2. Fully manual hydraulic operation without external power.
3. The swivel stand locks in three positions for stability and versatility.
4. Heavy-duty hydraulic cylinder can bend 40 tubes.
5. Different standard bending dies are included (1/2", 3/4", 1", 1-1/4", 1-1/2", 2").
6. Tube holder is also included for better bending experience.
Accessories:
HHW-2J | 1/2",3/4",1",1 1/4",1 1/2",2" Bending tools | ||||
HHW-3J | 1/2",3/4",1",1 1/4",1 1/2",2",2 1/2",3" Bending tools | ||||
HHW-4J | 1/2",3/4",1",1 1/4",1 1/2",2",2 1/2",3",4" bending dies | ||||

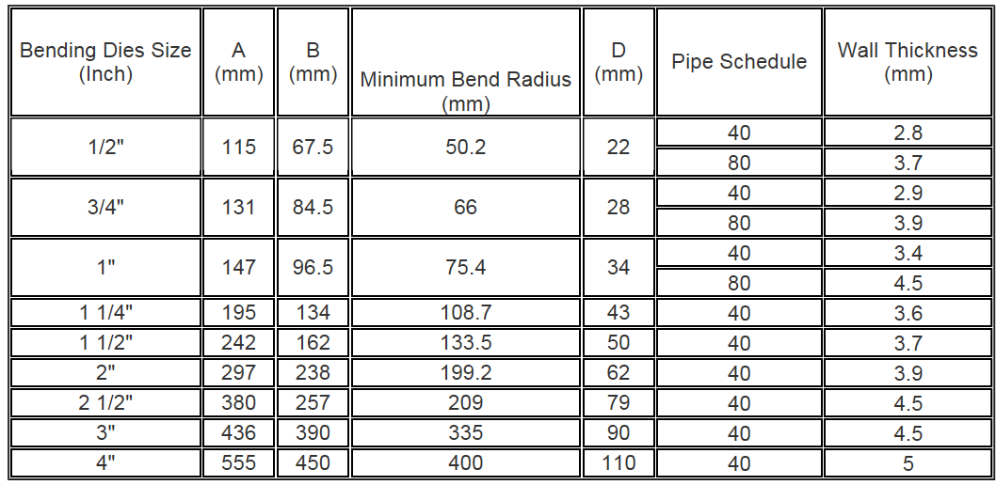

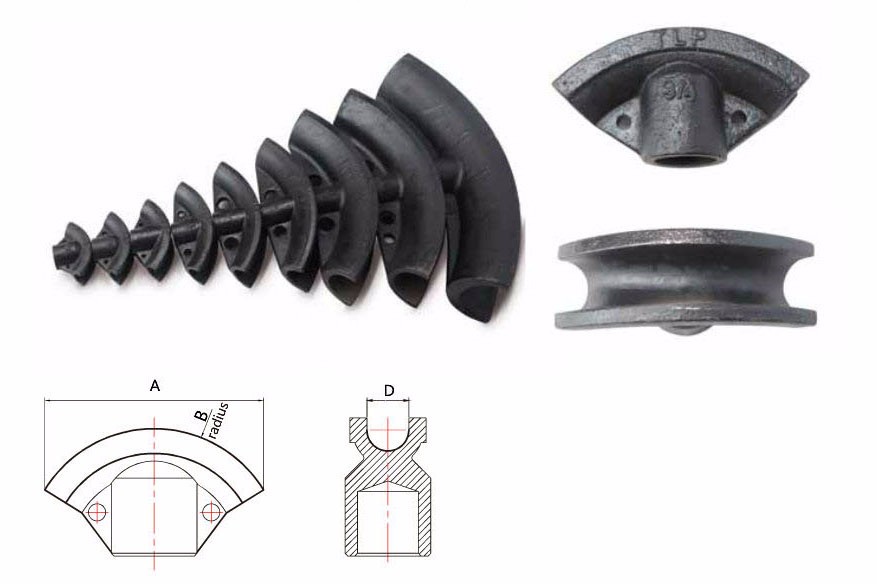

More information on pipe bending dies:

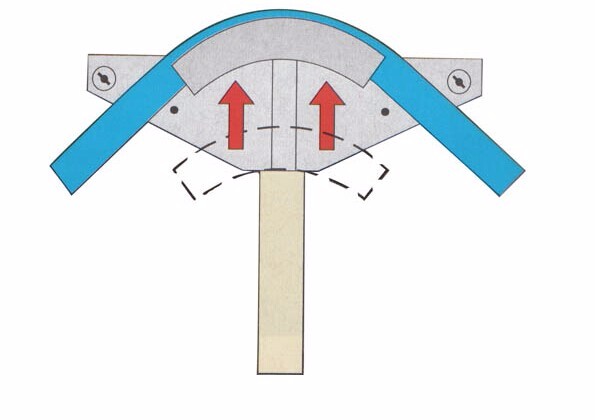

Curved inset:
Ordering Information
catalog number | model. | describe | Gross weight (kg) |
2521400 | HHW-2J | Complete pipe bender with all dies | 53 |
2521500 | HHW-3J | Complete pipe bender with all dies | 105 |
2521600 | HHW-4J | Complete pipe bender with all dies | 155 |
