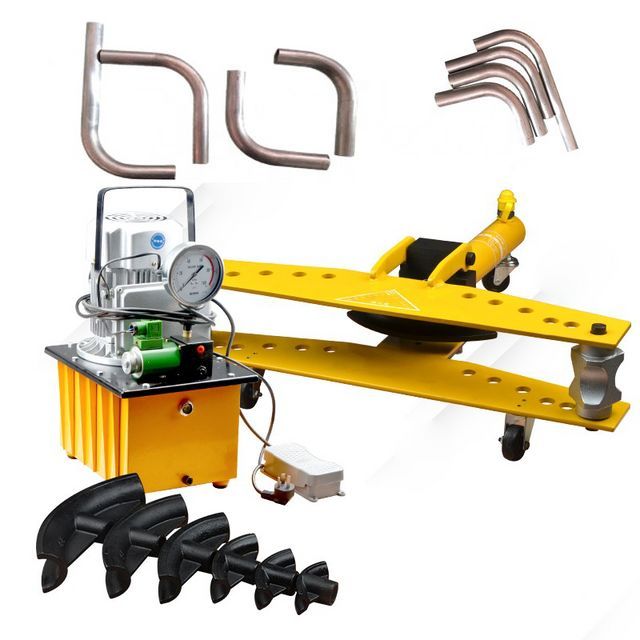

Split type electro-hydraulic pipe bender with double-acting hydraulic cylinder for bending steel pipes

Click here to contact
Product details
capacity:12 tonsCustomization support:original design manufacturer
type:HHW-1Supply capacity:300 sets per month
Package preview:Origin:Henan, China
The scope of work:13~118mmHydraulic system pressure:12Mpa
Name:Manual pipe benderCounterweight bracket:110 kg
Material:Ductile Ironpayment terms:L/C, D/P, D/P, T/T
Maximum bending angle:180°Packaging Details:Standard wooden box export packaging
product name:Manual tubing benderport:Qingdao Shanghai or as your request
pack:wooden box

Description and Application



modeler SWG-1 SWG-2 SWG-3 SWG-4 SWG-5
pressure 10 tons 16 tons 18 tons 21 tons 21 tons
work plan 170mm 250mm 320mm 420mm 420mm
pipe thickness 2-3.5mm 2.75-5mm 2.75-6mm 2.75-6mm 2.75-6mm
texture of material Ductile Iron Ductile Iron Ductile Iron Ductile Iron Ductile Iron
weight 20 kg 48 kg 98 kg 137 kg 186 kg
Sizeofstandard mold SWG-1 13mm/16mm/19mm/22mm/28mm/34mm (six types)
SWG-2 22mm/28mm/34mm/42mm/48mm/60mm (six styles)
SWG-3 22mm/28mm/34mm/42mm/48mm/60mm/75.5mm/89mm (eight)
SWG-4 22mm/28mm/34mm/42mm/48mm/60mm/75.5mm/89mm/108mm (nine)
SWG-5 22mm/28mm/34mm/42mm/48mm/60mm/75.5mm/89mm/108mm/114mm (ten pieces)
                Corresponding size and wall thickness of mold outer diameter
Model diameter Nominal diameter Minimum wall thickness Specification name
φ10mm DN6 2mm 1/8"
φ13mm DN8 2mm 1/4"
φ16mm DN10 2 mm 5/16"
φ19mm DN15 2.5mm 3/8"
φ22mm DN15 2.75 mm 1/2"
φ25mm DN20 2.75 mm 3/4"
φ28mm DN20 2.75 mm 3/4"
φ34mm DN25 3.25mm 1"
φ42mm DN32 3.25 mm 1-1/4"
φ48mm DN40 3.5mm 1-1/2"
φ60mm DN50 3.5mm 2"
φ75.5mm DN65 3.75mm 2-1/2"
φ89mm DN80 4mm 3"
φ108mm DN100 4.5 mm 4"
φ114mm DN100 5mm 5"

If there is no corresponding mold, you can choose a mold with a slightly larger size (such as 32mm, 34mm), and check it according to the corresponding mold size.

Check whether the wall thickness is appropriate (the wall thickness is 0.5 larger or smaller 0.5)

Applicable to international common A series imperial pipes and domestic common B series metric pipes
