Small Piling Equipment DZ90A Electric Vibro Construction Hammer

Supplier: Shanghai Yongan Machinery Co., Ltd.
Region: Shanghai, China
Contact: Ms Linda Wang
Price: $50000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,T/T;	Certification:	ISO9001/CE;
Moter Power:	90kw;	After-sales Service Provided:	Video technical support,Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;

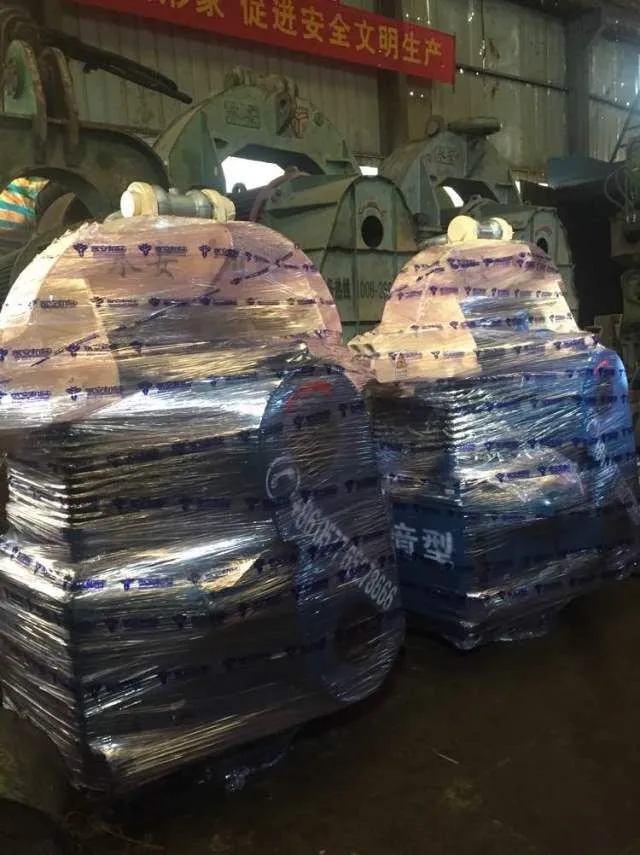

Driving Force:	579kn;	Packaging Detail:	Hammer in shrink film, accessories and control cabin in wooden box. Loaded in a whole container.;
Condition:	Used;	Dimension(LWH):	185013002500mm;
Eccentric Moment:	573Nm;	Efficiency:	90 KW;
Port:	Ningbo;	Year:	2012;
After-sales Service Provided:	Engineers available to service machinery overseas;	Color:	Blue, Green;
Piling Speed(m/min):	depend on soil condition;	Make:	YONGAN;
Weight:	5700kg;	Warranty:	1 Year;
Supply Ability:	50 Set/Sets per Year;	Brand Name:	Yongan;
Place of Origin:	Shanghai China;

Product Description

Product Application

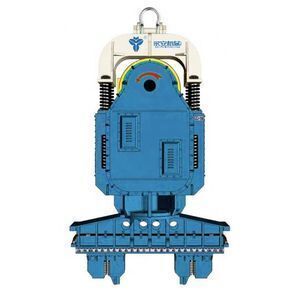

Electric vibratory hammer DZ90A is suitable to drive and extract piles for different geological situation except the hard rock layer. For example, pre-made concrete pile, cast-in-place concrete pile, concrete expanded bore pile, lime pile, stone column. Beside, it's widely used in cofferdam, trestle work, offshore working platform, and also wind mill single pile or group pile.

Main Features

1) Equipped with spare parts of good quality, shock-proof motor, reducer casing, FAG bearing, Siemens, Schnider electric elements. Hydraulic pump adopts Italian brands.

2) Eccentricity is overall a molding CNC mechining center, ensure the stability of equipment. Case is improved and can be used under heavy load for a long time.

3) Magnetic oil precipitation and filtration system, wireless export configuration + cable control system.

Specification for Electric Vibro Hammer DZ90A
Motor Power	90kw
Eccentric Moment	573Nm
Driving Force	579kn
Speed	960r/m
Amplitude	6.6mm
Max Line Pull	254kn
Size	185013002500MM
Weight	5700kg
Delivery time	20 days
Generator Power	300kw
Crane capacity	50T
