Excavator vibratory hammer V-350 Excavator attached

Supplier: Shanghai Yongan Machinery Co., Ltd.
Region: Shanghai, China
Contact: Ms Linda Wang
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	Used;	Eccentric Moment(Kg.m) :	7;
Port:	Shanghai Port;	Payment Terms:	L/C,T/T;
Certification:	ISO9001;	Weight:	1800kg;
Type:	sheet pile hammer;	Name:	Excavator sheet pile hammer V-350;
Supply Ability:	10 Set/Sets per Month Excavator sheet pile hammer V-350;	Make:	Yongan;
Frequency(rpm) :	2400;	Delivery Detail:	7 days for used Excavator sheet pile hammer V-350C;
Year:	2012;	Brand Name:	Yongan;
After-sales Service Provided:	Engineers available to service machinery overseas;	Place of Origin:	Zhejiang China;
Packaging Detail:	Wooden case for Excavator sheet pile hammer V-350;	Model Number:	sheet pile hammer V-350;
Driving force(t) :	0-50;	Dimension(LWH):	98012552320mm;

Product Description

Product Description

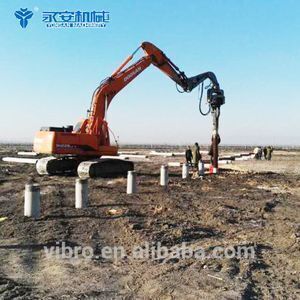

Excavator vibratory hammer V-350 can be applied for a wide range of working enviroment because of its small size and simple operation procedure, such as drainage maintenance, river-bank maintenance and marshland working wherever onshore and offshore piling job.

Technical Data

Excavator Mounted Vibratory Hammer V-350
Eccentric Moment	7 KGM
Frequency	2400 RPM
Centrifugal Force	529KN
Hydraulic system oil operation pressure	300 BAR
Weight (excluding clamp and vice arm)	1650 KG
Excavator Weight	30-40 TON
Size	12508502300 MM
Clamp model/weight	C16/500 KG
Vice arm model/ weight	A250/600 KG
Hydraulic system oil flow	209LPM

Main Features

1) 360 degrees rotation device of middle bracket
2) All kinds pile driving , sheet pile, tube pile, H beams, steel sheet.
3) Best mobility in narrow place compared with crane
4) High shear load of heavy duty elstomer cushion which prevent the transmission of vibration to excavator.
5) easy installation and control. Minimal noise which is appropriate various work sites, crowded area, under bridge, narrow road ways, urban renewal.

Main Parts
