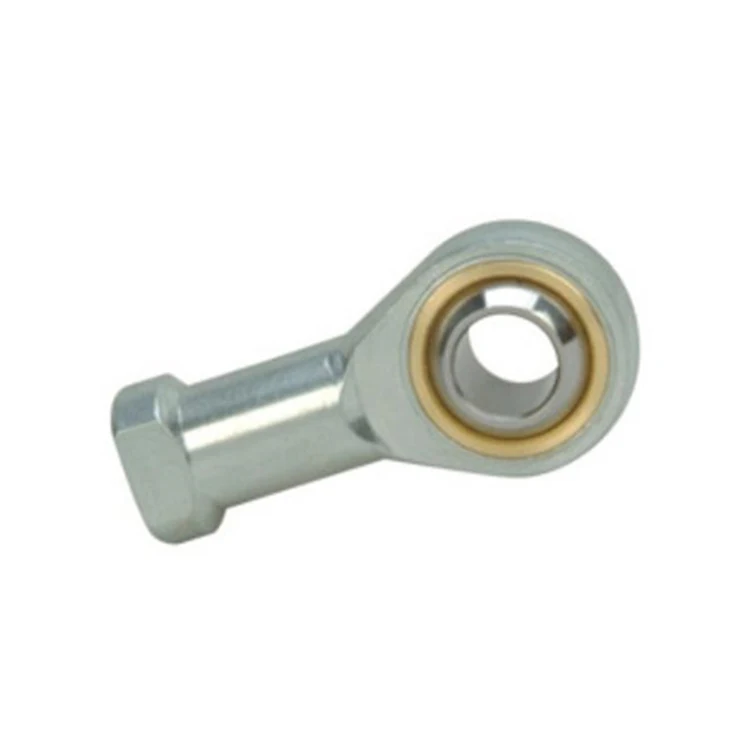

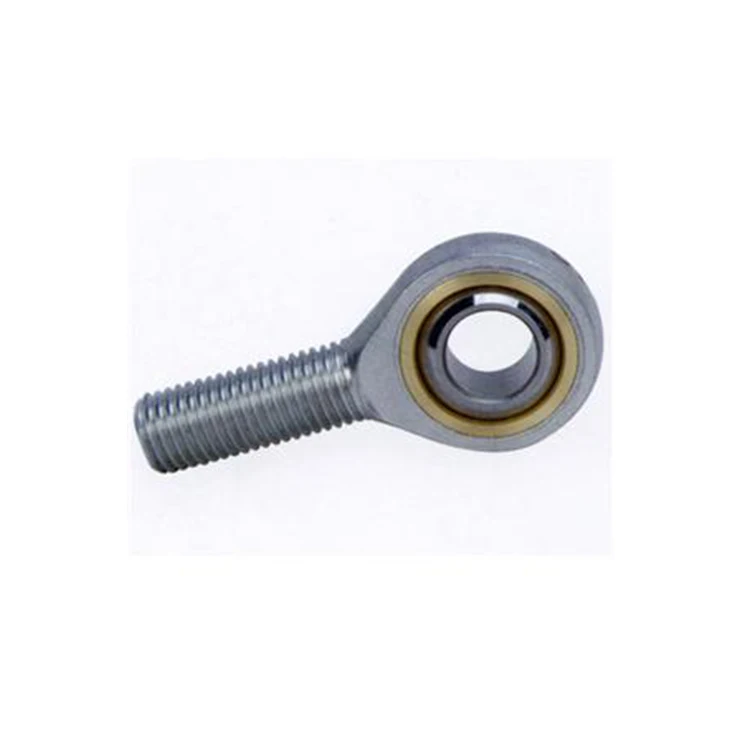

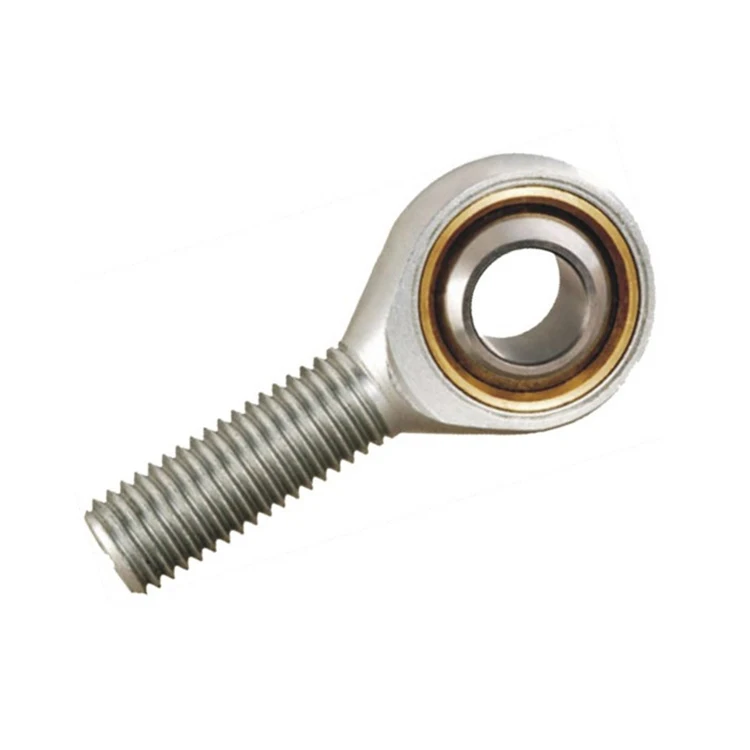

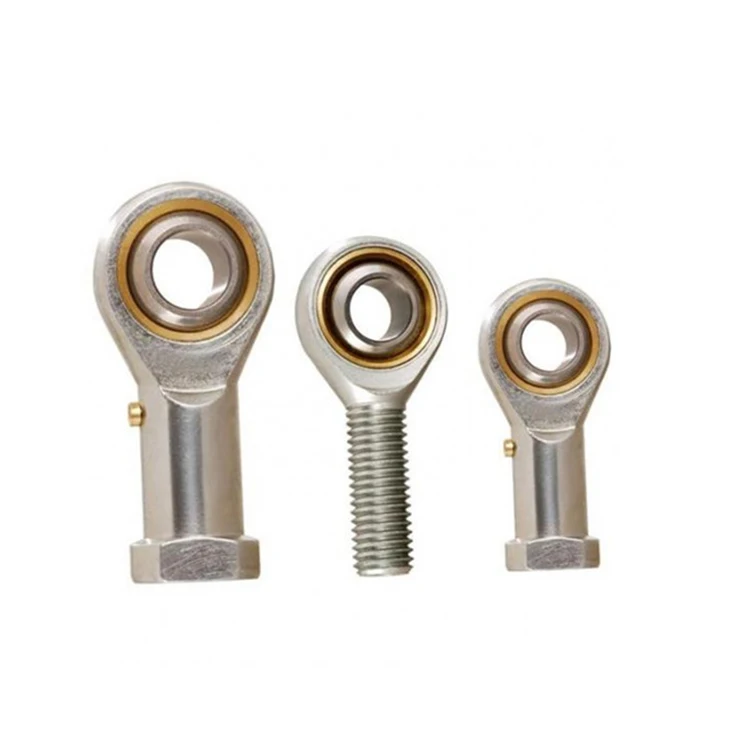

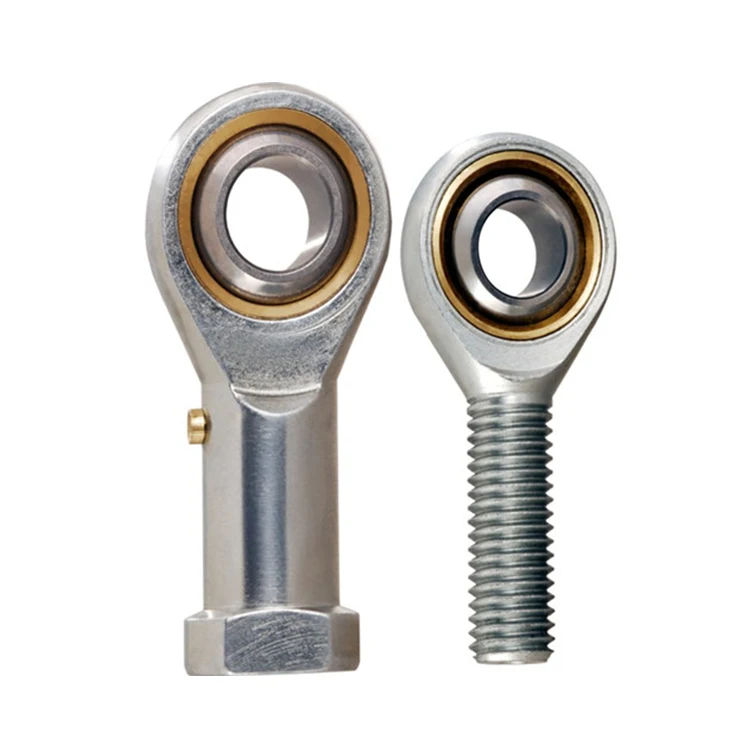

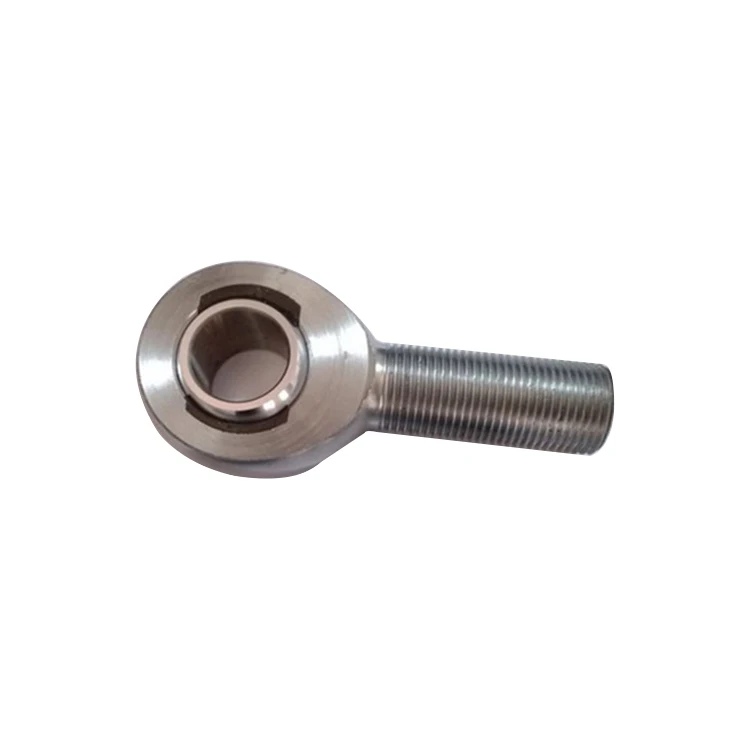

Machinery 12mm bore size SI12T/K bearing ball joint adjustable rod end joint

Supplier: Hefei Konlon Bearing Co., Ltd.
Region: Anhui, China
Contact: Mr Allen Zhang
Price: $0.02 / >=1000 sets
Min. Order: 1000 sets

Click here to contact

Product details

Surface treatment:	Zinc,Nickel,Chrome plate;	Brand Name:	Konlon;
OEM service:	available;	Place of Origin:	Anhui China (Mainland);
Model Number:	SI8T/K SI6T/K SA30;	Type:	joint rod end bearing;
Certification:	ISO9001:2008;	Name:	Stainless steel fish eye rod end joint bearings SI16T / K;
Type:	Rod End;	Brand:	Konlon,HKB;
Supply Ability:	100000 Set/Sets per Month Stainless steel 304 SI16T/K ball joint rod end bearing;	Bore Size:	5 - 100 mm;
Payment Terms:	L/C,T/T,MoneyGram;	Place of Origin:	Anhui,China (Mainland);
Precision Rating:	P0 P6;	Model Number:	SI12T/K;
Port:	Shanghai;	Material:	chrome steel,stainless steel.;
Application:	Engineering hydraulic cylinder,metal forming machine tools .;	Packaging Detail:	Stainless steel fish eye rod end joint bearings SI16T/K industry package: 1. Plastic Tube/Carton/Pallet 2. Paper Box/Carton/Pallet 3. According to customers' requirement;

You Are Here: Home>Ball bering>Roller bearing>Other bearing

Advantage

Why Chose Us ?

1.Excellent and high quality control,high speed,low noise,long life
2free sample bearing
3.Prompt delivery
4.Competitive price
5.Small order accepted
6.Customers' drawing or samples accepted
7.OEM service
8.ISO Standard
9.Professional:12 years manufacture bearing

Specifition

Material	Stainless steel:SUS303,304,316,316L,304L Low Carbon steel:DC01,DC04
	Zinc & Zinc Alloy:20CrMo,Aluminum6061,6063,7075 and so on
	Magnesium Alloy:AZ-91D
Surface Treatment	Sand Blasting
	Zinc/Chrome Plating
	Anodizing
	Painting
	Electrophoresis
	Powder Coating
Product Application	Automotive Part
	Motorcycle Part
	Pump Parts
	Locomotive Parts
	Machinery Parts
	Tool Parts

1.Stainless steel fish eye rod end joint bearings SI16T/K

Rod end bearing consist of an eye-shaped head with integral shank forming a housing and a standard spherical plain bearing, or a spherical plain bearing inner ring, or a spherical plain bearing inner ring and a sliding layer between the bore of the head and the inner ring. As a rule, rod ends are available with left or right-hand female or male threads. Rod ends have the sliding contact surface combinations steel-on-steel, steel-on-bronze, steel-on-PTFE composite material, steel-on-PTFE fabric and steel-on-PTFE plastic.

2.Rod end bearing application

Rod end bearing are widely used in hydraulic engineering, metal forming machine, construction machinery, automation equipment, automotive shock absorber, water machinery sluice gate, navigation lock, textile machinery.

Stainless steel fish eye rod end joint bearings SI16T/K

Featurers :

Joint bearing can bear larger load. According to their different types and structure, can bear radial load, axial load and radial, axial and the existence of joint load. Because of the inner ring of the outer spherical surface with composite material, so the bearing in the workplace can generate self lubrication. Commonly used for low speed of swinging movement, and the low speed rotation, also can be in a certain angle range for tilting movement, when the supporting shaft and the shaft hole of the shell are not concentric degree bigger when, can still work normally. Joint self-lubricating bearings used in water conservancy, specialized machinery etc.

Product Description
