p1.2 p1.5 p1.6 p1.8 p1.9 p2.5 p3 p3.33 p3.91 p4 p4.81 p5 p5.95 p6 p8 Smd full color led outdoor screen stage module led screen
- 350.00 square meter
| Model Number: | P4.81; | Place of Origin: | Guangdong China (Mainland); |
| Application: | Advertising Video Wall Screen for Mall; | Payment Terms: | L/C,T/T,Western Union,MoneyGram; |
| Supply Ability: | 10000000 Square Meter/Square Meters per Week; | Product name: | P4.81 Advertising HD Display Panel; |
| Pixels: | 4.81mm; | Certificate: | CE ROHS FCC; |
| Usage: | Outdoor; | Brand Name: | CHEAKSE; |
| Display Function: | Video; | Packaging Detail: | Package for P4.81 P7.62 LED Module 1. Carton box 2. Wooden case 3. Flight case; |
| Warranty: | 5 Years; | Tube Chip Color: | Full Color; |
| Cabinet Size: | 500*500mm/500*1000mm; | Control Mode: | Synchronous; |
| Lifetime: | 100,000 hours; | Port: | Shenzhen; |
| Brightness: | 6500; | Accessories: | LED Electronic Display Screen; |
| Screen Dimension: | Customized; | Module Size(MM): | 250mm * 250 mm; |

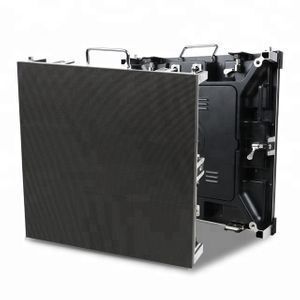

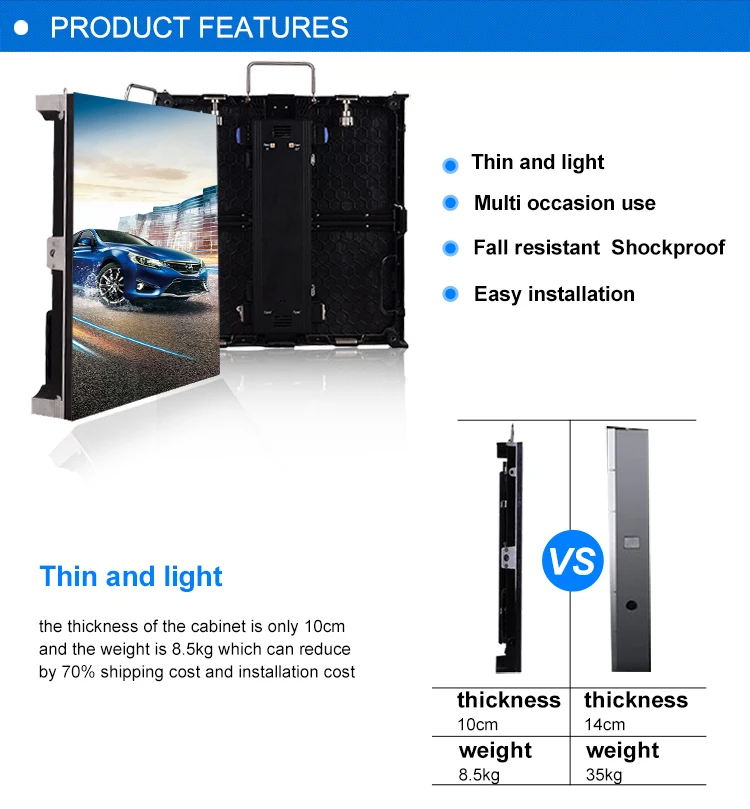

Indoor Outdoor HD Full Color LED Cabinets P4.81 Rental Display
Specifications of P4.81 Rental High Definition LED Video Wall Panel for Advertisement
| Full Color P4.81 LED Display | ||
| Main | Model | LED-P4.81-16S |
| Module | Pixel pitch(mm) | 4.81 |
| LED Lamp Model | SMD2727 | |
| Module Size (mm) | 250*250 | |
| (W*H) | ||
| Module Resolution(W*H) | 52*52 | |
| Driving Mode | Constant drive | |
| Scan Mode | 1/16 | |
| Pixel configuration (R,LED,B) | 1R,1G,1B | |
| Color temperature (K) : | 3200-9300 | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| Cabinet | Standard Cabinet Size(mm) | 500*500*85 |
| (W*H*T) | ||
| Cabinet Resolution(W*H) | 104*104 | |
| Cabinet Module Number | 4PCS | |
| IP Grade | IP65 | |
| Cabinet Weigh(kg) | 10.5 | |
| Cabinet Material | Die Casting Aluminum | |
| Display | Best Viewing Distance(m) | 4.81-50 |
| Pixel Density (dot/m2) | 43222 | |
| Brightness(cd/m2) | &LED;6800 | |
| Power Max Consumption (W/m2) | ≤1500 | |
| Power Average Consumption (W/m2) | 750 | |
| Best Viewing Distance(m) | 4.81-100 | |
| View angle | H:140; V:65 | |
| system Specification | Control host (CPU) : | Pentium4 or above |
| Operating system: | WIN98/2000/NT/XP | |
| Control method | Synchronous display with control PC by DVI | |
| Control System | Linsn, Nova-star, Colorlight or as you required | |
| Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. | |
| Interface definition | HUB75 | |
| Frame Frequency | &LED;60Hz | |
| Refresh frequency | &LED;1200HZ | |
| Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable | |
| Operation Parameter | Working Voltage | AC220±10% 50Hz/AC110±10% 60Hz |
| storage Temperature | 35℃~+85℃ | |
| Working Temperature | 20℃~+50℃ | |
| Humidity | 10%-95% | |
| Life Span Time | &LED;100000 hours | |
| MTBF | &LED;5,000hours | |
| Screen Plainness | <> | |
| Blind Spot Rate | <> | |
| Certificate | CE, RoHS, FCC | |
| Application | Outdoor, Indoor Rental Purpose | |

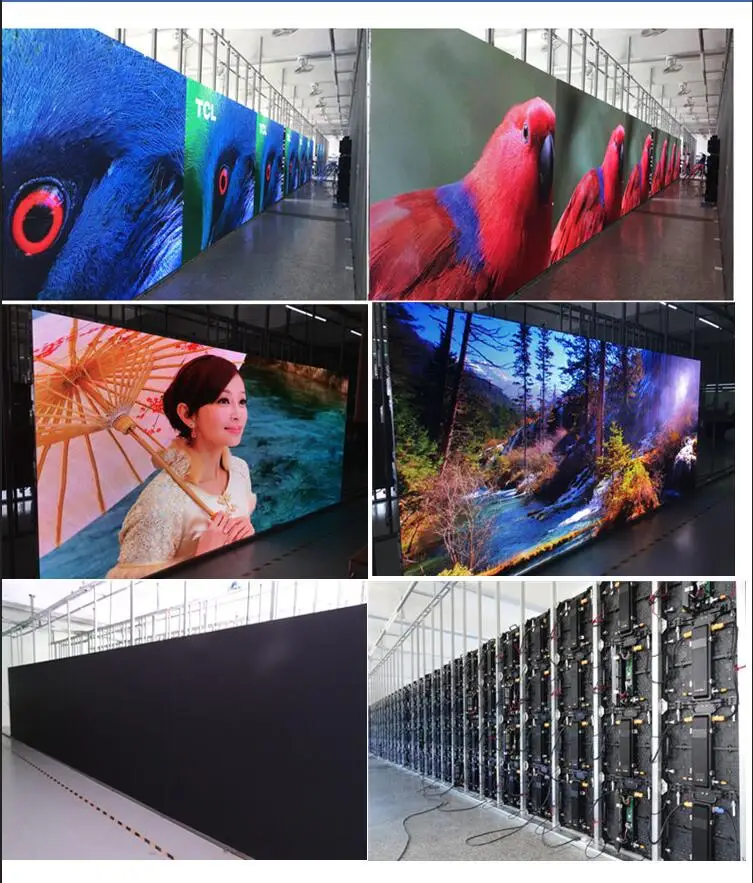

Age testing
1)Reply your inquiry in 24 working hours.
2)Experienced staffs answer all your query in fluent English,Spanish,French,German etc
3)Customized design is available,OEM & ODM are welcomed.
4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5)Special discount and protection of sales area provided to our distributor.
6)Warmly welcome your visit in our company if available.

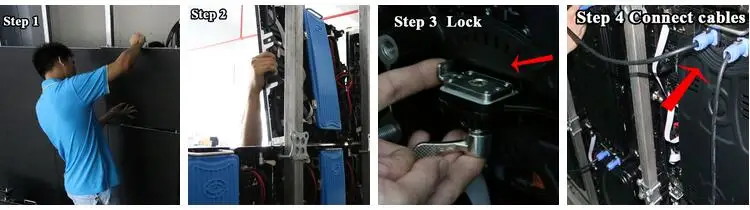

7 ) Guidance service: We can guide on line if customers have questions about the installation and usage.
For large project, we provide your engineer a week free training, or if customer could bear the relevant cost, our engineer can go to customer's country for on-site guidance.
8) Warranty period: 5 years after shipment.
