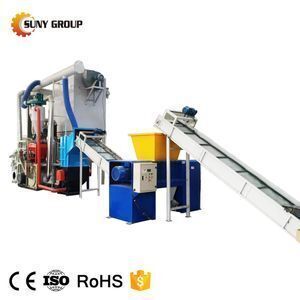

Scrap PCB Recycling Equipment E waste Recycling Machine Supplier

Supplier: Zhengzhou Zhengyang Machinery Equipment Co., Ltd.
Region: Henan, China
Contact: Mr Jack Hao
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	SUNY;	Separating method 2:	electrostatic separator for our E waste Recycling Machine;
Model Number:	PCBZY-500;	Capacity:	500Kg/h for our E waste Recycling Machine;
Port:	Qingdao or other China port;	Separating method 1:	air flow separator for our E waste Recycling Machine;
Final products:	separated metal powder and resin powder;	Color:	Optional for our E waste Recycling Machine;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Supply Ability:	80 Set/Sets per Month Scrap PCB Recycling Equipment E waste Recycling Machine Supplier;
Warranty:	1 Year for our E waste Recycling Machine;	Place of Origin:	Henan China;
Energy supply:	As customized for our E waste Recycling Machine;	Delivery Detail:	Shipped in 15 days after payment;
Packaging Detail:	wooden cases or plywood boxes;	Name:	Scrap PCB Recycling Equipment E waste Recycling Machine Supplier;
After-sales Service Provided:	Engineers available to service machinery overseas;	Environmental:	cyclone dust collector for our E waste Recycling Machine;
Raw materials:	PCBs, computer boards, TV boards, smartphone boards, etc.;

Scrap PCB Recycling Equipment E waste Recycling Machine Supplier

Product Description

Our Scrap PCB Recycling Equipment E waste Recycling Machine Supplier help you get metals, resin powder and fiber powder from used Printed Circuit boards. Such as, waste computer boards, waste cell phone boards, waste TV boards pcb scrap etc.

Because of the high value of the metals, fiber and resin, there is no doubt that this series plants not only help to change waste to treasure, but also bring great economic benefits.

Through years of practice and theoretical analysis, we obtain the best separation result, the separating purity can be reached to 99%.

Main Technial Data

Scrap PCB Recycling Equipment E waste Recycling Machine Supplier

Name	Type	Qty.	Volt/Power (v/kw)	Productivity (kg/h)	Area Required (m2)
Belt Conveyor	600Type	1Set	380/3	500-800	3
Primary Uniaxial Shredding Machine	600Type	1Set	380/37	500-800	2
Water-Cooled Mill	500-400Type	3Sets	380/111	500-800	16
Rotary Vibration Sieve	800Type	3Sets	380/3	500-800	5
Wind Conveyor		3Sets	380/4.5	500-800	6
Air Separator	800Type	1Set	380/10.5	500-800	9
Pulse Dust Filter	36bags	3Sets	380/8		4
Electrostatic Separator	HL-1500Type	2Sets	380/7.5	500-800	5
Bag Filter	25bags	2Sets	380/4.4

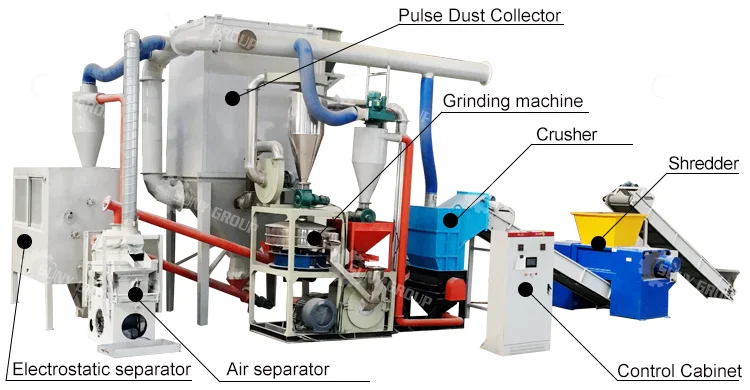

Technology Process

1. Physical separation:

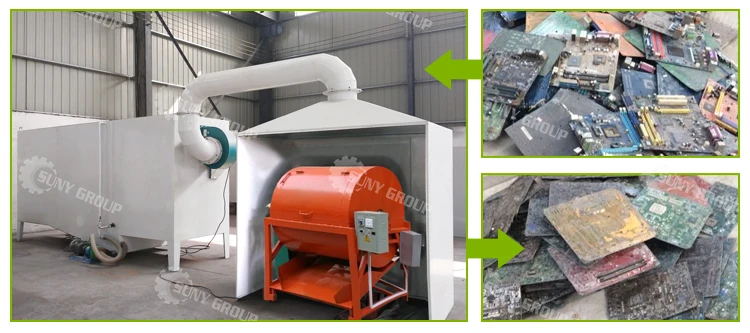

1). Dismantling machine, which is used to separate the components on the pcb boards.

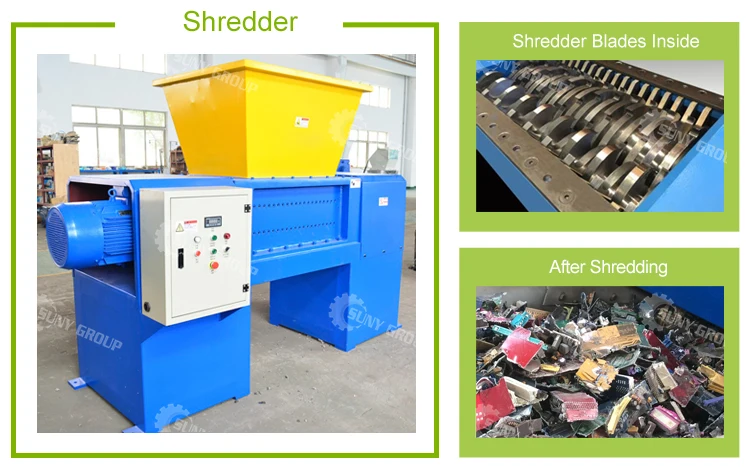

2). Shredder, mainly used to shred the mother boards into pieces of 2cm*5cm size.

3). Hammer Grinder, which is used to grind the shred mother board into 20mesh powder mixture.

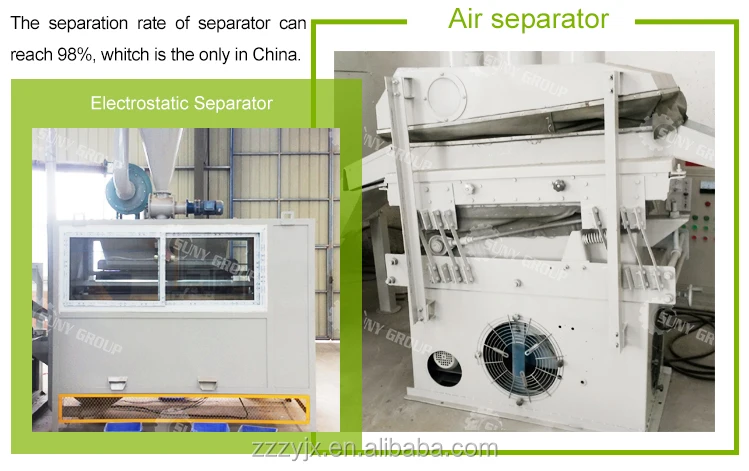

4). The metal and non-metal powder mixture is separated throught air flow separator and electrostatic separation.

5). Dry type producing process and dust collector device made the whole line no pollution produced.

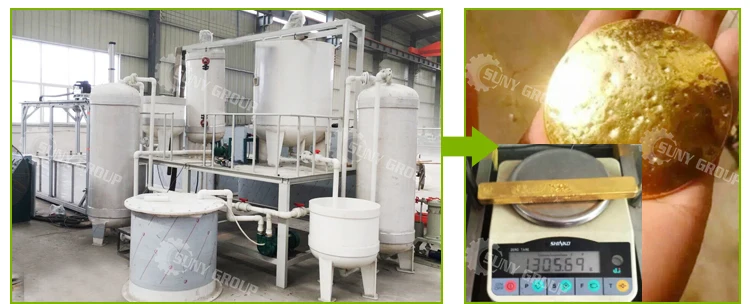

2. Chemical separation:

We can get the valuable material such as Au, Ag ,Ba from the metal powder after the physical separation, if you need this process please tell us your pcb in details.

Detailed Images

waste computer boards, waste cell phone boards, waste TV boards, pcb scrap etc
