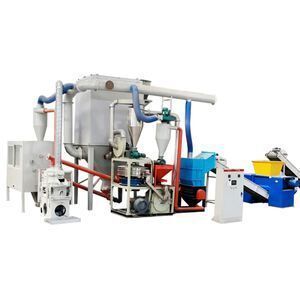

Electrolysis For PCB Circuit Board Recycling Machine

Supplier: Zhengzhou Zhengyang Machinery Equipment Co., Ltd.
Region: Henan, China
Contact: Mr Jack Hao
Price: $40000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Capacity:	200-300;	Advantage:	Machine Precision;
Name:	Electrolysis For PCB Circuit Board Recycling Machine;	Supply Ability:	10 Set/Sets per Month;
Port:	Default port is qingdao, and the others is ok;	Packaging Detail:	According to industry standand;
Usage:	scrap boards;	Motor:	customer made;
Voltage:	415/380/240;	final product:	resin powder and metal powder;
Condition:	New;	Installation:	Engineers Guiding;
Materials:	all kinds of used board;	Place of Origin:	Henan China;
separate rate:	99;	Warranty:	1 year;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Key Selling Points:	99% separate rate;
Applicable Industries:	Manufacturing Plant;	After-sales Service Provided:	Field installation, commissioning and training;
Brand Name:	suny group;

Product Description

Product Application

Computer Scrap Recycling Separating Machine is used to recycle all kinds of Printed Circuit boards, such as the computer boards, cell phone boards, TV boards, copper-clad laminate, and other household appliances, and the separation of leftover material of the mixed metal and nonmetal materials.

SPECIFICATIONS FOR 200-300KG/H PCB RECYCLING MACHINE
	Air gravity separator800	kg/h	600-800
Main performance parameters	Double-shaft shredder600	kg/h	600-800
	Hammer crusher600	kg/h	500-700
	Griding machine 600	kg/h	300-500
	Electrostatic sorting equipment	kg/h	600-800
	2-Pulse dust collector (60 bags)	kg/h	10s/vibrating

Main Features

1) Double-shaft shredder(≤3-5cm)
a.Motor reducer use hard-faced can ensure stability of dynamic system
b.Automatic overload protection : avoid machine overload and jam
c.Automatic forward and reverse : prevent the motor from burning out blade &bearing from damage .

2) crusher (≤1cm)
a.Structural seal, solves the dust pollution in the crushing workshop and the ash leakage of the machine
b.low energy consumption,low noise

3)About grinding device
a.Temperature control: wind-cooling & water cooling circulation system
b.Clearance of moving blade: 0.02mm
c.Conical design : reduce blocked

4) Air gravity separator
a.Toughness:Adopt wood frame which are stable & easy to balance
b.Long life sevice:Screen mesh is stainless steel

5) Electrostatic Separator
a.Higher purity & Output:separate & extract twice by double-roller
b.Voltage stability:automatic voltage regulation can meet different conditions.
c.Corona wire: special alloy material , small resistance, large static electricity, good sorting effectd.Backflow diode: imported from Japan
6)Pulsed dust-cleaning system(Collecting dust particles ≥ 0.3 μ m)
a.Dust removal efficiency as high as 99%.
b.Long service life of filter bag
7)Efficient work
a. Efficient work : negative pressure feeding & ventilation method
b.air lock valve:conveying & sealing
c.Cyclone feeding : ensuring uniformity of material & sending the dust gas into dust device.

Certifications

Detailed Images

Machine Parts

Name: Double-shaft shredder

Brand:Famous

Original: China

Domestic famous engines, strong driving force, low fuel consumption, high economic benefits.
Automatic forward and reverse : prevent the motor from burning out blade &bearing from damage .

Main Features

Name: cruhser
Brand: famous
Original: china
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits,low energy consumption, low noise

Machine Parts

Name: griding machine
Brand: famouse
Original: china
a.Temperature control: wind-cooling & water cooling circulation systemb.Clearance of moving blade: 0.02mm c.Conical design : reduce blocked

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	16(L) * 8 (W) * 4.5 (D)
Weight	13 T
Packaging Details	The normal package is 40 feet container or pack it according to customers special request.

Packaging
Size	16(L) * 8 (W) * 4.5 (D)
Weight	13 T
Packaging Details	The normal package is 40 feet container or pack it according to customers special request.
